Fenix Outdoor & EDC PD25R Rechargeable Flashlight Max 800 Lumens, Head: 0.94" (24mm), Powered by 1 x 16340 700mAh Li-ion Battery (Included), Build-In USB-C Charging Port, USB Charging Cable is Included - 5 Years Free Repair Warranty
Fenix Outdoor & EDC PD25R Rechargeable Flashlight Max 800 Lumens, Head: 0.94" (24mm), Powered by 1 x 16340 700mAh Li-ion Battery (Included), Build-In USB-C Charging Port, USB Charging Cable is Included - 5 Years Free Repair Warranty
- Brand: Fenix
- MPN: FNX-PD25R
- Part #: TOLFNX0077
- UPC:
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Got this light to compliment my other light (Fenix LD30) and ...view more"
Features
Safe Use Warnings:
- Do place this light out of the reach of children!
- Do NOT shine the light directly into the eyes of anyone!
- Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
- Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
- This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
- Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

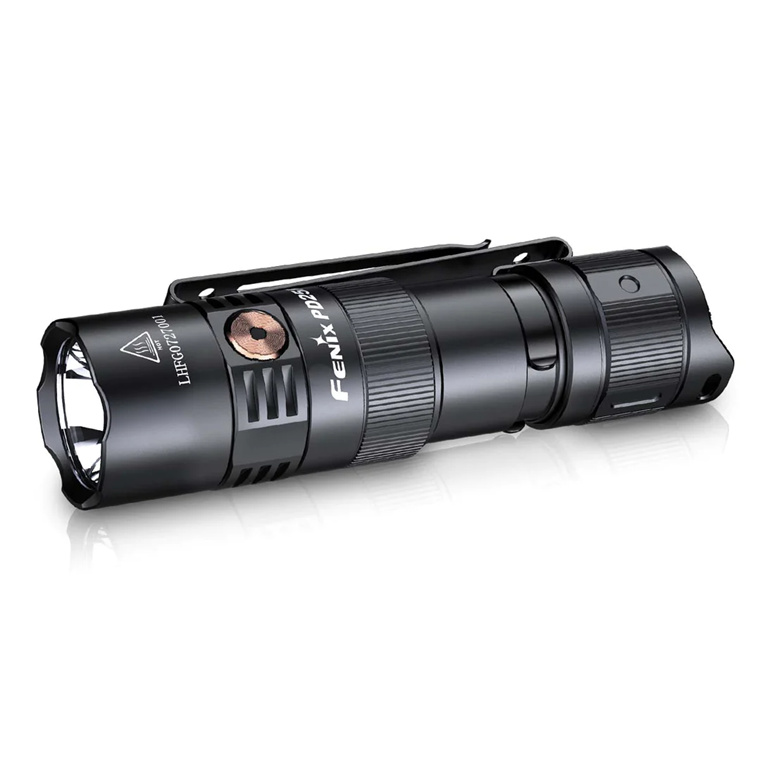

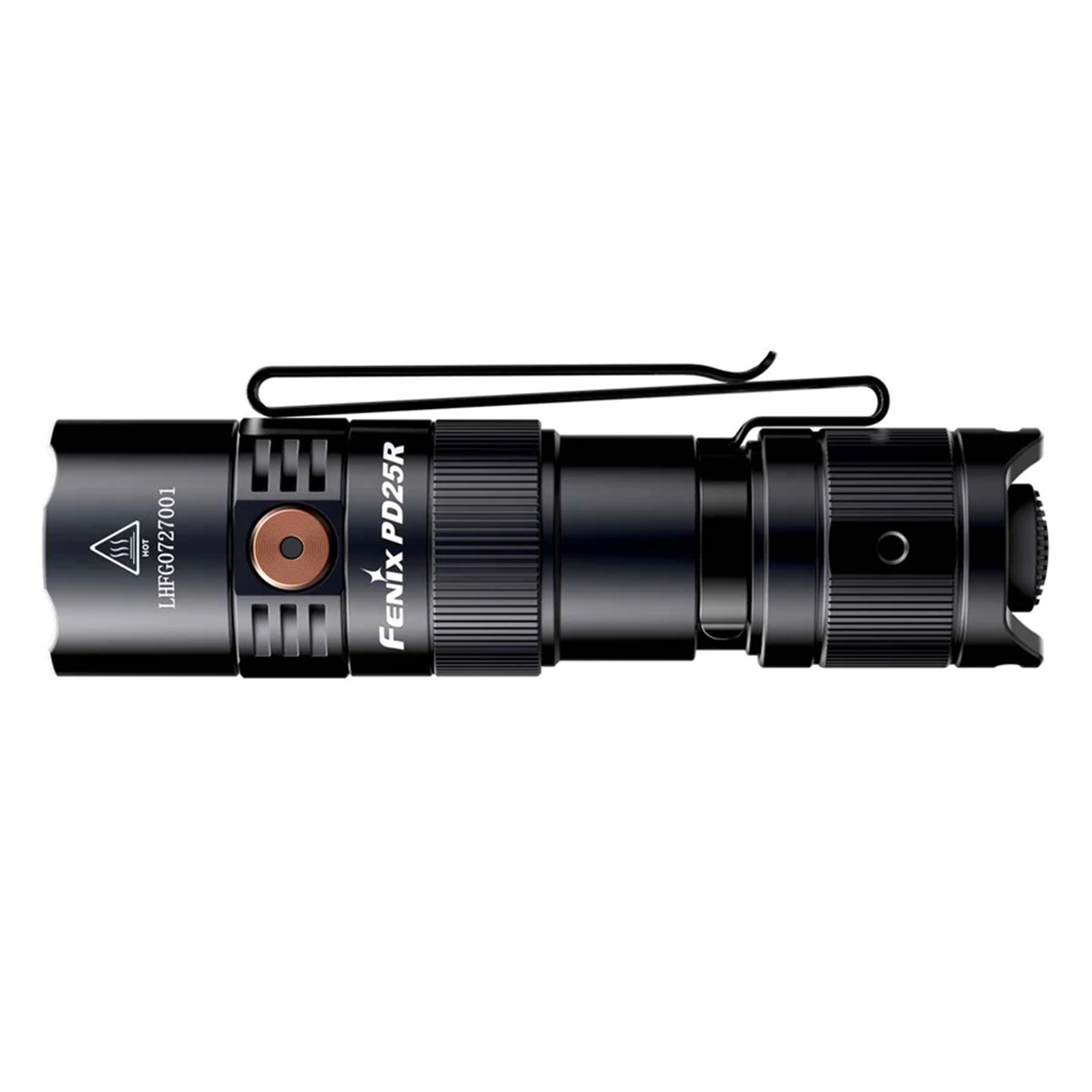

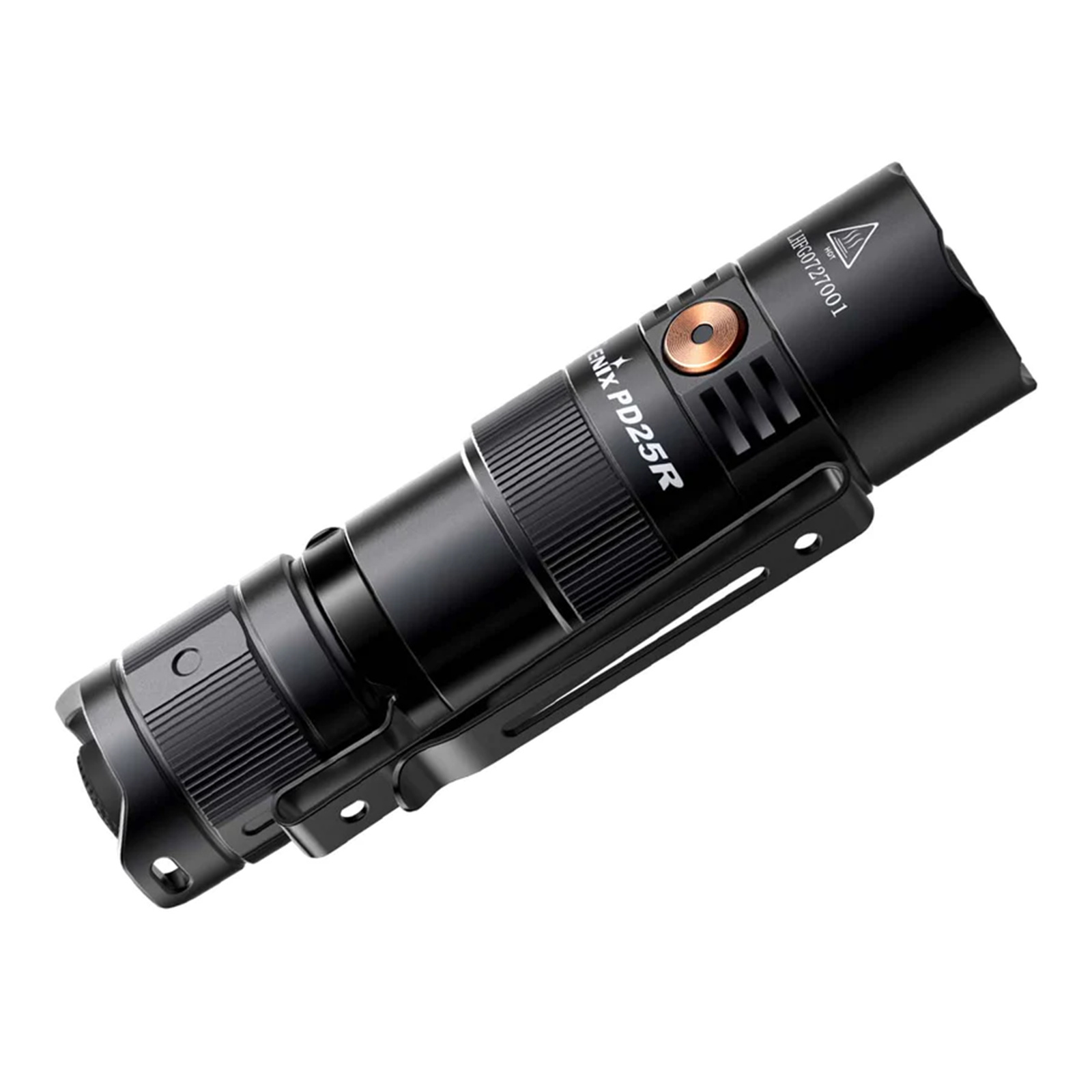

The Fenix PD25R flashlight is a portable flashlight with a hidden Type-C charging port. The PD25R blasts an amazing 800 lumens and a total distance of 250 meters. The PD25R is powered by a single 16340 rechargeable Li-ion battery (included) or can operate on a disposable CR123A Lithium battery. The boot-up battery level indicator lets you always know the battery's status. On/off and momentary-on are activated with the tactical tail switch and six lighting modes are selected with the side switch including a strobe mode. Carry the Fenix PD25R how you want - on a backpack, belt, or MOLLE system with the two-way body clip. Compact and built-tough with an IP68 dustproof and waterproof rating, this flashlight is perfect for just about any outdoor or work activity.
Size: Length: 3.62'' (92mm) x Head: 0.94'' (24mm) x Body 0.94'' (24mm)
Weight: 2.75 oz / 78 g (excluding battery)

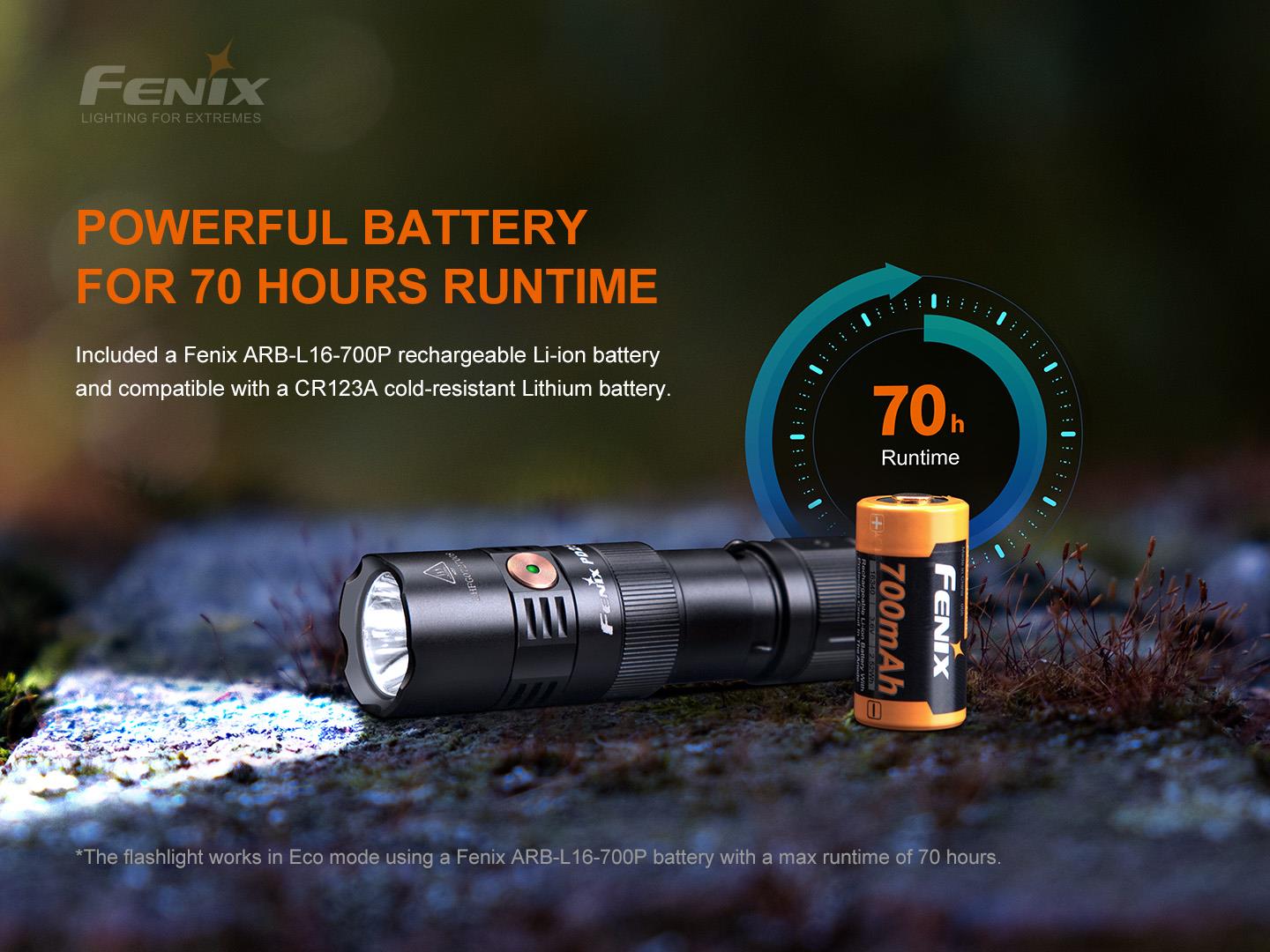

Battery Type: Included one Fenix ARB-L16-700P rechargeable Li-ion battery

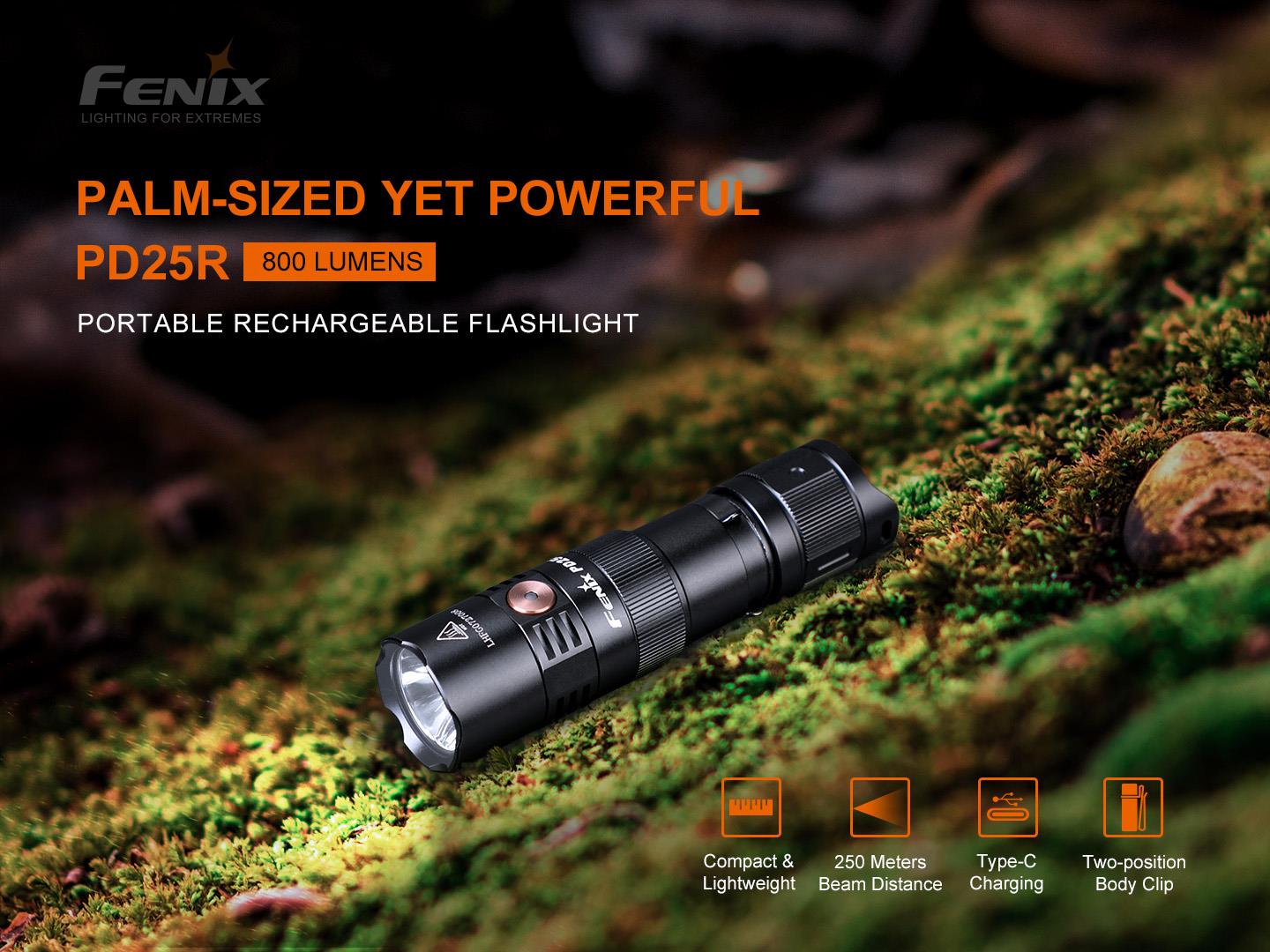

- 800 lumens maximum output, 250 meters maximum beam distance.
- Luminus SST20 LED with a lifespan of 50,000 hours.

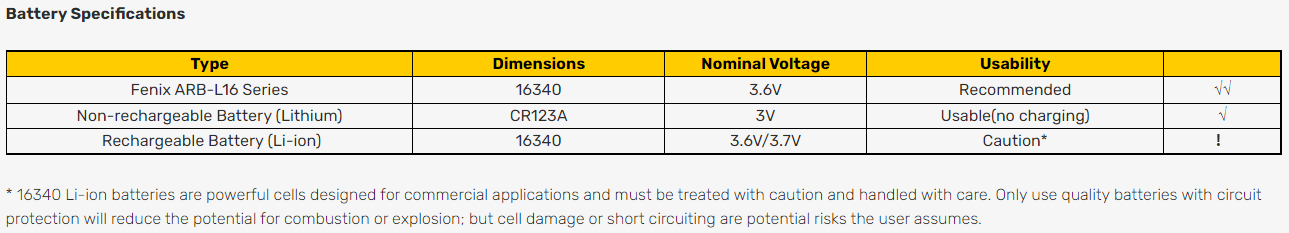

- Powered by a 16340 rechargeable Li-ion battery and compatible with a CR123A Lithium battery.
- Toughened ultra-clear glass lens with an anti-reflective coating.
- USB Type-C charging.
- Battery level indication and low voltage warning.
- Instant power activation with momentary tactical tail switch; simple output selection with side switch.

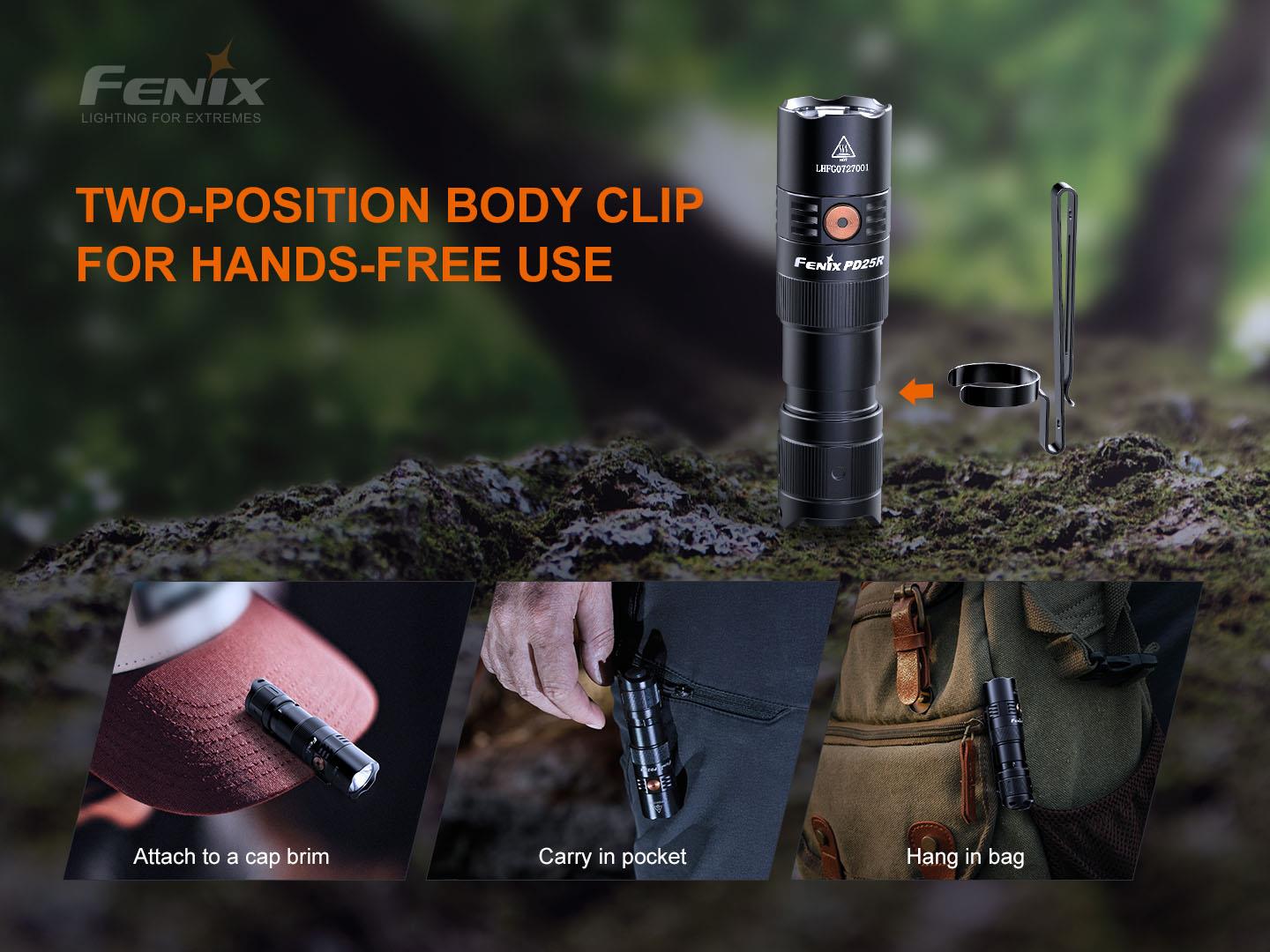

- Anti-roll and anti-slip body design; included two-position body clip.
- Reverse polarity protection, to protect from improper battery insertion.

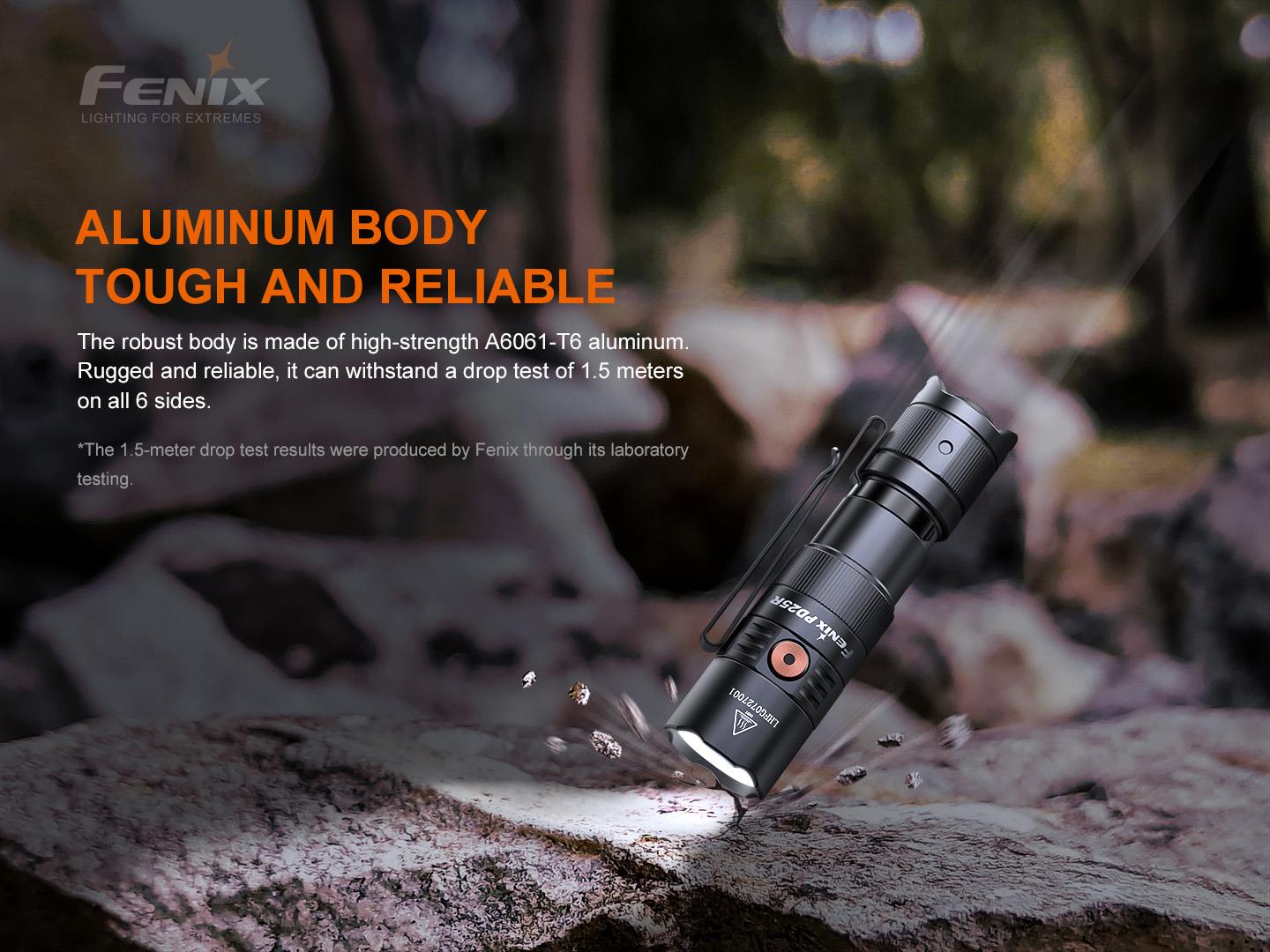

- Made of durable A6061-T6 aluminum.
- Premium type HAIII hard-anodized anti-abrasive finish.
Operating Instructions
ON/OFF:

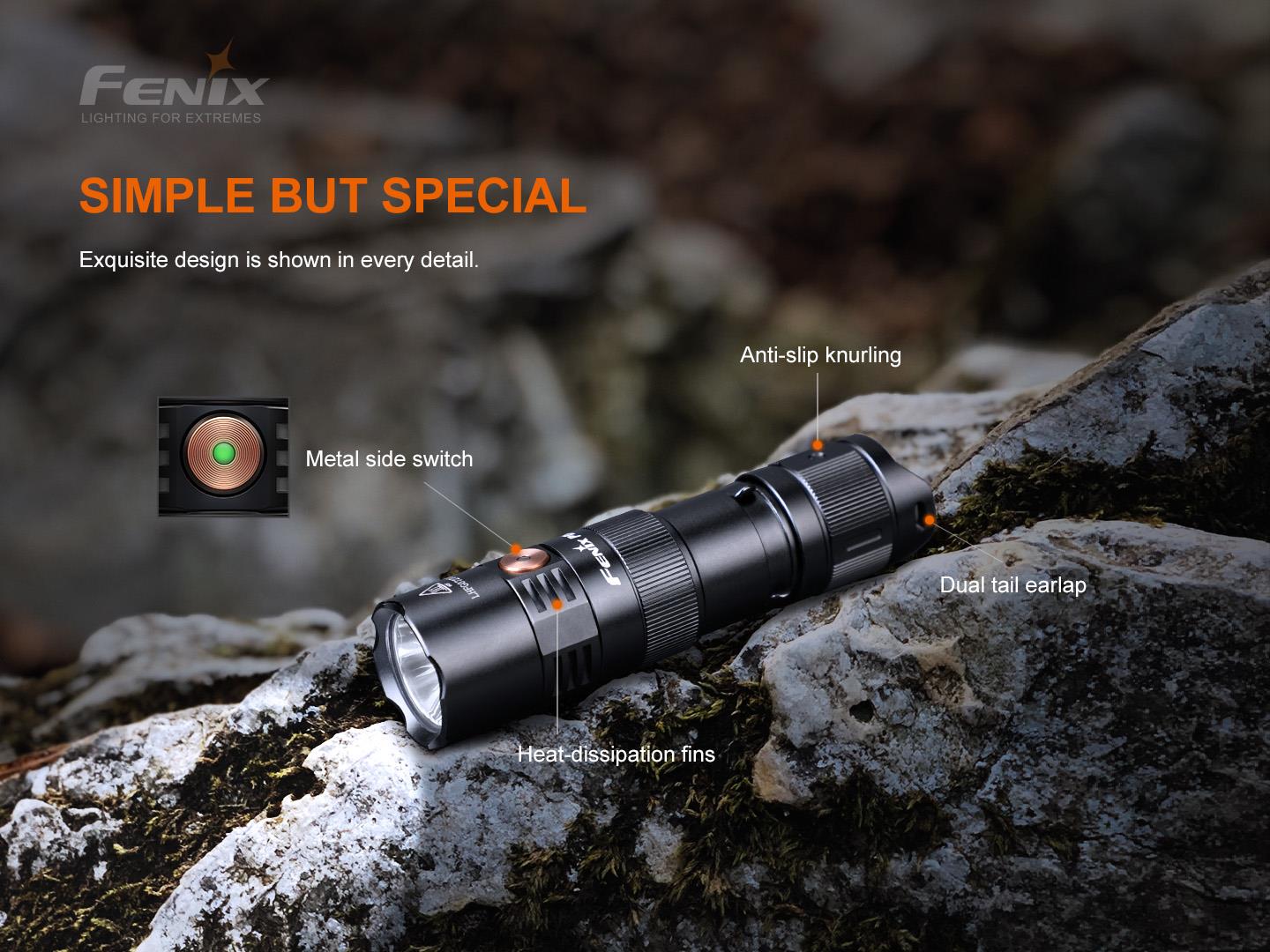

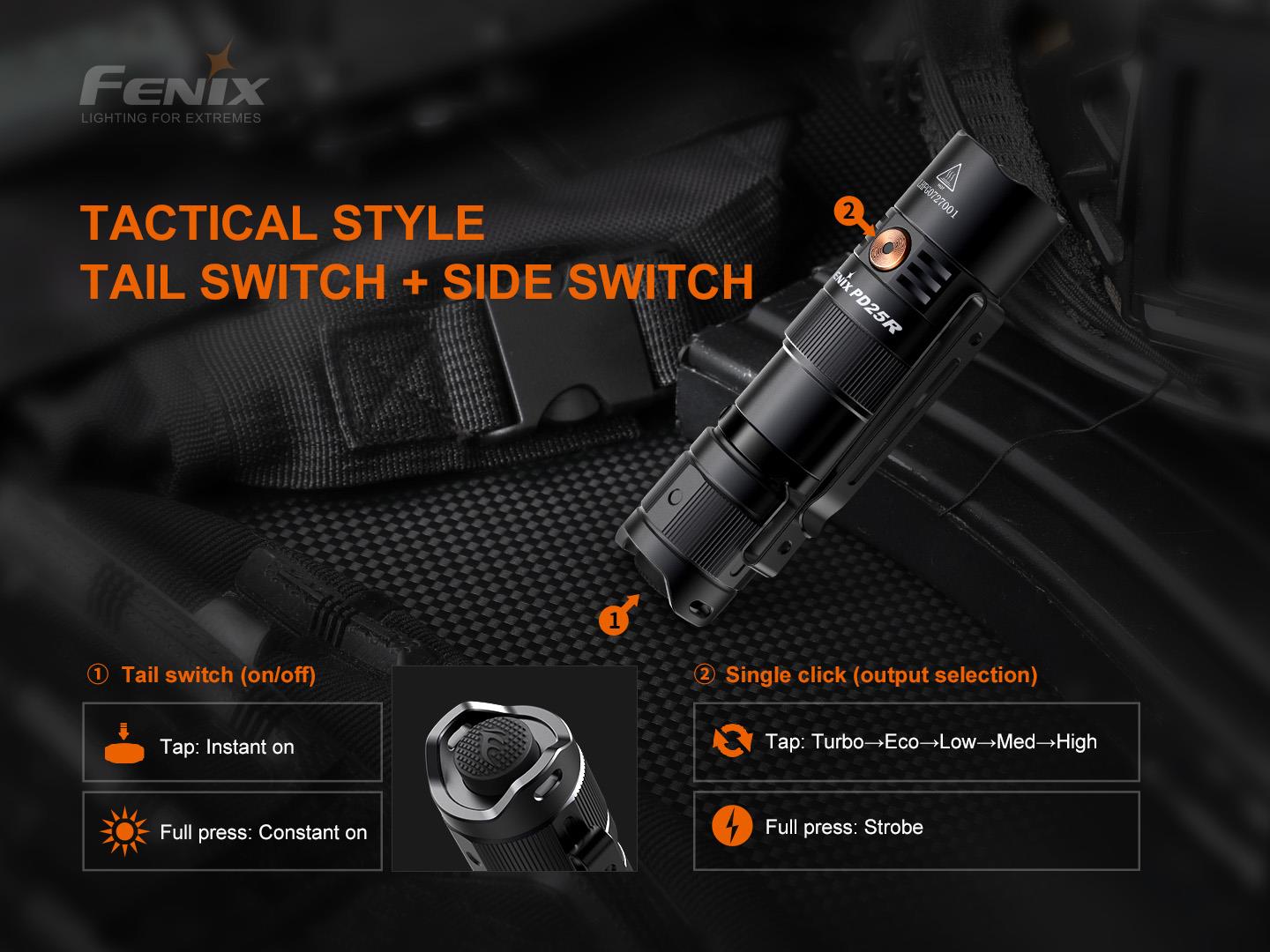

- The tail switch is the tactical switch and the side switch is the functional switch. Tap the tactical switch to momentarily turn on the PD25R, release the light will go out.
- Fully press the tactical switch to constantly turn on the light, press again to turn off the light.
Mode Switching:
- When the light is switched on, press and hold the functional switch for 0.5 seconds to enter strobe, single click again to turn back to general mode.
Output Selection:
- When the light is switched on, single click the functional switch to cycle through Turbo, Eco, Low, Med, High.
Intelligent Memory Circuit
- The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
Battery Replacement:
Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.
Charging the PD25R:
1, Switch off the light and loosen the light head to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2, The indicator will display red while charging and will turn green when fully charged.
3, Once charging is completed, be sure to tighten the light head to maintain the dustproof and waterproof ability.
Note:
1, The normal charging time of the included Fenix ARB-L16-700P is approximately 2 hours from depletion to full charging.
2, Recharge a stored light every four months to maintain the optimum performance of the battery.
3, The Eco output is available while charging (press and hold the functional switch for 0.5 seconds), but the charging time will be prolonged.
Battery Level Indication:
Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.
- Green light on: saturated 100% - 85%
- Green light flashes: sufficient 85% - 50%
- Red light on: poor 50% - 25%
- Red light flashes: critical 25% - 1%
Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.
Intelligent Overheat Protection
The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.
Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Eco output mode, the battery level indicator blinks red to remind you to timely recharge or replace the battery.
Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.
Usage and Maintenance:
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using only a high-quality protected battery.
- If the light will not be used for an extended period, remove the battery for proper storage.
- Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: Poor battery level.
Solution: Recharge or replace the battery.
B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Hardwired Articles
Popular Flashlights & Portable Lights
Fenix Everyday Carry Torch E02R Mini Keychain Flashlight Max 200...
Fenix Work & Outdoor HM50R V2.0 Rechargeable LED Headlamp Max 700...
Xiaomi LED Torch 1000 Lm Multi-function Flashlight USB-C Charge...
Fenix Tactical Flashlights TK16 V2.0 Rechargable LED Torch Max 3...
Fenix Camping & Hiking HM65R-T V2.0 Black Rechargeable LED...
_20250106132842.webp)
Fenix Outdoor & EDC PD25R Rechargeable Flashlight Max 800 Lumens, Head: 0.94" (24mm), Powered by 1 x 16340 700mAh Li-ion Battery (Included), Build-In USB-C Charging Port, USB Charging Cable is Included - 5 Years Free Repair Warranty
- Brand: Fenix
- MPN: FNX-PD25R
- Part #: TOLFNX0077
Product URL: https://www.pbtech.co.nz/product/TOLFNX0077/Fenix-Outdoor--EDC-PD25R-Rechargeable-Flashlight-M
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 2 | |
| Queen Street | 2 | |
| Auckland Uni | 2 | |
| Newmarket | 1 | |
| Westgate | 4 | |
| Penrose | 0 | |
| Henderson (Express) | 1 | |
| St Lukes | 5 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 1 | |
| New Plymouth | 0 | |
| Palmerston North | 1 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 3 | |
| Hornby | 0 | |
| Christchurch Central | 2 |
Features
Safe Use Warnings:
- Do place this light out of the reach of children!
- Do NOT shine the light directly into the eyes of anyone!
- Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
- Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
- This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
- Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!
The Fenix PD25R flashlight is a portable flashlight with a hidden Type-C charging port. The PD25R blasts an amazing 800 lumens and a total distance of 250 meters. The PD25R is powered by a single 16340 rechargeable Li-ion battery (included) or can operate on a disposable CR123A Lithium battery. The boot-up battery level indicator lets you always know the battery's status. On/off and momentary-on are activated with the tactical tail switch and six lighting modes are selected with the side switch including a strobe mode. Carry the Fenix PD25R how you want - on a backpack, belt, or MOLLE system with the two-way body clip. Compact and built-tough with an IP68 dustproof and waterproof rating, this flashlight is perfect for just about any outdoor or work activity.
Size: Length: 3.62'' (92mm) x Head: 0.94'' (24mm) x Body 0.94'' (24mm)
Weight: 2.75 oz / 78 g (excluding battery)
Battery Type: Included one Fenix ARB-L16-700P rechargeable Li-ion battery
- 800 lumens maximum output, 250 meters maximum beam distance.
- Luminus SST20 LED with a lifespan of 50,000 hours.
- Powered by a 16340 rechargeable Li-ion battery and compatible with a CR123A Lithium battery.
- Toughened ultra-clear glass lens with an anti-reflective coating.
- USB Type-C charging.
- Battery level indication and low voltage warning.
- Instant power activation with momentary tactical tail switch; simple output selection with side switch.
- Anti-roll and anti-slip body design; included two-position body clip.
- Reverse polarity protection, to protect from improper battery insertion.
- Made of durable A6061-T6 aluminum.
- Premium type HAIII hard-anodized anti-abrasive finish.
Operating Instructions
ON/OFF:
- The tail switch is the tactical switch and the side switch is the functional switch. Tap the tactical switch to momentarily turn on the PD25R, release the light will go out.
- Fully press the tactical switch to constantly turn on the light, press again to turn off the light.
Mode Switching:
- When the light is switched on, press and hold the functional switch for 0.5 seconds to enter strobe, single click again to turn back to general mode.
Output Selection:
- When the light is switched on, single click the functional switch to cycle through Turbo, Eco, Low, Med, High.
Intelligent Memory Circuit
- The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.
Battery Replacement:
Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.
Charging the PD25R:
1, Switch off the light and loosen the light head to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2, The indicator will display red while charging and will turn green when fully charged.
3, Once charging is completed, be sure to tighten the light head to maintain the dustproof and waterproof ability.
Note:
1, The normal charging time of the included Fenix ARB-L16-700P is approximately 2 hours from depletion to full charging.
2, Recharge a stored light every four months to maintain the optimum performance of the battery.
3, The Eco output is available while charging (press and hold the functional switch for 0.5 seconds), but the charging time will be prolonged.
Battery Level Indication:
Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.
- Green light on: saturated 100% - 85%
- Green light flashes: sufficient 85% - 50%
- Red light on: poor 50% - 25%
- Red light flashes: critical 25% - 1%
Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.
Intelligent Overheat Protection
The light will accumulate a lot of heat when used at relatively high modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.
Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Eco output mode, the battery level indicator blinks red to remind you to timely recharge or replace the battery.
Note: This only works with Fenix ARB-L16-700P 16340 rechargeable Li-ion battery.
Usage and Maintenance:
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using only a high-quality protected battery.
- If the light will not be used for an extended period, remove the battery for proper storage.
- Unscrew the tail cap or remove the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: Poor battery level.
Solution: Recharge or replace the battery.
B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

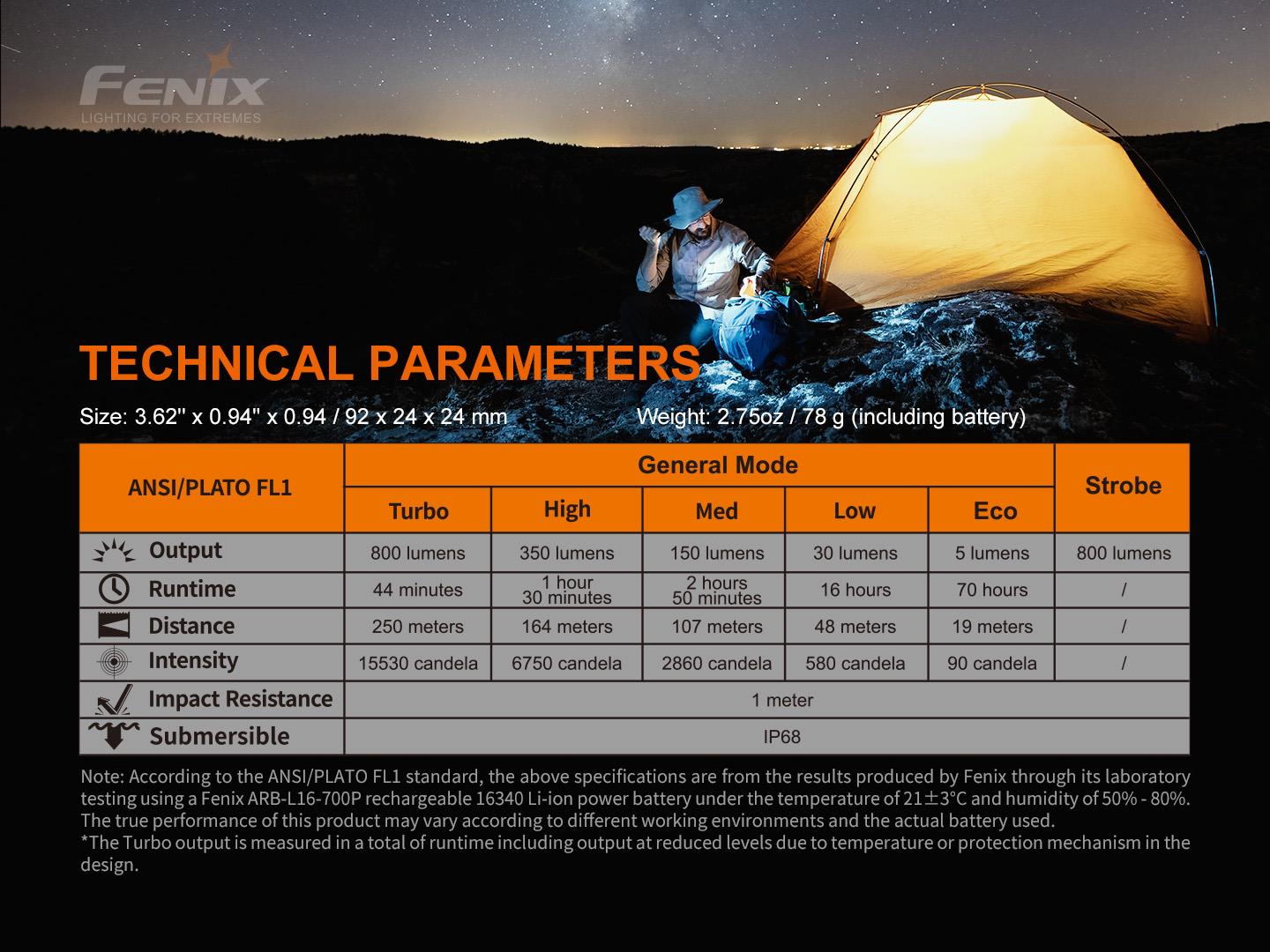

Specifications
Max Lumens
800
Max Beam Distance
820 feet (250 meters)
Max Runtime
70 hours
Lighting Modes
Five brightness levels plus strobe
Bulb Type
Luminus SST20 LED
Size
Length: 3.62" (92mm) Diameter: 0.94" (24mm)
Weight
2.75 oz. (78g) including battery
Battery
One included 16340 rechargeable li-ion battery or one CR123A lithium battery
Included

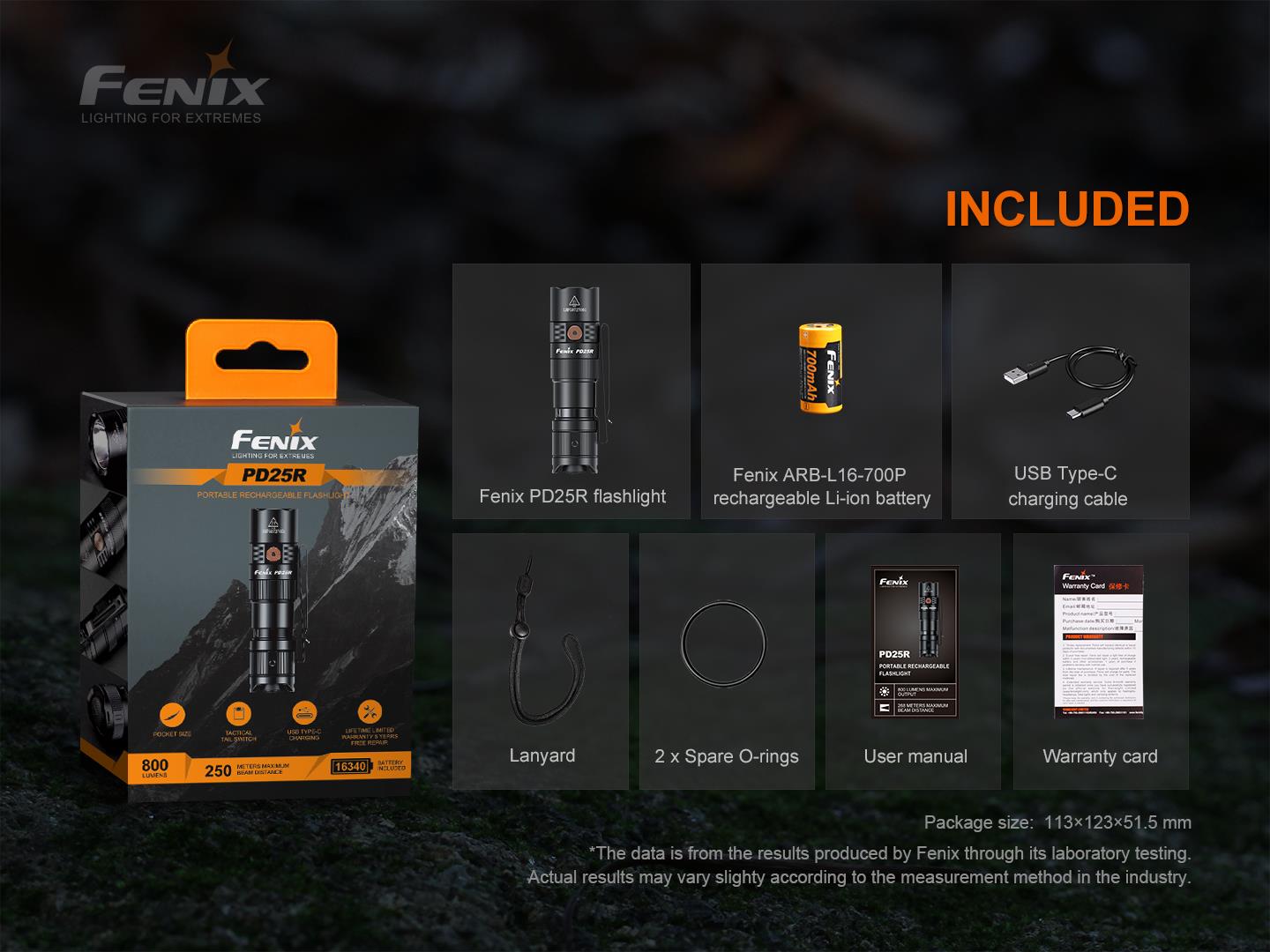

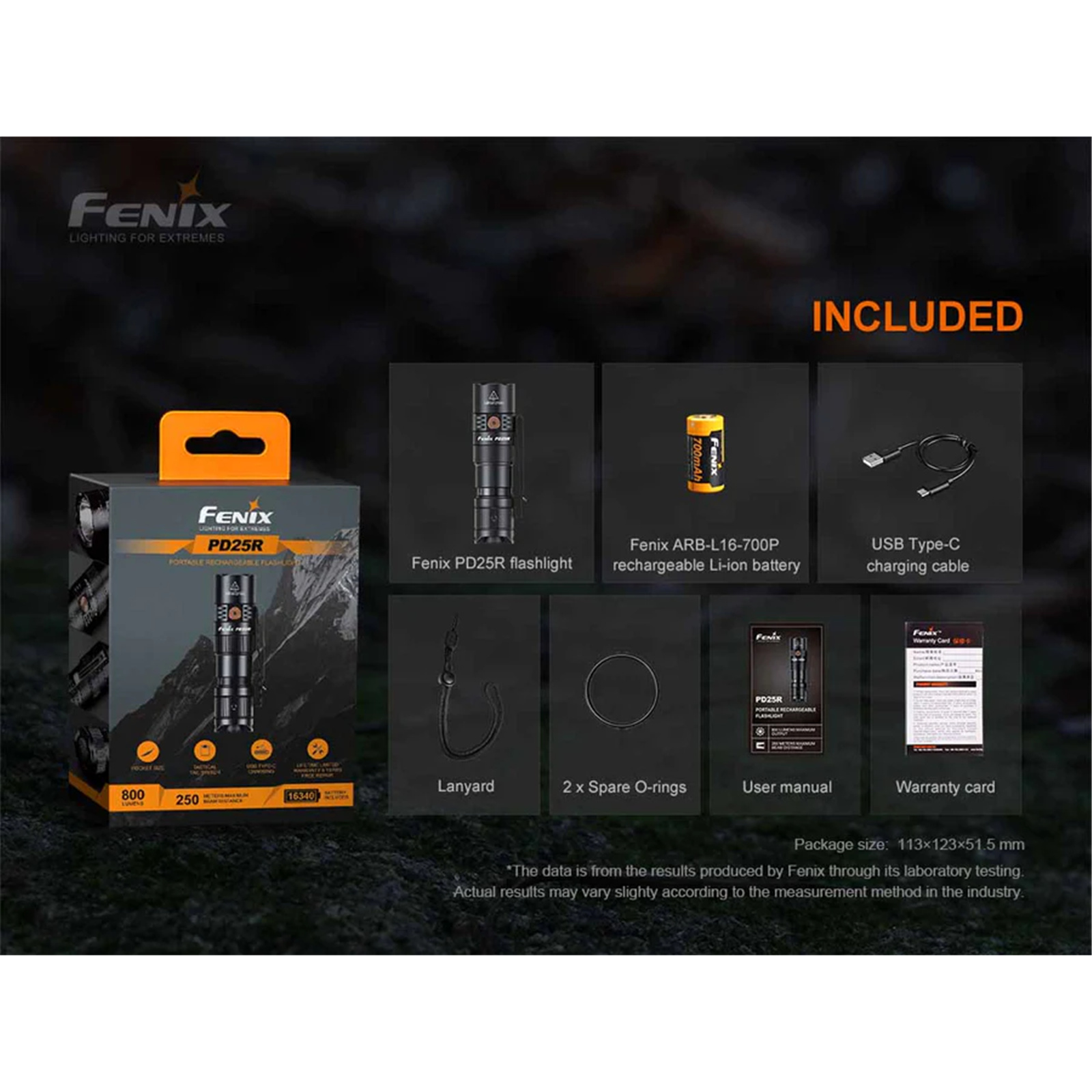

Fenix ARB-L16-700P rechargeable li-ion battery, USB Type-C charging cable, lanyard, 2 x spare O-rings, two-position body clip
