Fenix Gun Light & Tactical GL22 Multi-Purpose Tactical Flashlight, Max 750 Lumens, Powered by 1 x 16340 700mAh Li-ion Battery, Build-in Micro USB Charging Port, Precise Red Laser Aiming. 5 Years Free Repair Warranty (Battery for 1 year)!

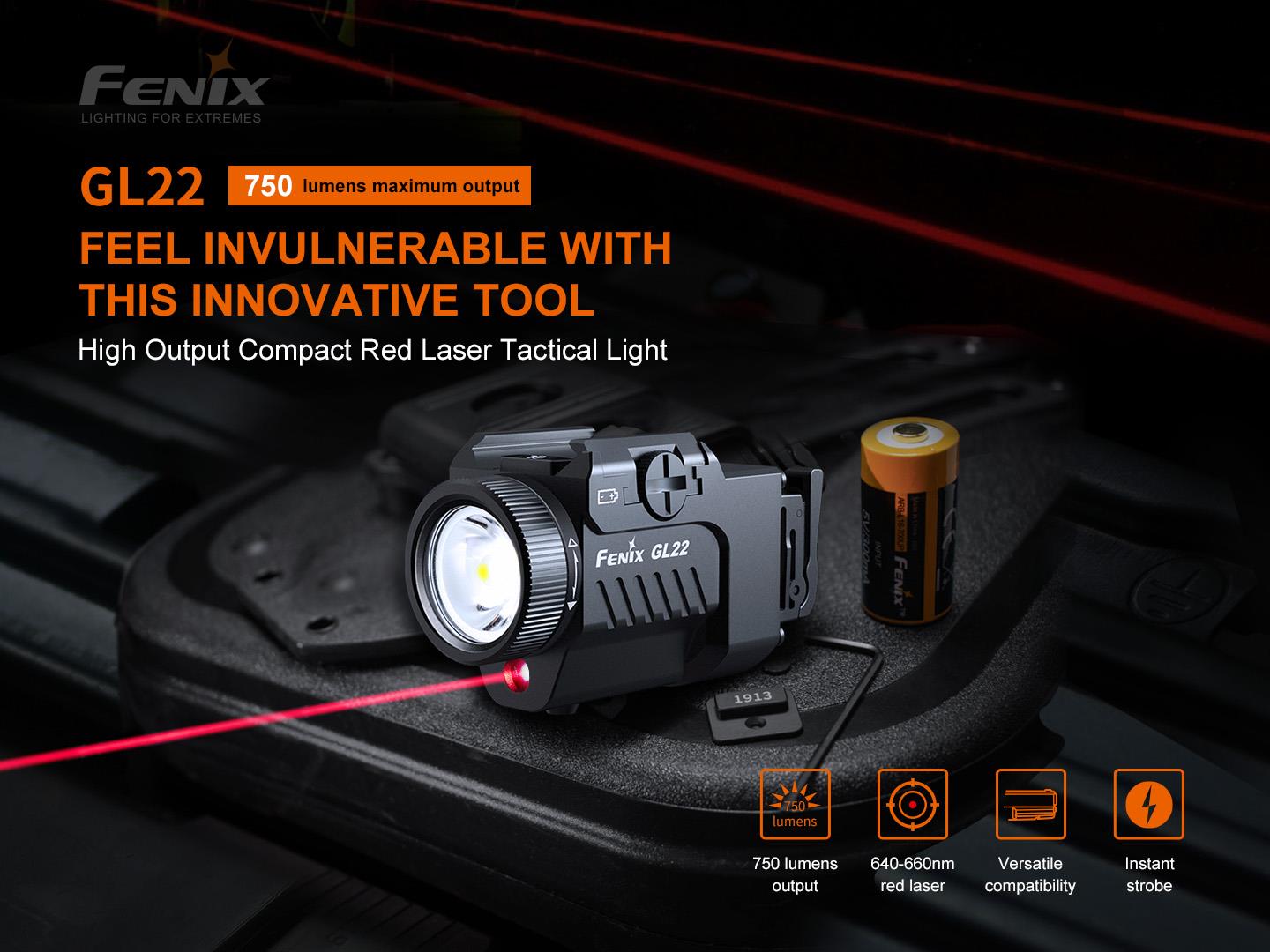

HIGH OUTPUT COMPACT RED LASER TACTICAL LIGHT!
  • Brand: Fenix
  • MPN: FNX-GL22
  • Part #: TOLFNX0086
  • UPC:
PB Tech price
$ 208 .65 $ 239 .95
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 19 Mar When will I receive it?
$208.65  +GST
$239.95

Four payments of $60.59 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $3.06 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $5.67 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

Important Warnings

FAILURE TO READ AND FOLLOW THESE OPERATING INSTRUCTIONS AND WARNINGS WHEN HANDLING A FIREARM OR THE GL22 CAN BE DANGEROUS AND CAN RESULT IN SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH. BEFORE ATTACHING, INSPECTING OR SERVICING A FIREARM-MOUNTED GL22

 - Engage the safety of the firearm if applicable.
 - Remove the magazine from the firearm if applicable.
 - Open the action and inspect the chamber to be sure it is empty.

Warning

 - The LED light with red laser is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the light directly into anyone's eyes.
 - This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight Pay attention to safe use to avoid scalding.
 - Do not shine an object at close range, to avoid burning the object or causing danger due to high temperature.
 - The LED of this flashlight is not replaceable; so the entire light should be replaced when the LED reaches the end of its life.
 - If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won't send a new manual.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

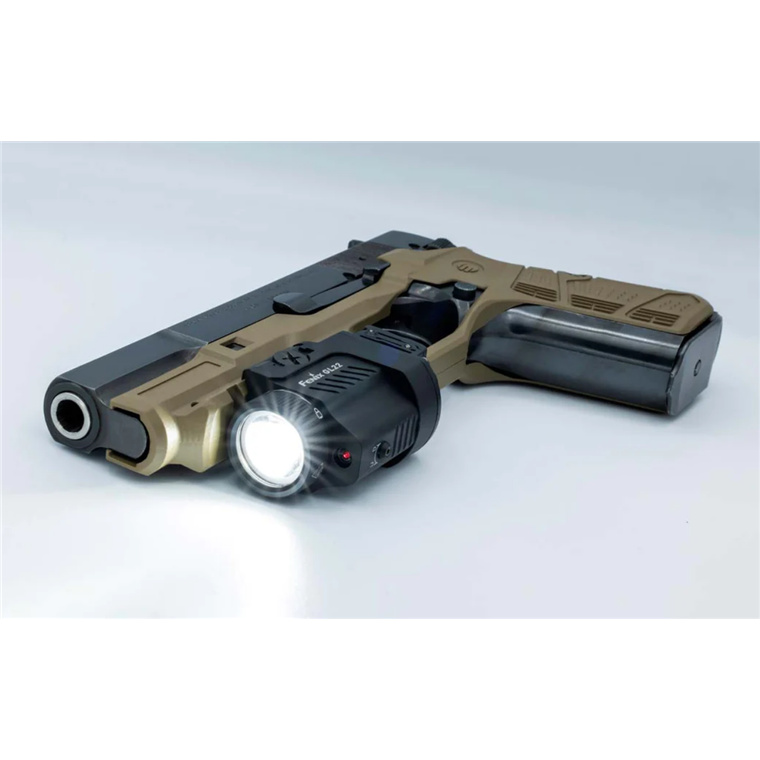

The Fenix GL22 Red Laser Tactical Light is compact white light and red laser combo, integrating wide compatibility and great accuracy. The red laser is highly visible to the human eyes, helping the user get on target quickly and accurately. Its recoil-proof LED white light emits a max output of 750 lumens and a robust beam distance of 180 meters. It is able to attach securely to both Universal and Picatinny accessory rails, which enhances visibility and targeting capability in law enforcement, self-defense, shooting and hunting.

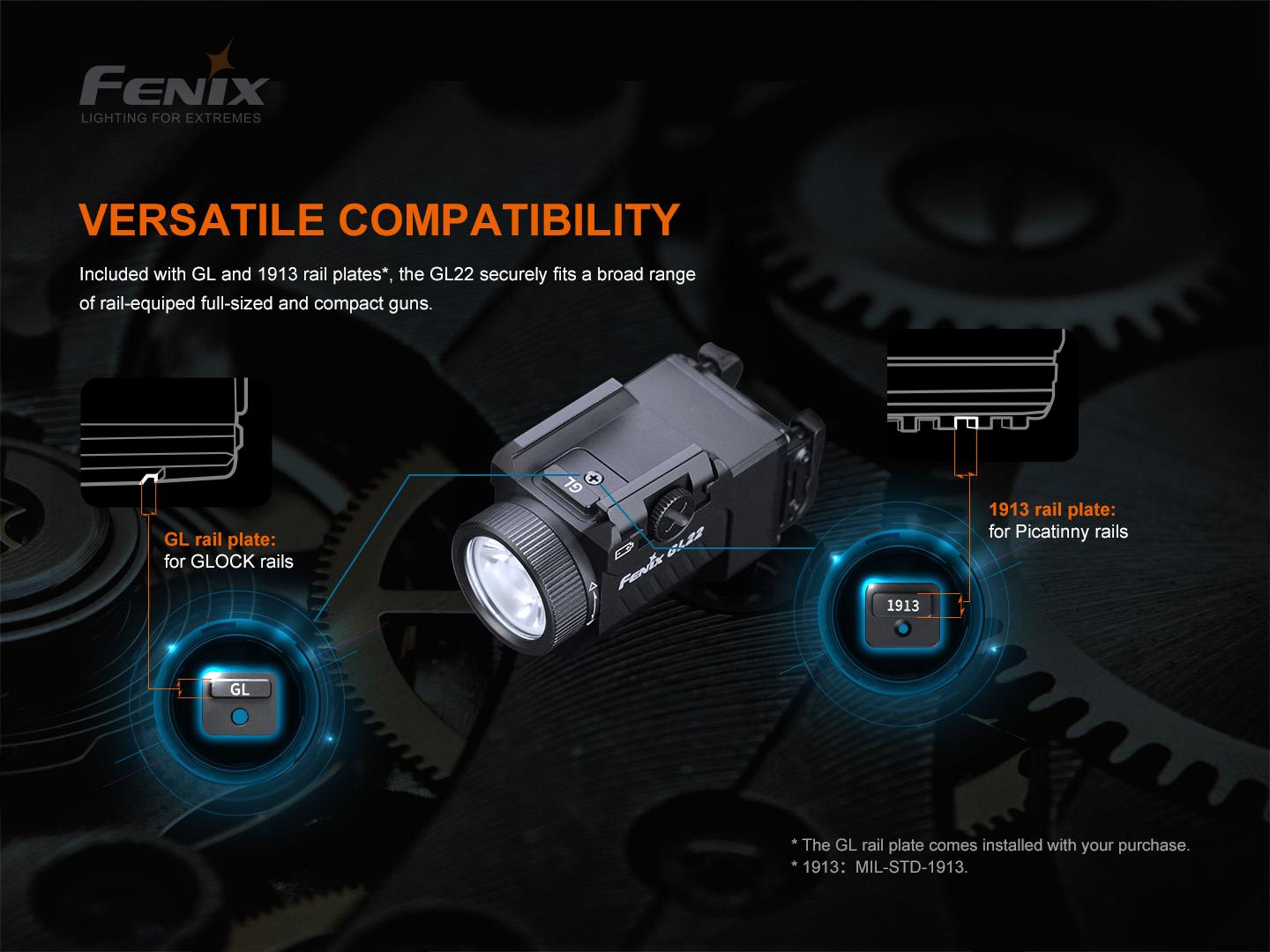

Compatibility

 - Will fit most full size pistols with a Glock or MIL-STD-1913 (Picatinny) rail.
 - Will only fit a few compact pistols including the Glock 36, Sig Sauer P229, and Springfield XDs. Will not fit other compact models from Sig Sauer, Taurus, F&N, CZ, Springfield (Hellcat), H&K, and Smith & Wesson
 - Will not fit any sub-compact or micro-compact pistols.

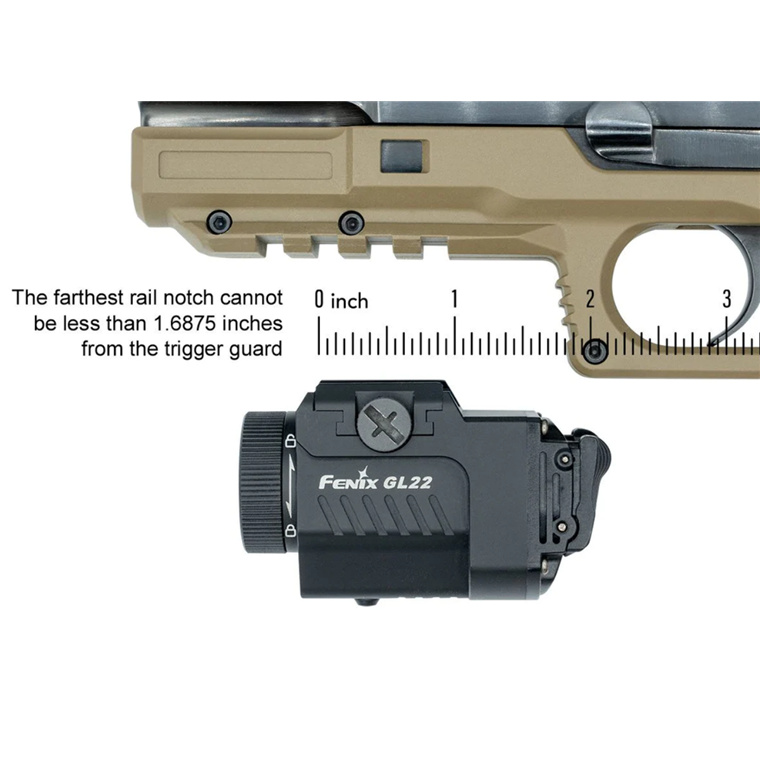

 - The farthest rail notch cannot be less than 1.6875 inches from the trigger guard.

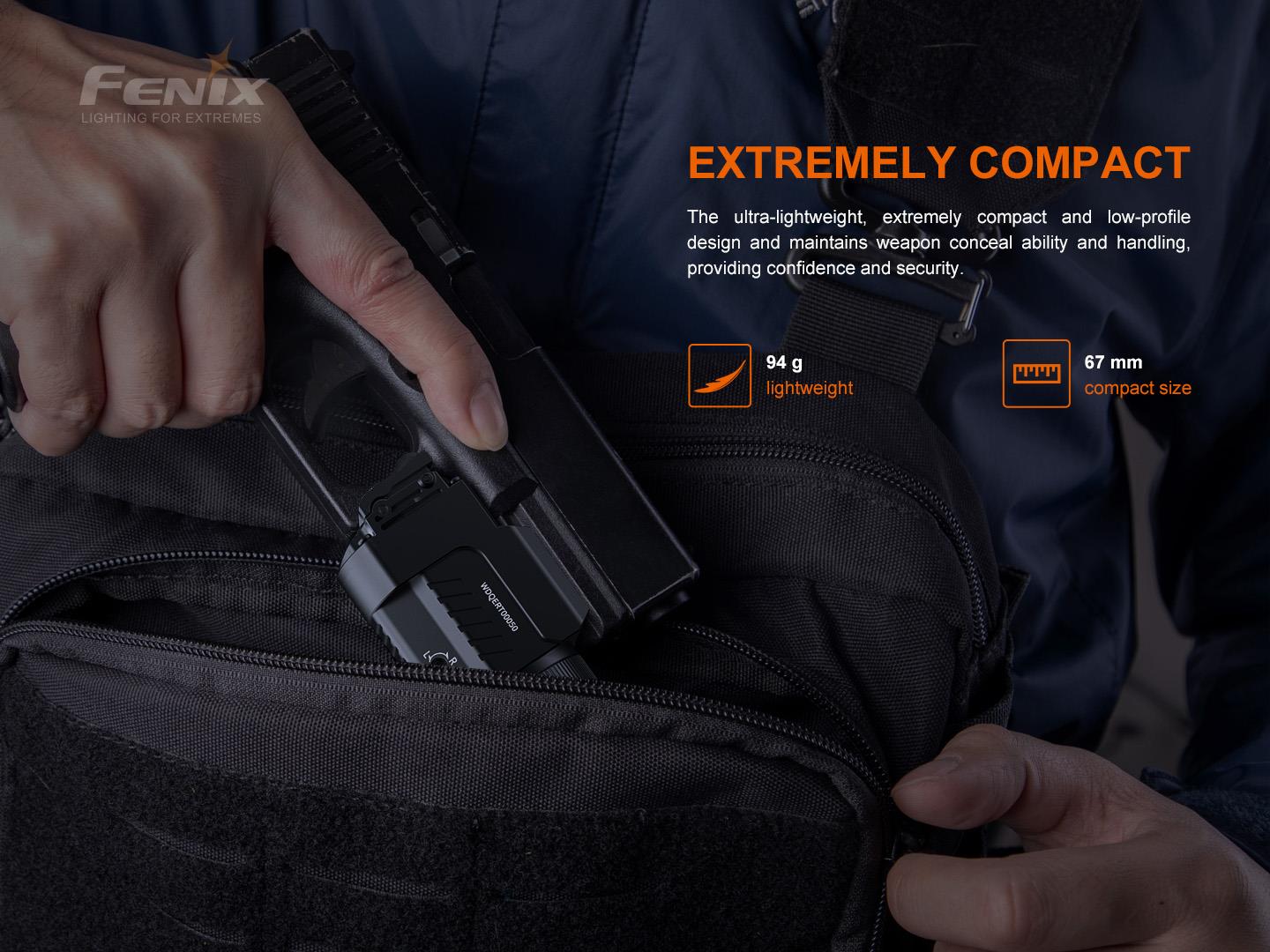

Size: 2.64"x 1.65"x 1.22"/ 67 x 42 x x31 mm
Weight: 3.32 oz / 94 g (including battery)
Battery Type: Included a 700mAh rechargeable Li-ion battery (with Micro USB port)

PRODUCT FEATURES:

 - 750 lumens maximum output, 180 meters maximum beam distance.
 - A Luminus LED with a lifespan of 50,000 hours.
 - Included a 16340 rechargeable Li-ion battery and compatible with a CR123A Lithium battery.
 - Design for guns with tactical rails.
 - Precise red laser sight.
 - Instant strobe.
 - Two-handed operation with dual tactical tail switch.
 - Made of durable A6061-T6 aluminum.
 - Premium type HAIII hard-anodized anti-abrasive finish.














Operating Instruction:

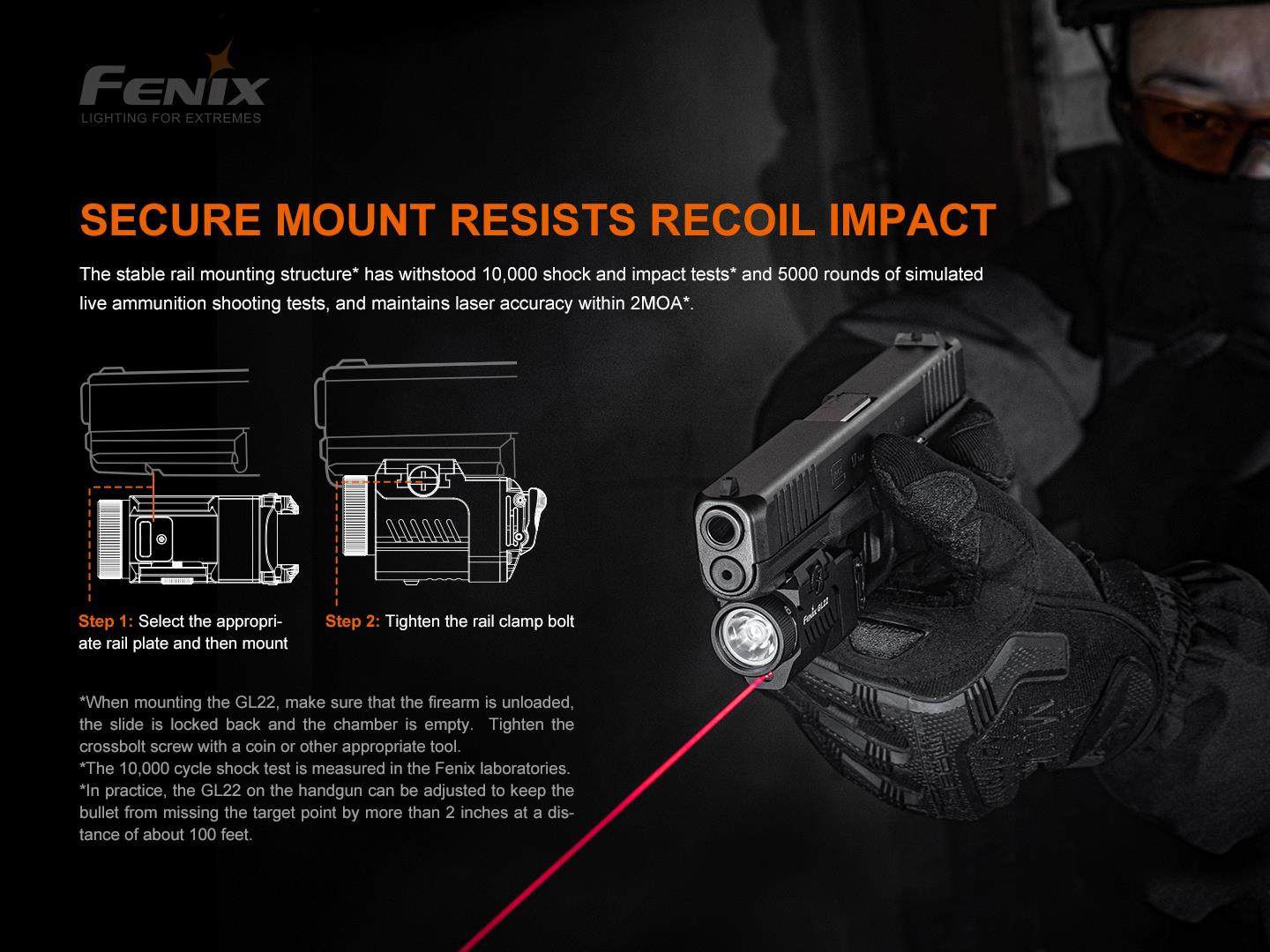

Flashlight Mounting/Removal

MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM. Please make sure your firearm rail is Picatinny rail or Glock rail and choose the appropriate rail plate (Glock rail plate is installed by default), you can change the rail plate to make the tactical light more suitable for your firearm.

1, The GL22 is designed for precise aiming, it required a basic tool or simply a coin to be attached or detached from the side of the weapon or accessory rail.
2, Loosen the rail clamp bolt.
3, Placing the fixed portion of the rail clamp against the accessory rail and align the rail key with the appropriate cross groove in the accessory rail.
4, Tighten the rail clamp bolt and make sure it is securely attached to the firearm. Again a coin should be helpful to obtain sufficient tightness.

Hot Caution: The GL22 provides a powerful beam. When operated for a while, it will get uncomfortably hot. This is normal and is not a defect.

Operating Instruction Switch The dual tail switch can be operated with both hands.

On/off Single click either of the switches to turn on/off the light. With the light switched off, press and hold either of the switches over 1 second to momentarily turn on the light.

Output Selection With the light switched on, press and hold either of the switches and simultaneously single click the other switch to cycle through White Light?White Light + Red Laser?Red Laser.

Instant Strobe With the light switched on, press and hold either of the switches for 0.5 seconds to enter Strobe, release the light will return to general mode. Note: The Use of light in Strobe mode may cause seizures in persons with photo-sensitive epilepsy.

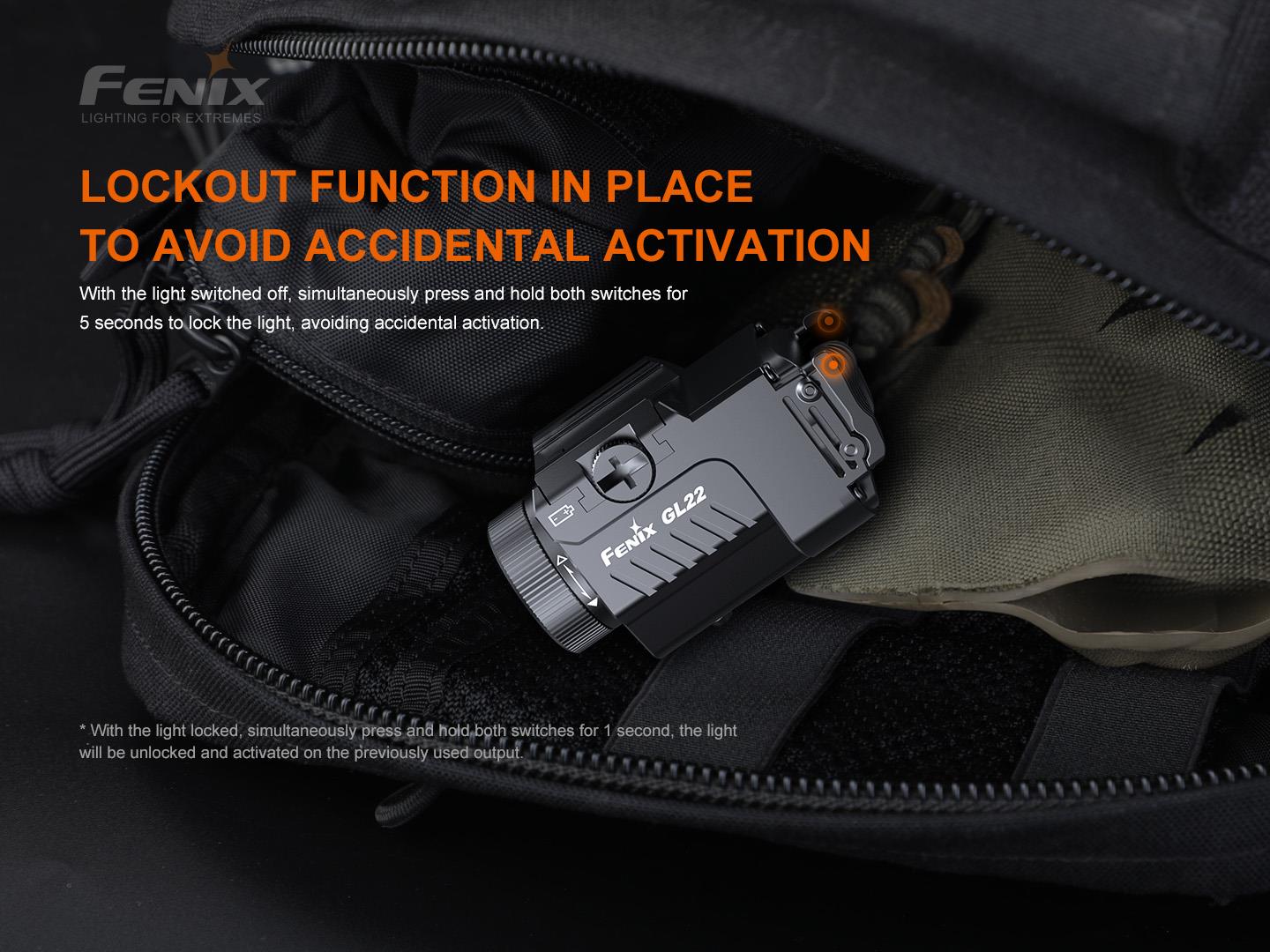

Lock/Unlock

 - Lock: with the light switched off, simultaneously press and hold both switches for 5 seconds to lock the light, the light will blink twice on white light to indicate locked status.
 - Unlock: with the light locked, simultaneously press and hold both switches for 1 second, the light will be unlocked and activated on the previously used output. *In locked status, clicking or pressing either of the switches will activate 2 one-second blinks on white light to indicate locked status.

Intelligent Memory Circuit The light memorizes the last selected output. When turned on again the previously used output will be recalled.

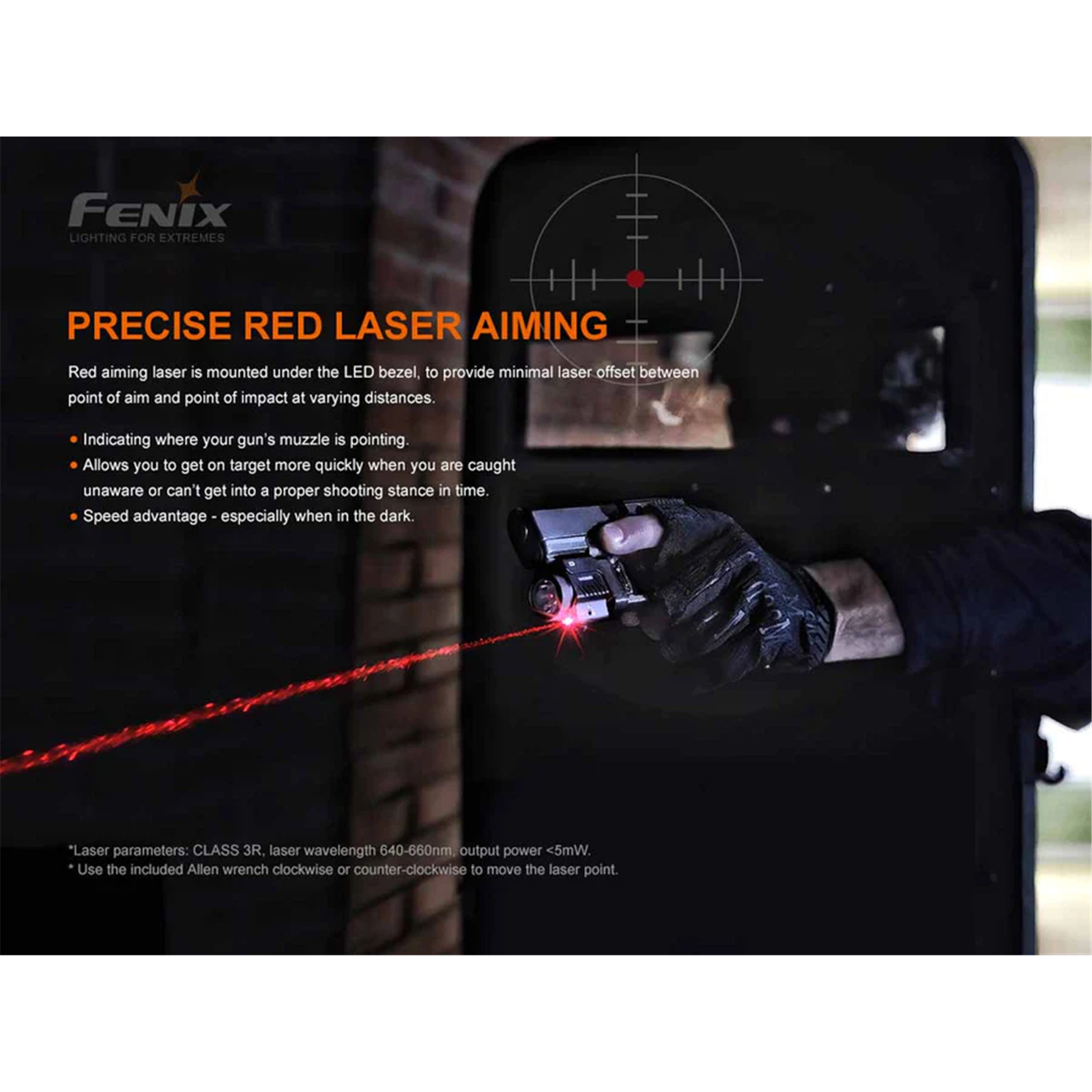

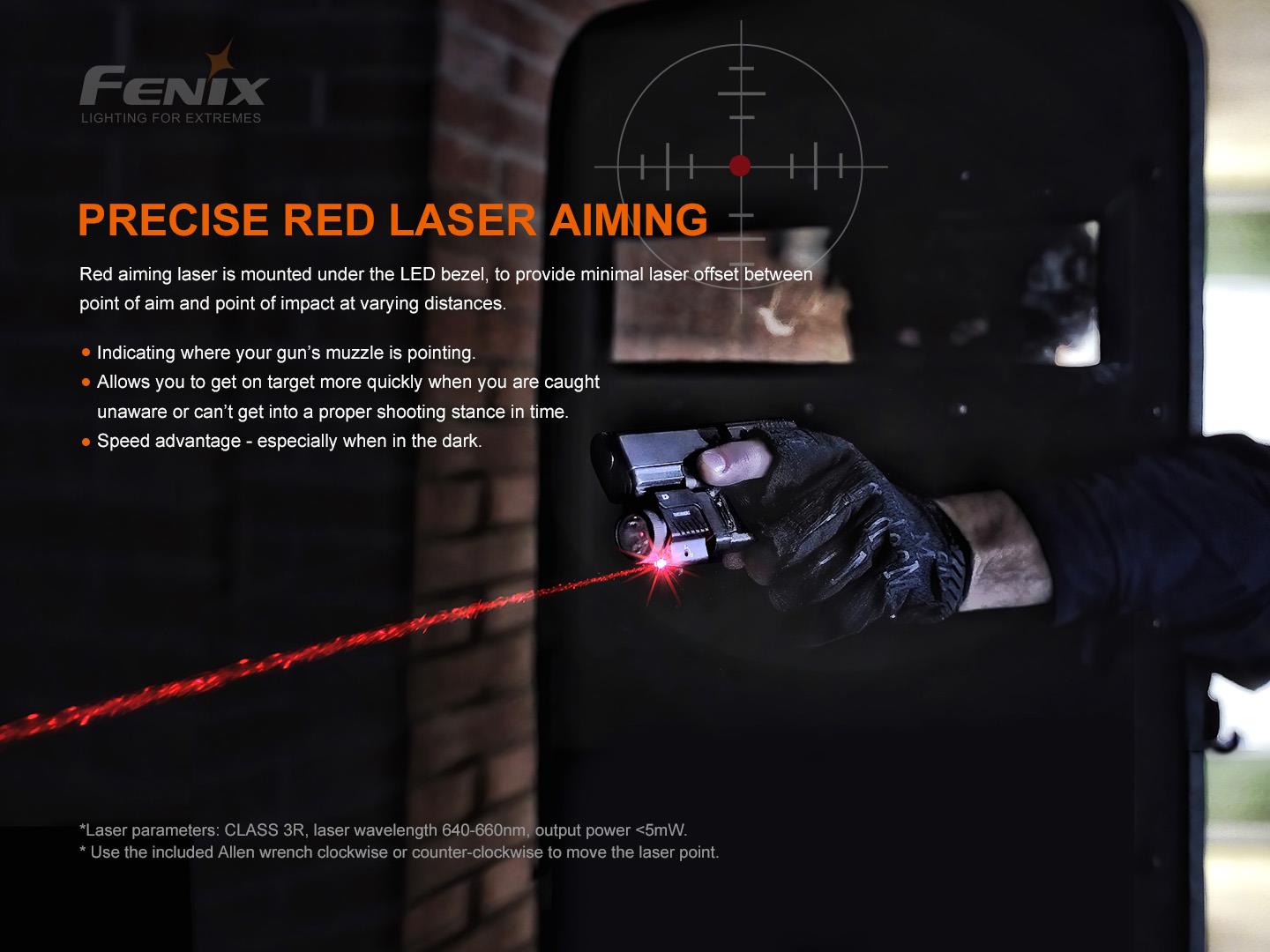

Laser Sight Zeroing

1, The wind age adjustment is at the left sign of the light. Use the included Allen wrench clockwise or counter-clockwise to move the laser point.
2, The elevation adjustment is located at the bottom of the light, Use the included Allen wrench clockwise or counter-clockwise to move the laser point.
3, When making large adjustments they may be an interaction that causes the laser to move diagonally or bind. It may become necessary to rotate the opposing adjustment screw counterclockwise to allow the laser cartridge to move to the desired position.

*Laser parameters: CLASS 3R laser product, laser wavelength 640-660nm, laser optical power output <5mW.

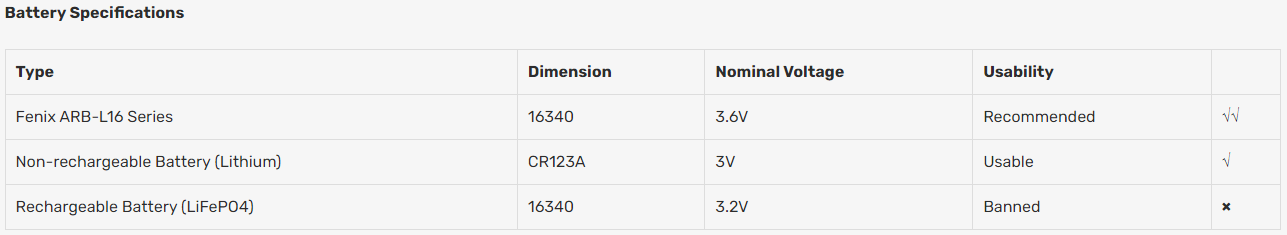

*16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Installation/Removal

FOR SAFETY PURPOSES, THE LIGHT MUST BE REMOVED FROM THE FIREARM BEFORE THE BATTERY COMPARTMENT IS OPENED OR CLOSED.

1, Unscrew and remove the face cap assembly from the body of the light.
2, Insert a CR123A or a 16340 battery with the cathode side (-) towards the light head.
3, Fully tighten the face cap assembly to ensure that the battery makes complete contact with the internal electrical contacts.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on higher output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of higher modes.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until to 50 lumens. When this happens in 50 lumens, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery. Note: This only works with Fenix ARB-L16 Series16340 rechargeable Li-ion battery.

Usage and Maintenance

IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.

 - The use of a firearm under any circumstance may be dangerous. SERIOUS INJURY OR EVEN DEATH may result without proper training in the safe handling of firearms. Proper training should be obtained from an accredited firearms safety program conducted by competent, qualified instructors in the military, police academies or National Rifle Association affiliated instruction programs.
 - Read your firearm's manual before attaching your gun-mounted light.
 - Never point a firearm at something you are not willing to destroy.
 - Fenix recommends that the GL22 should only be activated with the non-trigger hand while employing a two-hand grip on the firearm and with the trigger finger outside the trigger guard when possible. Failure to do so could result in an accidental discharge and serious injury, damage to property, or death.
 - Thoroughly practice (employing safe training conditions) with the GL22 and firearm before using the weapon in a tactical situation.
 - If you shoot ammunition get the lens coated, try rubbing the lens with fine steel wool or Froglube clp.
 - Since gun maintenance requires the use of organic solvents, organic solvents contaminating key components of the light or laser module may cause malfunctions, and the light will not receive normal warranty service.
 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using only a high-quality protected battery.
 - If the light will not be used for an extended period, remove the battery for proper storage.
 - Lock the light or remove the battery to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Recharge or replace the battery.

B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

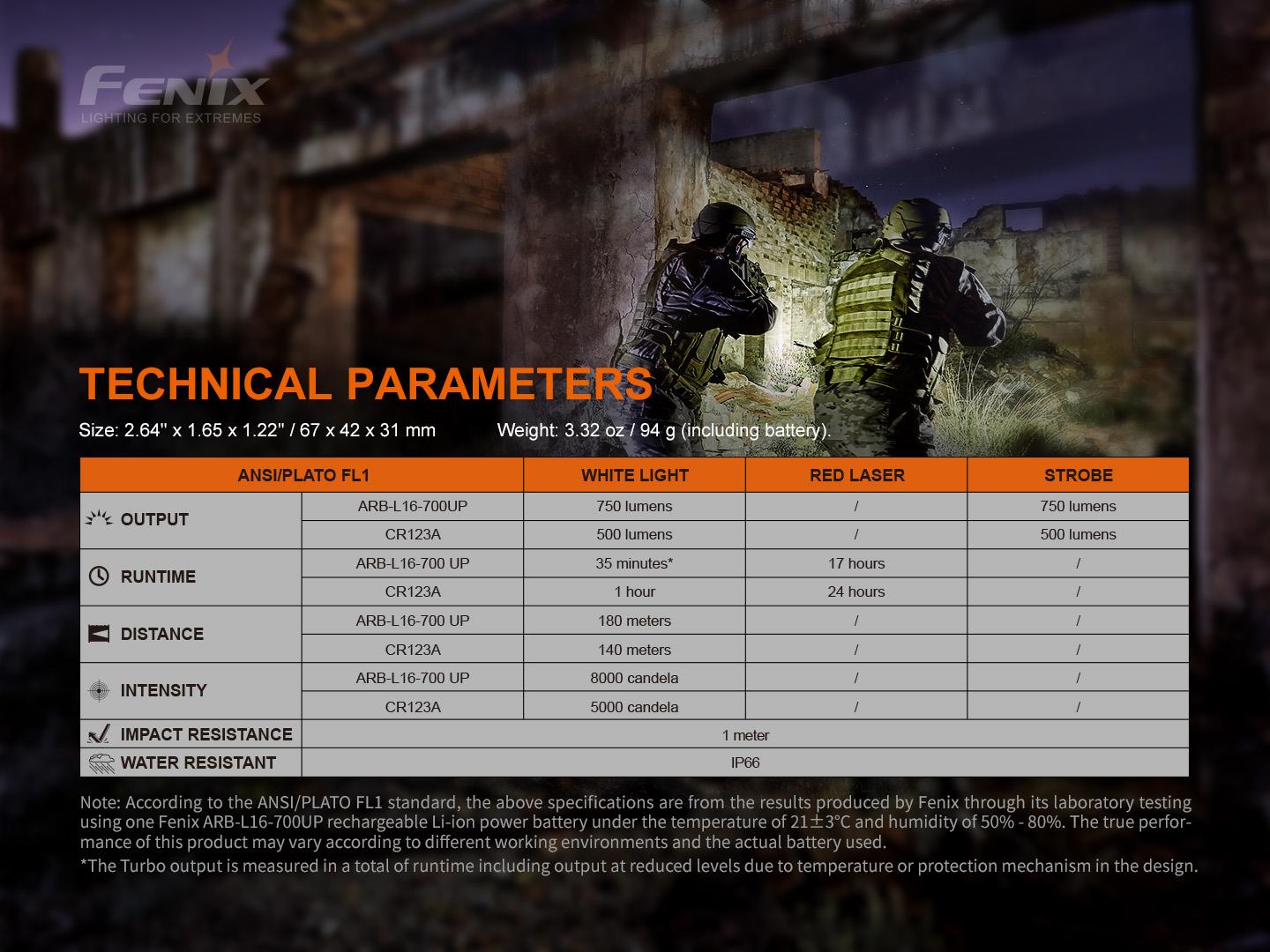

Specifications

General

LED

Luminus SST20 LED

Colour Temperature

6000K

Outputs

ARB-L16-700UP Battery

White Light

750 Lumens, 35 Minutes, 590 ft.

Red Laser

17 Hours

Rail Plate

GL and 1913 Rail Plate Included

Switches

Ambidextrous

Weight

Weighs only 3.3 Ounces

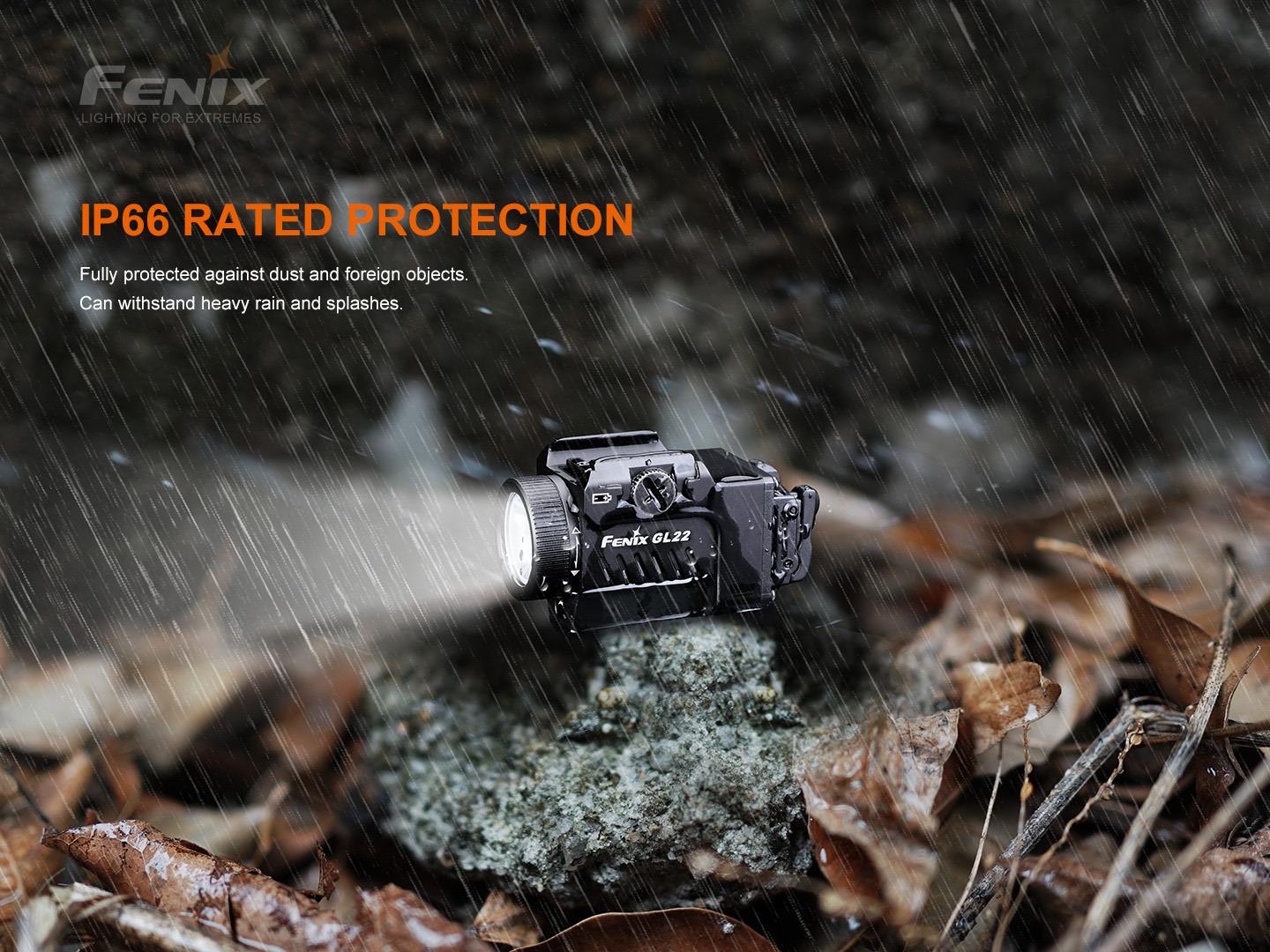

Waterproof

IP66 Rated Protection

Compatibility

- Fits most full-size pistols with a Glock or MIL-STD-1913 (Picatinny) rail.
- Fits a few compact pistols including the Glock36 with standard rail and Springfield XDs.

Batteries

Included

ARB-L16-700UP Li-ion rechargeable battery

Compatible

CR123 Batteries

Size

Length

2.64"

Width

1.65"

Diameter

1.2"

Weight

3.3 Oz (Including Battery)

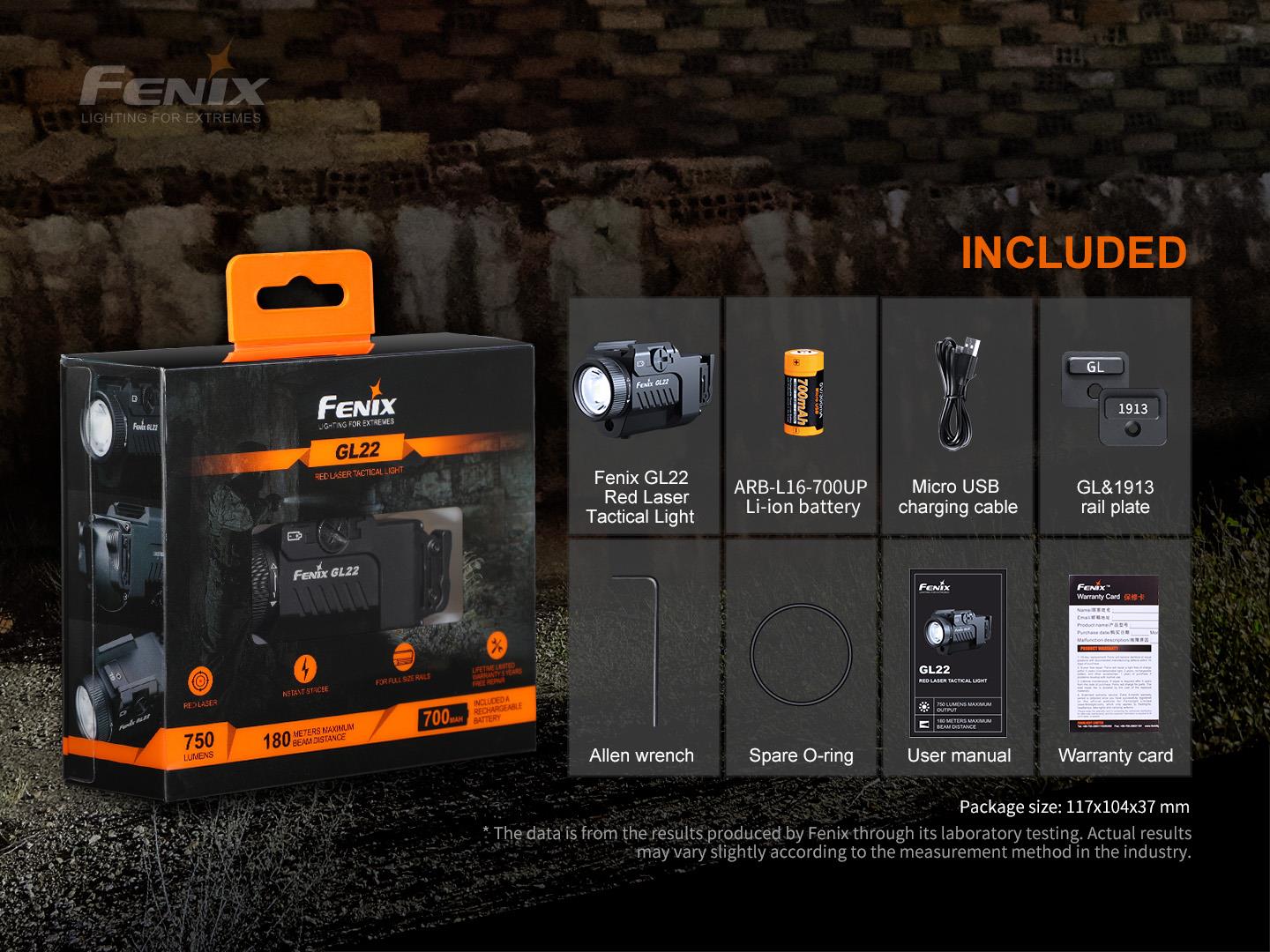

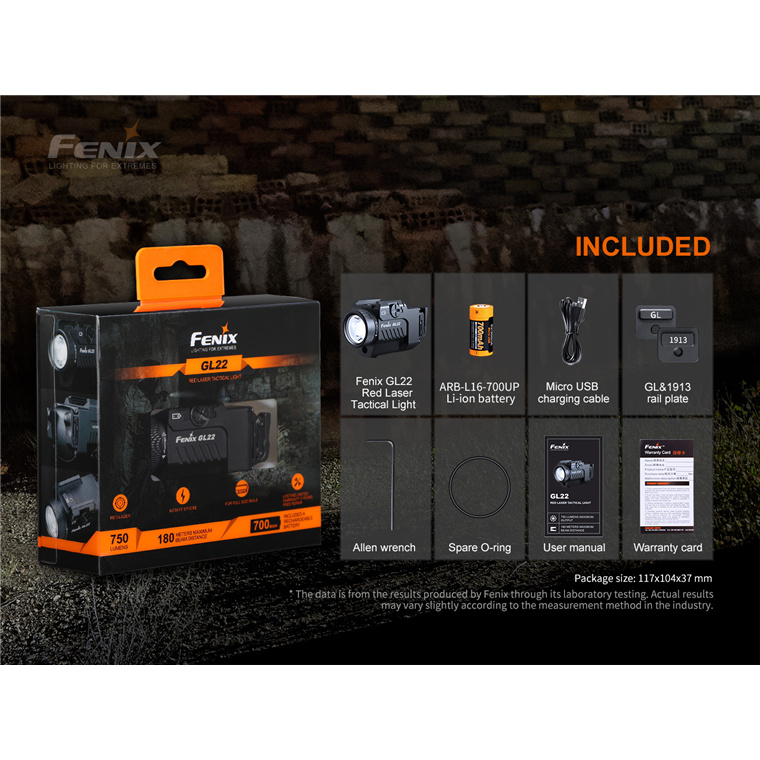

What's in the Box

Included

- Fenix GL22 Red Laser Tactical Mountable Light
- ARB-L16-700UP Battery
- Micro USB Charging Cable
- GL & 1913 Rail Plates
- Allen Wrench
- Spare O-Ring
- User Manual

Manufacturer Part No:
FNX-GL22
Brand:
Product Type:
Multi-Purpose Tactical
UPC
-
Product Family:
Gun Light & Tactical
Shipping Weight:
0.02 kg
PB Part No:
TOLFNX0086
Product Model:
GL22
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Fenix Gun Light & Tactical GL22 Multi-Purpose Tactical Flashlight, Max 750 Lumens, Powered by 1 x 16340 700mAh Li-ion Battery, Build-in Micro USB Charging Port, Precise Red Laser Aiming. 5 Years Free Repair Warranty (Battery for 1 year)!

HIGH OUTPUT COMPACT RED LASER TACTICAL LIGHT!
  • Brand: Fenix
  • MPN: FNX-GL22
  • Part #: TOLFNX0086
PB Tech price $208.65 Excluding GST PB Tech price $239.95 Including GST

Date Created: 16:01, 11-02-2025
Product URL: https://www.pbtech.co.nz/product/TOLFNX0086/Fenix-Gun-Light--Tactical-GL22-Multi-Purpose-Tacti
Branch New Stock On Display
Albany -
Glenfield -
Queen Street -
Auckland Uni -
Newmarket -
Westgate -
Penrose -
Henderson (Express) -
St Lukes -
Manukau -
Hamilton -
Tauranga -
New Plymouth -
Palmerston North -
Petone -
Wellington -
Head Office -
Hornby -
Christchurch Central -

Features

Important Warnings

FAILURE TO READ AND FOLLOW THESE OPERATING INSTRUCTIONS AND WARNINGS WHEN HANDLING A FIREARM OR THE GL22 CAN BE DANGEROUS AND CAN RESULT IN SERIOUS INJURY, DAMAGE TO PROPERTY, OR DEATH. BEFORE ATTACHING, INSPECTING OR SERVICING A FIREARM-MOUNTED GL22

 - Engage the safety of the firearm if applicable.
 - Remove the magazine from the firearm if applicable.
 - Open the action and inspect the chamber to be sure it is empty.

Warning

 - The LED light with red laser is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the light directly into anyone's eyes.
 - This flashlight will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the flashlight Pay attention to safe use to avoid scalding.
 - Do not shine an object at close range, to avoid burning the object or causing danger due to high temperature.
 - The LED of this flashlight is not replaceable; so the entire light should be replaced when the LED reaches the end of its life.
 - If any of the information provided in this manual is changed, the new version of the manual shall prevail; if your included user manual is an old one, it acquiesces that we won't send a new manual.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

The Fenix GL22 Red Laser Tactical Light is compact white light and red laser combo, integrating wide compatibility and great accuracy. The red laser is highly visible to the human eyes, helping the user get on target quickly and accurately. Its recoil-proof LED white light emits a max output of 750 lumens and a robust beam distance of 180 meters. It is able to attach securely to both Universal and Picatinny accessory rails, which enhances visibility and targeting capability in law enforcement, self-defense, shooting and hunting.

Compatibility

 - Will fit most full size pistols with a Glock or MIL-STD-1913 (Picatinny) rail.
 - Will only fit a few compact pistols including the Glock 36, Sig Sauer P229, and Springfield XDs. Will not fit other compact models from Sig Sauer, Taurus, F&N, CZ, Springfield (Hellcat), H&K, and Smith & Wesson
 - Will not fit any sub-compact or micro-compact pistols.
 - The farthest rail notch cannot be less than 1.6875 inches from the trigger guard.

Size: 2.64"x 1.65"x 1.22"/ 67 x 42 x x31 mm
Weight: 3.32 oz / 94 g (including battery)
Battery Type: Included a 700mAh rechargeable Li-ion battery (with Micro USB port)

PRODUCT FEATURES:

 - 750 lumens maximum output, 180 meters maximum beam distance.
 - A Luminus LED with a lifespan of 50,000 hours.
 - Included a 16340 rechargeable Li-ion battery and compatible with a CR123A Lithium battery.
 - Design for guns with tactical rails.
 - Precise red laser sight.
 - Instant strobe.
 - Two-handed operation with dual tactical tail switch.
 - Made of durable A6061-T6 aluminum.
 - Premium type HAIII hard-anodized anti-abrasive finish.














Operating Instruction:

Flashlight Mounting/Removal

MAKE SURE THAT THE FIREARM IS UNLOADED AND THE BREECH IS OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM. Please make sure your firearm rail is Picatinny rail or Glock rail and choose the appropriate rail plate (Glock rail plate is installed by default), you can change the rail plate to make the tactical light more suitable for your firearm.

1, The GL22 is designed for precise aiming, it required a basic tool or simply a coin to be attached or detached from the side of the weapon or accessory rail.
2, Loosen the rail clamp bolt.
3, Placing the fixed portion of the rail clamp against the accessory rail and align the rail key with the appropriate cross groove in the accessory rail.
4, Tighten the rail clamp bolt and make sure it is securely attached to the firearm. Again a coin should be helpful to obtain sufficient tightness.

Hot Caution: The GL22 provides a powerful beam. When operated for a while, it will get uncomfortably hot. This is normal and is not a defect.

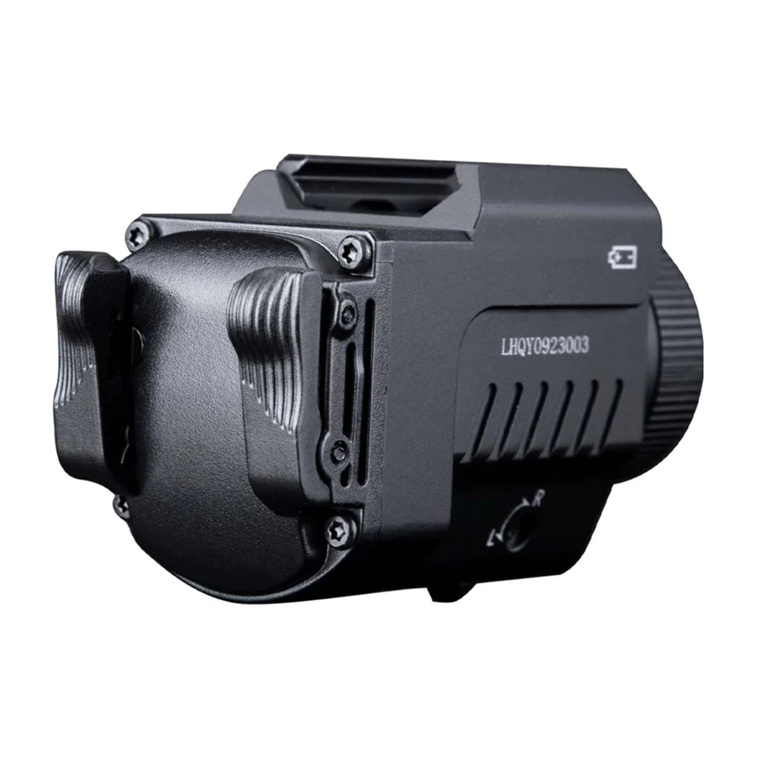

Operating Instruction Switch The dual tail switch can be operated with both hands.

On/off Single click either of the switches to turn on/off the light. With the light switched off, press and hold either of the switches over 1 second to momentarily turn on the light.

Output Selection With the light switched on, press and hold either of the switches and simultaneously single click the other switch to cycle through White Light?White Light + Red Laser?Red Laser.

Instant Strobe With the light switched on, press and hold either of the switches for 0.5 seconds to enter Strobe, release the light will return to general mode. Note: The Use of light in Strobe mode may cause seizures in persons with photo-sensitive epilepsy.

Lock/Unlock

 - Lock: with the light switched off, simultaneously press and hold both switches for 5 seconds to lock the light, the light will blink twice on white light to indicate locked status.
 - Unlock: with the light locked, simultaneously press and hold both switches for 1 second, the light will be unlocked and activated on the previously used output. *In locked status, clicking or pressing either of the switches will activate 2 one-second blinks on white light to indicate locked status.

Intelligent Memory Circuit The light memorizes the last selected output. When turned on again the previously used output will be recalled.

Laser Sight Zeroing

1, The wind age adjustment is at the left sign of the light. Use the included Allen wrench clockwise or counter-clockwise to move the laser point.
2, The elevation adjustment is located at the bottom of the light, Use the included Allen wrench clockwise or counter-clockwise to move the laser point.
3, When making large adjustments they may be an interaction that causes the laser to move diagonally or bind. It may become necessary to rotate the opposing adjustment screw counterclockwise to allow the laser cartridge to move to the desired position.

*Laser parameters: CLASS 3R laser product, laser wavelength 640-660nm, laser optical power output <5mW.

*16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Installation/Removal

FOR SAFETY PURPOSES, THE LIGHT MUST BE REMOVED FROM THE FIREARM BEFORE THE BATTERY COMPARTMENT IS OPENED OR CLOSED.

1, Unscrew and remove the face cap assembly from the body of the light.
2, Insert a CR123A or a 16340 battery with the cathode side (-) towards the light head.
3, Fully tighten the face cap assembly to ensure that the battery makes complete contact with the internal electrical contacts.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on higher output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of higher modes.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until to 50 lumens. When this happens in 50 lumens, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery. Note: This only works with Fenix ARB-L16 Series16340 rechargeable Li-ion battery.

Usage and Maintenance

IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.

 - The use of a firearm under any circumstance may be dangerous. SERIOUS INJURY OR EVEN DEATH may result without proper training in the safe handling of firearms. Proper training should be obtained from an accredited firearms safety program conducted by competent, qualified instructors in the military, police academies or National Rifle Association affiliated instruction programs.
 - Read your firearm's manual before attaching your gun-mounted light.
 - Never point a firearm at something you are not willing to destroy.
 - Fenix recommends that the GL22 should only be activated with the non-trigger hand while employing a two-hand grip on the firearm and with the trigger finger outside the trigger guard when possible. Failure to do so could result in an accidental discharge and serious injury, damage to property, or death.
 - Thoroughly practice (employing safe training conditions) with the GL22 and firearm before using the weapon in a tactical situation.
 - If you shoot ammunition get the lens coated, try rubbing the lens with fine steel wool or Froglube clp.
 - Since gun maintenance requires the use of organic solvents, organic solvents contaminating key components of the light or laser module may cause malfunctions, and the light will not receive normal warranty service.
 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using only a high-quality protected battery.
 - If the light will not be used for an extended period, remove the battery for proper storage.
 - Lock the light or remove the battery to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Recharge or replace the battery.

B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

Specifications

General

LED

Luminus SST20 LED

Colour Temperature

6000K

Outputs

ARB-L16-700UP Battery

White Light

750 Lumens, 35 Minutes, 590 ft.

Red Laser

17 Hours

Rail Plate

GL and 1913 Rail Plate Included

Switches

Ambidextrous

Weight

Weighs only 3.3 Ounces

Waterproof

IP66 Rated Protection

Compatibility

- Fits most full-size pistols with a Glock or MIL-STD-1913 (Picatinny) rail.
- Fits a few compact pistols including the Glock36 with standard rail and Springfield XDs.

Batteries

Included

ARB-L16-700UP Li-ion rechargeable battery

Compatible

CR123 Batteries

Size

Length

2.64"

Width

1.65"

Diameter

1.2"

Weight

3.3 Oz (Including Battery)

What's in the Box

Included

- Fenix GL22 Red Laser Tactical Mountable Light
- ARB-L16-700UP Battery
- Micro USB Charging Cable
- GL & 1913 Rail Plates
- Allen Wrench
- Spare O-Ring
- User Manual

Date Created: 16:01, 11-02-2025
Product URL: https://www.pbtech.co.nz/product/TOLFNX0086/Fenix-Gun-Light--Tactical-GL22-Multi-Purpose-Tacti
