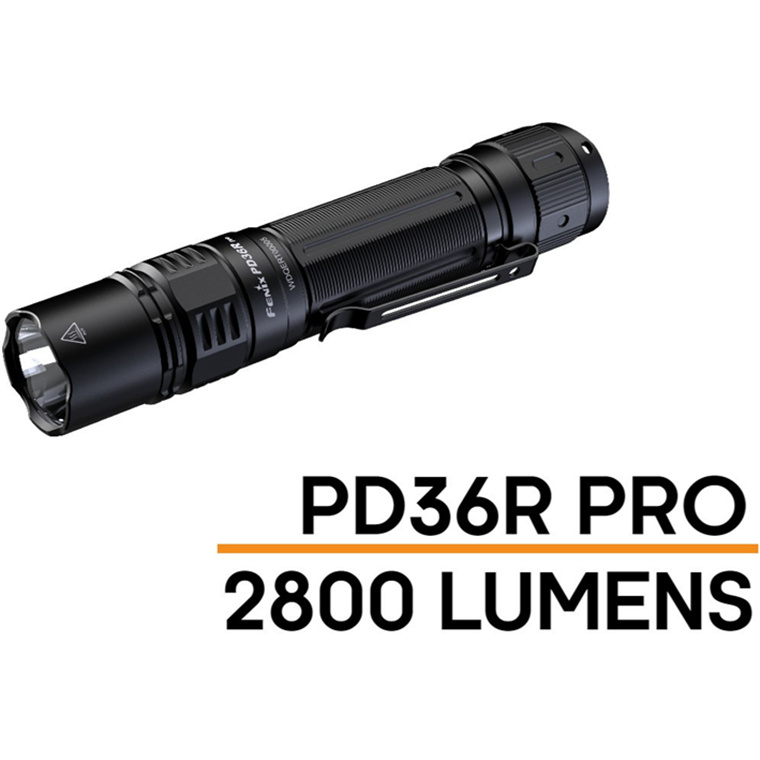

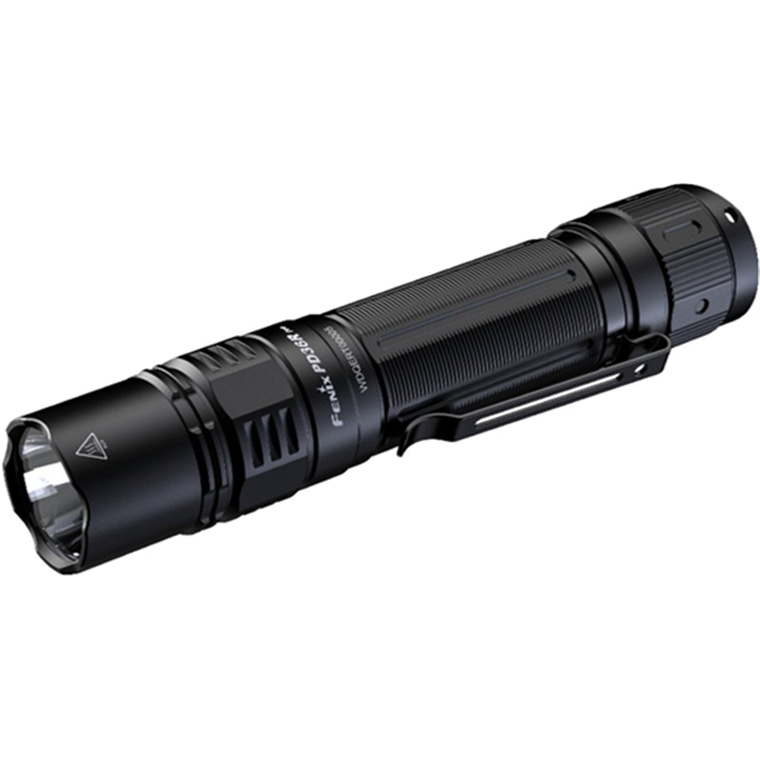

Fenix Tactical & Ourdoor Flashlights PD36R Pro Heavy-Duty Rechargeable LED Torch Max 2,800 Lumens, Head: 1.04" (26.5mm), 380m Max Distance, Powered by 1 x 21700 5,000mAH Li-ion Rechargeable Battery Included, USB-C Charging Cable

Warning:

 - Do place this headlamp out of the reach of children!
 - Do NOT shine the headlamp directly into the eyes of anyone!
 - Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
 - Do NOT use the headlamp in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the headlamp or internal battery fails!
 - This headlamp will accumulate a lot of heat while working, resulting in a high temperature of the headlamp shell. Pay attention to safe use to avoid scalding.
 - Turn off and lock the headlamp or remove the battery from the headlamp to prevent accidental activation when the headlamp is placed in a closed and flammable environment such as pockets and backpacks!
 - The LED of this flashlight is not replaceable; so the whole flashlight should be replaced when the LED reaches the end of its life.

The Fenix PD36R Pro rechargeable flashlight is a high-performance rechargeable flashlight that is sure to surprise you. Fitted with a Luminus SFT70 LED, this flashlight features an incredible performance by delivering a maximum of 2800 lumens to an impressive distance of 380 meters, all on the included 5000 mAh battery. The high-capacity 5000 mAh battery can be conveniently charged through the USB-C port on the flashlight. Operating this powerful LED rechargeable flashlight is simple with the dual tail switches for momentary on/off, the ability to cycle through five lighting modes, and the activation of the instant strobe. Additionally, you will always be able to see the battery's charge status at a glance with the external battery level indicator. The amount of power and runtime packed into this flashlight are unmatched for its handheld size. IP68-rated dustproof and waterproof, this flashlight is the perfect all-purpose lighting tool for those needing maximum brightness and long runtimes.

Size: Size: Length: 5.74'' (145.8mm) x Head: 1.04'' (26.5mm) x Body 1.01'' (25.7mm)
Weight: 5.96 oz / 169 g (including battery).

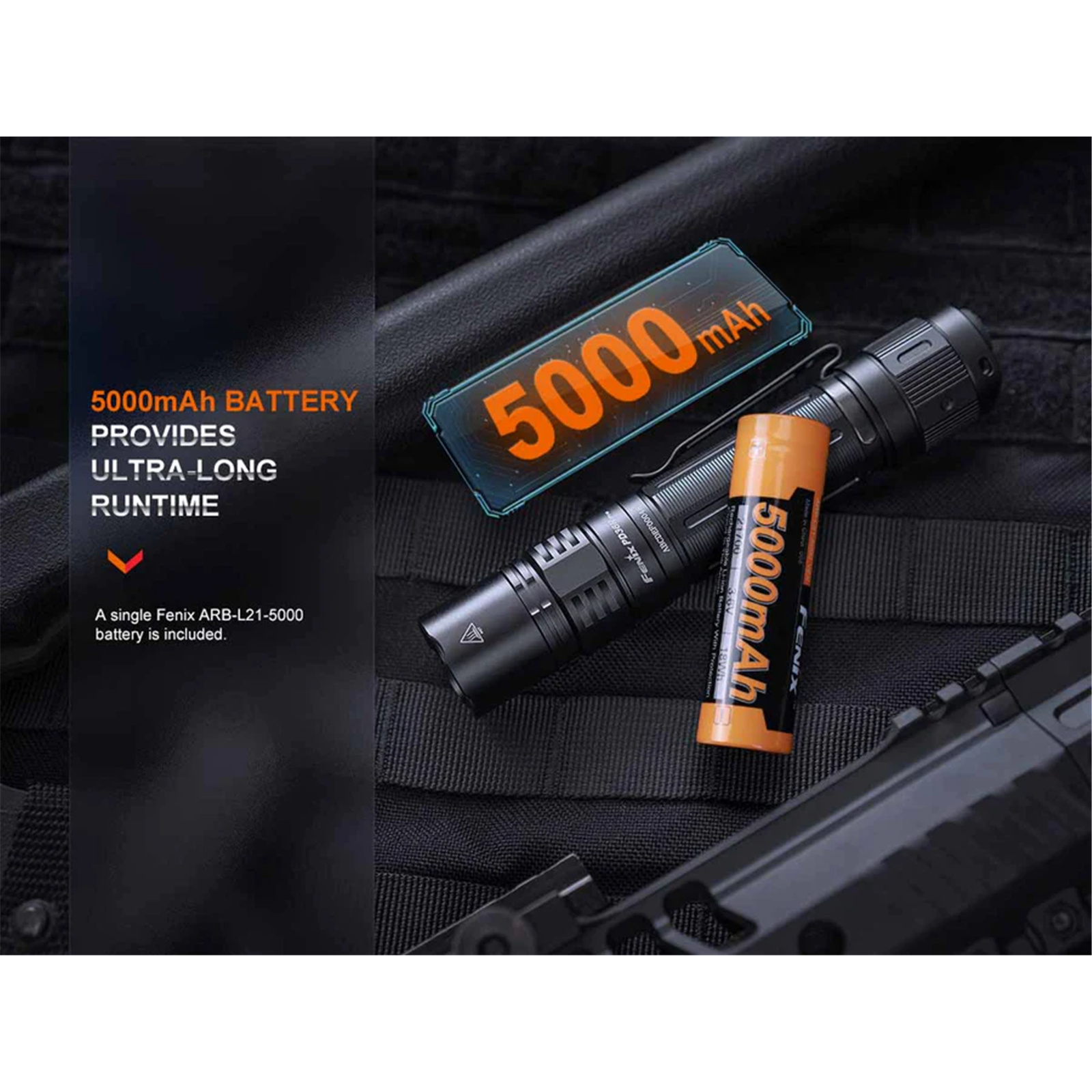

Battery Type: Included one rechargeable 5000mAh 21700 Li-ion battery

PRODUCT FEATURES:

 - 2800 lumens maximum output and 380 meters maximum beam distance.
 - Uses a Luminus SFT70 LED with a lifespan of 50,000 hours.
 - Included a 5000 mAh 21700 rechargeable Li-ion battery.
 - Instant activation and instant strobe with dual tactical tail switch.
 - Reverse polarity protection, to protect from improper battery insertion
 - Toughened ultra-clear glass lens with anti-reflective coating
 - Boot-up battery level indication and low-voltage warning.
 - Made of A6061-T6 aluminum.
 - Premium type HAIII hard-anodized anti-abrasive finish.

RUNTIME:

Operating Instructions

Switches

 - The round tail switch is the tactical switch for instant activation.
 - The oval tail switch is the functional switch for output selection and instant strobe.

On/off

 - Tap the tactical switch to silently and momentarily turn on the light, release the light will go out.
 - Fully press the tactical switch to constantly turn on the light, press again the light will go out.

Output Selection: With the light switched on, single click the functional switch to cycle through Turbo, Eco, Low, Med, High.

Strobe

 - With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, and click the functional switch once again to turn back to the general mode.
 - With the light switched off, press the functional switch to enter strobe, release the light will go out.

Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output of general mode will be recalled.

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

Charging

1, First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2, The indicator will display red while charging, and will turn green when fully charged.
3, Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability.

Note:

1, The normal charging time of the included Fenix ARB-L21-5000 V2.0 rechargeable Li-ion battery is approximately 3 hours from depletion to full charging.
2, Recharge a stored light every four months to maintain optimum performance of the battery.
3, The light is unavailable while charging and do not remove the battery during charging.

Battery Level Indication

Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

Note: This only works with Fenix ARB-L21 series 21700 rechargeable Li-ion battery.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used on High or Turbo modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user the reselection of High or Turbo modes.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the battery level indicator constantly blinks red to remind you to timely recharge or replace the battery.

Note: This only works with Fenix ARB-L21 series 21700 rechargeable Li-ion battery.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using only a high-quality protected battery.
 - If the light will not be used for an extended period, remove the battery for proper storage.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Recharge or replace the battery.

B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
