Fenix Camping Lantern CL22R Lightweight LED Lantern MAX 500 Lumens, Polar Night Black 360° Lighting Mode, RGB Atmosphere Lights, Build-In 2600mAh Battery, Runtime Up to 200 Hours, 2 Years Warranty!
Fenix Camping Lantern CL22R Lightweight LED Lantern MAX 500 Lumens, Polar Night Black 360° Lighting Mode, RGB Atmosphere Lights, Build-In 2600mAh Battery, Runtime Up to 200 Hours, 2 Years Warranty!
- Brand: Fenix
- MPN: FNX-CL22R
- Part #: TOLFNX0132
- UPC:
Select your store to check availability
- Brand: Fenix
- MPN: FNX-CL22R
- Part #: TOLFNX0132
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Flashlights & Portable Lights





Fenix Camping Lantern CL22R Lightweight LED Lantern MAX 500 Lumens, Polar Night Black 360° Lighting Mode, RGB Atmosphere Lights, Build-In 2600mAh Battery, Runtime Up to 200 Hours, 2 Years Warranty!
- Brand: Fenix
- MPN: FNX-CL22R
- Part #: TOLFNX0132

Product URL: https://www.pbtech.co.nz/product/TOLFNX0132/Fenix-Camping-Lantern-CL22R-Lightweight-LED-Lanter
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 1 | |
Henderson (Express) | 0 | |
St Lukes | 1 | |
Manukau | 1 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 1 | |
Head Office | 5 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Warning:
- Do NOT place this lantern in the reach of children!
- Do NOT shine the lantern directly into the eyes of anyone!
- Do NOT place lantern near flammable objects as high temperatures can cause objects to overheat and become flammable/ignite!
- Do NOT use the lantern in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the headlamp or internal battery fails!
- This lantern will accumulate a lot of heat while operating, resulting in a high temperature of the lantern outer case. Pay close attention to the thermal condition of the lantern to avoid burns.
- Turn off the lantern to prevent the lantern from overheating during storage or transportation.
- The LEDs of this lantern are not replaceable; so the whole lantern will need to be replaced when any of the LEDs reaches the end of its lifespan.
Warranty: 2-Years Free Repair Warranty (Battery included)!

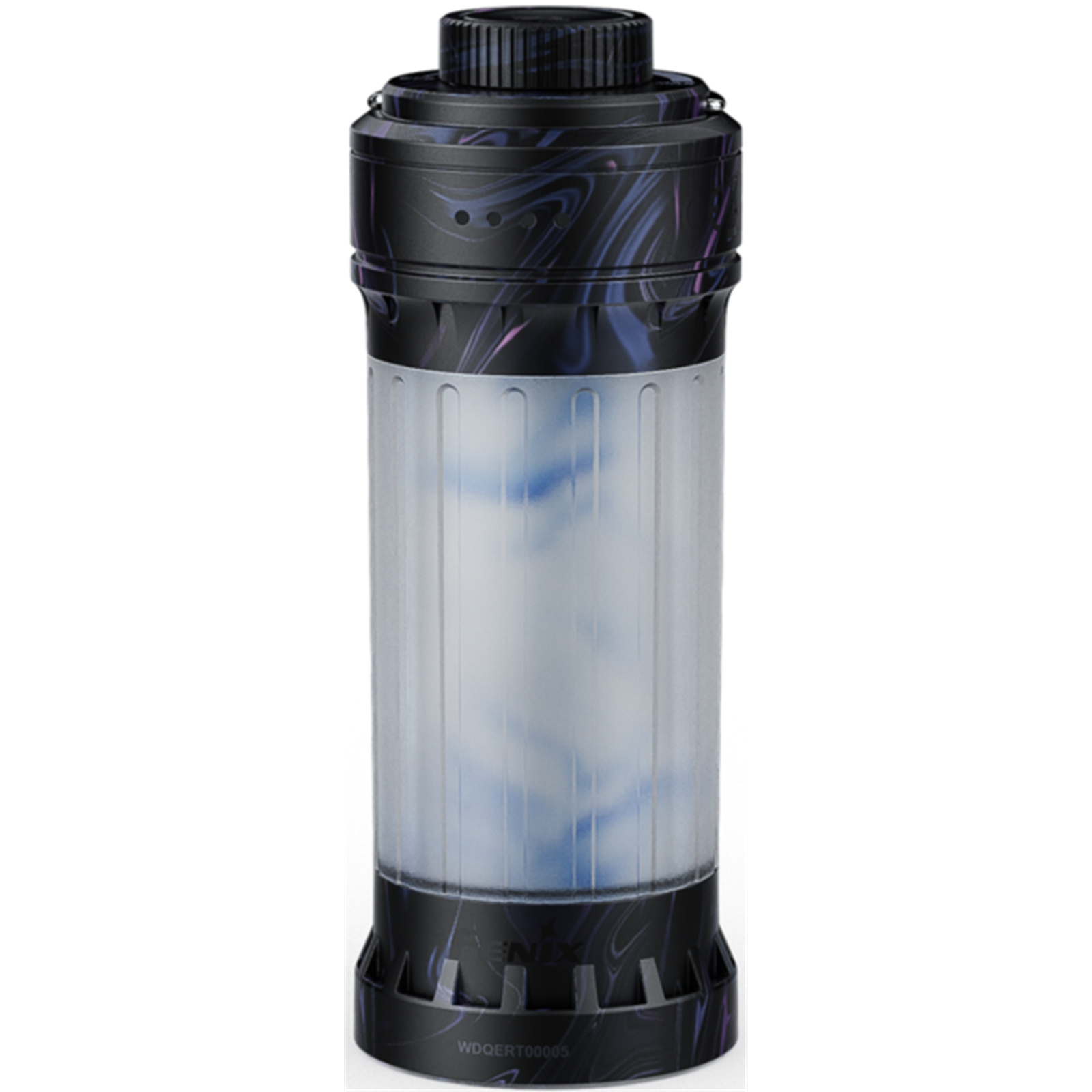

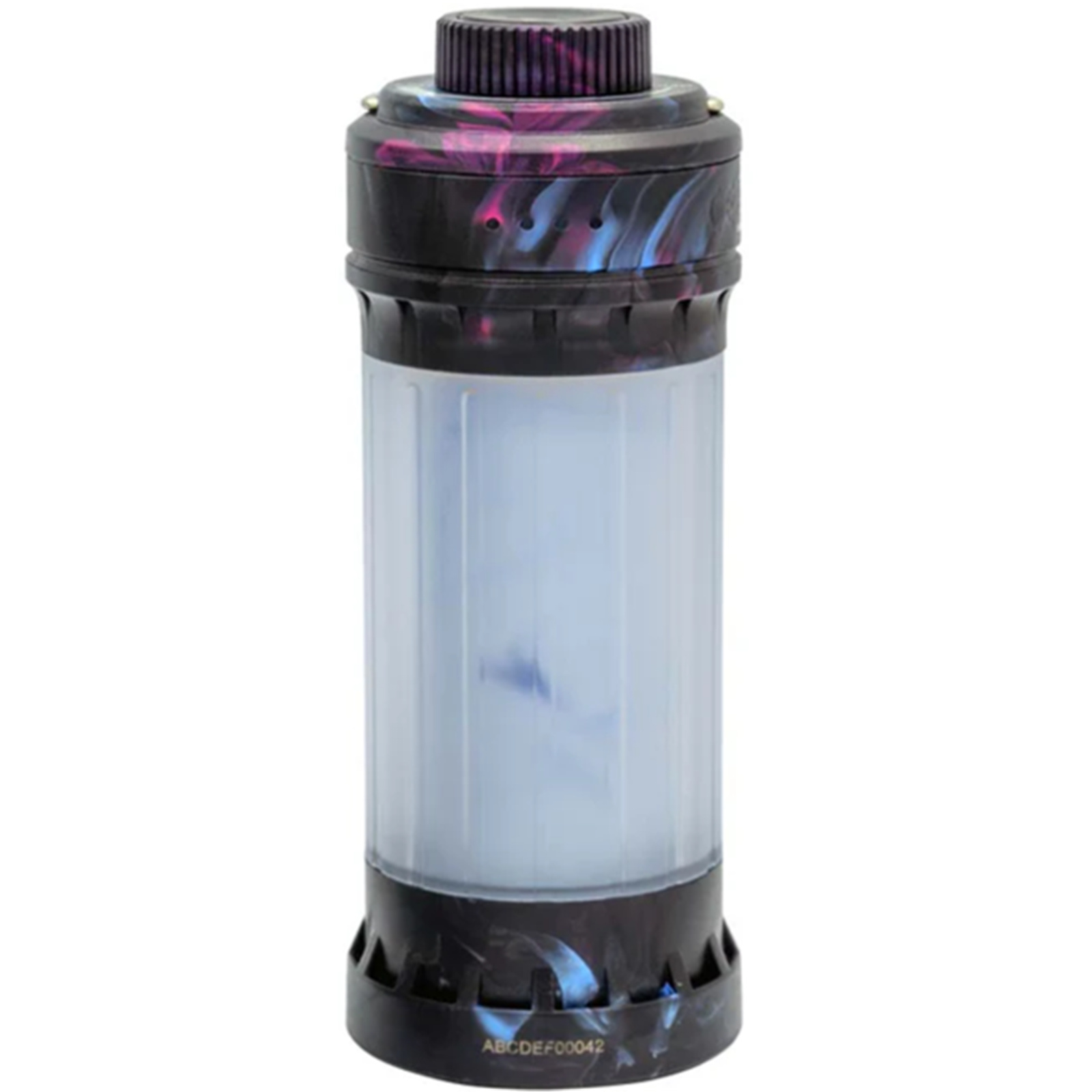

Fenix CL22R is a compact portable camping lantern that will elevate your camping experience to the next level. Powered by a built-in2600mAh battery, you can charge the lantern via the USB Type-C charging port on the lantern's outer case. This versatile lantern offers 360°lighting, down lighting, red light, and colorful atmosphere lights to satisfy various needs on different occasions, creating a romantic ambiance and providing engaging experiences for users. With a maximum output of 500 lumens and IP65-rated protection, the CL22R is a fantastic lighting tool for camping with loved ones.
Size: 1.50'' x 1.65'' x 4.53'' / 38 x 42 x 115 mm
Weight: 4.76 oz / 135 g (including battery)
Battery Type: 2600mAh built-in battery
- 500 lumens max combined output.
- Utilizes one COB, one RedslightSC1818C cold white LED, and twelve WS2812B-3535 LEDs; with a lifespan of 50,000 hours each.
- 360°lighting mode has a max beam diameter of 20 meters, while Down light mode has a max beam distance of 80 meters. Both modes can be used together.
- White and red light sources for various lighting demands.
- Bottom colorful atmosphere lights create a romantic ambiance.
- Powered by a built-in 2600mAh battery.
- Universal USB Type-C charging port and battery level indication.
- Rotary switch and electronic switch for easy and fast operation.
- Built-in hanging loop and included double snap hook allow for easy carry and hanging.

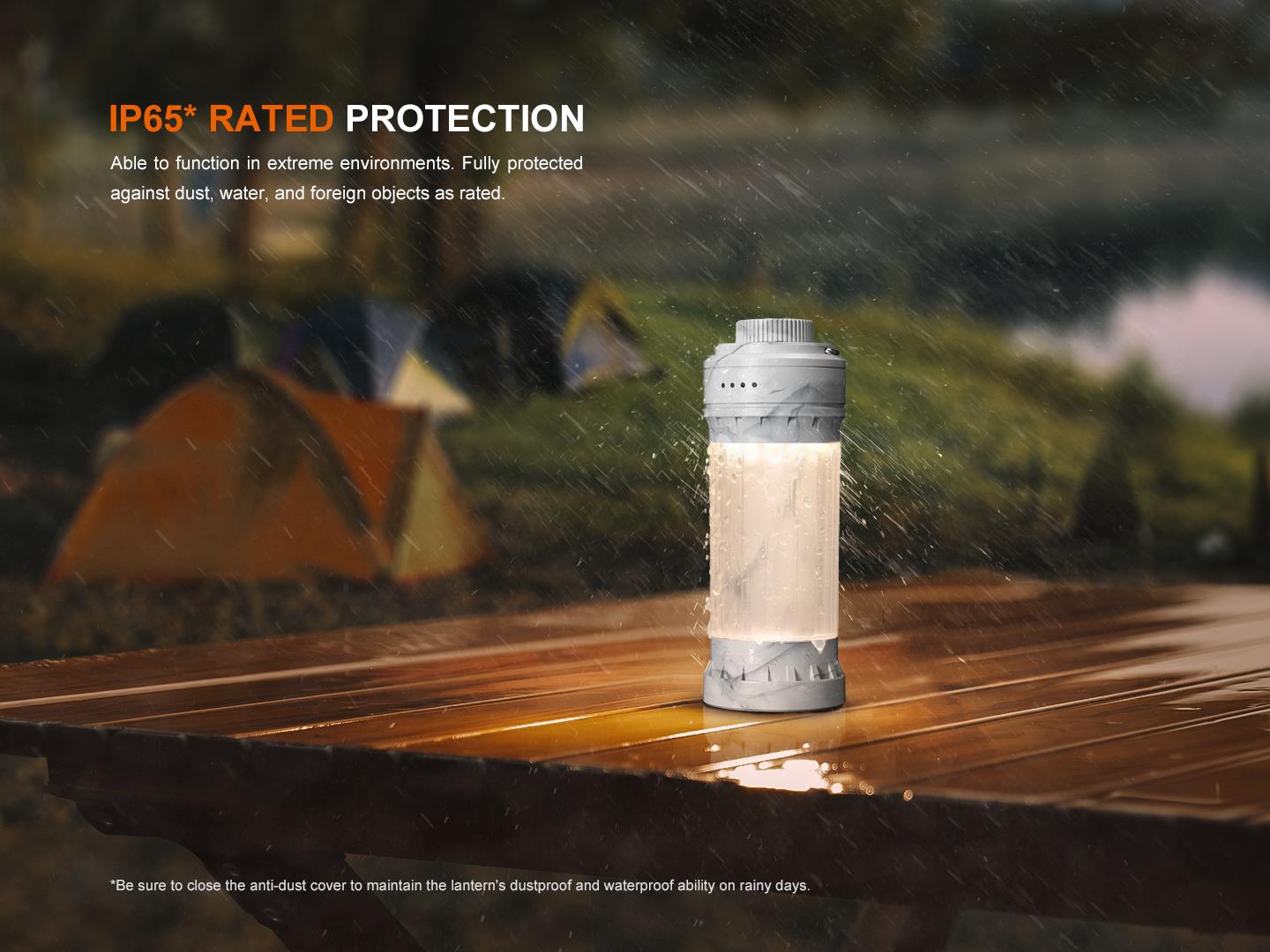

- IP65-rated protection and 1.5 meters impact resistance.

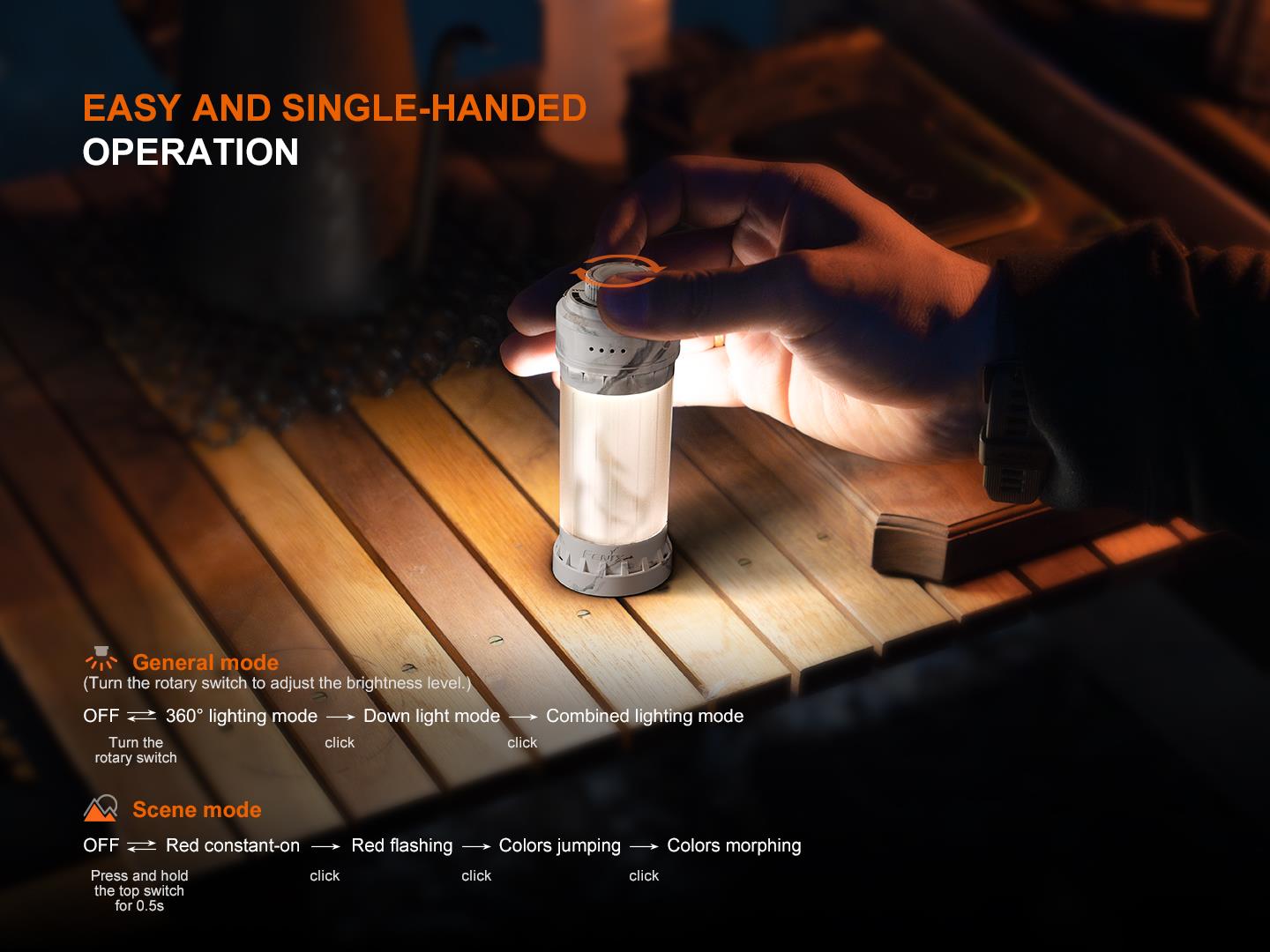

Operating Instruction
On/Off
- With the lantern switched off, press and hold the top electronic switch for 0.5 seconds to turn on the lantern and enter the Scene mode. Press and hold the top electronic switch for 0.5 seconds again to turn off the lantern.
- Rotate the rotary switch clockwise from the OFF state to enter the General mode and rotate the rotary switch counterclockwise to the OFF state to turn off the lantern.
Mode Switching/Output Selection
- In General mode, single click the top electronic switch to cycle through 360° lighting mode, Down light mode, Combined lighting mode(360° lighting mode + Down light mode).
- For these three modes, rotate the rotary switch clockwise to change their brightness from low to high and rotate counterclockwise to change their brightness from high to low.
- In Scene mode, single click the top electronic switch to cycle through Red constant-on, Red flashing, Colors jumping, Colors morphing.
Intelligent Memory Circuit
- In General mode, the lantern memorizes the last selected mode. When turned on again the previously selected mode will be recalled.
- In Scene mode, the lantern memorizes the last selected output. When turned on again the previously selected output will be recalled.
Charging
1, Open the anti-dust cover to reveal the USB Type-C charging port and connect the USB Type-C socket of the charging cable to the lantern.
2, When charging, the charging indicators will flash from left to right to display the charging status.
3, The four indicators will be constant-on after charging is completed.
Note:
1, The lantern can be operated while charging and the actual max output of the 360° lighting mode is limited to 100 lumens.
2, The normal charging time of the lantern is approximately 3 hours from depleted to fully charged with a 5 V/1 A or higher power charging adapter.
3, Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability.
Battery Level Indication
Each time the lantern is turned on, the indicator(s) will show the battery level and will last for 3 seconds. With the lantern switched off, single click the top electronic switch to check the battery level and the indicator(s) will last for 3 seconds.
- Four lights on: 100% - 80%
- Three lights on: 80% - 60%
- Two lights on: 60% - 40%
- One light on: 40% - 20%
- One light flashes: 20% - 1%
Intelligent Overheat Protection
The lantern will accumulate a lot of heat when used at high output levels for extended periods. When the lantern reaches a temperature of 50°C/122°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 50°C/122°F, the lantern will gradually recall the preset output level.
Low Voltage Warning
When the voltage level drops below the preset level, one of the battery level indicators constantly blinks to remind you to timely recharge the battery. To ensure normal use, the lantern will not turn off automatically and will work till the battery level runs out.
Usage and Maintenance
- Disassembling the sealed parts in lantern can cause damage to the lantern and will void the warranty.
- Fully charge the lantern in time to ensure normal function the next time it is needed.
- Recharge a stored lantern every three months to maintain optimum performance of the battery.
- The lantern may flicker, shine intermittently or even fail to illuminate due to poor battery level. Please recharge the lantern.

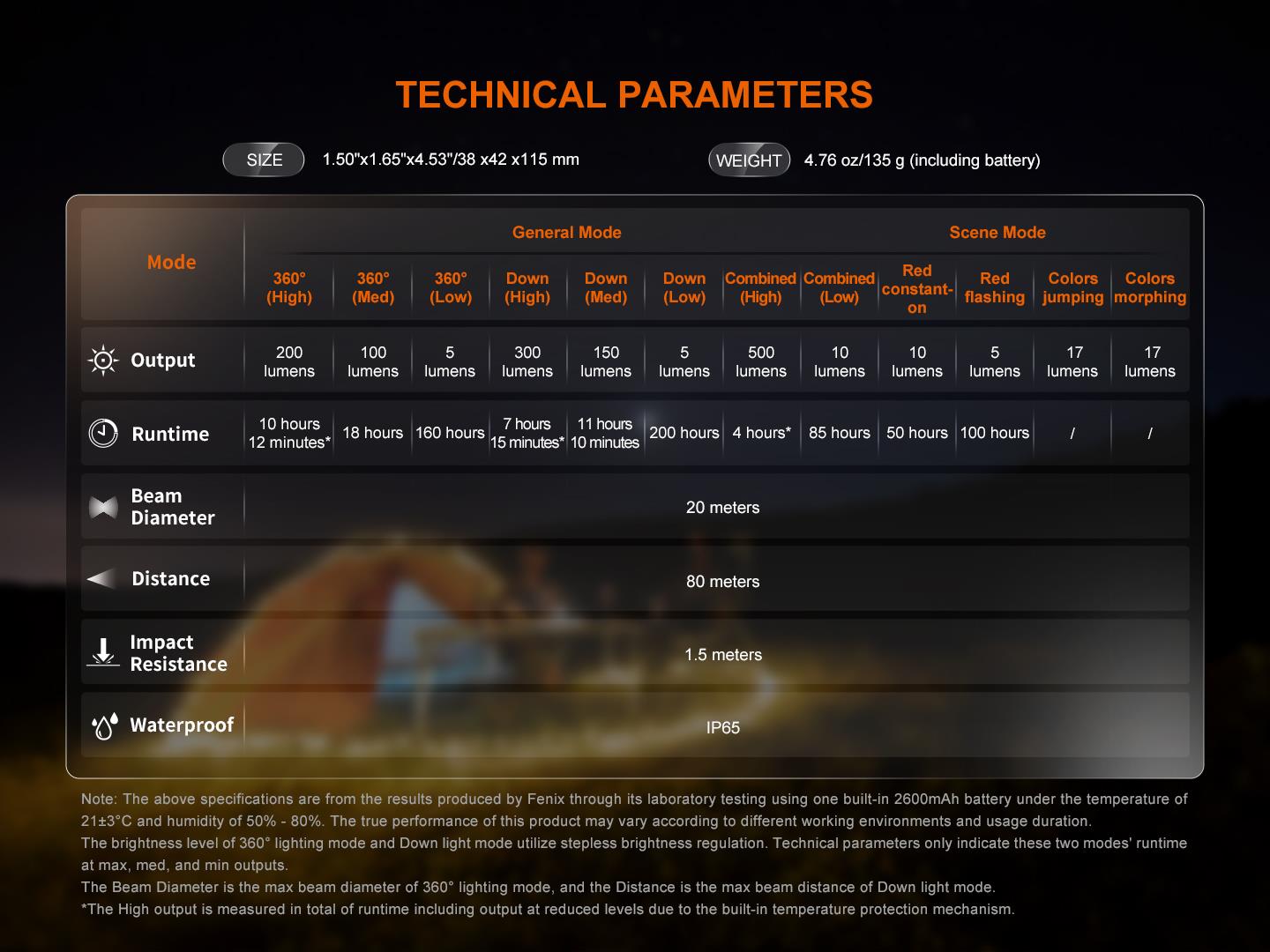

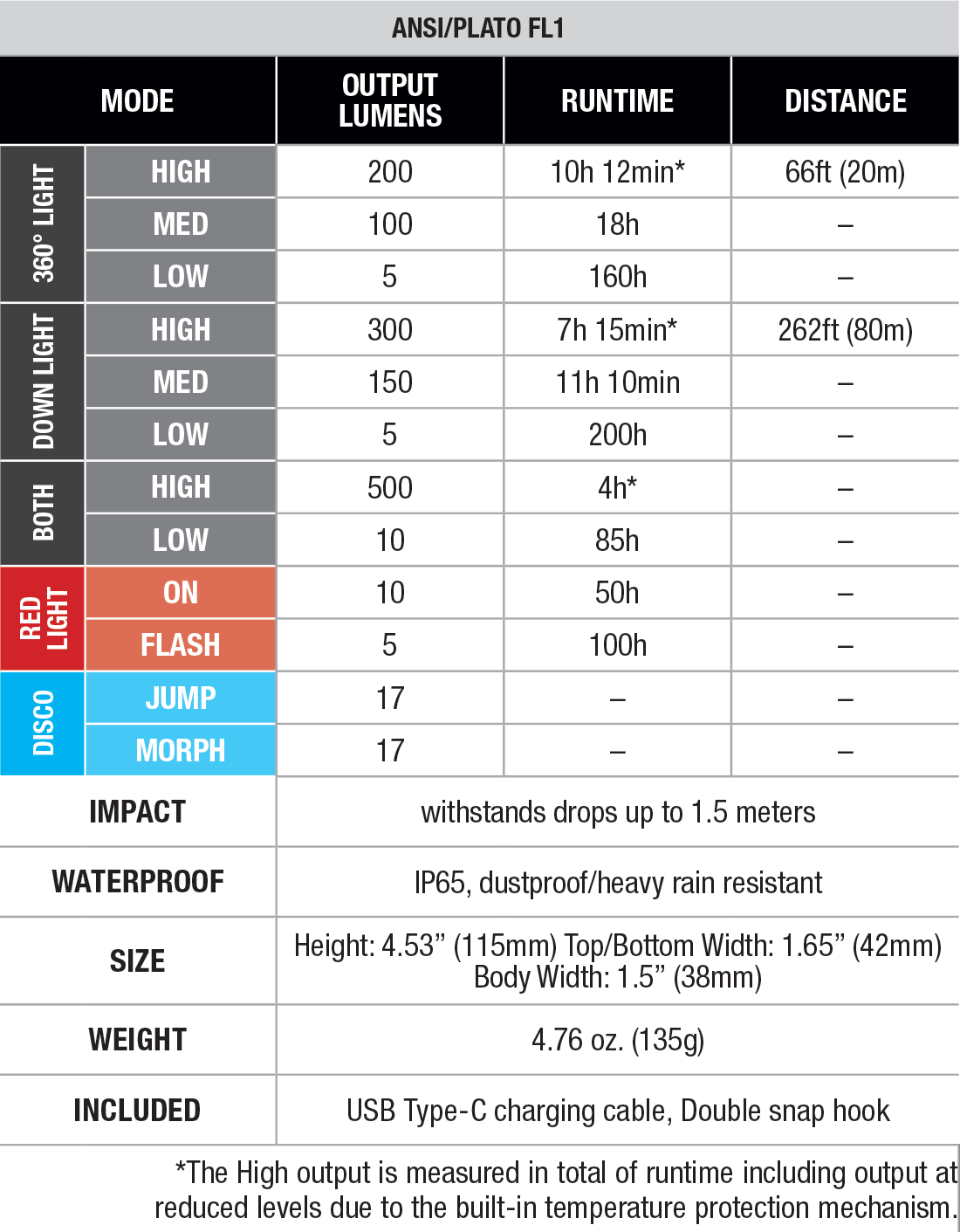

Specifications

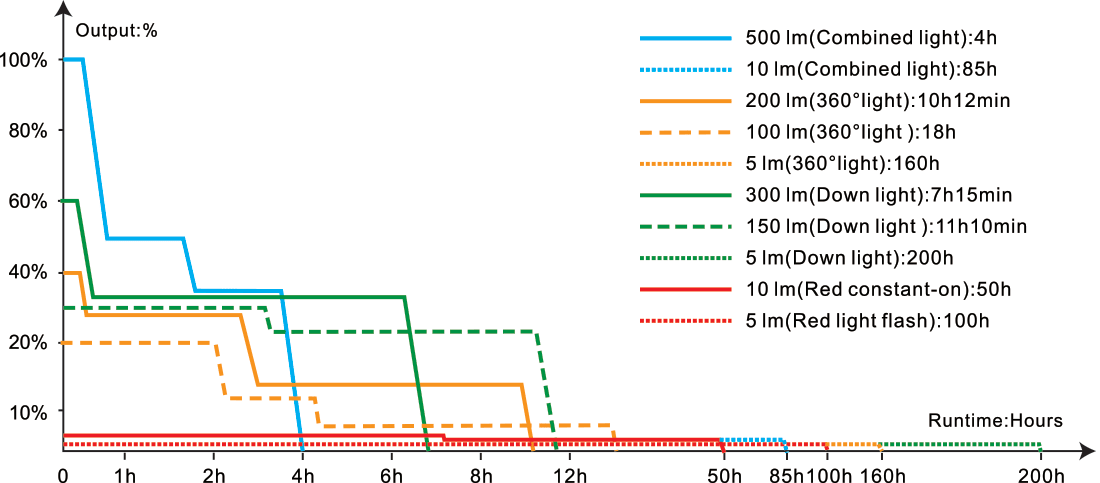

Outputs
Area lighting
High: 200 Lumens, 10.2 hours, 66 feet
Med: 100 Lumens, 18 hours
Low: 5 Lumens, 160 hours
Downward lighting
High: 300 Lumens, 5.25 hours, 263 feet
Med: 150 Lumens, 11.17 hours
Low: 5 Lumens, 200 hours
Area + Down
High: 500 Lumens, 4 hours
Low: 10 Lumens, 85 hours
Red Light
Steady: 10 Lumens, 50 hours
Flashing: 10 Lumens 100 hours
Atmospheric Lighting
Jumping colors: 17 Lumens
Morphing colors: 17 Lumens
Technical
Details
500 lumen maximum output
200 hours maximum runtime
360 degree lighting plus downward light that can be used overhead or as a flashlight
Colorful RGB atmosphere lights
Solid and flashing red light for signaling
Single handed operation via rotary switch
IP65 waterproof
Batteries
Built-in
Rechargeable 2600mah battery
Size
Height
4.53 inches
Top/bottom Diameter
1.65 inches
Body Diameter
1.5 inches
Weight
4.76 ounces including battery
