Fenix Work & Professional HP35R Black Expedition Headlamp Max 4,000 Lumens, 450m, Build-In Type-C Waterproof Charging Port, 10,000mAh Battery Case, Charging Cable is Included! 2 Years Warranty!

Warning:

 - The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone's eyes.
 - This headlamp will accumulate a lot of heat when used for extended periods, resulting in a high temperature of the headlamp. Pay attention to safe use to avoid scalding.
 - Do not shine an object at close range to avoid burning an object or causing harm due to high temperature.
 - The LED of this headlamp is not replaceable; so the entire lamp should be replaced when the LED reaches the end of its life.

Warranty: 2-Years Free Repair Warranty (Battery included)!

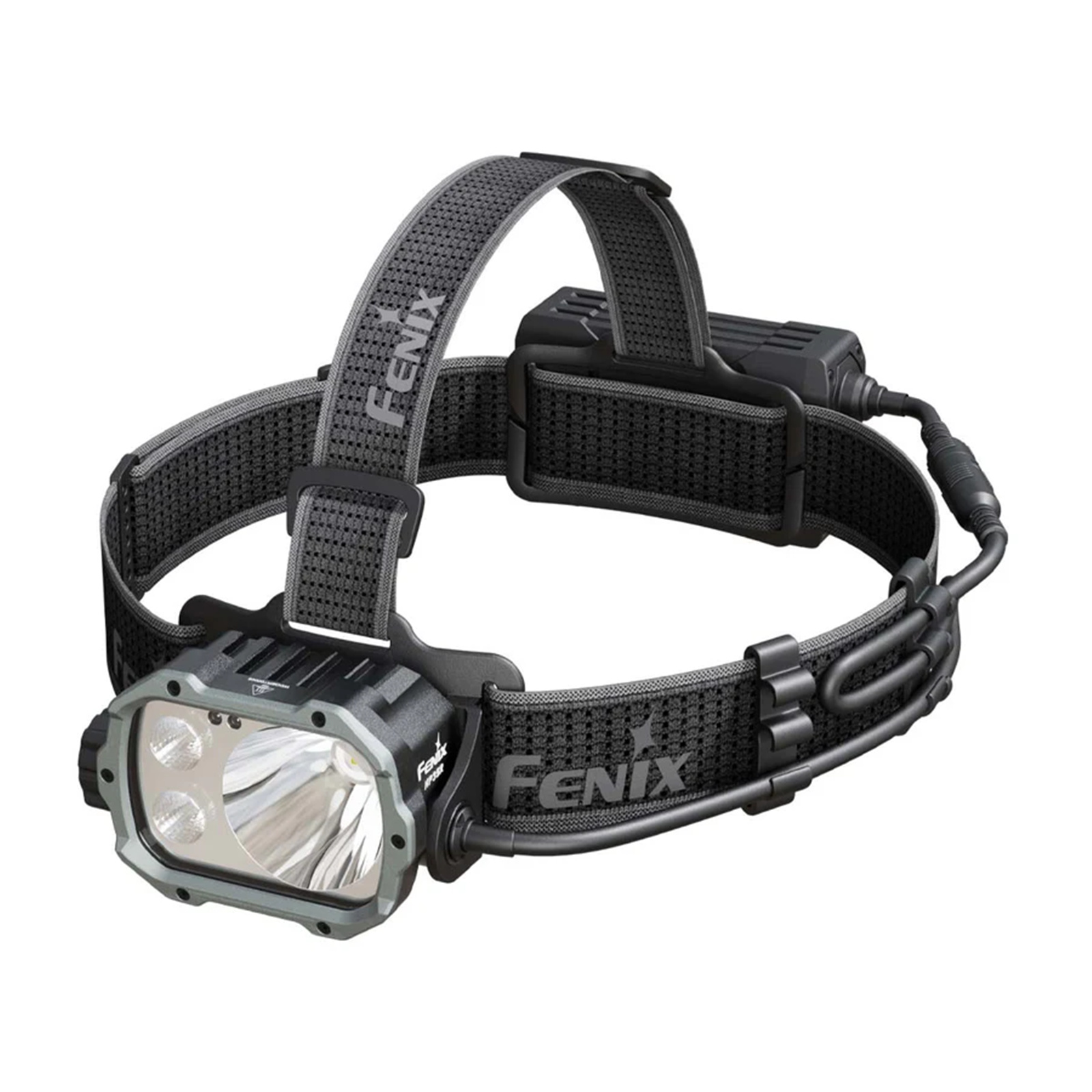

The Fenix HP35R is an advanced separation-style search and rescue headlamp that can provide up to 4000 lumens of light, with a beam distance of 450 meters. It is a versatile and dependable solution for those who require strong lighting in harsh environments. The two built-in 5000mAh batteries within the battery case offer an ultra-long runtime of 500 hours and can charge other digital devices. Users can easily switch between three modes and select from four brightness levels of each mode using rotary switch and electronic switch. The headlamp features a combination of spotlight, floodlight, and spot-and-floodlight, while the battery case includes a red light for alerting and preserving night vision. The excellent functionality of HP35R makes it ideal for search and rescue, patrolling, caving, and other high-intensity outdoor operations.

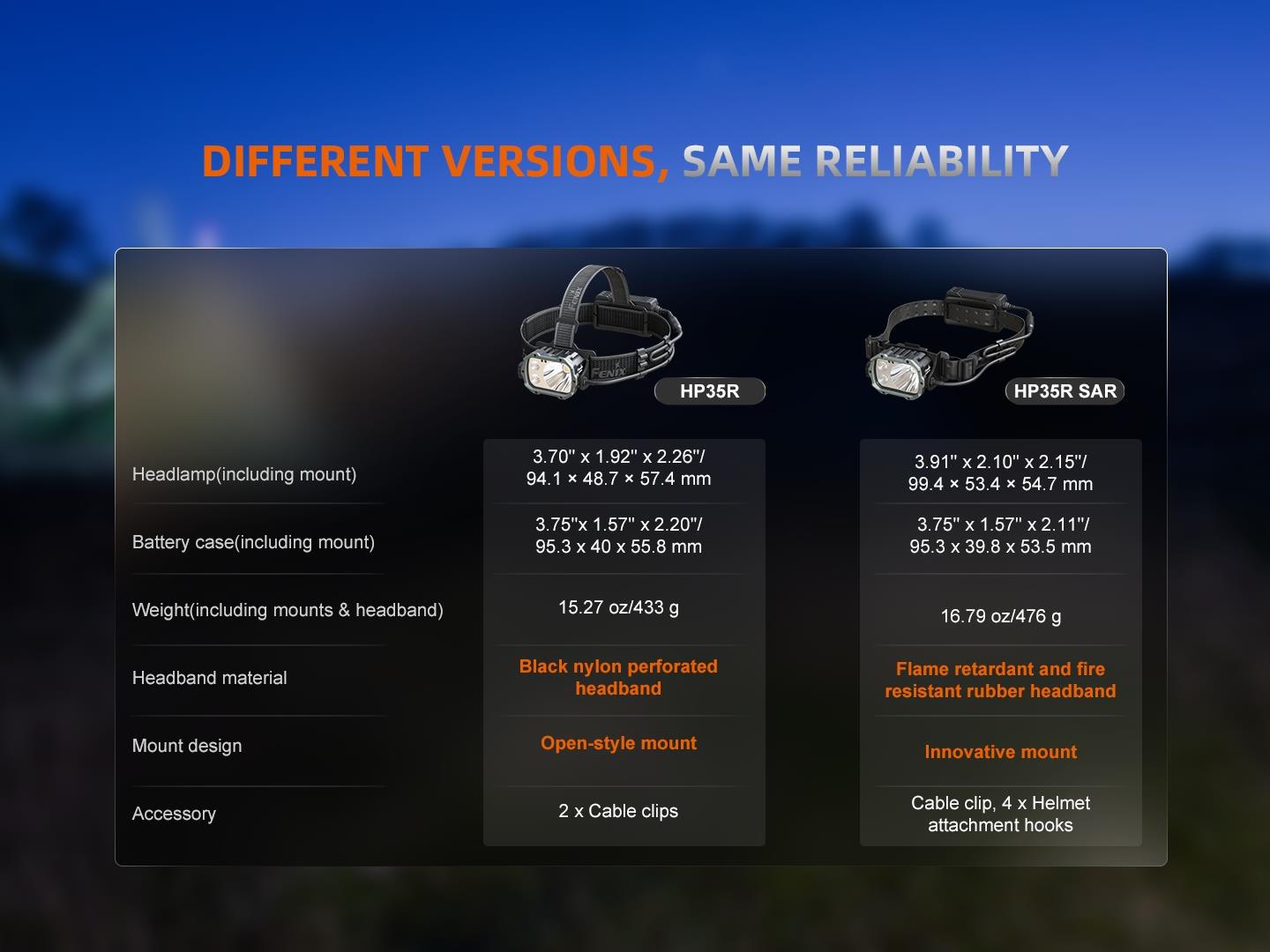

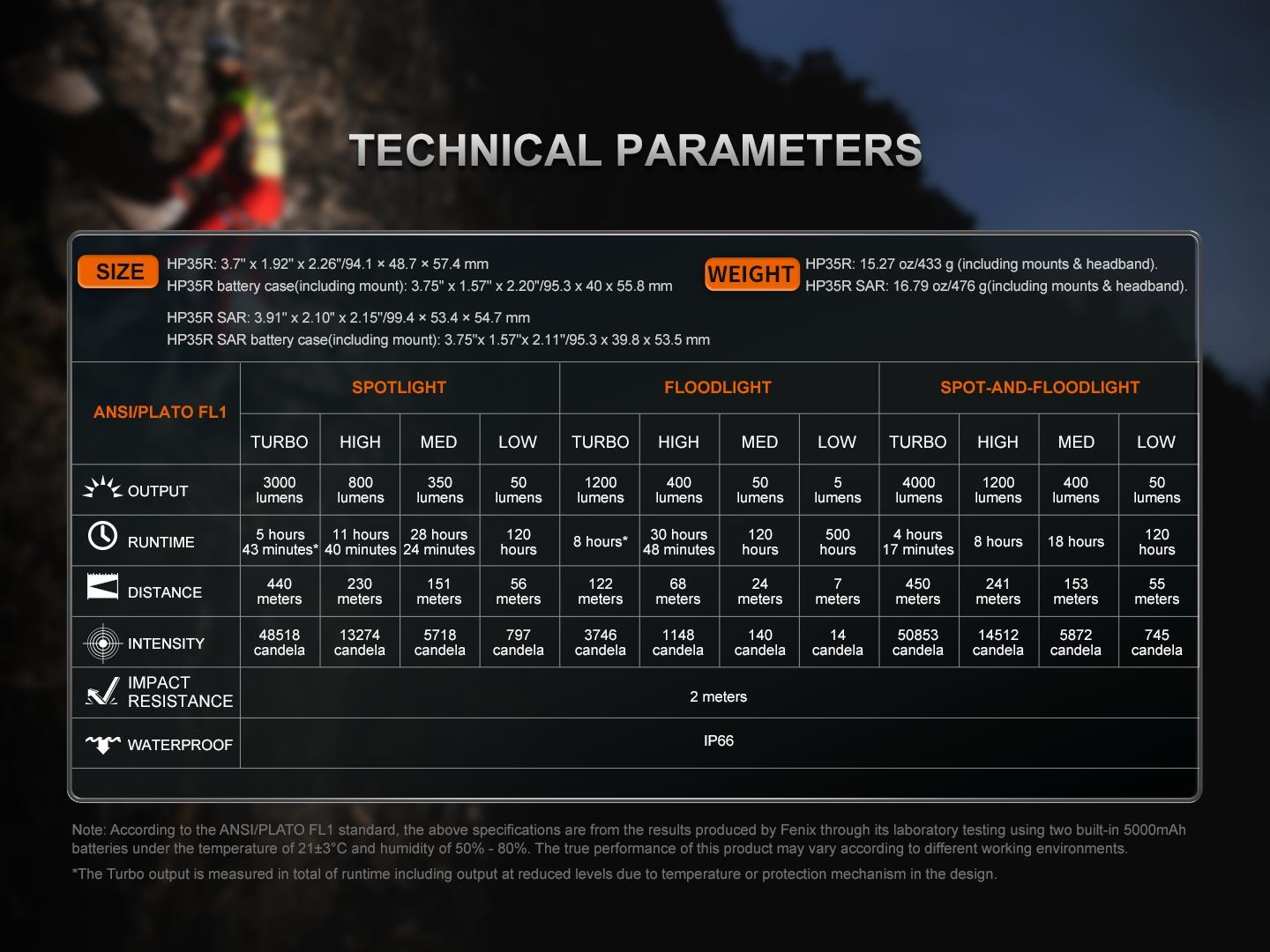

HEADLAMP(INCLUDING MOUNT): HP35R: 3.7'' x 1.92'' x 2.26''/94.1 x 48.7 x 57.4 mm
BATTERYCASE(including mount): HP35R battery case:3.75" x 1.57" x 2.20"/95.3 x 40 x 55.8 mm
Weight: HP35R: 15.27 oz/433 g (includingbatteries and headband)

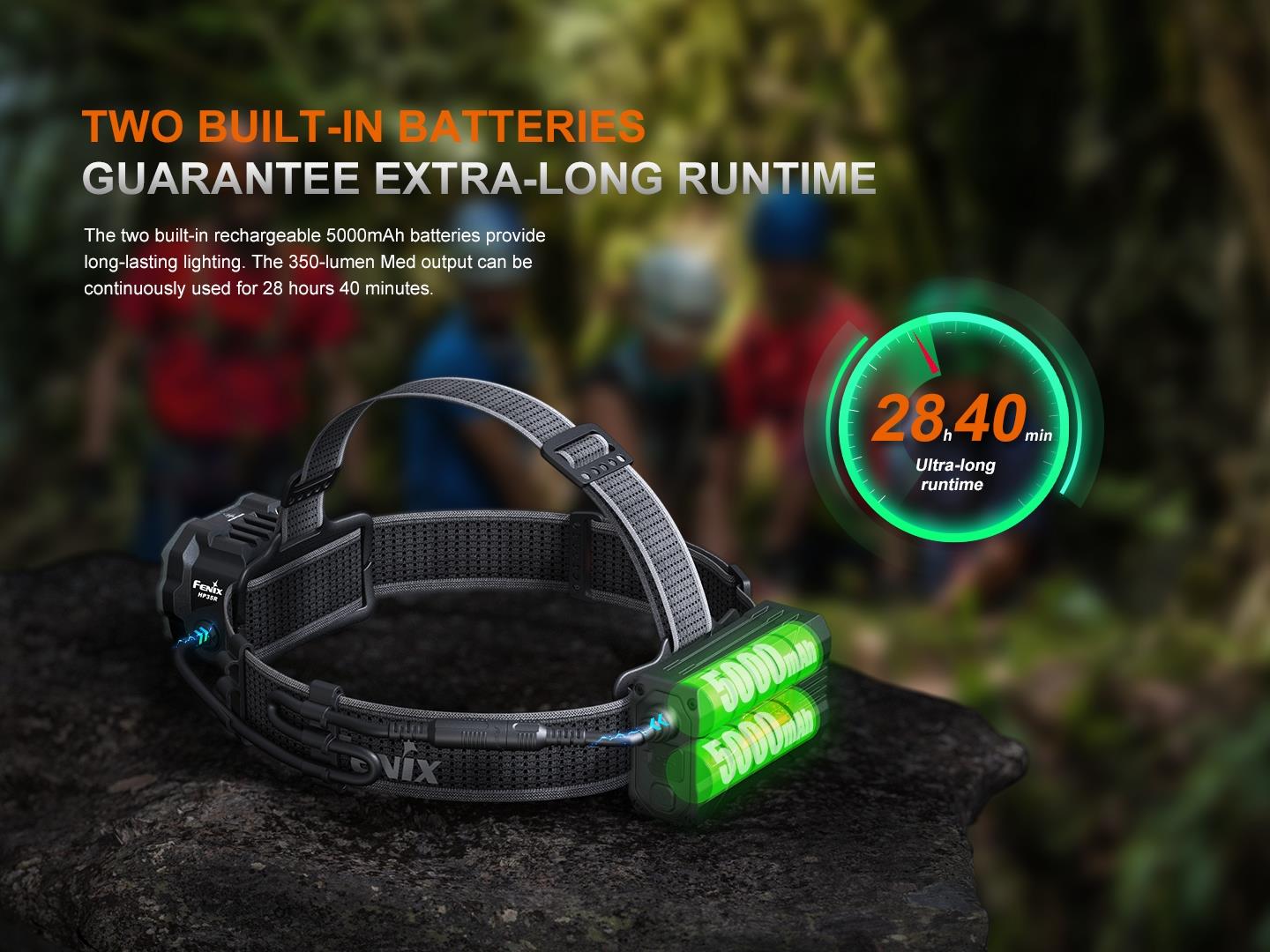

Battery Type: Included two built-in 5000mAh batteries

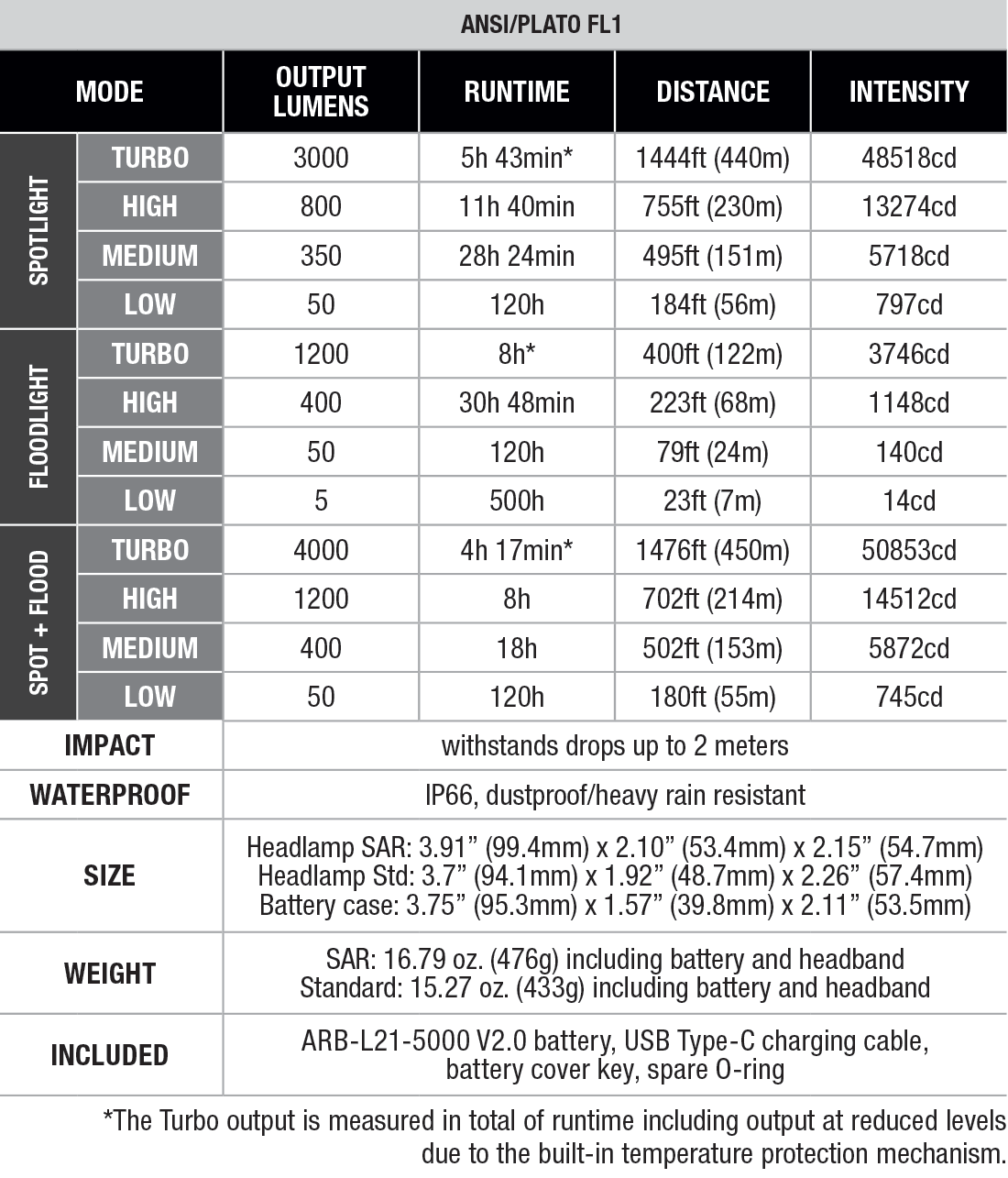

 - Spot-and-floodlight delivers a max output of 4000 lumens and high CRI floodlight delivers a max output of 1200 lumens.
 - 450 meters extended beam distance for the lighting needs in searching, rescuing, exploration, and other outdoor activities that require a higher level of professionalism.
 - Utilizes one XHP70 neutral white LED, two Luminus SST20 warm white LEDs; with a life span of 50,000 hours each.

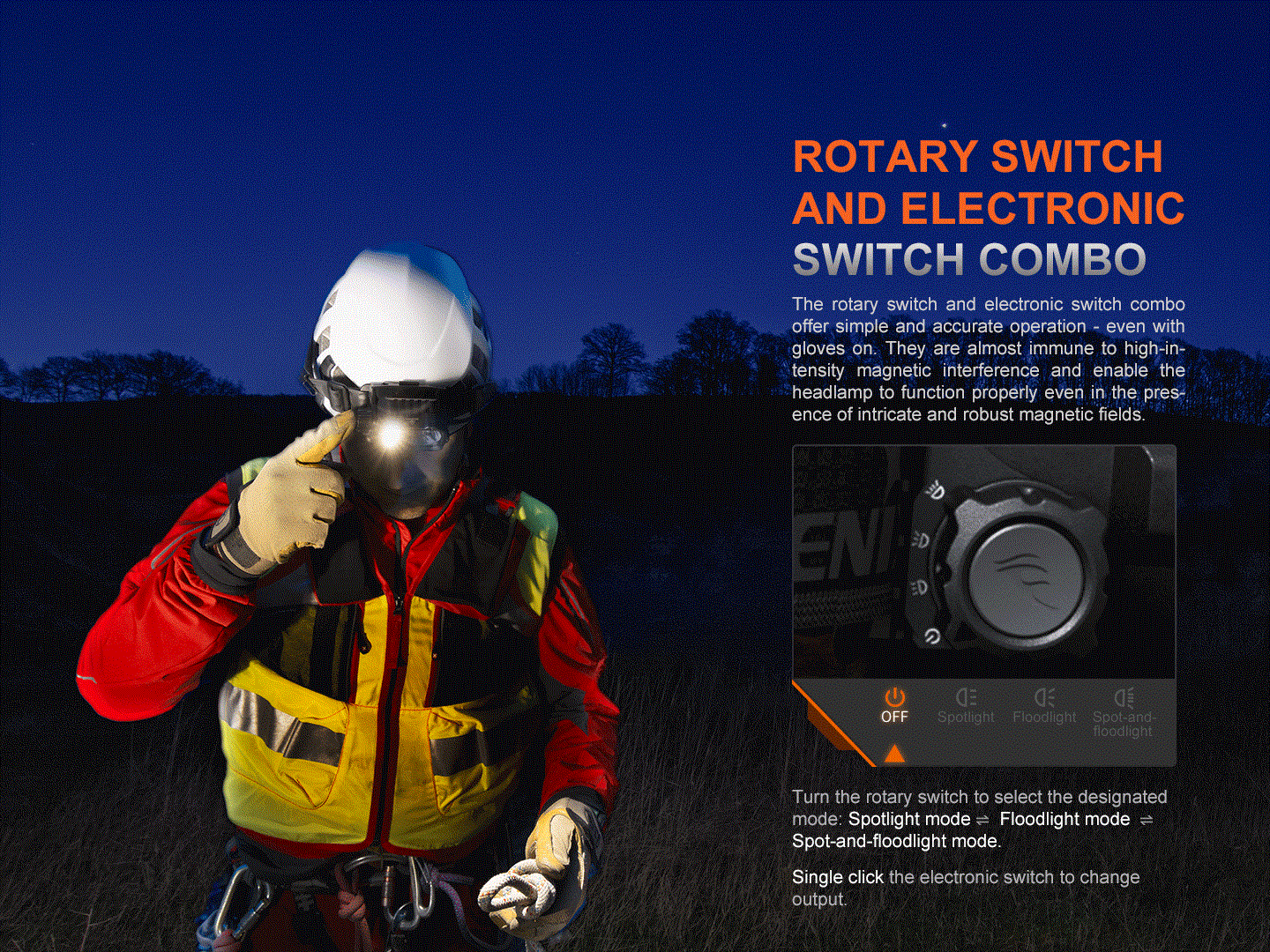

 - Rotary switch and electronic switch for easy and fast operation.
 - Quick-release large-capacity battery case with red light function and power bank function.
 - Intelligent brightness downshifting function to avoid potentially dangerous high temperature(s) at close-range lighting.
 - Inner waterproof USB Type-C charging port.

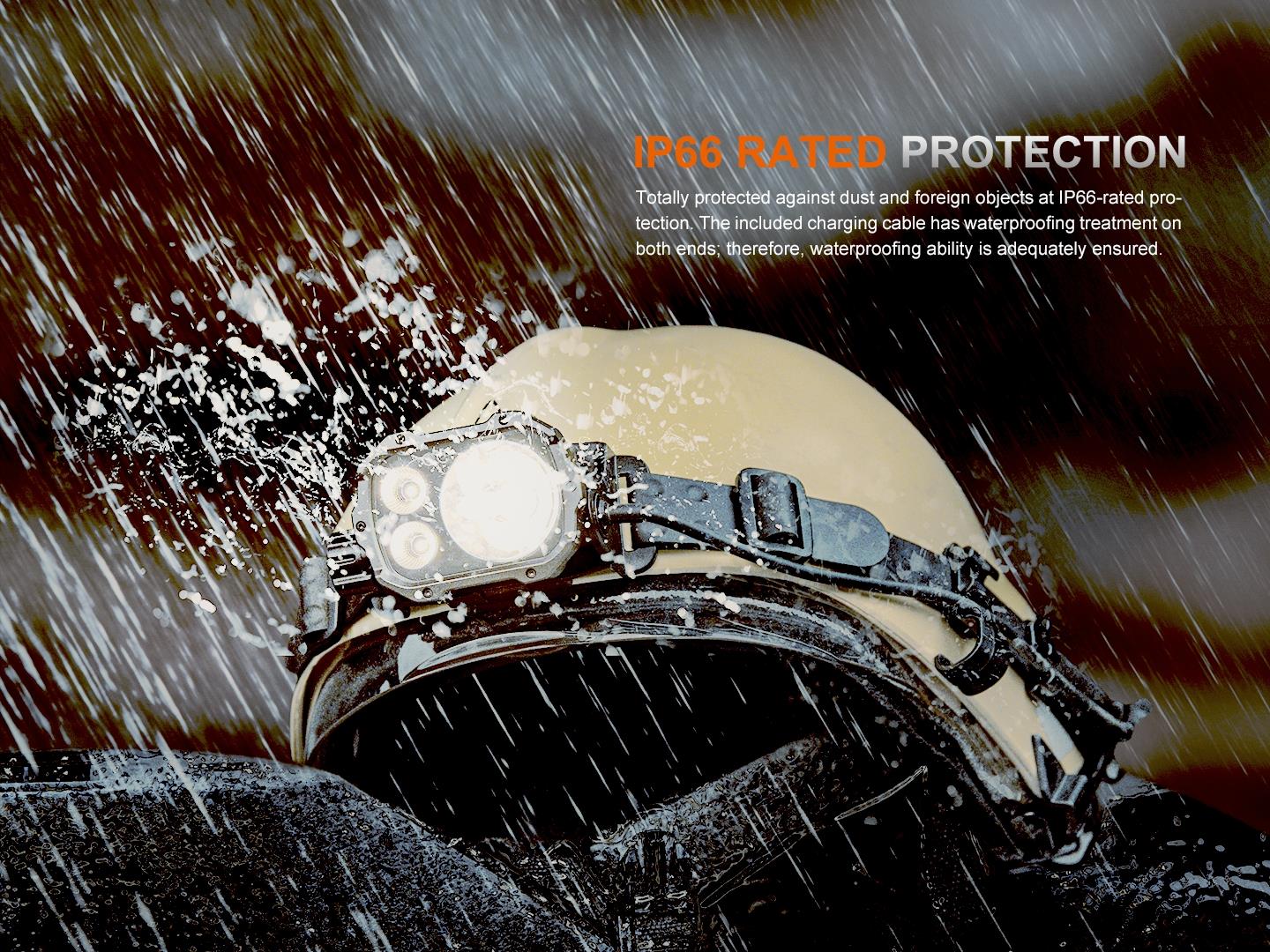

 - IP66 rated protection and 2 meters impact resistance.

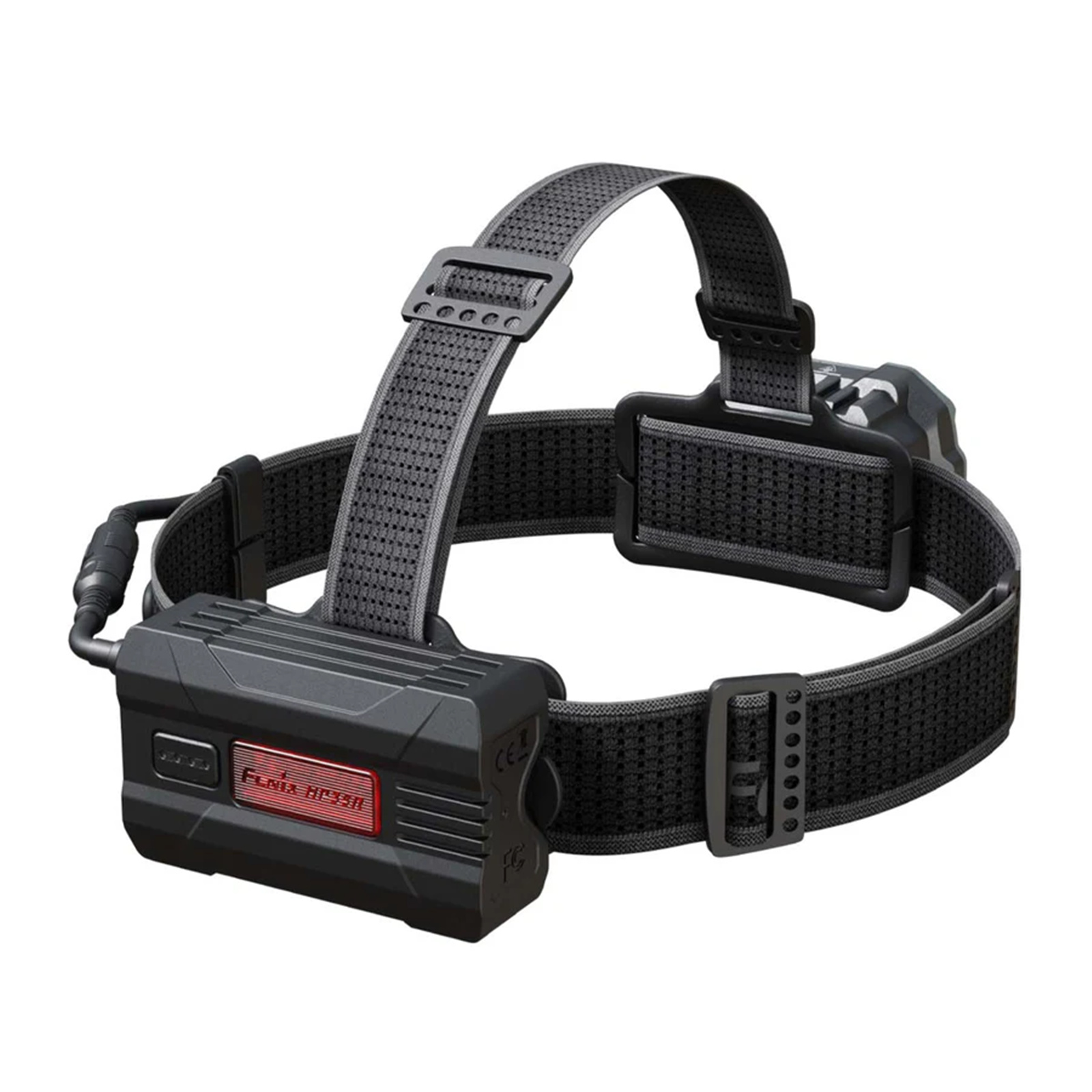

 - The HP35R headlamp features a black, washable nylon headband that islightweight, ventilated, and comfortable to wear. Additionally, the HP35R headlamp and its battery case incorporate open-style mounts that ensure compatibility with not only the Fenix ALG-03 V2.0 headlamp attachment and the Fenix ALG-04 helmet clip but also a broad range of helmet types.

Operating Instructions

On/off

 - On: With the lamp switched off, turn the rotary switch clockwise from""to any designated mode to turn on the lamp.
 - Off: With the lamp switched on, turn the rotary switch counterclockwise to"" to turn off the lamp.

Mode Switching

 - Turn the rotary switch to cycle through OFF, Spotlight, Floodlight, Spot-and-floodlight.

Output Selection

 - Spotlight mode: With the lamp switched on, single click Switch A to cycle through Low, Med, High, Turbo.
 - Floodlight mode: With the lamp switched on, single click Switch A to cycle through Low, Med, High, Turbo.
 - Spot-and-floodlight mode: With the lamp switched on, single click Switch A to cycle through Low, Med, High, Turbo.

Red Light Mode(Battery Case)

 - On/off: press and hold Switch B for 0.5 seconds.
 - Output selection: single click Switch B to select between Red flashing(5 lumens) and Red constant-on(20 lumens).

Intelligent Memory Circuit

The headlamp automatically memorizes the last selected output of each mode. When turned on again the previously used output of selected mode will be recalled.

Intelligent Brightness Downshifting Function

Turning on/off Intelligent Brightness Downshifting Function

 - On: With the lamp switched off, press and hold Switch A for 6 seconds, and the headlamp will flash twice at the Low output of Spot-and-floodlight mode, indicating that the function is enabled.
 - Off: With the lamp switched off, press and hold Switch A for 6 seconds, and the headlamp will flash eight times at the Low output of Spot-and-floodlight mode, indicating that the function is disabled.

Intelligent Brightness Downshifting

When the lamp head is close to an illuminated object (about 2.36''/60 mm) for more than 1 second, theheadlamp will automatically downshift the brightness level to Low output to avoid potential burns caused by high temperature(s). When the lamp head is moved away from the illuminated object for more than 1.2 seconds, the headlamp will automatically recall the previously used output level.

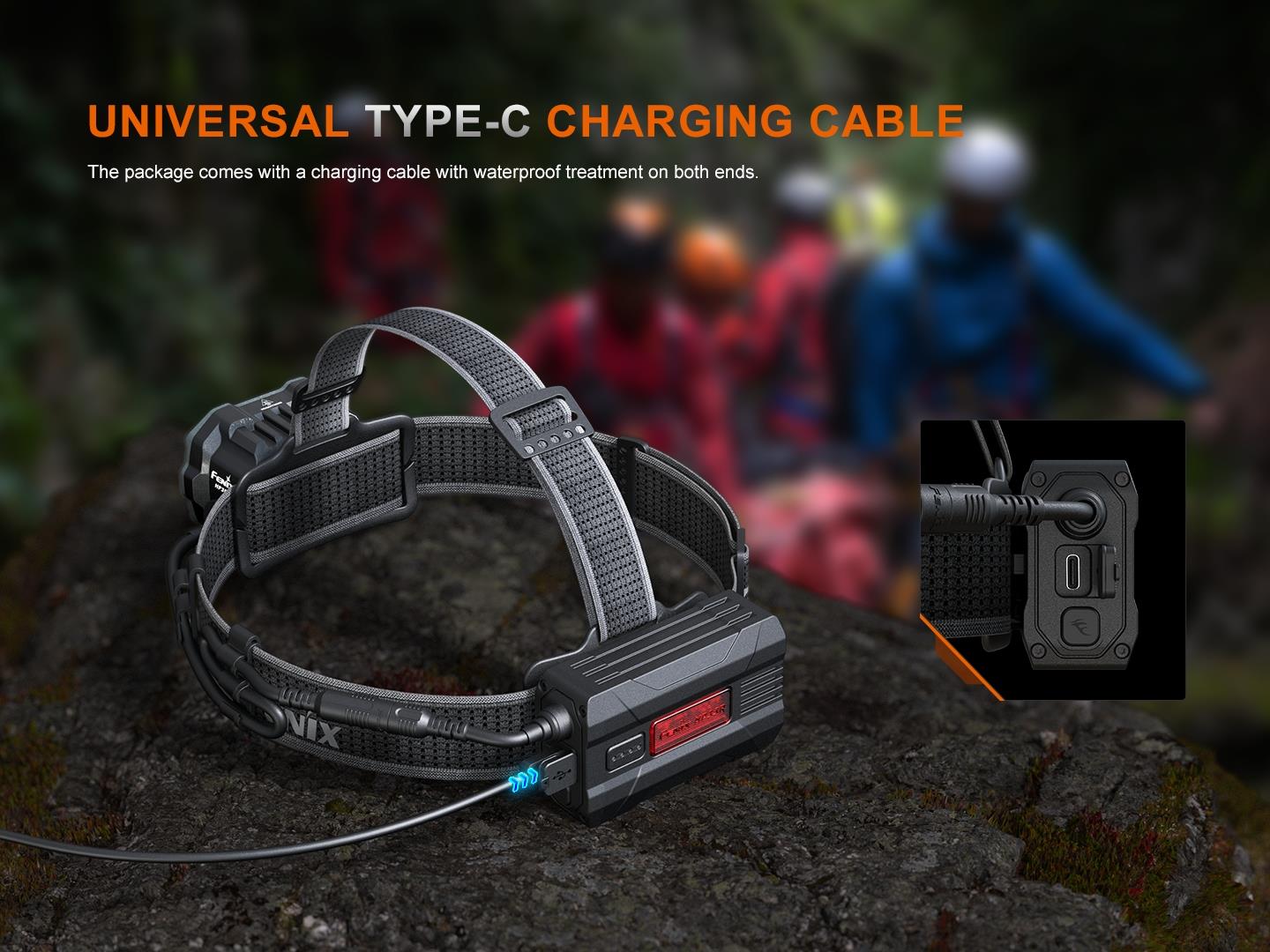

Charging

1, Uncover the anti-dust cap on the battery case and plug the USB Type-C side of the cable into the port on the battery case.
2, When charging, the LED indicators will flash from left to right to display the charging status. The four indicators will be constant-on after charging is completed.
3, With the lamp switched off, the normal charging time is about 2 hours from depleted to fully charged.
4, Compatible fast-charging protocols: PD3.0/2.0; max charging power: 27 W.

Note:

1, The headlamp can be operated while charging.
2, Once charging is completed, be sure to unplug the cable and close the anti-dust cover.

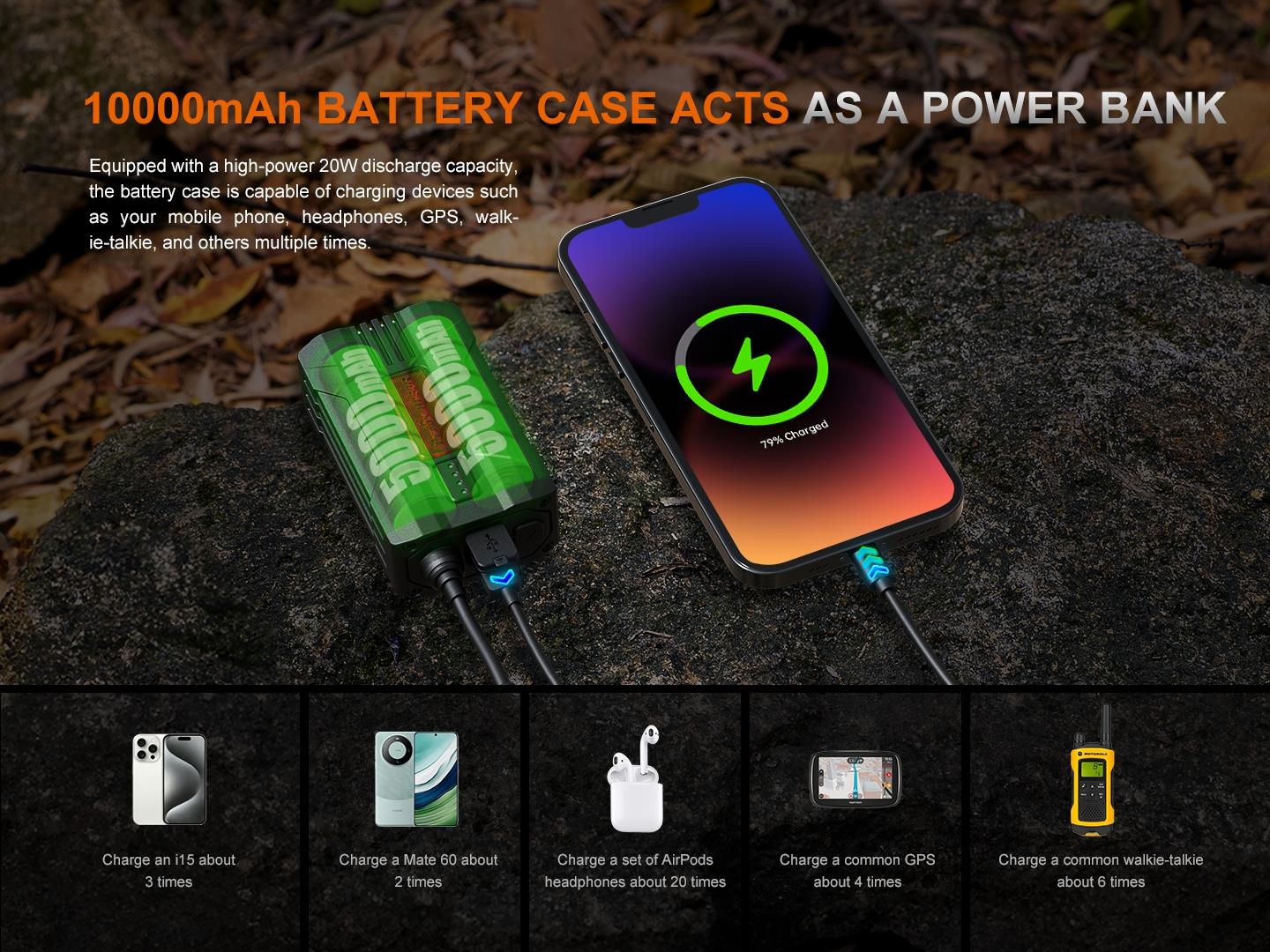

Power Bank Function

1, Uncover the anti-dust cap on the battery case and plug the USB Type-C side of the cable into the port on the battery case.
2, When discharging, the LED indicators will flash from right to left to display the discharging status.
3, The battery case will automatically stop discharging when the battery level is lower than 6.1 V.
4, Compatible fast-discharging protocols: PD3.0/PD2.0; max discharging power: 20 W.

Note:

1, The headlamp can be operated while discharging.
2, Once discharging is completed, be sure to unplug the cable and close the anti-dust cover.


Battery level indication

With the lamp switched off, single click Switch B to check the battery status. Single click once again the indicator(s) will go out immediately, or without any operation the indicator(s) will last for 3 seconds.

 - Four lights on: 100% - 80%
 - Three lights on: 80% - 60%
 - Two lights on: 60% - 40%
 - One light on: 40% - 20%
 - One light flashes: 20% - 1%

Intelligent Overheat Protection

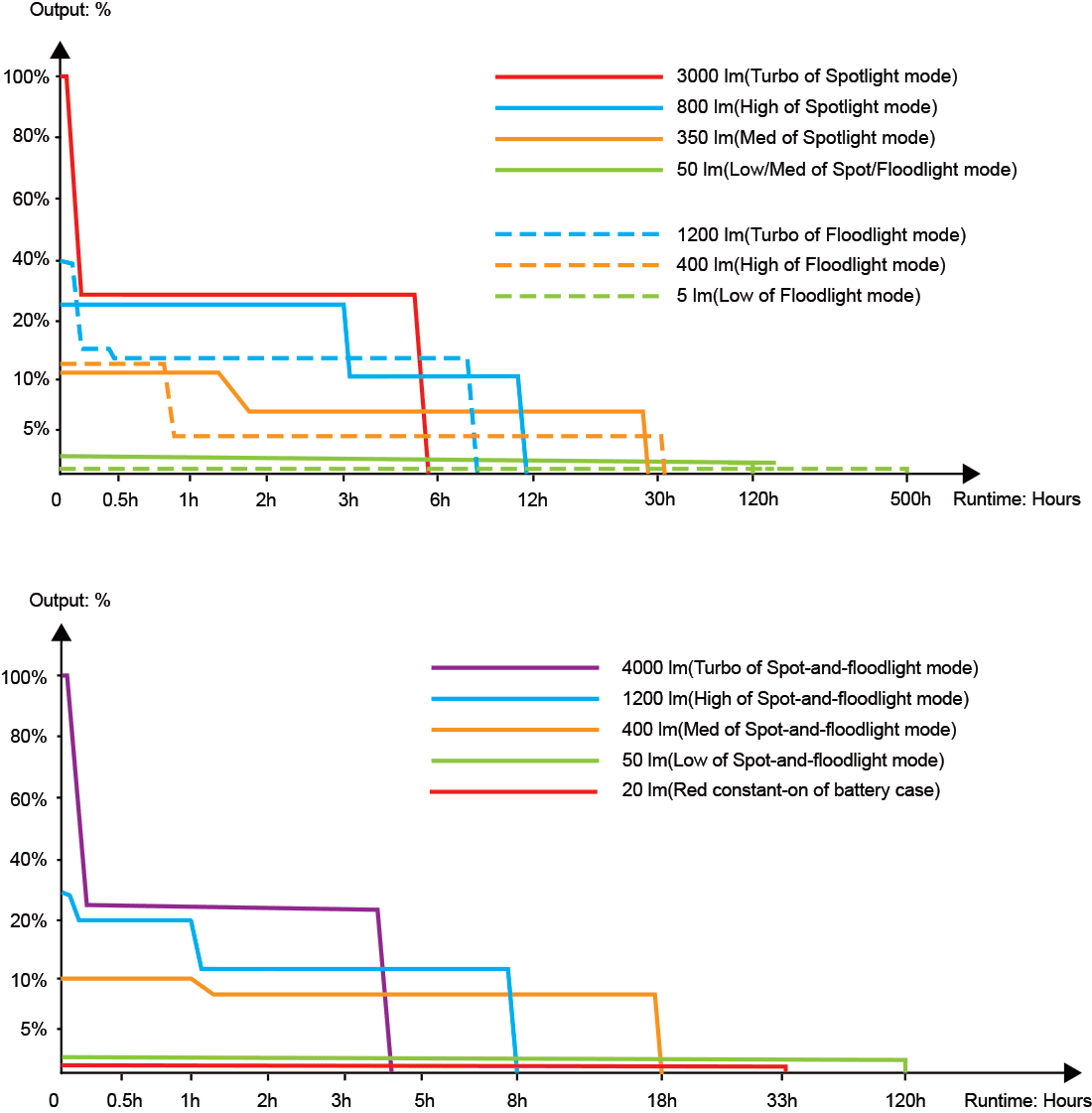

The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the lamp reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the lamp will gradually recall the preset output level.

Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the headlamp blinks at Low output of Spot-and-floodlight mode to remind you to timely recharge the battery case.

Headband Assembly

The headband is factory assembled by default.

Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

 - Disassembling the sealed parts can cause damage to the lamp and will void the warranty.
 - Unplug the connecting cable to prevent accidental activation during storage or transportation.
 - Recharge a stored headlamp every four months to maintain the optimum performance of the batteries.
 - The headlamp may flicker, shine intermittently or even fail to illuminate due to poor battery level. Please recharge the battery case. If this method doesn't work, please contact the distributor.
