Victor 86D Digital Multimeter
Victor 86D Digital Multimeter
- MPN: 86D
- Part #: TOLMRP9009
- UPC:
- MPN: 86D
- Part #: TOLMRP9009
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
Victor 86D Digital Multimeter
- MPN: 86D
- Part #: TOLMRP9009
Product URL: https://www.pbtech.co.nz/product/TOLMRP9009/Victor-86D-Digital-Multimeter
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 7 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

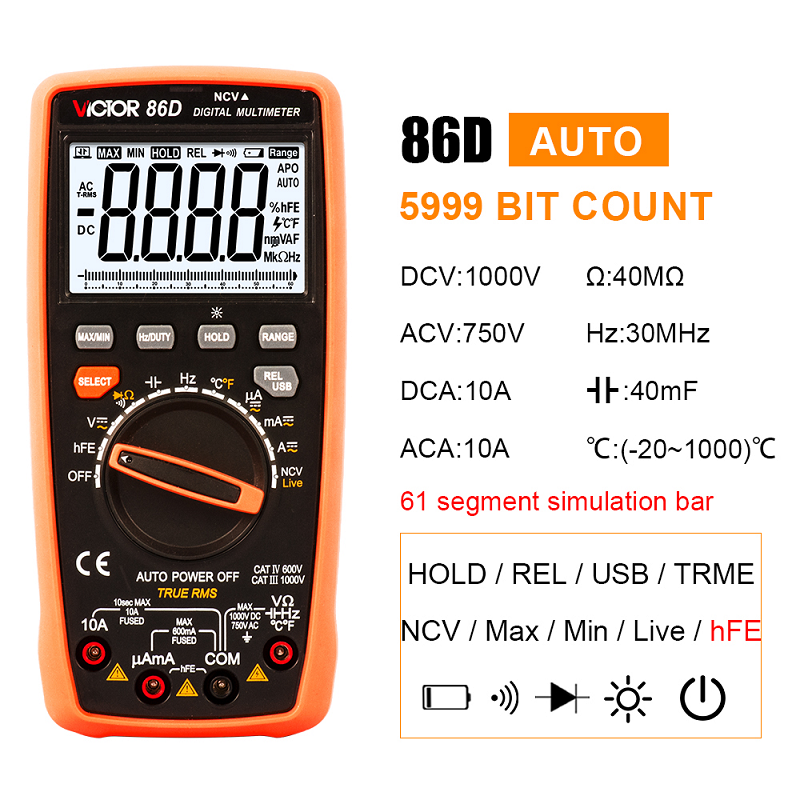

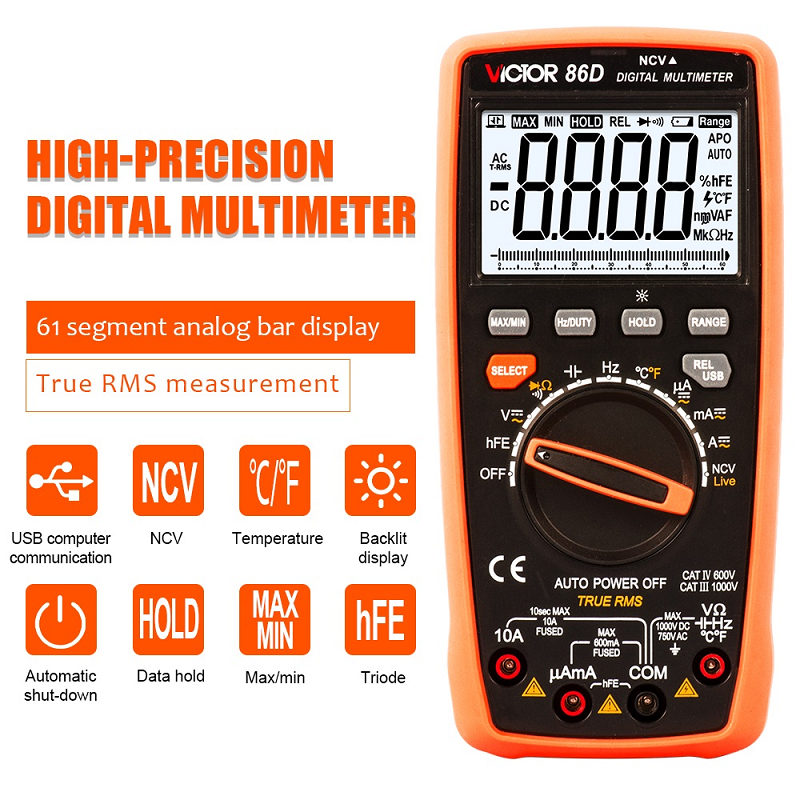

VICTOR 86D Auto Range Digital Multimeter 5999 counts 3 5/6 digital Large LCD Display instrument with USB interface Capacitance
The instrument is a high performance, high accuracy, 3 5/6 digit multi-meter, it uses the LCD with 33mm high figure to make the reading clear, the display simple and the operation convenient.The instrument can measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Duty Circle, Transistor, Diode and Continuity test; And it also has the features of Bar Graph, Unit Indication, Data Hold, Relative Value Measurement (REL), USB Interface, AUTO/MANUAL range selection, Auto Power Off and Alarm Buzzer. The instrument adopts the directly driven 4 digits microprocessor and dual-integral A/D converter, which provide the high solution and high accuracy digital displaying driver. Because of its outstanding features, it is an excellent tool and most suitable for lab, factory, maintenance and repair users.
- New type holster, streamline design,

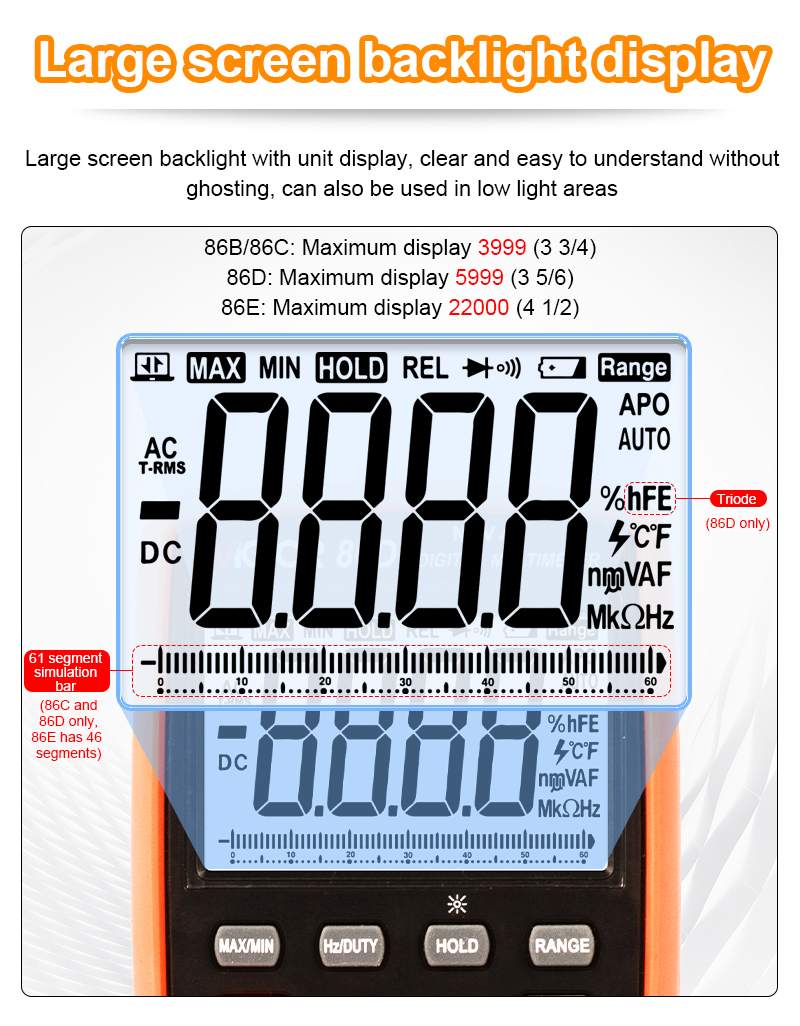

- USB interface can connect to computer ,Large LCD anoloq bar graph display
- Unit symbol display,make the reading clearly, display.
- Metallic screen board with strong antimagnetic and anti-interferential function
- Auto power off and alarm when stopped used after 15 minutes.
- Full function protection,anti-high voltage circuit design

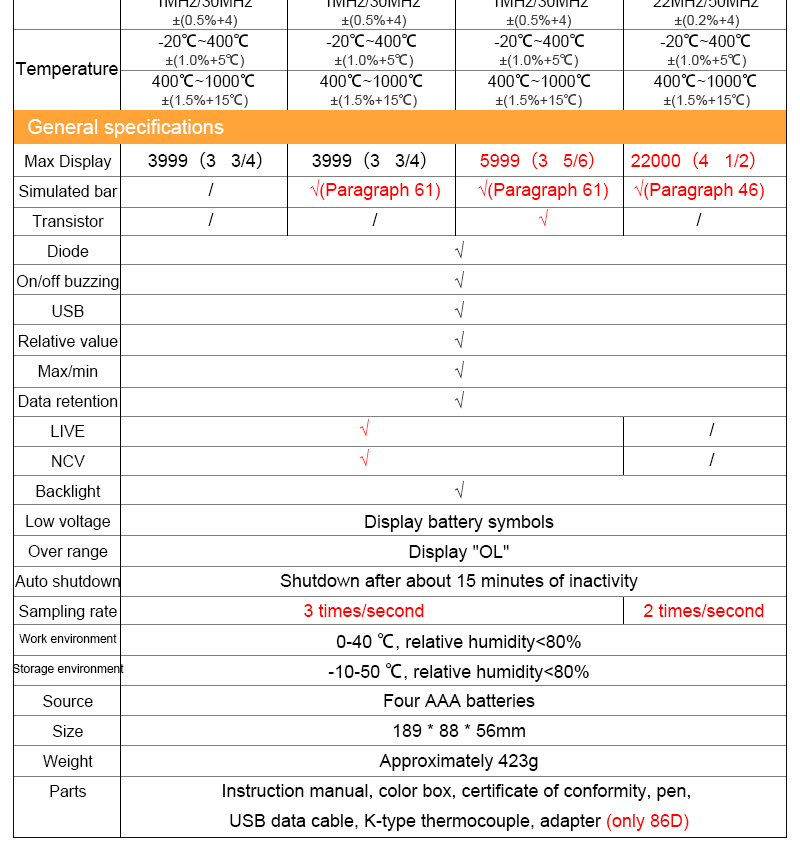

Specifications
Display
LCD
Max Display
5999 counts (3 5/6), automatic polarity, unit display
Measuring Method
Dual-integral A/D converter
Sampling Rate
3 times/sec
Overrange Indication
Displays "OL"
Low Battery Indication
Yes
Operating Environment
0-40°C, <80% RH
Storage Environment
-10-50°C, <80% RH
Power Supply
2 × 1.5V AAA batteries
Dimensions
192 × 95 × 48 mm
Weight
Approx. 390 g (including batteries)
