Features

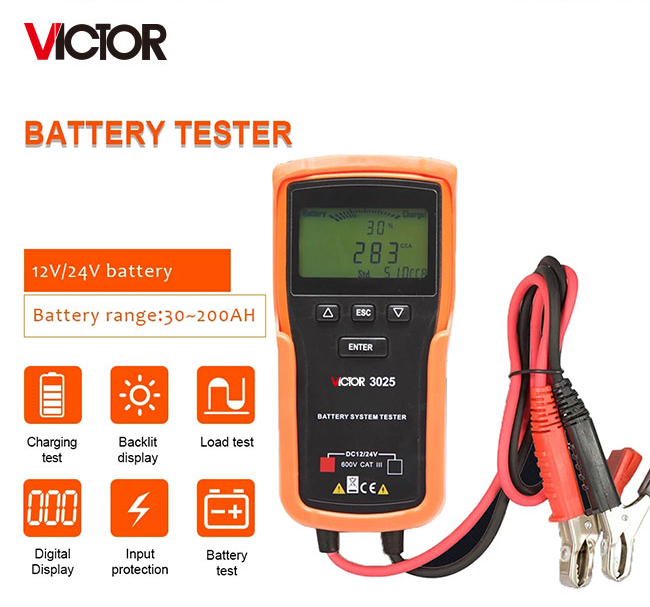

12V 24V Car Battery Electrical System Analyzer Motorcycle Battery Tester
VICTOR 3015/3025/3026 Battery Tester 12V 24V Car Motorcycle Battery System Analyzer 100 - 1700CCA Cranking Charging Electrical Test Tools
Professional 12V or 24V Car Battery Tester
3025 Series is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. Notifies the users to replace battery in advance when the battery getting aged.
Automotive Battery System Tester
Rich parameters measured and displayed for battery diagnose.
Technical Data
- Easily read out conclusion of battery condition good/OK/pay attention/replace as suggestion.
- Overload protection keeps operator always safe.
- Loose lead detection, reverse polarity protection, unit conversion CCA/IEC/EN/DIN.





Specifications
Model No.
VICTOR 3025
Battery type
Lead- acid battery
Battery voltage
12/24V
Battery range
100-1700CCA
Voltage range
DC 9-35V
Battery capacity
30AH~200AH
battery standards
CCA:100~1700;IEC:100~1000;EN:100~1700;DIN:100~1000
Operating temperature
-18℃~50℃
Operating Language
English
Testing method
4-wire Kelvin test connection
Print Function
No
Display Battery Internal Resistance
Display ohms
Display Battery Voltage
Display volts
Display Battery condition
Good/ok/attention/replace
Ah Input Quick Test
yes
Engine Cranking Load Test
yes

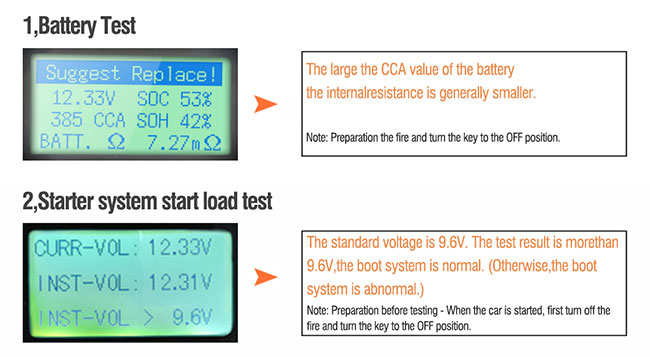

Star-up Load Test
yes

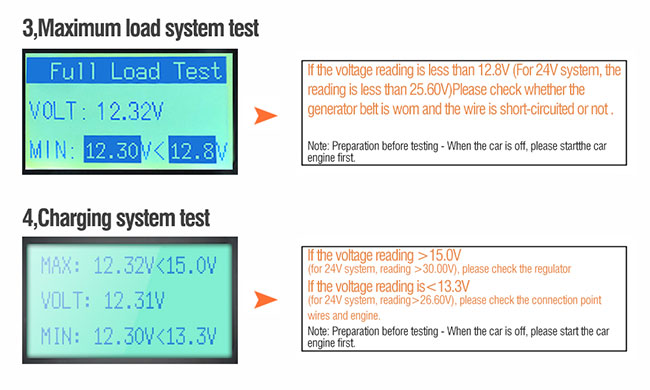

Maximum Load Test
yes
Charging system Test
yes
Display Battery Status of Health(SOH)
yes
Reverse Polarity Protection
yes
Loose Lead Detection
yes
Overload Protection
yes
Cable Length
700mm
