Features
VC8045-II Multimeter True RMS 19999 counts High precision Desktop Multimetro for electrician Transistor Capacitance tester

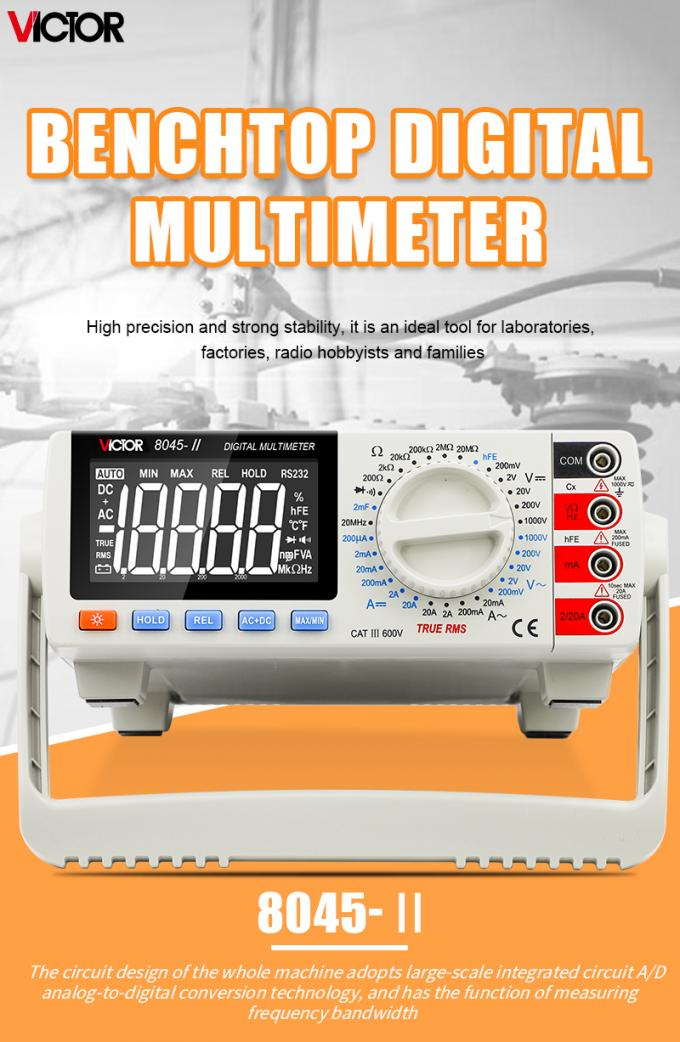

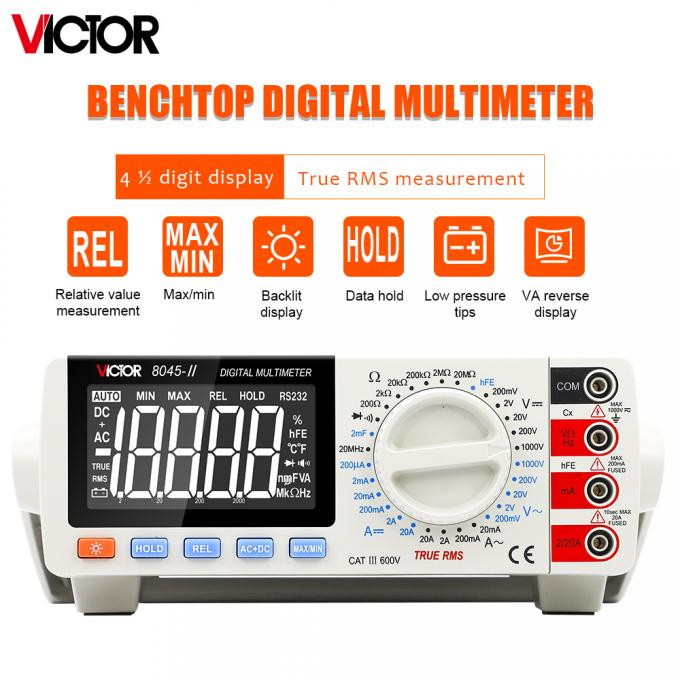

This instrument digital multimeter is a high performance of 4½ digital bench multimeter for measuring DCV, ACV, DCA, ACA, OHM, CAP, Hz, hFE, Diodes and Continuity. The max. voltage is 1000V DC or AC peak value, resolution can be 10μV,and max. current is 20A,it also has the function of polarity auto-change, backlight display and directly reading.
For AC measuring, it is performed by high accuracy TRUE RMS, can test the bandwidth of the frequency, and the TRUE RMS of any waveform can be accurately measured.

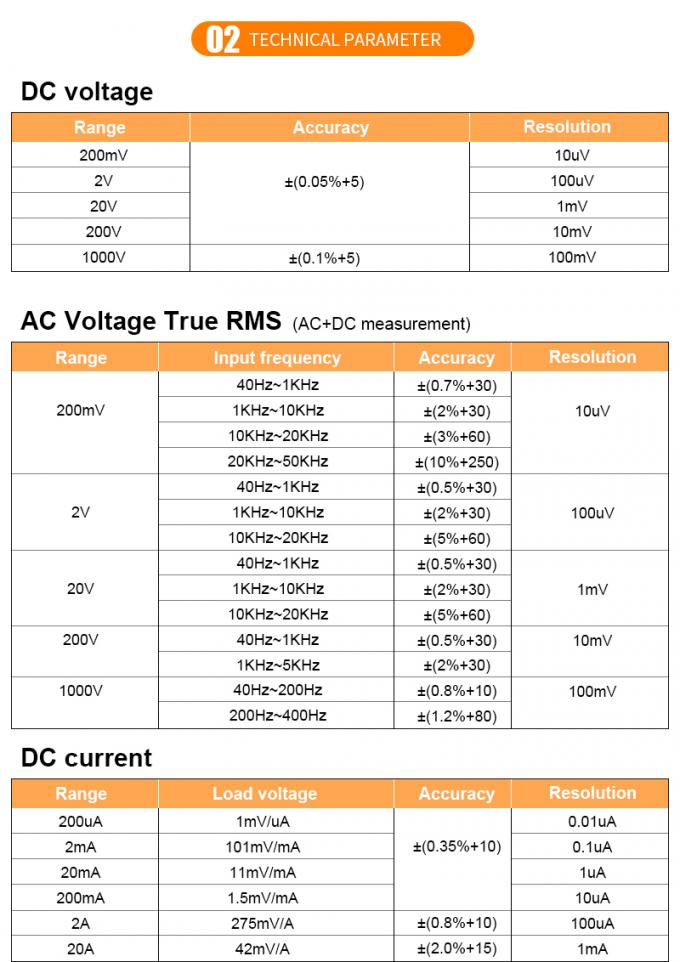

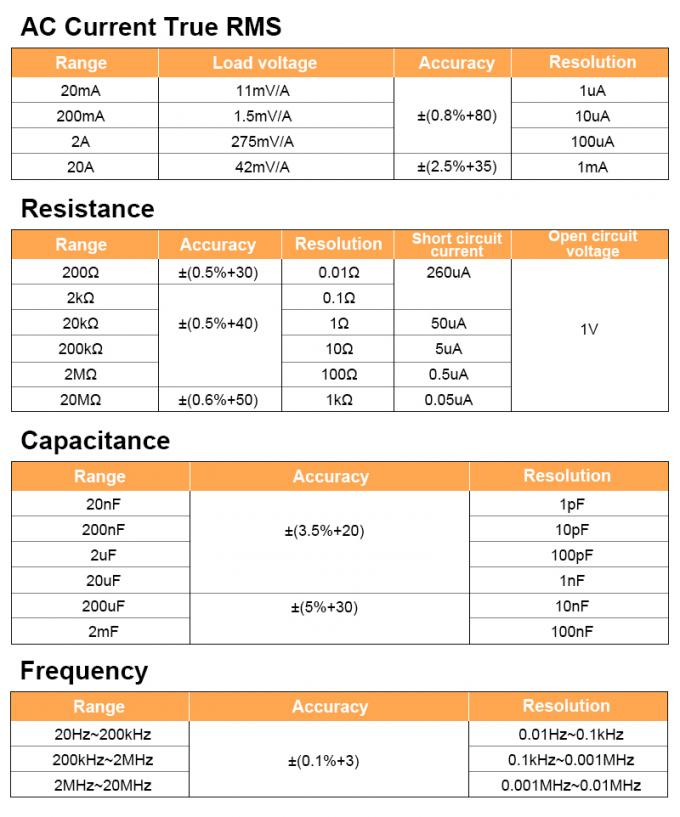

Specifications
Model No.
VC8045-II
Power supply
220V/ 110V AC
Manual range
Manual range

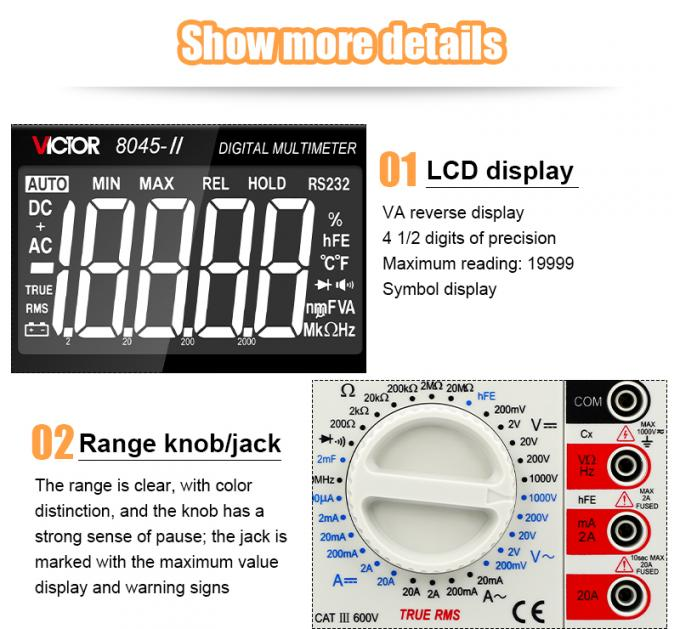

4 1/2-digit large LCD display with backlight(displaying range:75×40mm),max. reading
19999.
Voltage measurement up to
1000V DC / 1000V AC.
DC, AC current up to
20A.
ACV frequency response
50kHz.
Frequency, resistance, capacitance, triode, diode test and continuity test.
Frequency, resistance, capacitance, triode, diode test and continuity test.
Overload protection
250V rms.
Operation environment
0℃--40℃, relative humidity <75% RH

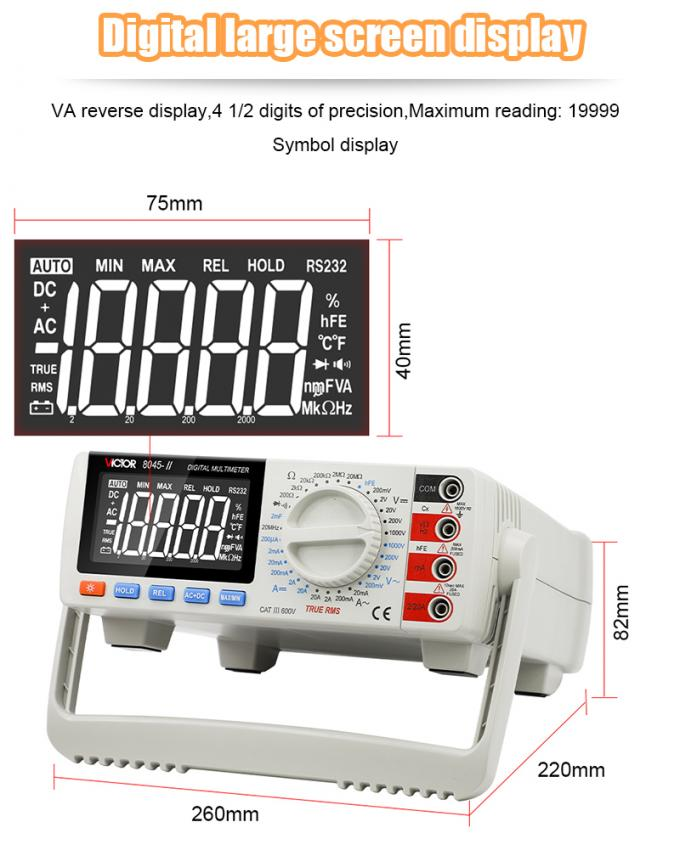

Dimension
260mm×220mm×82mm.
Weight
approx.1kg.
