Victor VC890C+ True RMS Digital Multimeter
Victor VC890C+ True RMS Digital Multimeter
- MPN: VC890C+
- Part #: TOLMRP9014
- UPC:
- MPN: VC890C+
- Part #: TOLMRP9014
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
Victor VC890C+ True RMS Digital Multimeter
- MPN: VC890C+
- Part #: TOLMRP9014
Product URL: https://www.pbtech.co.nz/product/TOLMRP9014/Victor-VC890C-True-RMS-Digital-Multimeter
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 1 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
VC890C+ Digital Multimeter 2000 Counsts Manual Range True RMS Capacitance Resistance Transistor 1000V 20A 20MΩ
This meter is a stable multimeter with 28mm LCD display, driven by battery. It's widely used on measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, diode, transistor, continuity test and with the function of auto power off and backlight . The meter takes integrated circuit as the core. It's an ideal tool for lab, factory, wireless lover and family.
SAFETY NOTE
The meter meets the standards of IEC61010 (the safety standards or equal GB4793.1 standards request issued by IEC) Read the operation manual carefully before operation.
- Do not input limit over-ranged.
- The voltage below 36V is safety. To avoid electric shock, check whether the test leads connection is correct and insulation is fine when measuring over 36V DCV or 25V ACV.
- When input over 24V ACV or DCV, the warning symbol for high voltage will display
- Remove the test leads when changing function and range.
- To select correct function and range, beware of error operation; For your safety please note, although there is protective function of whole range for this series meters.
- Do not operate the meter if the battery and back cover is not fixed.
- Do not input voltage when measuring resistance, capacitance, diode, continuity test.
- Remove test leads from test point and turn off the power before replacing battery and fuse.

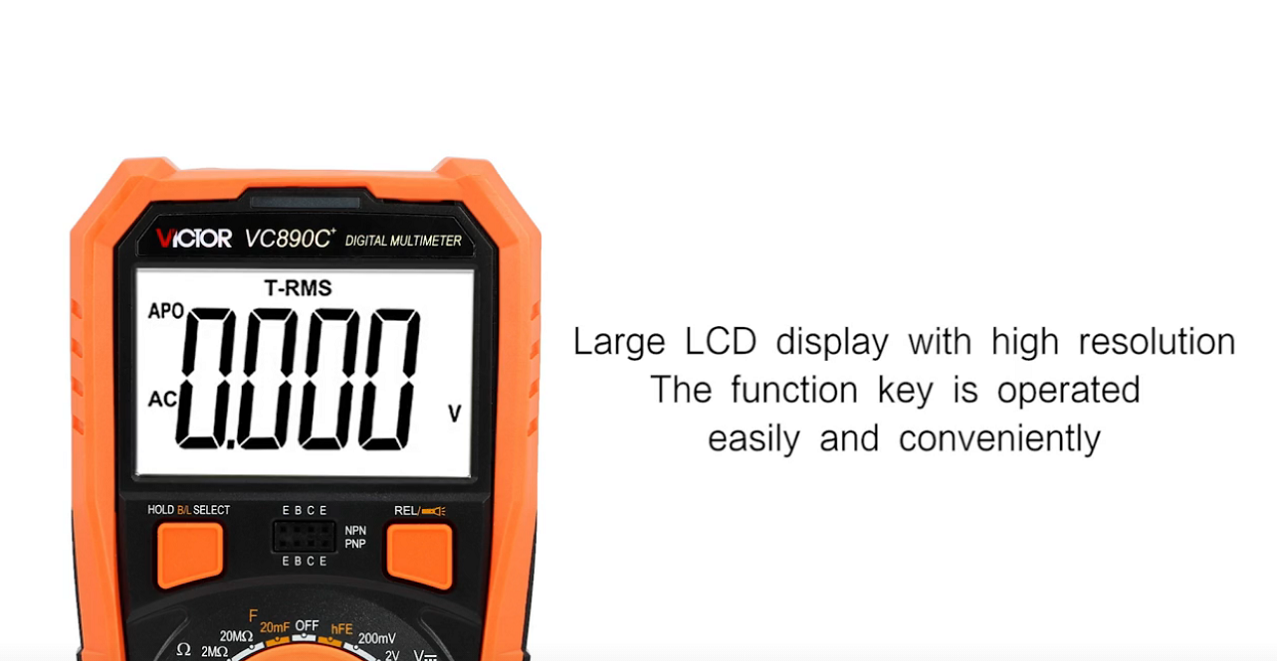

Large LCD display with high resolution The function key is operated easily and conveniently

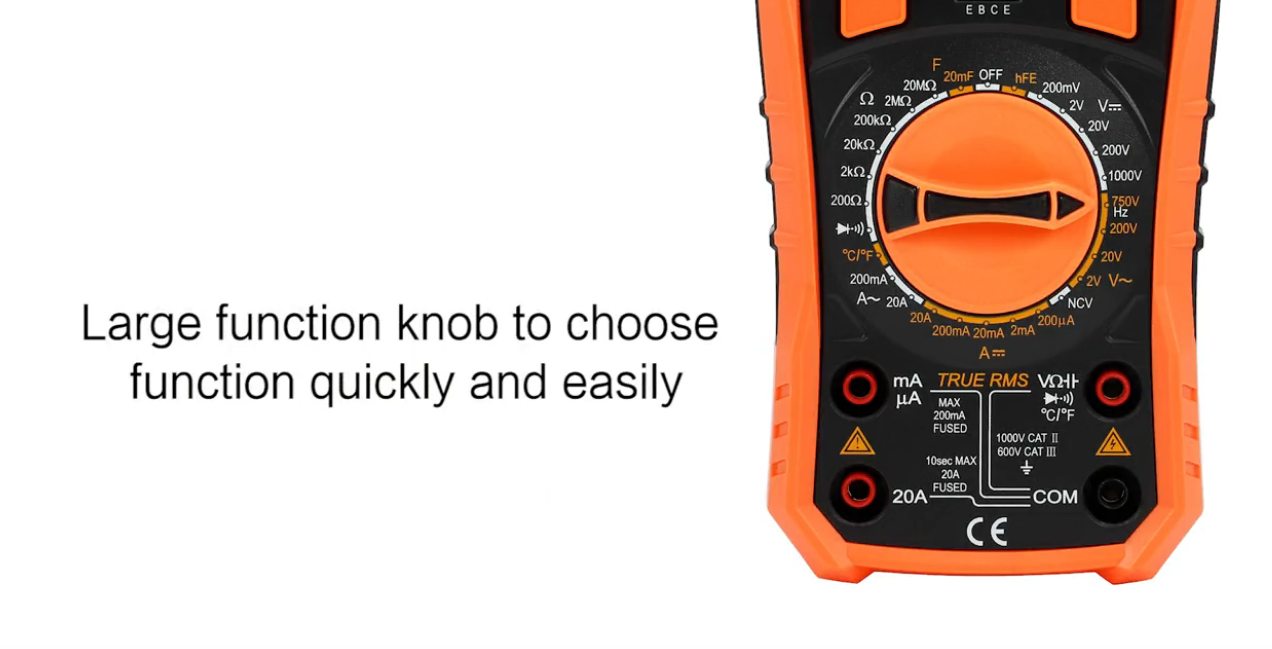

Large function knob to choose function quickly and easily

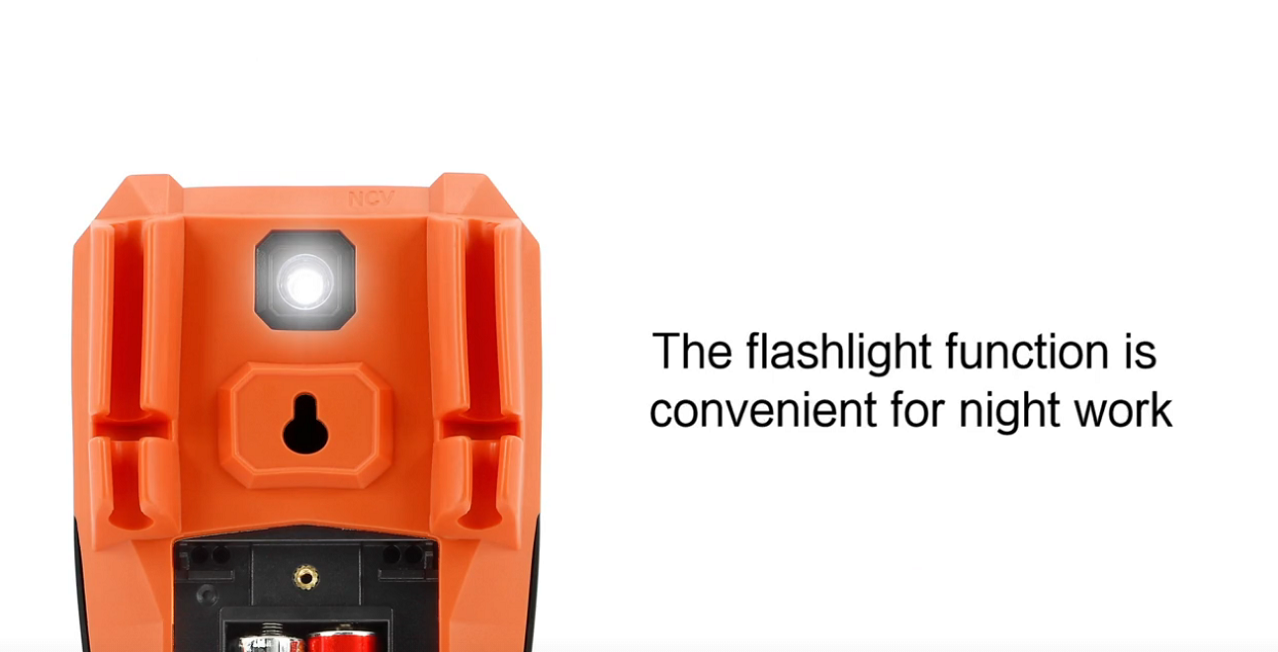

The flashlight function is convenient for night work

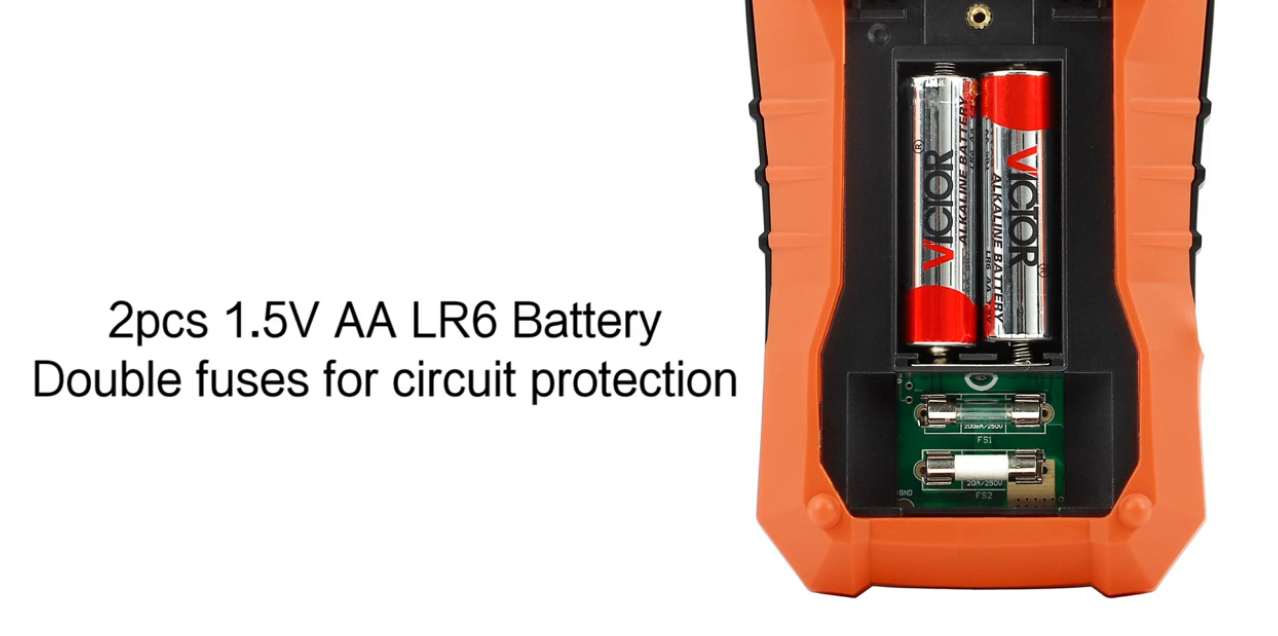

2pcs 1.5V AA LR6 - Battery Double fuses for circuit protection

Specifications
Model No.
VC890C+
Input impedance
About 10MΩ
Sampling rate
3 times/s
Frequency response
(40-1000)Hz
Operation way
Manual Range
Max. Display
1999
LCD size
61 x 36mm
Battery
2*1.5V AA LR6
Product Color
Case: black ; Holster color:orange
Product Net Weight
Approx . 358g (including battery)
Product Dimension
178*86*52mm
Diode & Continuity test
Yes
Backlight
Yes
Continuity buzzer
Yes
Low battery indication
Yes
Auto power off
Yes
Function protection
Yes
200mA/20A Protection
Yes
TRUE RMS
Yes
NCV measurement
Yes
Torch function
Yes
Shock proof protection
Yes
