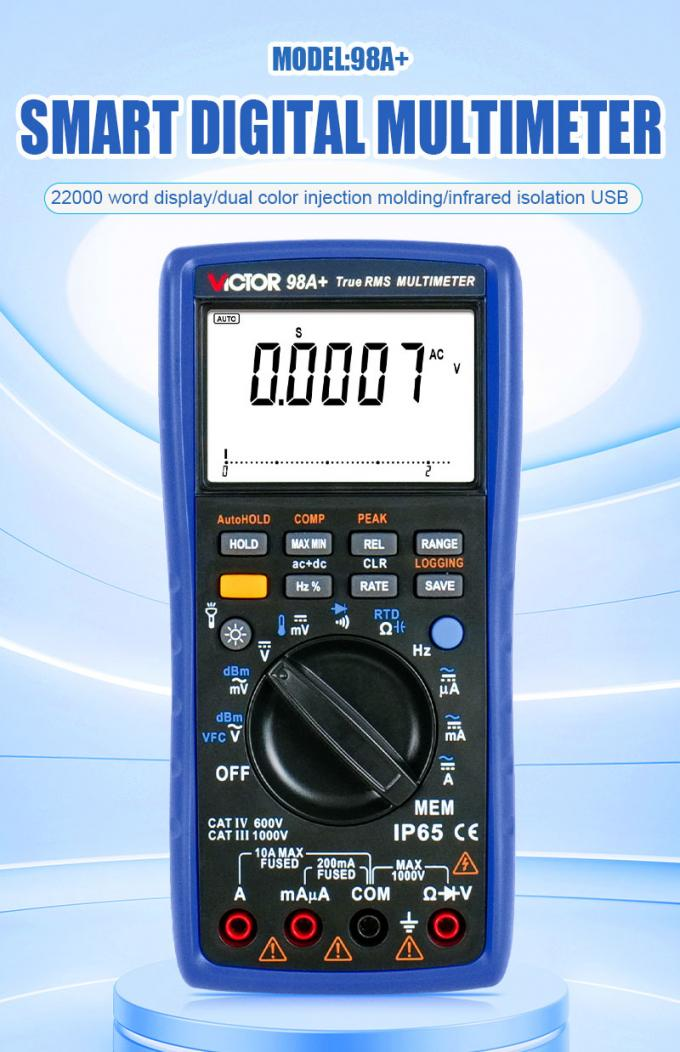

Victor 98A+ True RMS Digital Multimeter with USB Data Logging
Victor 98A+ True RMS Digital Multimeter with USB Data Logging
- MPN: 98A+
- Part #: TOLMRP9016
- UPC:
- MPN: 98A+
- Part #: TOLMRP9016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
Victor 98A+ True RMS Digital Multimeter with USB Data Logging
- MPN: 98A+
- Part #: TOLMRP9016
Product URL: https://www.pbtech.co.nz/product/TOLMRP9016/Victor-98A-True-RMS-Digital-Multimeter-with-USB-Da
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 1 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
VICTOR 98A+ 4 1/2 22000 Words Multifunction Multimeter Accuracy Of 0.05% With AC Hz Peak Measurement True RMS Bar Graph 1KHz Bandwidth

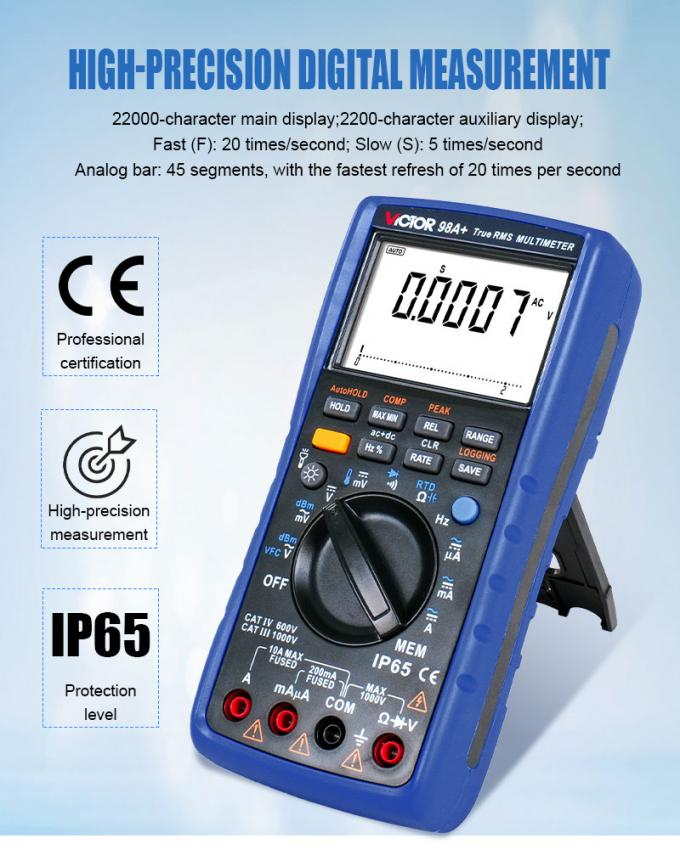

- 4-1 / 2 bit resolution, display 22000 words, DC voltage accuracy of 0.05%
- The display rate: 2.5 to 3 times / second, analog bar refresh rate: 20 ~ 24 times / sec.
- The AC of true RMS measurement, measurement bandwidth: 20Hz ~ 1kHz.
- Can choose manual or automatic range measurement.
- The Display of measurement data hold (DIS_HOLD) and automatic hold (AUTO_HOLD) function.
- Peak measurement function, 1ms peak sampling capture, can capture spikes pulse.
- Can choose 1 ~ 24000 reference impedance decibel measurement.

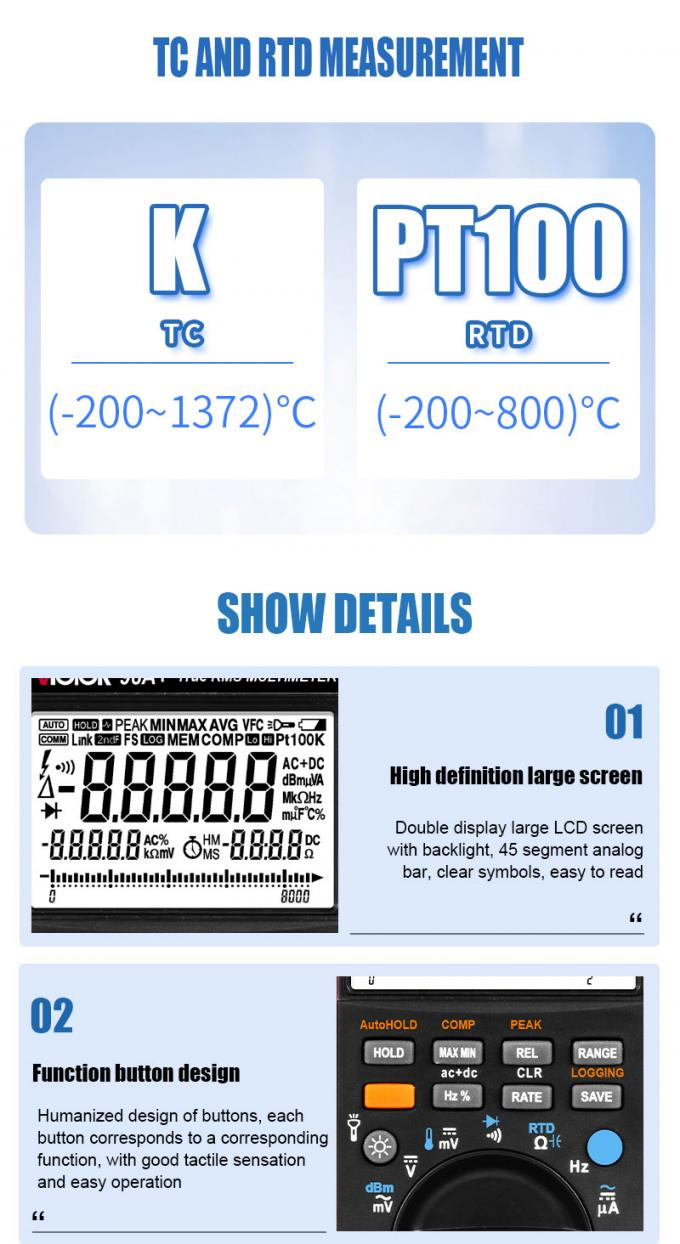

- Thermocouple measurement: K indexing, built-in temperature sensor, automatic cold junction compensation, can be ° C or ° F temperature display.
- Large-screen multi-data display, which can display the measured value and other related measurement information
- Multi-data parameter recording function: manual recording, regular recording, and easy to query the record data.
- The instrument built-in large-capacity data storage, can store up to 1000 (group) field measurement data.
- Can record data, or send to the user PC.

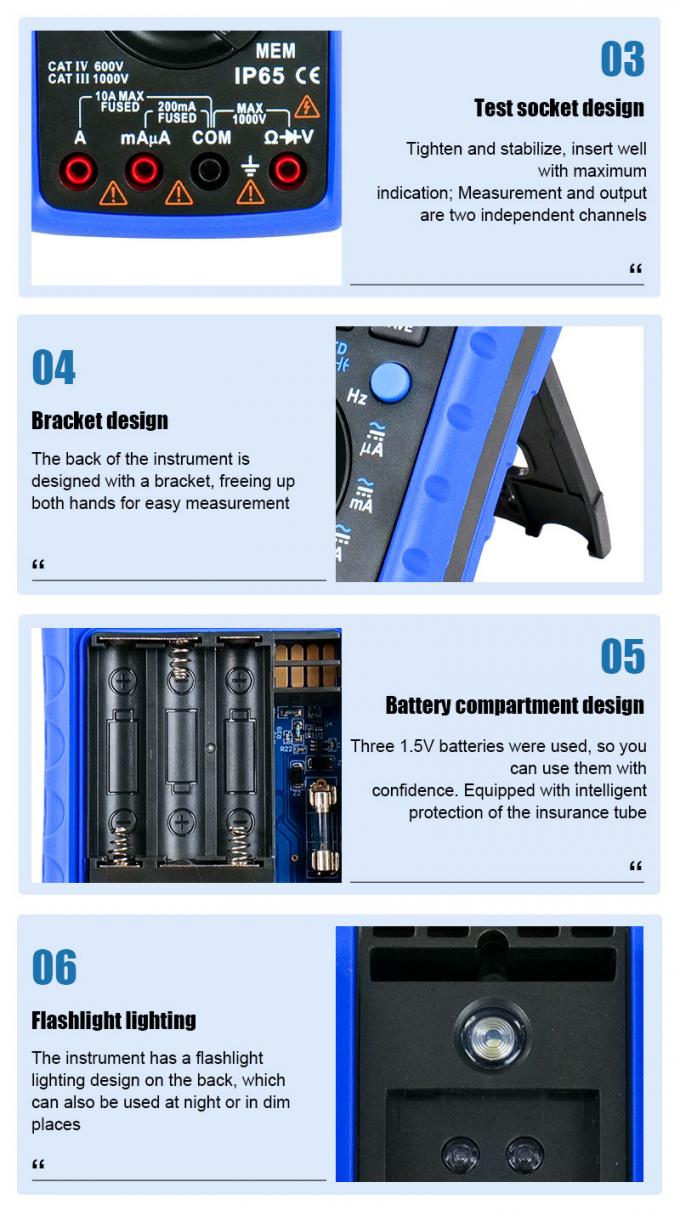

- Large screen LCD display, with white LED backlight. Simple man-machine operation, compact, rugged for field use.

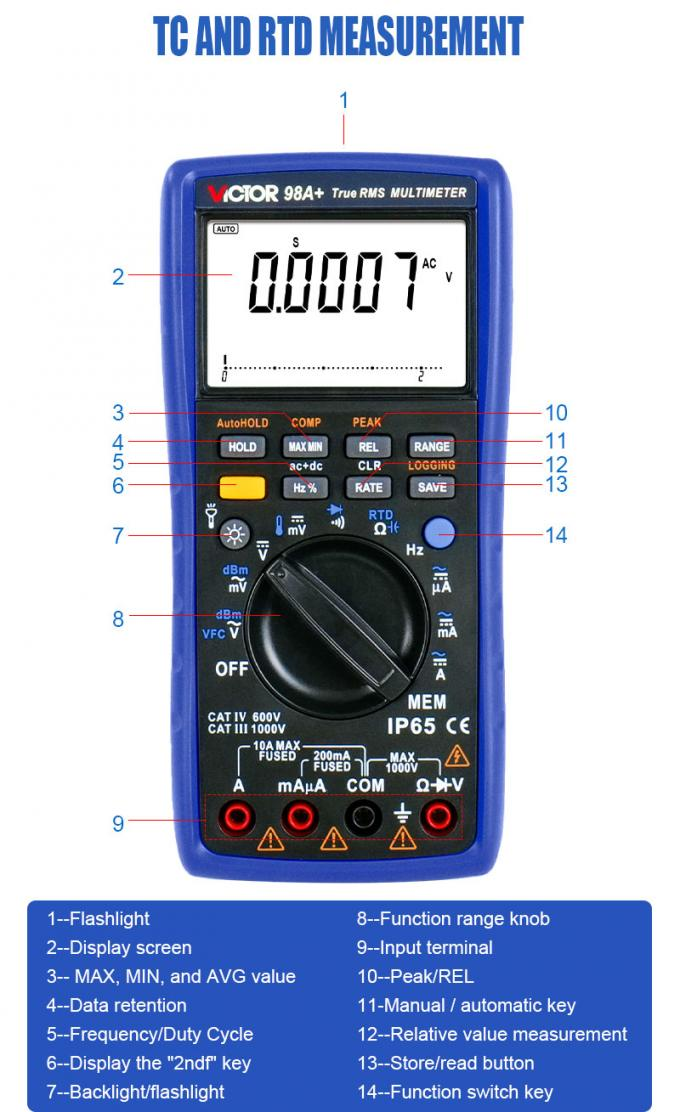

The measurement function:
- AC voltage, DC voltage, AC current, DC current, resistance, capacitance
- On / off, diode, frequency / duty cycle measurement
- Temperature measurement, thermal resistance measurement, peak measurement (PEAK)
- AC + DC measurement (AC + DC), AC + frequency (AC + Hz) measurement
- Relative value measurement (REL_%), maximum value, minimum value, average value measurement (MAX / MIN / AVG)
Instrument online communication function
- The instrument communicates with the PC using an isolated serial communication module compatible with the USB interface.
- Support industry standard SCPI command, through the device driver software to achieve remote control of the instrument.
- Through the powerful, friendly man-machine interface, users can easily access the instrument in a number of data parameters
- Data storage, processing, management, etc., to obtain the data in the form of graphics or forms.




Specifications
Model No.
VICTOR 98A+
Product Type
True RMS Digital Multimeter
Design
Compact, rugged, field-ready
Display feature
Large LCD, white LED backlight
Display
22000 Words
Color
Blue And Black
Product Name
Multi-function True RMS Multimeter
Material
Plastic, Metal, Silica Gel
Accuracy
0.5% Accuracy
Size
205*92*45mm
Weight
Approx. 500 G (including Batteries)
