Panasonic EY75A7LJ2G57 Impact Driver 18V Lithium Ion 5Ah - Dual Voltage - 1/4" Hex

Panasonic EY75A7LJ2G57 Impact Driver 18V Lithium Ion 5Ah - Dual Voltage - 1/4" Hex
Normally: $484.35 Normally: $557.00
$471 36  +GST $542 06  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Panasonic EY75A7LJ2G57 Impact Driver 18V Lithium Ion 5Ah - Dual Voltage - 1/4" Hex

ON SPECIAL

Panasonic EY75A7LJ2G57 Impact Driver 18V Lithium Ion 5Ah - Dual Voltage - 1/4" Hex

Normally: $484.35 Normally: $557.00
$471 36 $542 06
 +GST  inc GST
Ends in --, while stocks last!

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 14/07/2020
When will I receive it?

Four easy payments of $139.58 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $93.05 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

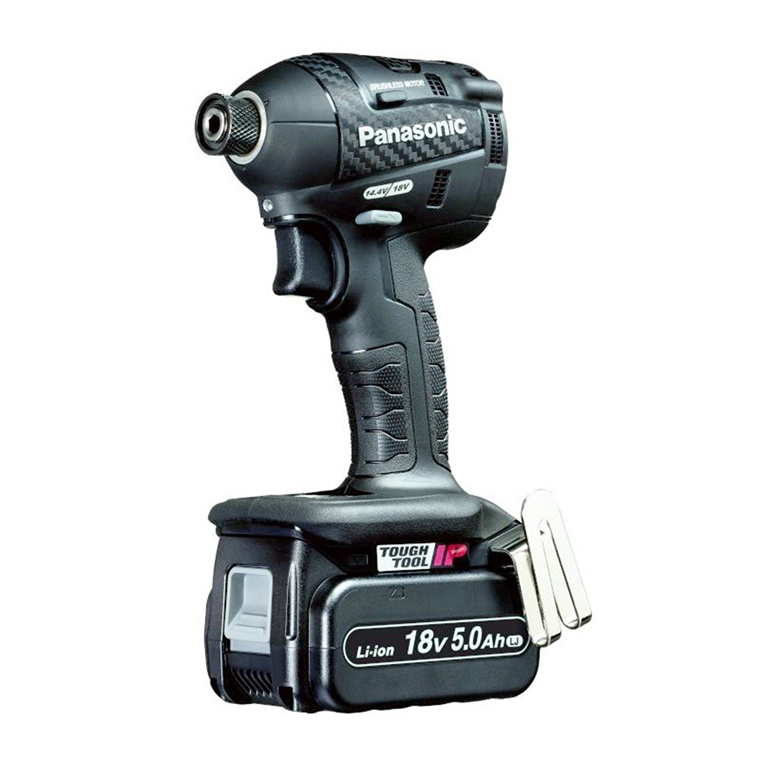

EY75A7LJ2G57 High Performance 18V Cordless Dual Impact Driver

The Panasonic EY75A7LJ2G57 18V Dual Voltage Cordless Impact Driver is extremely lightweight and compact, yet powerful thanks to an impressive 160N.m of torque performance equipped with 5.0Ah Li-ion battery capacity. This makes the impact driver ideal for using for long periods and for overhead work. With precision variable speed control, it is ready for work with just a short 65 minute full charging time. Featuring a handy LED light for user-friendly operation in dark areas and an electric brake for added safety.

- Dual Voltage - 14.4V or 18V
- 5.0Ah Li-Ion battery
- Compact body - length 118mm, weight 1.70kg
- High power: Max. 160 N-m
- 4-stage rotation speed selection and variable speed control / reversible
- High-power brushless motor
- Self-drilling screw mode
- LED light to support work
- Electric brake
- Tough Tool IP Rating
- Comes with battery charger and carrying case

Advanced Ergonomics - New Brushless Motor

The all new shorter brushless motor helped designers to achieve our most compact high power impact driver with optimum centre-balanced ergonomics for more comfortable working, even in narrow spaces.

Multiple Modes for a Variety of Applications

The Impact Driver has four different loads:
Hard - Fastening long bit and bolt.
Medium - Fastening for furniture.
Soft - Fastening for plaster board.
Self Drilling Screw Mode - This new function starts at highest speed to cut hole and then transfers to High Mode to cut initial thread. After that, load is reduced so it automatically switches to slower Soft Mode to limit the potential of stripping threads on fastener or material.

Robust Design for Heavy-Duty Use

Powerful and compact, the new brushless motor delivers approx. 200%* more life cycles thanks to a new brushless motor. Plus, a thicker motor shaft ensures more strength for heavy-use. EY75A7LJ2G57 uses rigid metal parts in the switch and housing increase durability and increase wear.

Durable Switch
Hybrid switch unit uses rigid metal parts in the trigger, giving you 200% more durability3.

Robust Anvil
Redesign and improvement of anvil materials has increased durability of impact parts giving longer service life and increased overall performance.

Increased Housing Durability
To increase housing durability, metal plates have been added where the battery locks into the tool. This helps prevent wear and damage caused by abrasion and vibration during heavy use.

Various Support Design
Panasonic's Impact Driver's new design includes a grip pattern design to prevent slipping and increase operator comfort. It also has a new tapered Bit-holder design for easy bit change and LED light to support better work functions.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

Dust and Water - Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

Performance Protection

Switch - An additional rubber cap seals the switch and protects it against dust and water.

Electronics - The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.

Battery - The battery cells are designed to avoid intrusion of moisture.

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah - With the 18V 3.0Ah battery, the application speed and working capacity goes up.

14.4V 4.2Ah - With the 14.4V 4.2Ah battery, it's easier to use with light weight and compactness.

18V 5.0Ah - With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

Powerful and Longer Lasting

Panasonic's new generation 18V 5.0Ah Li-ion battery cell offers more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharge prevention sensor
Prevents over-discharge to avoid lasting cell damage or recharge problems.

Battery overheat protection sensor
Cuts off power to the motor before the battery temperature rises.

Individual monitoring of battery cell voltage
Each cell monitored by sensor to ensure optimal discharge control.

Battery sensor
Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.

Heat resistance layer technology
In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.

NNP technology
Panasonic's own developed Nickel oxide material provides higher capacity and higher reliability.

Specifications

Charging Time (using EY0L82B charger)

Usable 65 minutes
Full 80 minutes

Weight (including battery)

1.70 kg

Size (LxHxW)

118mm x 242mm x 66mm

Max. Torque

High/Hard Mode 160 Nm
Medium Mode 130 Nm
Low/Soft Mode 26 Nm
Self-drilling screw Mode 130 Nm

Speed at No Load

High/Hard Mode 0-2500 rpm
Medium Mode 0-1450 rpm
Low/Soft Mode 0-950 rpm
Self-drilling screw Mode 0-2500 rpm

Impact/min

High/Hard Mode 0-3100 ipm
Medium Mode 0-2900 ipm
Low/Soft Mode 0-1900 ipm
Self-drilling screw Mode 0-1200 ipm

Manufacturer Part No: EY75A7LJ2G57 Brand: Panasonic Product Type: Impact Driver
UPC - Product Family: - Shipping Weight: 6.321 kg
PB Part No: TOLPAN1007 Product Model: EY75A7LJ2G57

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
