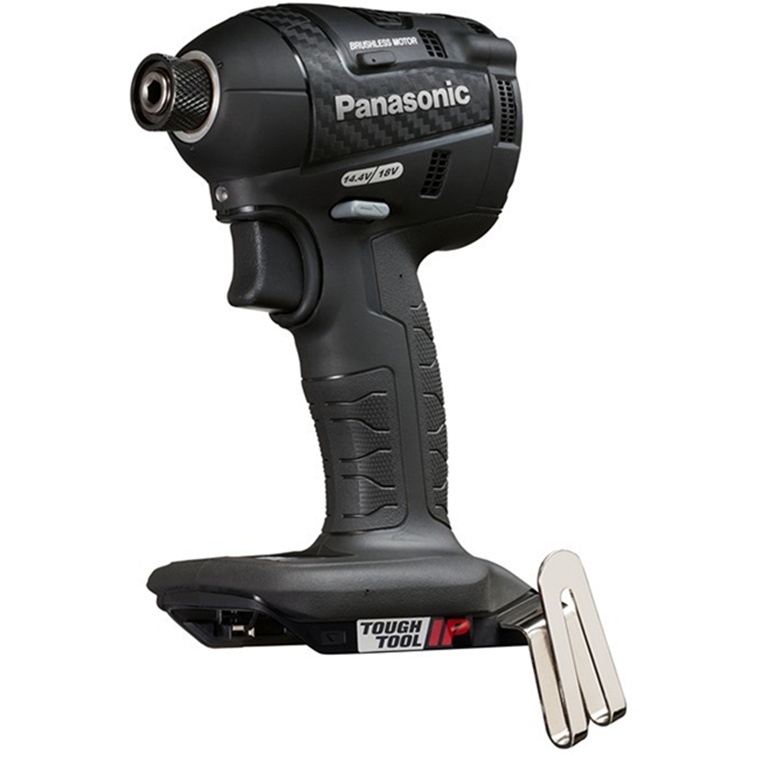

Panasonic EY75A7X57 Cordless Impact Driver 14.4V / 18V Lithium Ion - Dual Voltage Skin - 1/4" Hex - Drill Only

Panasonic EY75A7X57 Cordless Impact Driver 14.4V / 18V Lithium Ion - Dual Voltage Skin - 1/4" Hex - Drill Only
PB Tech price: PB Tech price:
$218 26  +GST $251 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Panasonic EY75A7X57 Cordless Impact Driver 14.4V / 18V Lithium Ion - Dual Voltage Skin - 1/4" Hex - Drill Only

Panasonic EY75A7X57 Cordless Impact Driver 14.4V / 18V Lithium Ion - Dual Voltage Skin - 1/4" Hex -...

PB Tech price: PB Tech price:
$218 26 $251 00
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 21/07/2020
When will I receive it?

Four easy payments of $64.63 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $43.09 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $2.85 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features



14.4V/18V Cordless Impact Driver

Works hard, stays cool and comfortable. Featuring a new brushless motor, possible to use with dual voltage, advanced ergonomics, multiple modes for all applications and a robust build.

- Dual Voltage - 14.4V or 18V
- Compact body - length 118mm, weight 1.55kg
- High power brushless motor: Max. 155 N-m
- 4-stage rotation speed selection and variable speed control / reversible
- High-power brushless motor
- Self-drilling screw mode
- LED light, electric brake, variable speed control/reversible
- Electric brake
- Tough Tool IP Rating
- Possible to use with dual voltage
- Ideal for Bolt/Nut Fastening, Scaffolding Assemble & Disassemble, Long Wood Screw/Lag Screw Fastening
- Comes with battery charger and carrying case
- Skin only, battery pack & charger not included

High Performance Cordless Impact Driver

The Panasonic EY75A7X57 14.4V/18V Dual Voltage Cordless Impact Driver is extremely lightweight and compact, yet powerful - making it ideal for using for long periods and for overhead work. With precision variable speed control this tool is ready for work with a Panasonic 14.4V or 18V battery. Featuring a handy LED light for user-friendly operation in dark areas and an electric brake for added safety.

Advanced Ergonomics - New Brushless Motor

The all new shorter brushless motor helped designers to achieve our most compact high power impact driver with optimum centre-balanced ergonomics for more comfortable working, even in narrow spaces.

Multiple Modes for a Variety of Applications

The Impact Driver has four different loads:
Hard: fastening long bit and bolts
Medium: fastening for furniture
Soft: fastening for plaster board
Self-Drilling Screw Mode: this new mode starts at the highest speed to cut the hole, and then it transfers to High-Impact for power. It automatically switches to a slower mode.

Robust Build for Heavy-Duty Use

Battery Capacity in M12 Hightensile Bolt: More than 30,000pcs
New brushless motor has approximately 200%2 more life cycles. And with a thicker motor shaft (?5mm) ensures more strength for heavy-duty use.

Durable Switch
Hybrid switch unit uses rigid metal parts in the trigger, giving you 200% more durability3.

Robust Anvil
Redesign and improvement of anvil materials has increased durability of impact parts giving longer service life and increased overall performance.

Increased Housing Durability
To increase housing durability, metal plates have been added where the battery locks into the tool. This helps prevent wear and damage caused by abrasion and vibration during heavy use.

Various Support Design

Panasonic's Impact Driver's new design includes a grip pattern design to prevent slipping and increase operator comfort. It also has a new tapered Bit-holder design for easy bit change and LED light to support better work functions.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

Dust and Water - Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

Performance Protection

Switch - An additional rubber cap seals the switch and protects it against dust and water.

Electronics - The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.

Battery - The battery cells are designed to avoid intrusion of moisture.

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah
With the 18V 3.0Ah battery, the application speed and working capacity goes up.

14.4V 4.2Ah
With the 14.4V 4.2Ah battery, it's easier to use with light weight and compactness.

18V 5.0Ah
With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

Powerful and Longer Lasting

Whether it's Panasonic's new generation 18V 5.0Ah battery cell, a slim and lightweight 18V 3.0Ah battery, or a compact standard 14.4V 4.2Ah battery - they all offer more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharge prevention sensor - Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor - Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage - Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor - Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology - In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology - Panasonic's own developed Nickel oxide material provides higher capacity and higher reliability.

Specifications

Size (LxHxW)

118mm x 234mm x 66mm

Charging Time (using EY0L82B charger)

Usable

50 minutes

Full

60 minutes

Max. Torque

High/Hard Mode (M14 High tensile bolt tightening for 3 sec.)

14.4V:155Nm / 18V:160Nm

Medium Mode (M14 High tensile bolt tightening for 3 sec.)

14.4V:130Nm / 18V:130Nm

Low/Soft Mode (M10 High tensile bolt tightening for 3 sec.)

14.4V:26Nm / 18V:26Nm

Self-drilling screw Mode (M14 High tensile bolt tightening for 3 sec.)

14.4V:130Nm / 18V:130Nm

Speed at No Load

High/Hard Mode

0-2500rpm

Medium Mode

0-1450rpm

Low/Soft Mode

0- 950rpm

Self-drilling screw Mode

0-2500rpm

Impact/min.

High/Hard Mode

0-3100ipm

Medium Mode

0-2900ipm

Low/Soft Mode

0-1900ipm

Self-drilling screw Mode

0-1200ipm

Size (LxHxW) / Weight (including battery pack)

LJ2G

118mm x 242mm x 66mm / 1.70kg

PN2G

118mm x 226mm x 66mm / 1.65kg

LS2F

118mm x 234mm x 66mm / 1.55kg

Battery Pack and Charging time (using EY0L82B)

LJ2G

18V / 5.0Ah (EY9L54B)
Usable:65min. / Full:80min.

PN2G

18V / 3.0Ah (EY9L53B)
Usable:45min. / Full:60min.

LS2F

14.4V / 4.2Ah (EY9L45B)
Usable:50min. / Full:60min.

Manufacturer Part No: EY75A7X57 Brand: Panasonic Product Type: Cordless Impact Driver
UPC - Product Family: - Shipping Weight: 1.5 kg
PB Part No: TOLPAN1008 Product Model: EY75A7X57

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
