PLATINUM TOOLS LANSeeker Cable Tester & Tone Generator. Identify shorts, opens, miswires, reversed and split pairs. Auto on/off by detecting connected cable. Self stored remote unit.

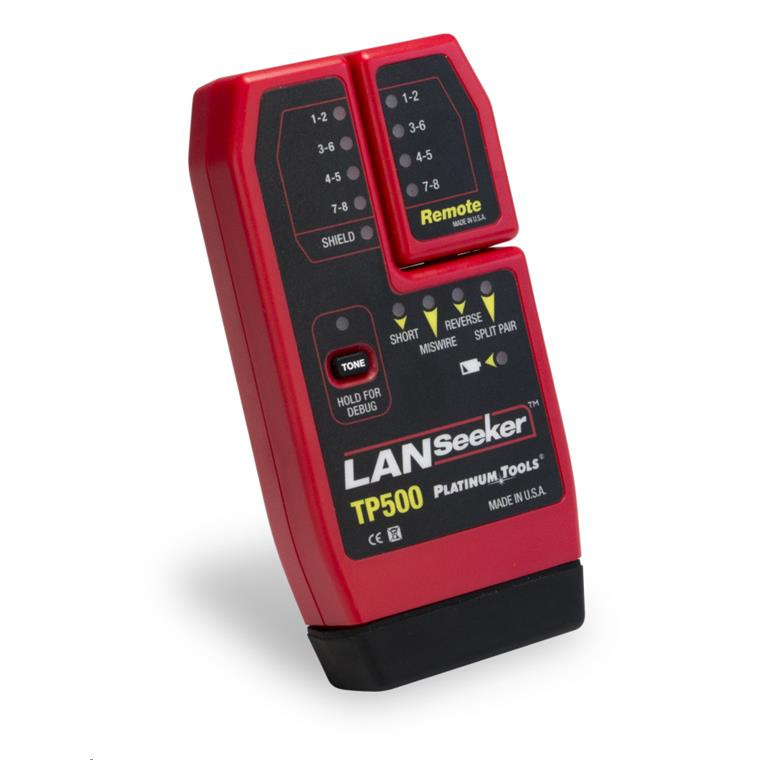

The LanSeeker™ is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LanSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected. LanSeeker tests for shorts, opens, mis-wires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.
- Displays cable test results on main and remote units in less than 2 seconds
- Immediately detects shorts by just plugging in one end of a cable to the tester
- Identifies shorts, opens, mis-wires, reversed and split pairs
- No on/off switch, automatically starts test when a connection is sensed between main and remote unit
- Debug mode diagnoses and displays faults one pair at a time
- Includes tone generator
- Self-stored remote
- Made in the USA
Specifications
Battery Life
Times are for the full capacity of the battery used continuously in one of the following modes (typical, 9V alkaline, included):
- Standby mode 2.5 hrs
- Cable testing mode 20 hrs
- Tone mode 170 hrs
Cable Types
- Shielded or unshielded, CAT3, CAT4, CAT5, CAT5e, and CAT6
- Minimum cable length for testing split pairs: 1 m (3 ft)
- Maximum cable length for testing: 305 m (1,000 ft)
- Coax cable: 100 O maximum DC resistance, center conductor plus shield
Environmental
Temperature:
- Operating 0 to 50ºC (32 to 122ºF)
- Storage -20 to 70ºC (-4 to 158ºF)
Humidity:
- 10 to 90%, non-condensing
Physical
- Length 14.5 cm (5.70")
- Width 7.2 cm (2.85")
- Height 3.0 cm (1.20")
- Weight 162 gm (5.7 oz., with battery)
Safety
CE - Conformité Européenne
