Features
Ultimate 2.0 - Unlimited Imagination with Makeblock Education

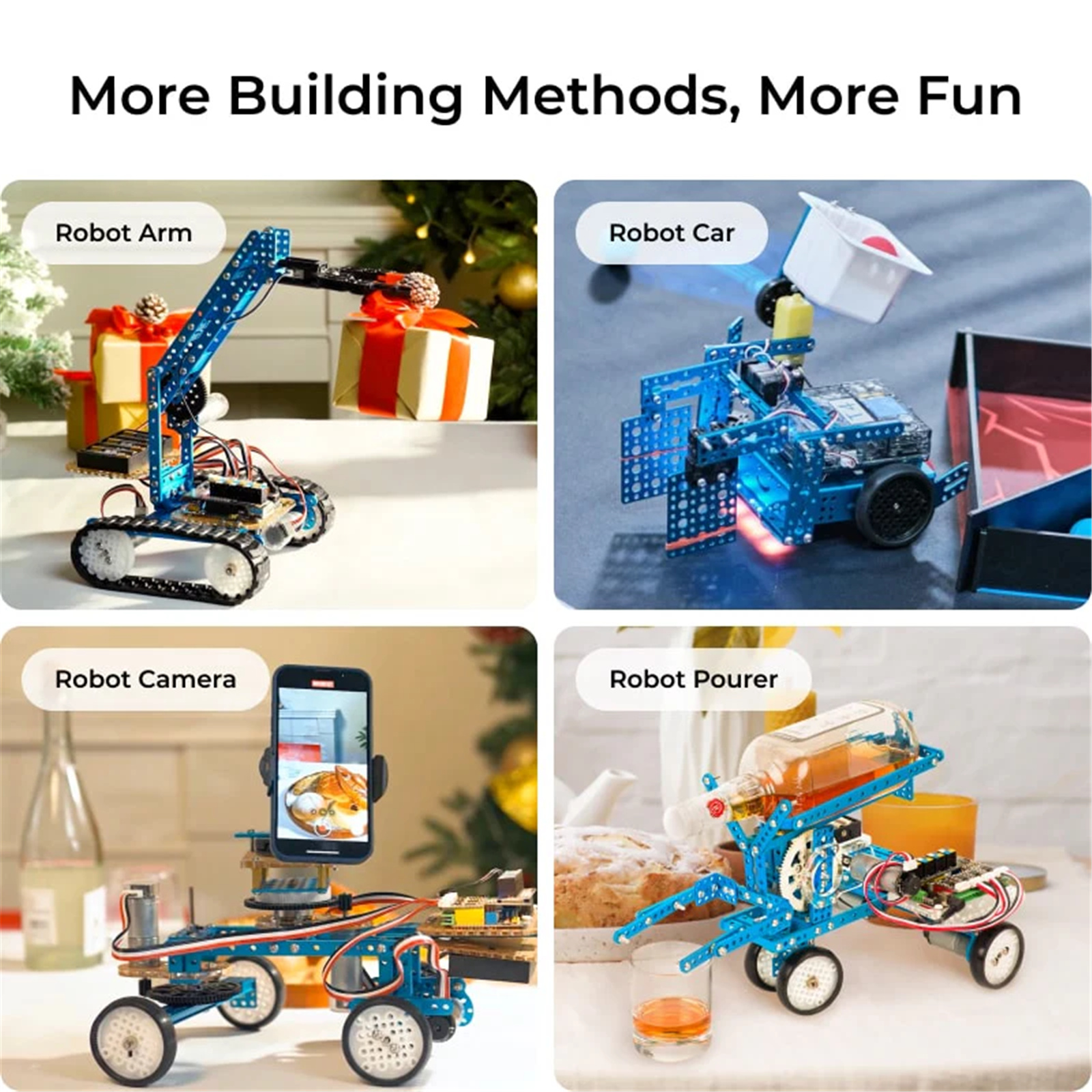

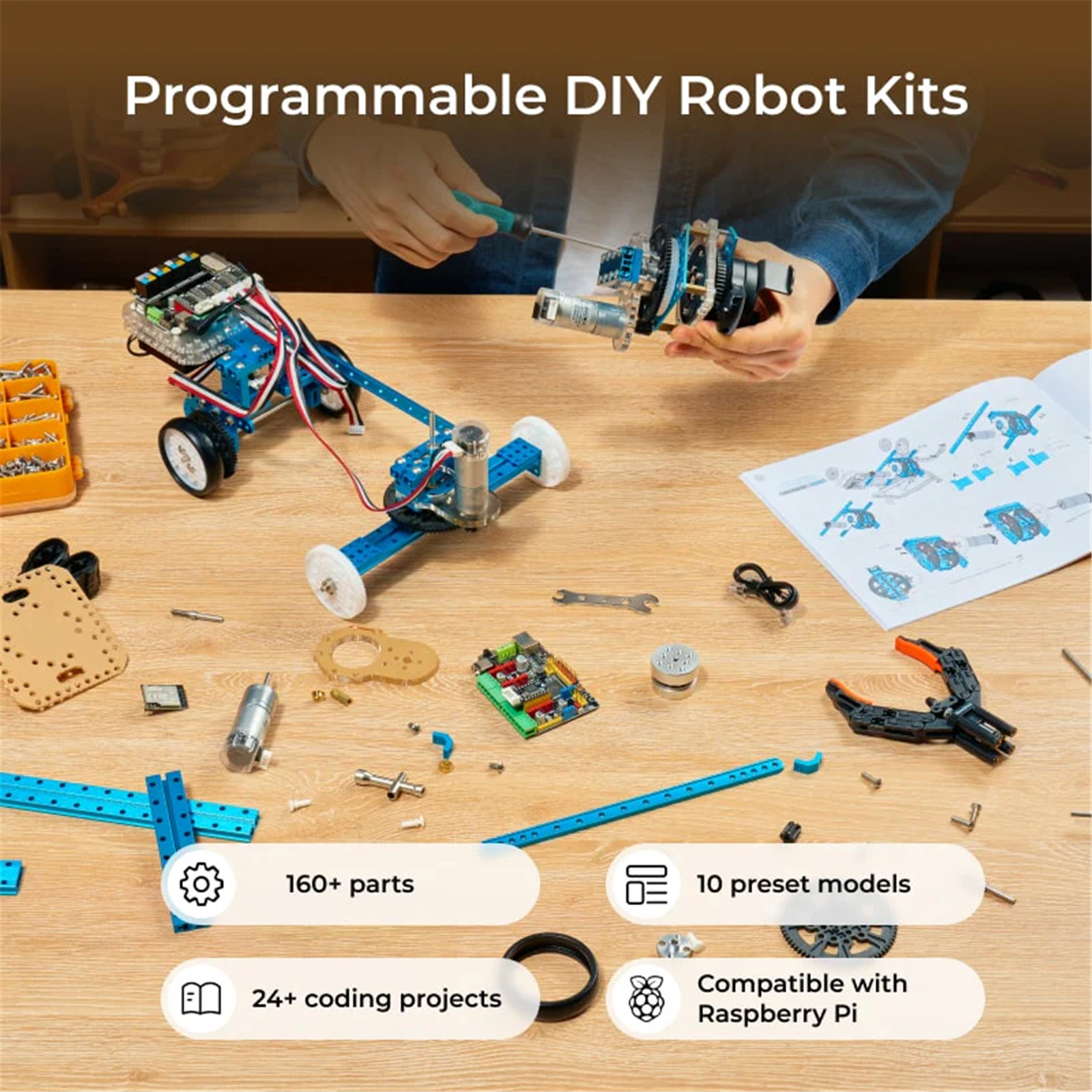

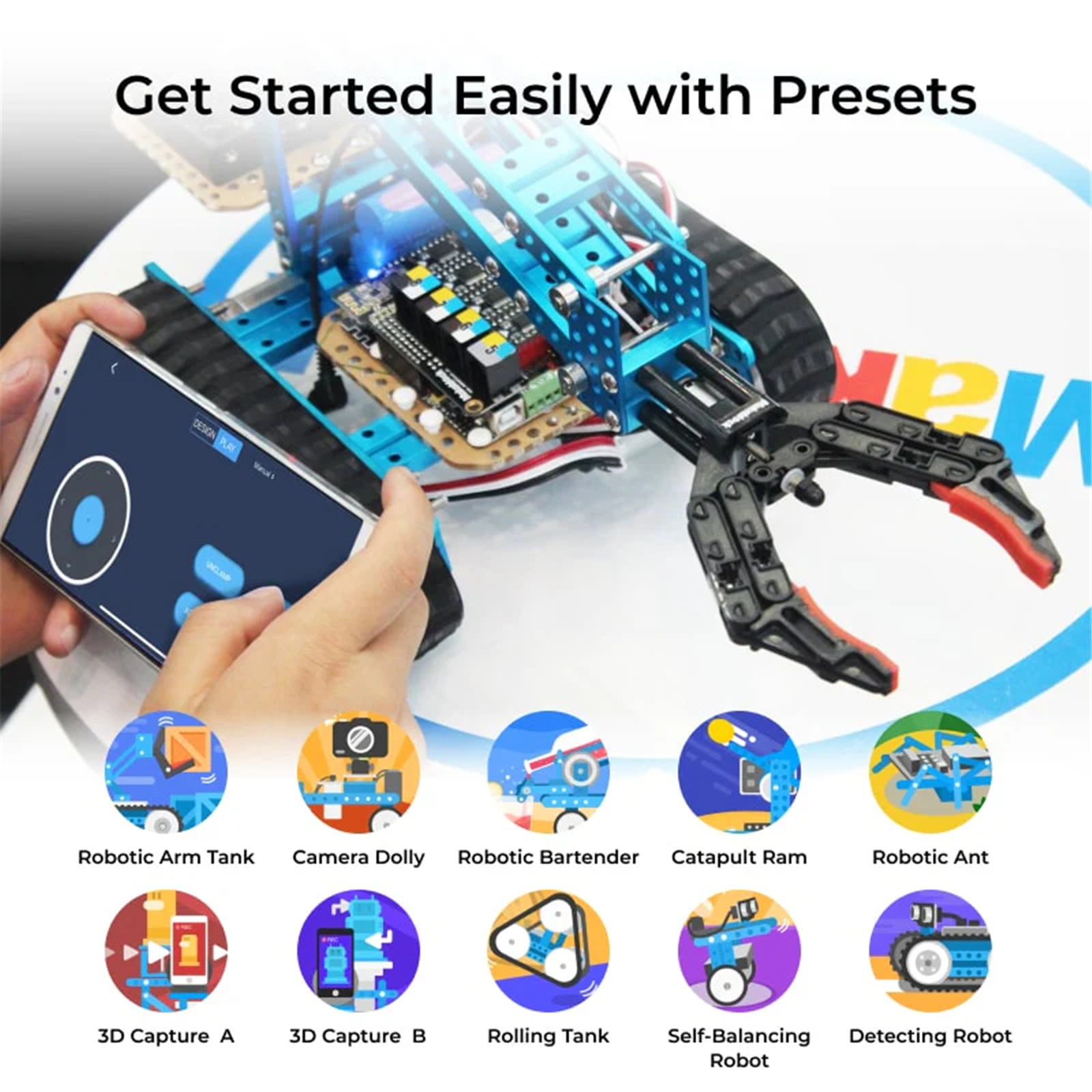

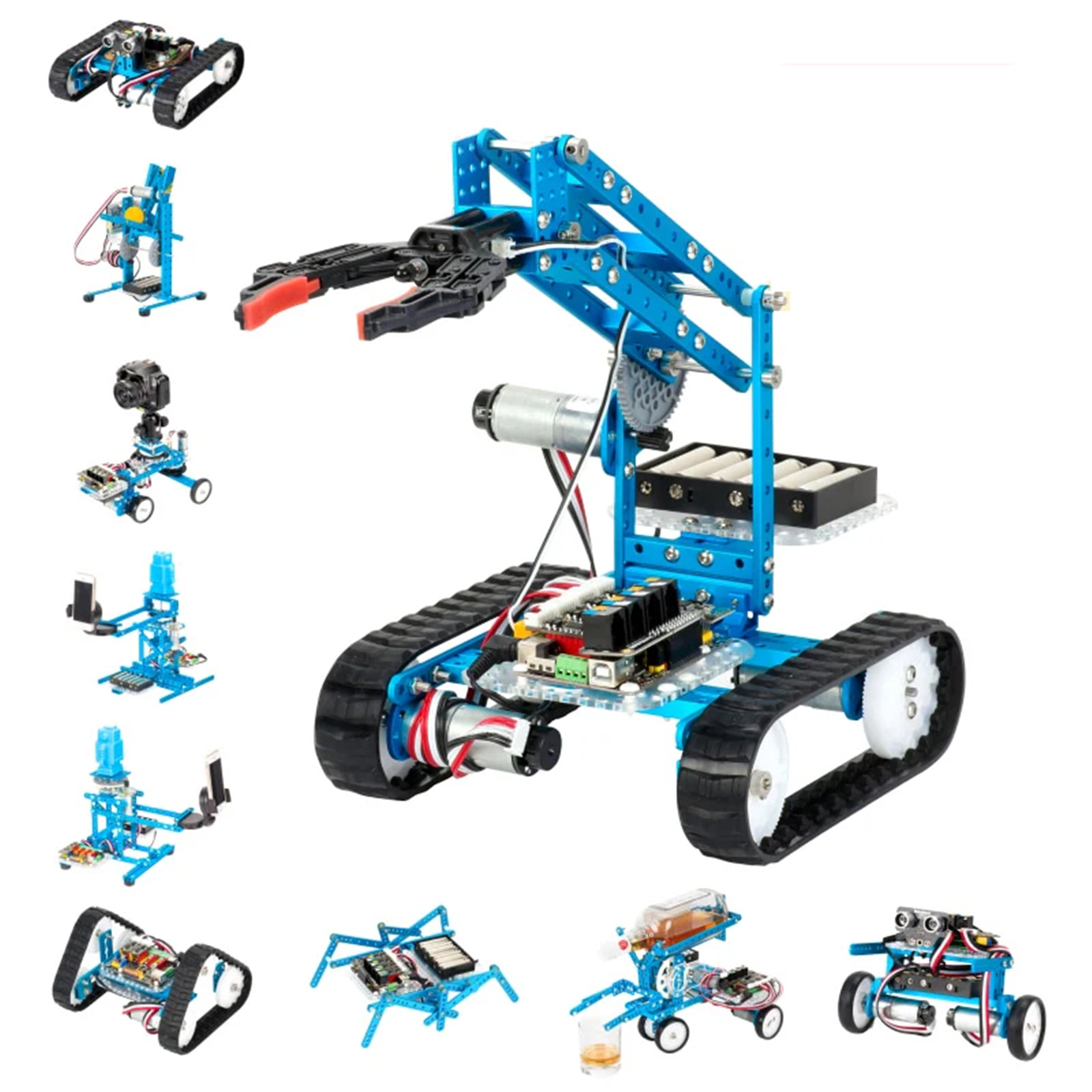

10-in-1 Robot Building Kit
Create 10 different robots to explore and learn through hands-on play.
Versatile Compatibility

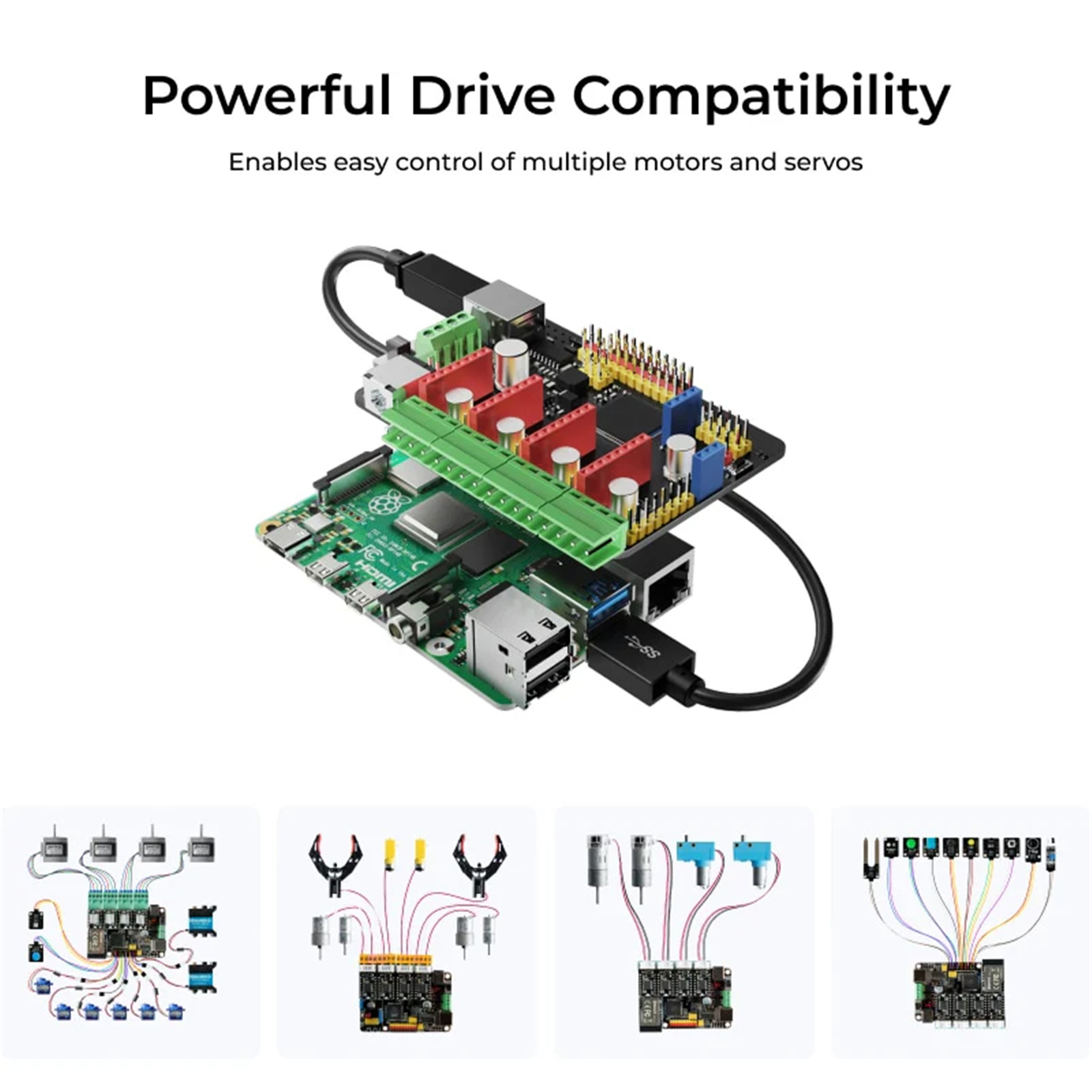

Works seamlessly with both Arduino and Raspberry Pi for advanced projects.
STEM Learning
Enhance skills in engineering, mechanics, and programming-ideal for students.

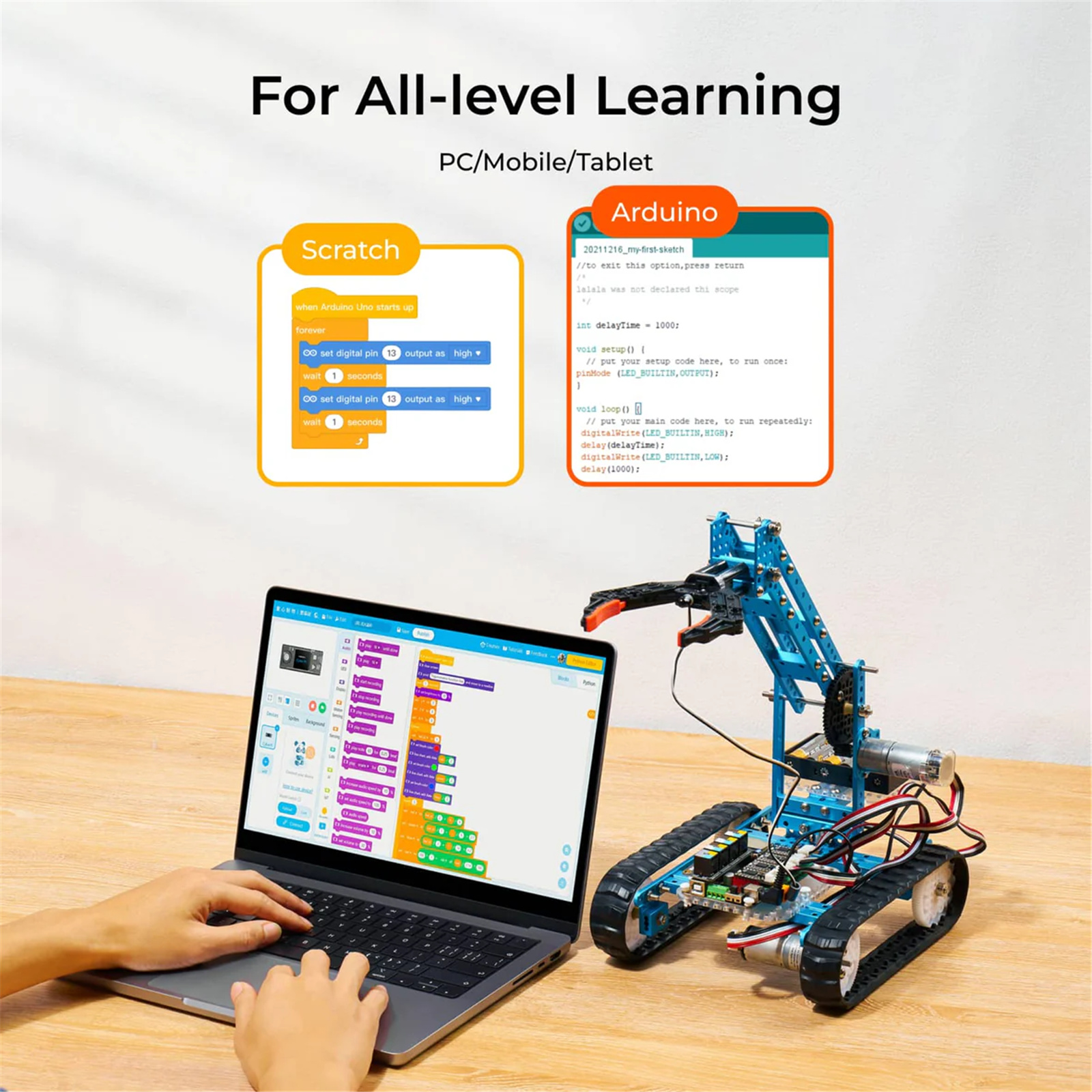

Advanced Coding Support
Supports Scratch and Arduino IDE, offering a range of visual and text-based programming options.
Extensive Resources
Access 17+ coding and robotics projects with detailed guidance in the Makeblock Help Center.
Click here to learn more details about mBot Ultimate.
What's Included
Specifications
Tech Specs of Ultimate 2.0 | |
Mechanical Parts | Aluminum Extrusion Parts |
Plastic Timing Pulleys 90T | |
Plastic Gears | |
Tracks and Wheels | |
Cables | |
Others Hardware and Accessories | |
Electronic Modules | 1 x MegaPi |
1 x MegaPi Shield for RJ25 | |
1 x Bluetooth Module | |
4 x Motor Driver | |
3 x Encoder Motor | |
1 x Ultrasonic Sensor | |
1 x Line Follower Sensor | |
1 x 3-Axis Accelerometer and Gyro Sensor | |
1 x RJ25 Adapter | |
1 x Shutter | |
1 x Makeblock Gripper | |
Building Forms | Ten Building forms(With paper assembling |
instruction for three main forms) | |
Programming | Graphical Programming |
Arduino Programming | |
Python Programming | |
Node JS Programming | |
Tech Specs of MegaPi | |
Microcontroller | ATMEGA2560-16AU |
Input Voltage | DC 6V-12V |
Operating Voltage | DC 5V |
I/O Pins | 43 |
Serial Ports | 3 |
I2C Interface | 1 |
SPI Interface | 1 |
Analog Input Pins | 15 |
DC Current per I/O Pin | 20mA |
Flash Memory | 256KB |
SRAM | 8KB |
EEPROM | 4KB |
Clock Speed | 16 MHz |
Dimension | 85*63mm |
The various colors on MegaPi represents specialized functions: | |
Red Pin | Power output/motor output |
Yellow Pin | I/O pin |
Blue Pin | Wireless communication interface |
Black Pin | Power GND |
Green Interface | Power output/motor output |
Ultimate 2.0 Robot Kit (SKU:90040) | ||
4 × Beam0824-016 | 6 × Plastic Timing Pulley 90T | 4 × Screw M4×22 |
5 × Beam0824-032 | 3 × Plastic Gear 8T | 4 × Screw M4×30 |
3 × Beam0824-064 | 2 × Plastic Gear 56T | 47 × Nut M4 |
2 × Beam0824-128 | 2 × Plastic Gear 72T | 10 × Nylon Lock Nut M4 |
1 × Slide Beam0824-176 | 1 × 360°Mobile Phone Bracket | 1 × 25mm DC Encoder Motor 9V/86RPM |
2 × Slide Beam0824-192 | 2 × Track 80×139mm | 2 × 25mm DC Encoder Motor 9V/185RPM |
2 × Beam0808-024 | 1 × Battery Holder 6AA | 1 × Makeblock Robot Gripper |
2 × Plate0324-056 | 12 × Flange Copper Sleeve 4×8×4mm | 3 × 25mm DC Encoder Motor Cable |
3 × Plate0324-088 | 12 × Shaft Collar 4mm | 1 × MegaPi |
4 × Beam0412-076 | 6 × Threaded Shaft 4×39mm | 4 × MegaPi Encoder/DC Motor Driver |
4 × Beam0412-092 | 2 × 4mm D shaft 50mm | 1× MegaPi Shield for RJ25 |
4 × Beam0412-140 | 2 × Shaft D4×88mm | 1 × Bluetooth Module |
6 × Beam0412-188 | 1 × 4mm D shaft 160mm | 1 × Me Ultrasonic Sensor |
2 × Beam0412-220 | 4 × Brass Stud M4×16 | 1 × Me Line Follower |
2 × Bracket P3 | 4 × Plastic Ring 4×7×2 | 1 × Me Shutter |
3 × 25mm DC Motor Bracket | 8 × Plastic Ring 4×7×3 | 1 × Me 3-Axis Accelerometer and Gyro Sensor |
4 × Bracket 3×3 | 2 × Plastic Ring 4×7×10 | 1 × Me Adapter |
2 × Plate 3×6 | 20 × Plastic Rivet 4060 | 1 × USB Cable B-1.3m |
1 × Plate 7×9-B | 20 × Plastic Rivet 4100 | 2 × 6P6C RJ25 Cable-20cm |
6 × Shaft Connector 4mm | 20 × Plastic Rivet 4120 | 1 × 6P6C RJ25 Cable-35cm |
4 × Stiffener1616-08-M4 | 12 × Headless Set Screw M3×5 | 10 × Rubber Bank |
1 × Plane Bearing Turntable D34×24mm | 8 × Headless Set Screw M3×8 | 10 × Nylon Cable Tie 1.9×100 |
1 × Quick Release Plate | 6 × Countersunk Screw M3×8 | 1 × Cross&2.5mm HEX Screwdriver |
2 × 25mm Motor Bracket-72T | 4 × Countersunk Screw M3×10 | 1 × Small Four-way Socket Wrench |
2 × MegaPi Acrylic Bracket | 50 × Screw M4×8 | 1 × Wrench 5mm&7mm |
4 × Rubber Blanket | 46 × Screw M4×14 | 1 × HEX Key 1.5mm |
4 × Tire 90T B | 10 × Screw M4×16 |
