Makeblock 13620 IR Controller

PB Tech price
PB Tech price
$ 4 .50
 +GST
$ 5 .18
 inc GST
$4.50  +GST
$5.18

Makeblock 13620 IR Controller

PB Tech price
$ 4 .50 $ 5 .18
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 09 Jan When will I receive it?
$4.50  +GST
$5.18

Four payments of $1.31 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

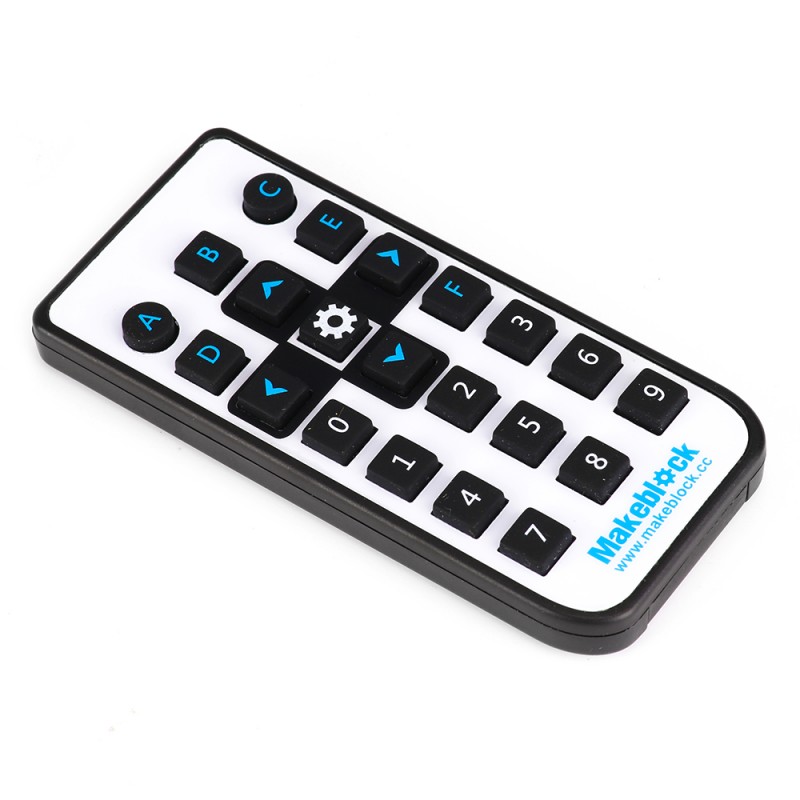

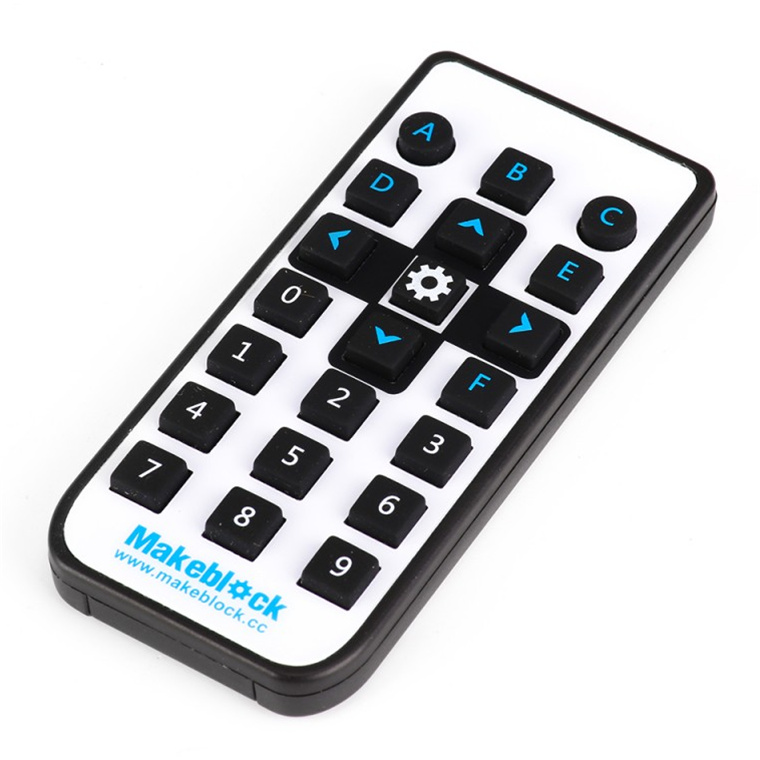

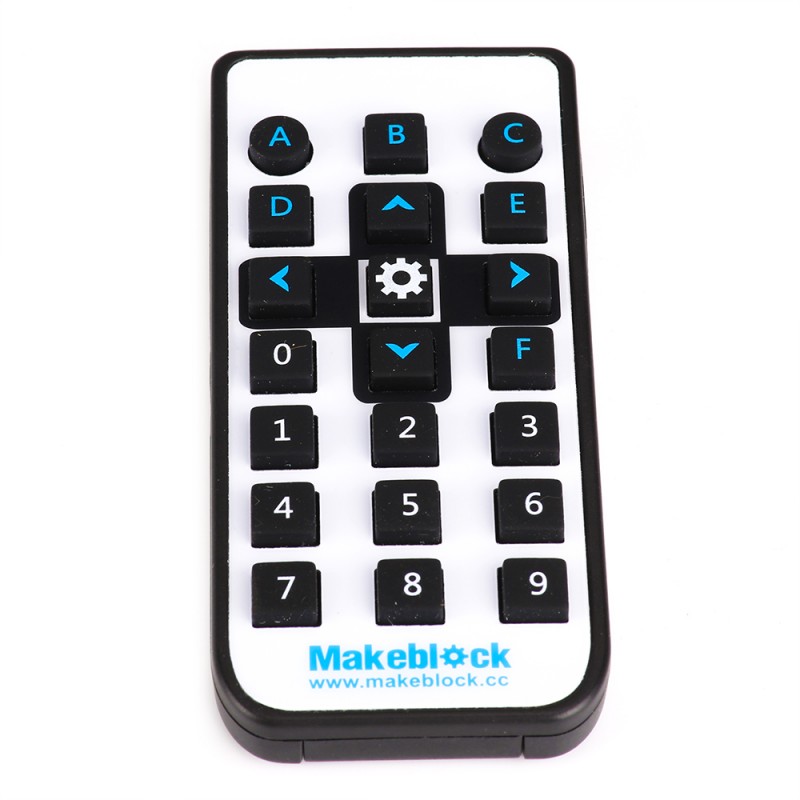

What is IR controller?

The IR controller is designed to wirelessly control robots and other mechanical device. Working with many common IR receiver, this IR controller provides you a simple and easy way to control your devices without touching it!

(Picture for reference only. please go through part list before purchasing.)


Feature Integration

 - Compatible with Makeblock robots and software;
 - Aim the IR controller at the IR receiver from a short distance;
 - Works with the NEC IR protocol.

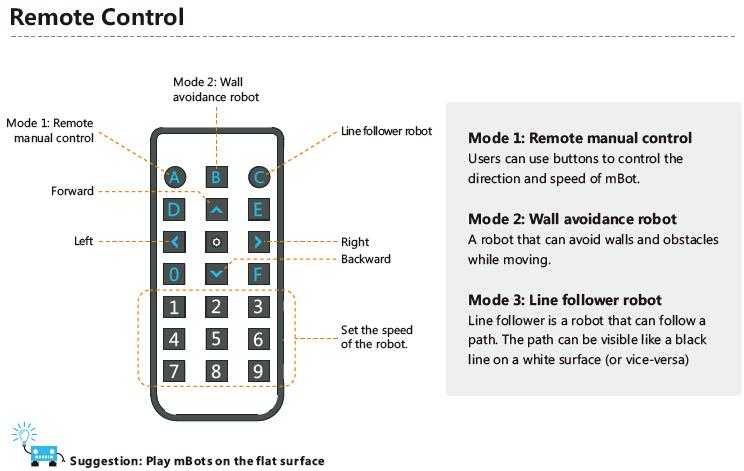

Various Buttons

This IR controller comes with 21 buttons, including buttons labeled from letter "A" to "F", number buttons started from 0 to 9, and four direction buttons. These buttons allow you to control your robot in a more precise way.

About Battery

This IR controller does NOT include a coin cell battery. We recommend that you use a CR2025 coin cell battery to get this IR controller work.

Specifications

Operating Voltage
2.25V to 3.9V

Operating Current
6mA to 25mA

Quiescent Current
=3uA

Infrared wavelength
940±50nm

Carrier Frequency
37.9±0.2KHZ

Power Supply
3V CR2025 coin cell battery

Working Temperature
-40~85c

Dimension (L*W*H)
90 x 41 x 12mm

Net Weight
25g (0.8oz)
Manufacturer Part No:
13620
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
TOYMKB0051
Product Model:
13620
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
