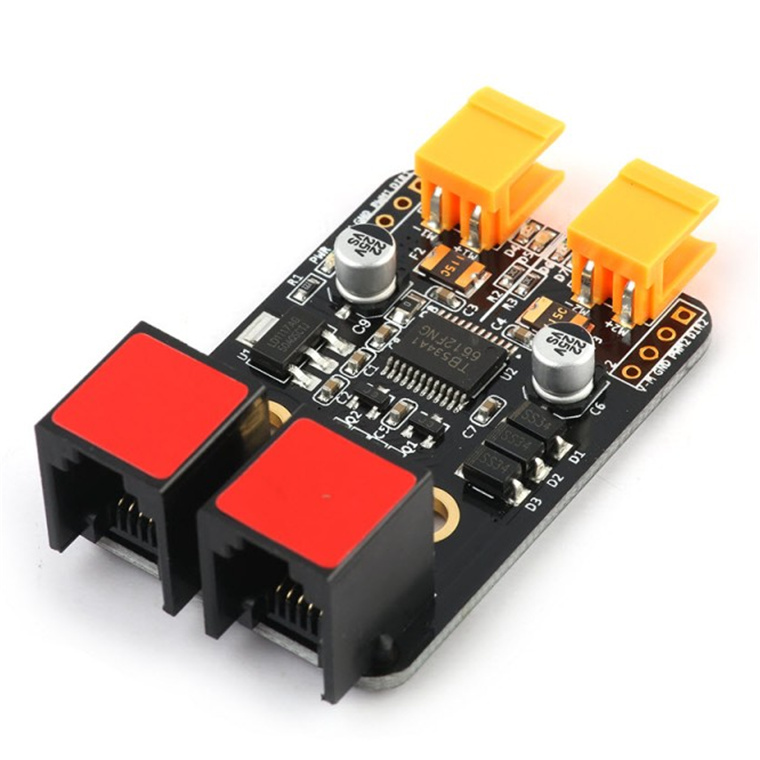

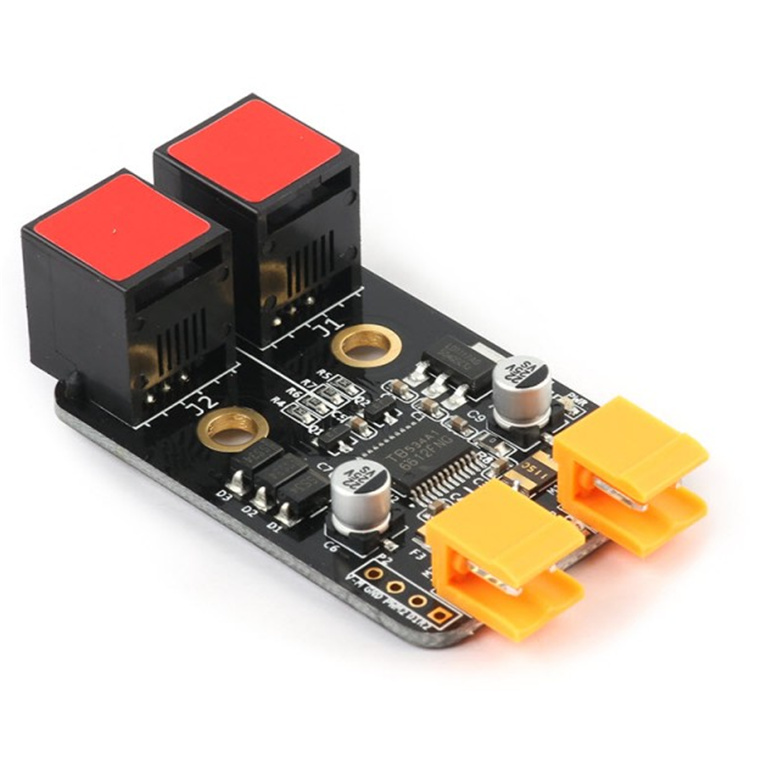

Makeblock 12015 Me Dual DC Motor Driver
- Brand: Makeblock
- MPN: 12015
- Part #: TOYMKB0077
- UPC:
Features

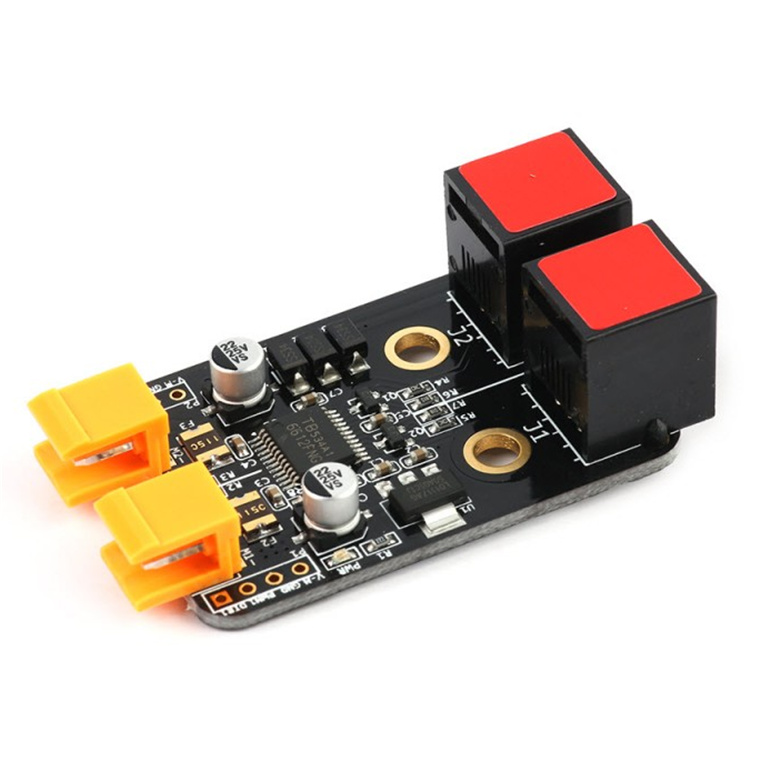

Makeblock Me Dual DC Motor Driver is the improvement version of Me Motor Driver V2.1. With on board RJ25 ports, you can drive two DC motors at a constant current of 1A (2A peak). The motor driver IC on the board is TB6612, TB6612 is a high efficiency MOSFET driver, with low heat dissipation. Over current protection included to stop the driver IC burned out.
Key features
- TB6612PNG motor driver IC with High efficient MOSFET-based H-bridges
- Comes with Arduino library for easy programming
- 6 V to 12 V motor supply range
- 1 A maximum continuous current per motor (2 A peak)
- Over-current protection
- Easy wiring with RJ25 interface
- Labeled with red tag and compatible with Me BaseShield or Me Baseboard
- 2.54mm breakout pins for connecting with jumper wires
Overview
The Me Dual Motor Driver module can drive two DC motors by the onboard RJ25 port with power supply of 6V-12V, and it also has the PWM speed regulation function. The IC used in the module is an efficient, low heat dissipated MOSFET with over-current protection function. Its red ID means that it should be connected to the port with red ID on Makeblock Orion.
Functional characteristics
- White area of module is the reference area to contact metal beams
- Equipped with effective MOSFET H-bridge-based motor driver module IC
- Maximum 1.2A sustained current for each motor (peak value 3.2A)
- Over-current protection (OCP)
- Support Arduino IDE programming and provide runtime library to simplify programming
- Support mBlock GUI programming, and applicable to users of all ages
- Adopt RJ25 port for easy connection
- Provide pin-type port to support most Arduino Baseboards
Pin definition
The port of Me Dual Motor Driver has four pins, and their functions are as follows:

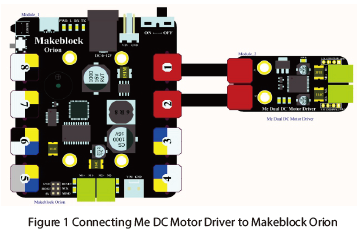

Wiring mode - Connecting with RJ25
Since the port of Me Dual Motor Driver has red ID, you need to connect the port with red ID on Makeblock Orion when using RJ25 port. Taking Makeblock Orion as example, you can connect it to ports No. 1 and 2 as follows:

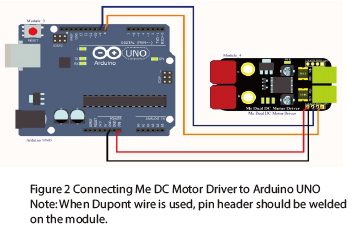

Wiring mode - Connecting with Dupont wire
When the Dupont wire is used to connect the module to the Arduino UNO Baseboard, its PWM and DIR pins should be connected to digital ports as follows:

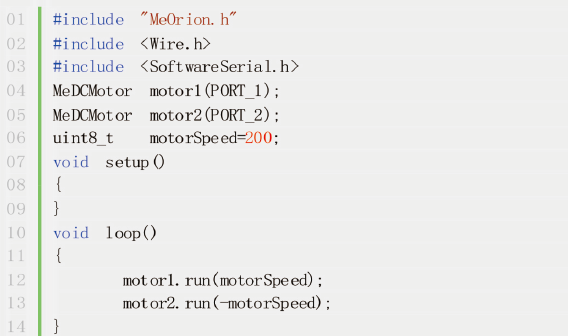

Guide to programming - Arduino programming

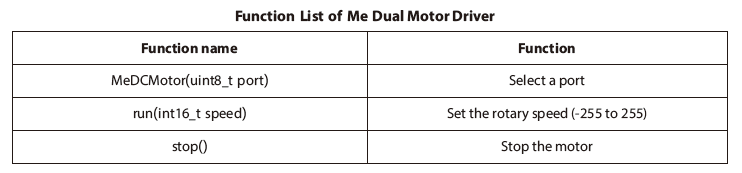

If you use Arduino to write a program, the library Makeblock-Library-master should be invoked to control the Me Dual Motor Driver.
This program serves to make two DC motors rotating simultaneously in the same or inverse direction through Arduino programming.

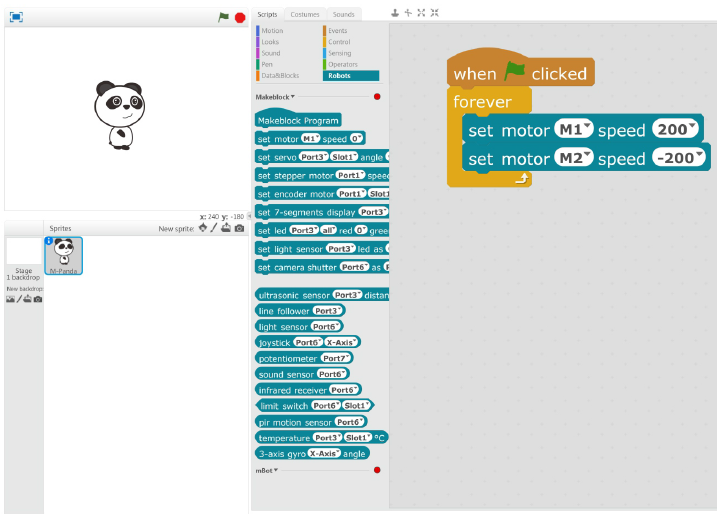

Guide to programming - mBlock programming
Me DC Motor Driver supports the mBlock programming environment and its instructions are introduced as follows:
The following is the effect to make two DC motors rotating in the same or inverse direction respectively:
Principle analysis
Drive principle of DC motor: The DC motor is added with drive circuit in order to better control the rotational direction and speed of motor. As a common circuit designed to control the DC motor, the H-bridge drive circuit is mainly to implement forward and reverse drive of DC motor. Its shape is similar to the letter H, the location of four switches (MOSFET) are called the bridge arm, and the DC motor serving as load is like a bridge across the top, so it is called the H-bridge. To drive a lot of integrated motors, the core of drive chip is the H-bridge. The opening and closing states of 4 switches can be combined into 4 working states for the motor: forwarding, reversing, braking and coasting.

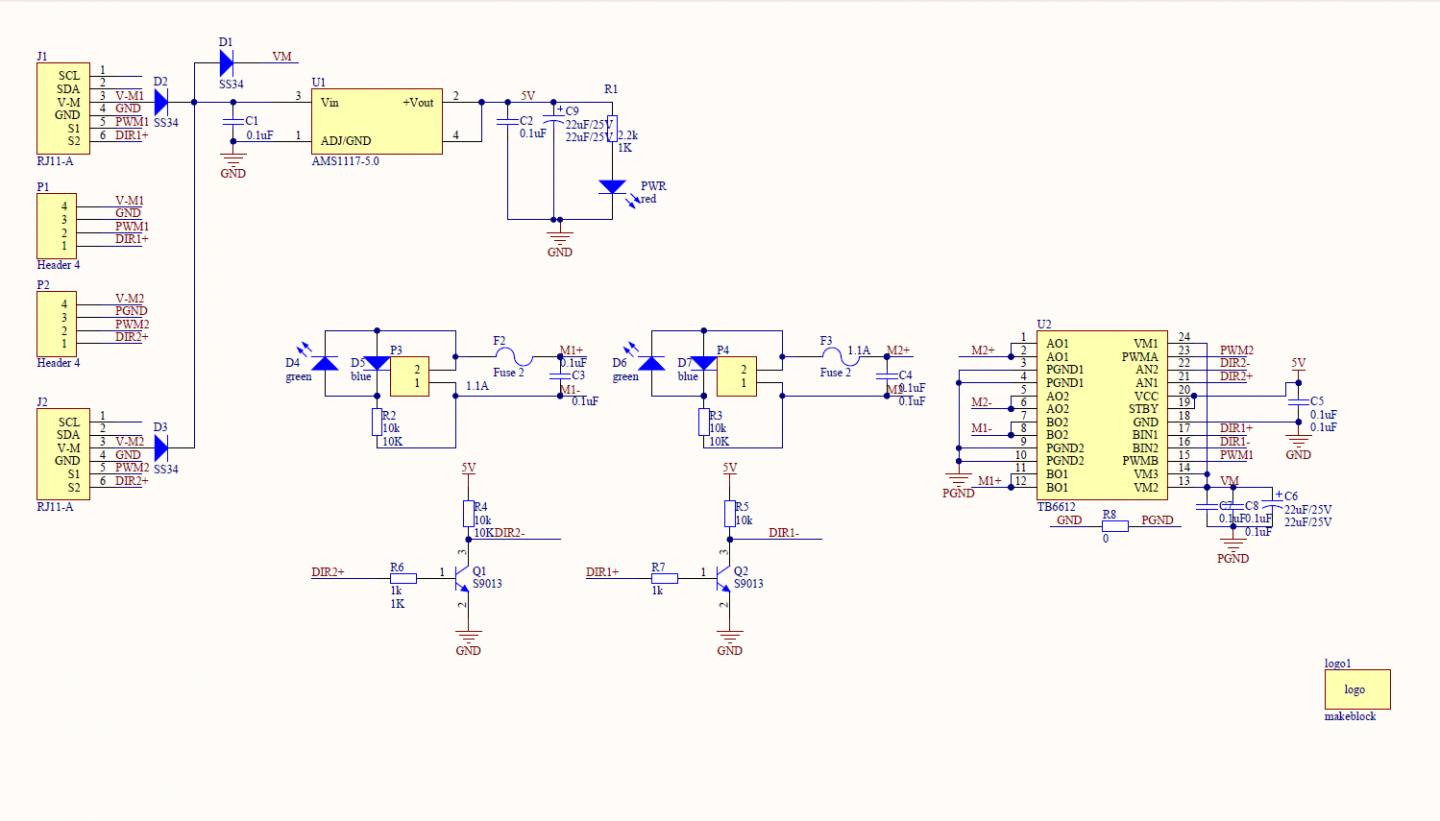

Schematic
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Educational Robotics
LEGO Icons 10295 Porsche 911 1458 Pieces, For Ages 18+
LEGO Technic 42083 Bugatti Chiron 3599 Pieces, For Ages 16+!
Makeblock P1050017 mBot V1.2 - STEM S.T.E.M. Educational Robot...
Sphero M001RW2 Mini - Activity Kit, Comes with Mini Bot and 15...
Makeblock mBot Ultimate Robot Kit V2.0 The 10-in-1 STEM S.T.E.M....
Makeblock 12015 Me Dual DC Motor Driver
- Brand: Makeblock
- MPN: 12015
- Part #: TOYMKB0077
Product URL: https://www.pbtech.co.nz/product/TOYMKB0077/Makeblock-12015-Me-Dual-DC-Motor-Driver
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Makeblock Me Dual DC Motor Driver is the improvement version of Me Motor Driver V2.1. With on board RJ25 ports, you can drive two DC motors at a constant current of 1A (2A peak). The motor driver IC on the board is TB6612, TB6612 is a high efficiency MOSFET driver, with low heat dissipation. Over current protection included to stop the driver IC burned out.
Key features
- TB6612PNG motor driver IC with High efficient MOSFET-based H-bridges
- Comes with Arduino library for easy programming
- 6 V to 12 V motor supply range
- 1 A maximum continuous current per motor (2 A peak)
- Over-current protection
- Easy wiring with RJ25 interface
- Labeled with red tag and compatible with Me BaseShield or Me Baseboard
- 2.54mm breakout pins for connecting with jumper wires
Overview
The Me Dual Motor Driver module can drive two DC motors by the onboard RJ25 port with power supply of 6V-12V, and it also has the PWM speed regulation function. The IC used in the module is an efficient, low heat dissipated MOSFET with over-current protection function. Its red ID means that it should be connected to the port with red ID on Makeblock Orion.
Functional characteristics
- White area of module is the reference area to contact metal beams
- Equipped with effective MOSFET H-bridge-based motor driver module IC
- Maximum 1.2A sustained current for each motor (peak value 3.2A)
- Over-current protection (OCP)
- Support Arduino IDE programming and provide runtime library to simplify programming
- Support mBlock GUI programming, and applicable to users of all ages
- Adopt RJ25 port for easy connection
- Provide pin-type port to support most Arduino Baseboards
Pin definition
The port of Me Dual Motor Driver has four pins, and their functions are as follows:
Wiring mode - Connecting with RJ25
Since the port of Me Dual Motor Driver has red ID, you need to connect the port with red ID on Makeblock Orion when using RJ25 port. Taking Makeblock Orion as example, you can connect it to ports No. 1 and 2 as follows:
Wiring mode - Connecting with Dupont wire
When the Dupont wire is used to connect the module to the Arduino UNO Baseboard, its PWM and DIR pins should be connected to digital ports as follows:
Guide to programming - Arduino programming
If you use Arduino to write a program, the library Makeblock-Library-master should be invoked to control the Me Dual Motor Driver.
This program serves to make two DC motors rotating simultaneously in the same or inverse direction through Arduino programming.
Guide to programming - mBlock programming
Me DC Motor Driver supports the mBlock programming environment and its instructions are introduced as follows:
The following is the effect to make two DC motors rotating in the same or inverse direction respectively:
Principle analysis
Drive principle of DC motor: The DC motor is added with drive circuit in order to better control the rotational direction and speed of motor. As a common circuit designed to control the DC motor, the H-bridge drive circuit is mainly to implement forward and reverse drive of DC motor. Its shape is similar to the letter H, the location of four switches (MOSFET) are called the bridge arm, and the DC motor serving as load is like a bridge across the top, so it is called the H-bridge. To drive a lot of integrated motors, the core of drive chip is the H-bridge. The opening and closing states of 4 switches can be combined into 4 working states for the motor: forwarding, reversing, braking and coasting.
Schematic
Specifications
Motor channels
2
Minimum operating voltage
6 V
Maximum operating voltage
12 V
Continuous output current per channel
1 A
Peak output current per channel
2 A
Technical specifications
Operating voltage
6-12V DC
Single channel sustained output current
1.2A
Single channel peak output current
3.2A
Number of motor channels
2
Type of drive motor
DC motor
Control mode
2 I/O (direction and PWM speed regulation)
Module size
56 x 32 x 18 mm (L x W x H)
