Makeblock Me 11020 Touch Sensor
- Brand: Makeblock
- MPN: 11020
- Part #: TOYMKB0111
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Educational Robotics





Makeblock Me 11020 Touch Sensor
- Brand: Makeblock
- MPN: 11020
- Part #: TOYMKB0111

Product URL: https://www.pbtech.co.nz/product/TOYMKB0111/Makeblock-Me-11020-Touch-Sensor
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features

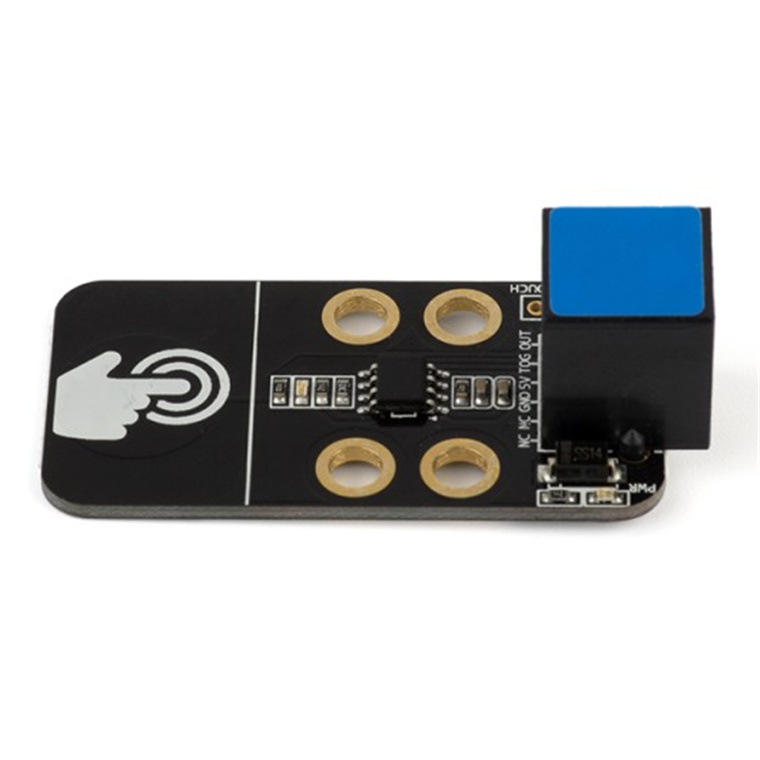

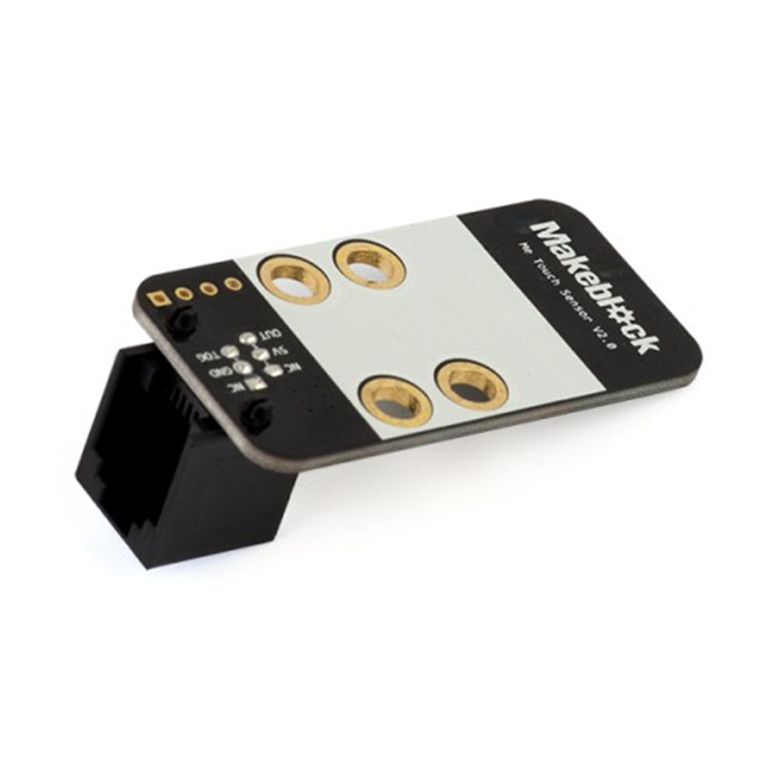

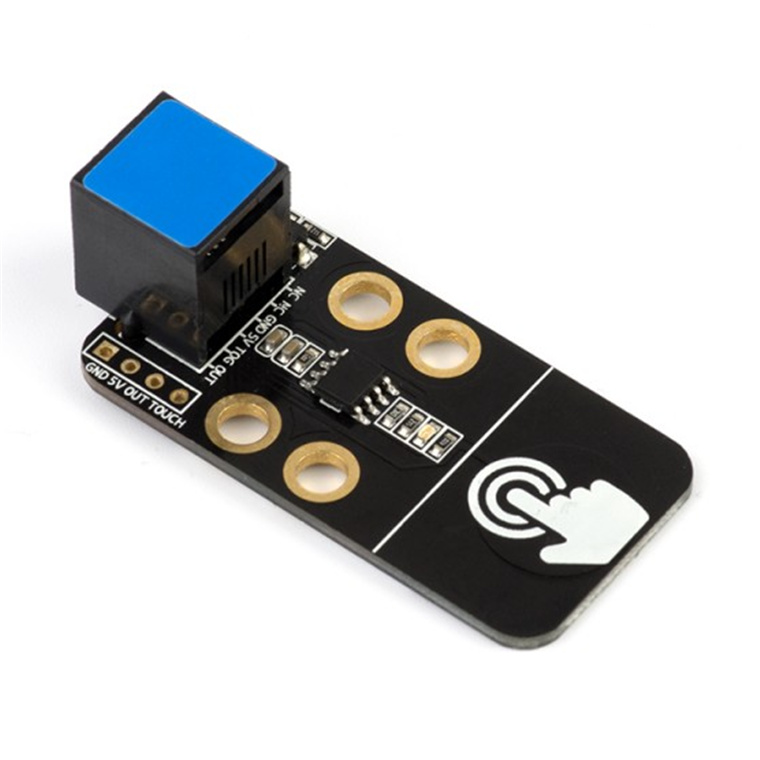

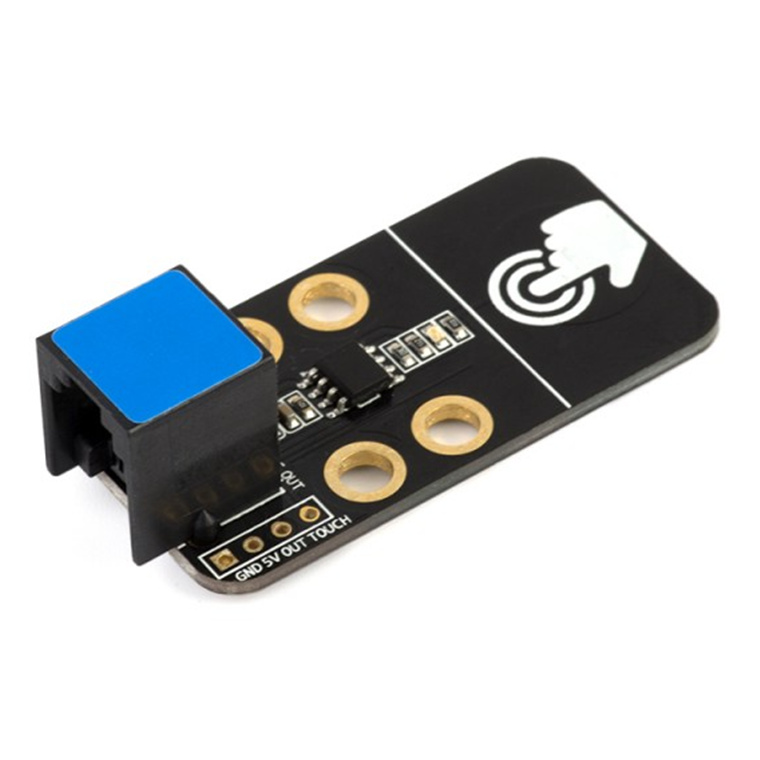

Me Touch Sensor is a capacitive touch sensor based on TTP223-BA6. It will be triggered by finger touch. You can also connect the "TOUCH" pinhole to some metal construction and touch the metal to trigger the sensor. The sensitivity is fixed to a proper level. If you need to adjust it to fit some special case, you can try to change the value of R3 and C4. It needs 0.5s for the self-calibration after energized. During that, please don't touch the sensor.
Key features
- Contactless touch trigger
- self-adaptation sensitivity
- 16mm interval M4 mounting holes, compatible with Makeblock beams
- 2.54mm pin holes for connecting with Dupont wire
- Easy wiring with 6P6C RJ25 interface
- Arduino library for easy programming
Specifications
Rated Voltage
5V
Size
24 x 48 x 16 mm (length x width x height)
