Features

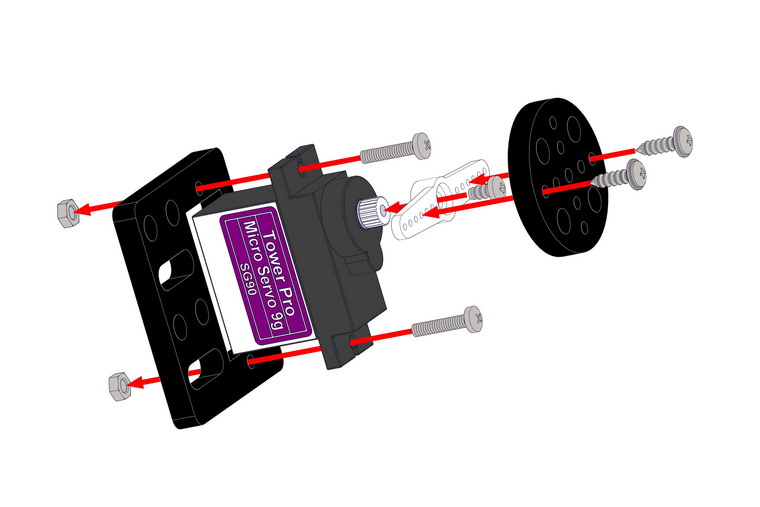

Makeblock 9g Micro Servo Pack is a servo pack for beginners who like to make stuff move , it contains a 9g servo, a servo hub, a servo bracket and hardwares. The 9g Micro Servo can rotate approximately 180 degrees, it works like standard servos but of course not as strong as a standard servo.

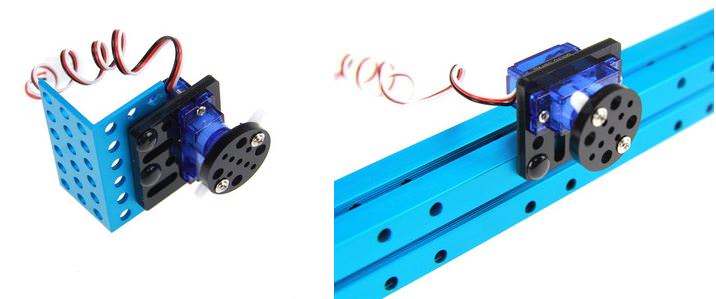

With the servo hub and servo bracket, it may be convenient to connect the servo with other parts. A Me RJ25 Adapter also help you to connect the servo with Me Orion easily.
Key Features
- Small volume and light weight
- Compatible with Me RJ25 Adapter
- A servo hub and a servo bracket are included.

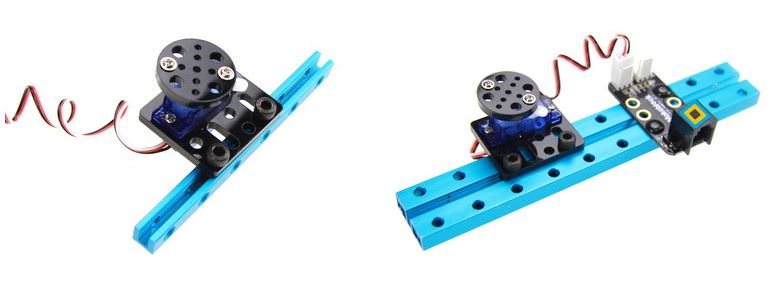

DEMO



Specifications
Apply Environmental Conditon
Storage Temperature Range
-20°C~70°C
Operating Temperature Range
-10°C~60°C
Standard Test Environment
Temperature Range
-10°C~60°C
Humidity Range
65%±10%
Mechanical Specification
Size
22.4×12.5×22.8mm
Weight
9g
Gear type
1 metal gear+4plastic gear
Limit angle
210°±5°
Horn type
Plastic, POM
Case
Engineering plastics(Pc)
Connector wire
260mm±5mm
Motor
DC motor
Electrical Specification - Operating Voltage (4.8V / 6.0V)
Idle current
5mA / 5mA
No load speed
0.10sec/60° / 0.09sec/60°
Runnig current
80mA / 100mA
Peak stall torque
1.3kg.cm / 1.7kg.cm
Stall current
650mA / 750mA
Control Specification
Command signal
Pulse width modification
Amplifier type
Analog controller
Pulse width range
1000~2000usec
Neutral position
1500usec
Running degree
120°±3°(when 900~2100usec)
Dead band width
8 usec
Rotating direction
Counterclockwise (when 1000~2000usec)
