Hauppauge WinTV-quadHD Four HD Digital TV Tuner PCIe
Hauppauge WinTV-quadHD Four HD Digital TV Tuner PCIe
- Brand: Hauppauge
- MPN: UPC01607
- Part #: TVNHGR1607
- UPC: 785428016078
What PB Tech customers are saying about this product...
See More Reviews"I have this board installed in an HP media from factor system with 12 gig. The board is great but my system lacks some performance in capturing all the data provided. Being the wor ...view more"
"Installed easily on my Ubuntu PVR Haupage driver instructions were clear."
"PB Tech delivered, they sent in a very good time frame with tracking using NZ Post synchronous with Aust Post. Very well packaged and delivered undamaged.
The WinTV-Quad Four HD ...view more"
Features
WinTV-quadHD: Watch or record up to four TV programmes at a time!
WinTV-quadHD features:
- QuadTV
- Get up to 4 live TV programmes on your PC at a time click to enlarge

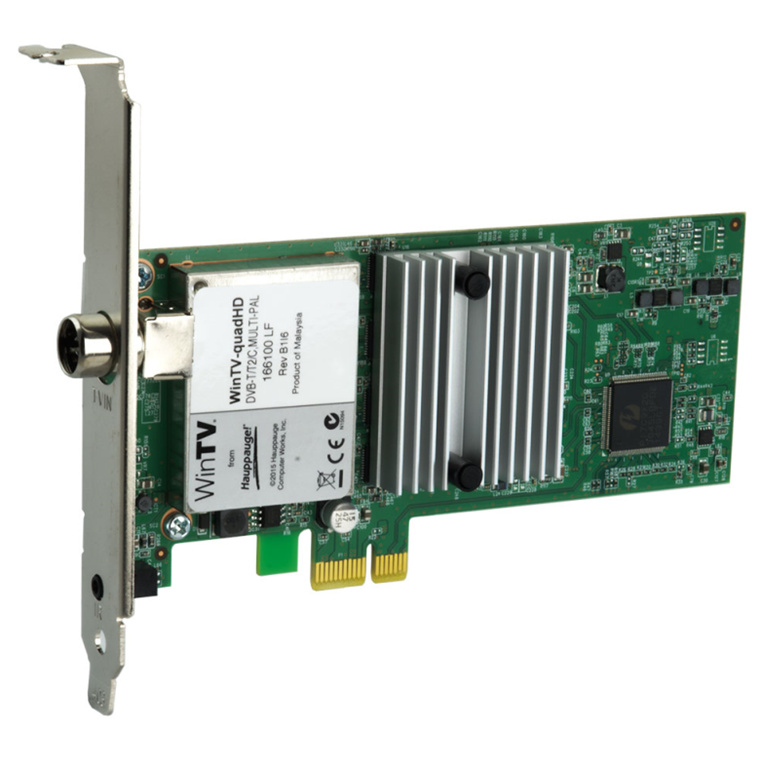

- Four tuners on one half height PCI Express board. WinTV-quadHD will fit in both full and half height PC's
- Watch, pause or record up to four Freeview HD (DVB-T2), Freeview (DVB-T) or digital cable (DVB-C) TV programmes at the same time
- Includes a Hauppauge remote control, with 1 meter IR receiver cable
- Includes the WinTV v8 application, which give you TV-in-a-window or TV full screen, plus picture-in-picture
- Also works with Windows Media Center (standard in Windows 7 and optional in Windows 8). The WinTV-quadHD is seen as 4 tuners in Windows Media Center to watch one channel or record up to four TV programmes at the same time.
Freeview HD (DVB-T2) over-the-air digital TV features:
- Freeview HD (also called DVB-T2) is free over-the-air HD TV. Freeview HD is broadcast in the UK and some other countries in Europe, and does not require a subscription. - Freeview HD is high definition and FREE!
- WinTV-quadHD has four Freeview HD over-the-air digital TV tuners. Supports all Freeview HD formats, up to the highest HD format (MPEG-4 at 1080p30)
- Watch, pause or record up to four Freeview HD digital TV programmes using high quality MPEG-4. TV recordings will typically consume 5 GB of disk space per hour for Freeview HD
- Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels
Freeview (DVB-T) over-the-air digital TV features:
- Freeview (also called DVB-T) is free over-the-air standard definition TV. Freeview (DVB-T) is broadcast throughout Europe, and does not require a subscription
- WinTV-quadHD has four Freeview over-the-air digital TV tuners
- Watch, pause or record up to four Freeview HD digital TV programmes using MPEG-2. TV recordings will typically consume 2 GB of disk space per hour for Freeview
- Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels
Freeview DVB-C digital cable TV features:
- Freeview DVB-C digital cable HDTV receivers. Watch and record up to four High Definition freeview digital cable TV channels at the same time
- Built-in cable TV splitter allows you to make one connection to cable TV
Note: not all cable TV networks provides freeview DVB-C channels. Please check with your local cable operator for the availability of freeview DVB-C digital cable TV programs
Bundled software

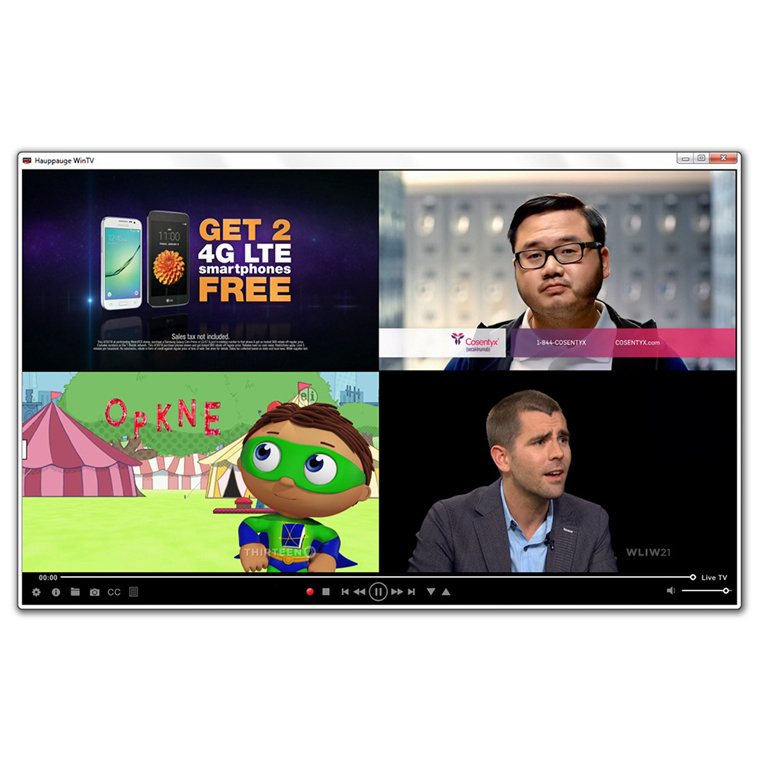

WinTV v8, the new TV application for Windows, with TV pause and recording. When used with the WinTV-quadlHD, WinTV v8 also gives you the option of picture-in-picture or watch one TV channel when recording three others. There is also a 'Open additional TV window' function to give up to four live TV windows on your PC screen.
Notes
- Please note that you can't receive the encrypted or paid channels via the Starhub's cable TV wall socket input with WinTV-quadHD Tuner card.
- DVB-C channels can be received if unecrypted DVB-C channels are available in your area or from your cable TV provider.
- Channels available from digital cable (DVB-C) depends on your Cable TV provider, please visit the website of your cable TV provider for the list of 'freeview' digital cable channels.
- Hauppauge also reserves the right to make improvements and/or changes to the product, programmes and/or specifications described in the above information at any time without notice.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular TV / Video Capture
Elgato HD60 X USB External Capture Card
Elgato CAM LINK 4K
Elgato Video Capture for Mac PC or iPad Digitize video from a VCR...
Aten UC3020 CamLive HDMI to USB-C Video Capture
Hauppauge HD PVR Pro 60 USB bus powered HD video recorder Play...
Hauppauge WinTV-quadHD Four HD Digital TV Tuner PCIe
- Brand: Hauppauge
- MPN: UPC01607
- Part #: TVNHGR1607
- UPC:785428016078
Product URL: https://www.pbtech.co.nz/product/TVNHGR1607/Hauppauge-WinTV-quadHD-Four-HD-Digital-TV-Tuner-PC
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
WinTV-quadHD: Watch or record up to four TV programmes at a time!
WinTV-quadHD features:
- QuadTV
- Get up to 4 live TV programmes on your PC at a time click to enlarge
- Four tuners on one half height PCI Express board. WinTV-quadHD will fit in both full and half height PC's
- Watch, pause or record up to four Freeview HD (DVB-T2), Freeview (DVB-T) or digital cable (DVB-C) TV programmes at the same time
- Includes a Hauppauge remote control, with 1 meter IR receiver cable
- Includes the WinTV v8 application, which give you TV-in-a-window or TV full screen, plus picture-in-picture
- Also works with Windows Media Center (standard in Windows 7 and optional in Windows 8). The WinTV-quadHD is seen as 4 tuners in Windows Media Center to watch one channel or record up to four TV programmes at the same time.
Freeview HD (DVB-T2) over-the-air digital TV features:
- Freeview HD (also called DVB-T2) is free over-the-air HD TV. Freeview HD is broadcast in the UK and some other countries in Europe, and does not require a subscription. - Freeview HD is high definition and FREE!
- WinTV-quadHD has four Freeview HD over-the-air digital TV tuners. Supports all Freeview HD formats, up to the highest HD format (MPEG-4 at 1080p30)
- Watch, pause or record up to four Freeview HD digital TV programmes using high quality MPEG-4. TV recordings will typically consume 5 GB of disk space per hour for Freeview HD
- Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels
Freeview (DVB-T) over-the-air digital TV features:
- Freeview (also called DVB-T) is free over-the-air standard definition TV. Freeview (DVB-T) is broadcast throughout Europe, and does not require a subscription
- WinTV-quadHD has four Freeview over-the-air digital TV tuners
- Watch, pause or record up to four Freeview HD digital TV programmes using MPEG-2. TV recordings will typically consume 2 GB of disk space per hour for Freeview
- Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels
Freeview DVB-C digital cable TV features:
- Freeview DVB-C digital cable HDTV receivers. Watch and record up to four High Definition freeview digital cable TV channels at the same time
- Built-in cable TV splitter allows you to make one connection to cable TV
Note: not all cable TV networks provides freeview DVB-C channels. Please check with your local cable operator for the availability of freeview DVB-C digital cable TV programs
Bundled software
WinTV v8, the new TV application for Windows, with TV pause and recording. When used with the WinTV-quadlHD, WinTV v8 also gives you the option of picture-in-picture or watch one TV channel when recording three others. There is also a 'Open additional TV window' function to give up to four live TV windows on your PC screen.
Notes
- Please note that you can't receive the encrypted or paid channels via the Starhub's cable TV wall socket input with WinTV-quadHD Tuner card.
- DVB-C channels can be received if unecrypted DVB-C channels are available in your area or from your cable TV provider.
- Channels available from digital cable (DVB-C) depends on your Cable TV provider, please visit the website of your cable TV provider for the list of 'freeview' digital cable channels.
- Hauppauge also reserves the right to make improvements and/or changes to the product, programmes and/or specifications described in the above information at any time without notice.
Specifications
Tuner
Supported TV standards:
Freeview HD (DVB-T2)
Freeview (DVB-T)
Clear digital cable TV (DVB-C)
Antenna input:
IEC connector
PC-interface:
PCIe x1
TV recording formats
Transport stream (the original transmitted format, without any quality loss)
System Requirements
Microsoft® Windows 10, 8, 7® or Windows Vista with latest Service Pack, 1 GB RAM
Minimum processor: Core2Duo 2.93Ghz or faster
Sound and graphics with support for DirectX® 9 or higher
PCI Express slot, x1
CD/DVD drive for software installation
Recommended: Internet connection for software updates and activations
