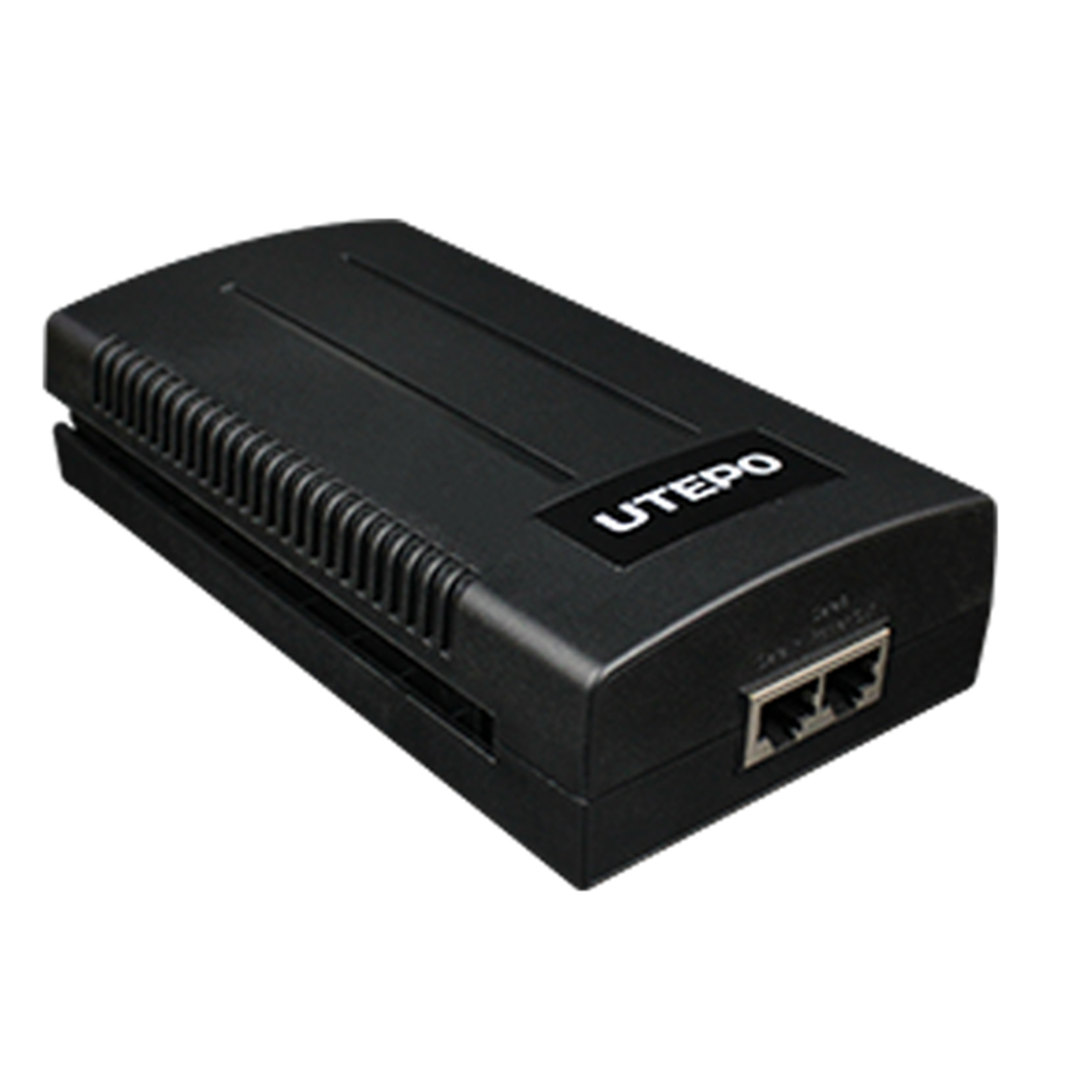

Connect ConnectPoE injector 95W

Brand: Connect
MPN: UTP7201GEPSE95
Part #: UNC001004344
UPC:

PB Tech price

$ 283 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 03 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $3.52 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Connect
MPN: UTP7201GEPSE95
Part #: UNC001004344
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC power input port. It is compatible with mid-span and end-span PoE power method, the output power consumption can be up to 95W; It features:10/100/1000Mbps network port,100m transmission distance, 4KV lightning protection. it's an excellent choice for power supply and network transmission on PTZ speed dome, 11ac wireless AP, digital display system.

- PoE+ + power supply standard; Output power consumption can be up to 95W;
- IEEE 802.3af/at/bt, IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T;
- Working Temperature: -10℃～40℃;
- 4KV lightning protection; 8KV ESD protection;
- No fan, no noise, dust-proof;

Application

Board Diagram

Specifications

Interface

Input Voltage

AC100V-240V

PoE output

1xRJ45

Data Input

1xRJ45

PoE

PoE Power Supply Type

Mid-span&End-span

PoE Power Output

DC 56V 95 watts

Output Ripple

<5%

Power Pin Assignment

1/2/7/8 (-),3/6/4/5 (+)

Ethernet Port

Communication Port

1xRJ45 Input

Transmission Rate

10/100/1000Mbps

Transmission Medium

Cat5e/6 Cable

Distance

100m (Max.)

Protection

Surge Protection

2KV(Differential Mode), 4KV(Common Mode)

ESD

Direct discharge: 6KV, Air discharge: 10KV

Environment

Working Temperature

-10°C-40°C

Storage Temperature

-30°C-70°C

Humidity(Non-condensing)

-30°C-70°C

Mechanics

Dimension(LxWxH)

169mm-96.5mm x 42.5mm

Material

ABS Plastics

Color

Black

Weight

769g

Manufacturer Part No:

UTP7201GEPSE95

Brand:

Connect

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

UNC001004344

Product Model:

Warranty: Not applicable
