Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch with 4 Port 10GbE SFP+ Uplinks.Supportspto30W Per PoE Port (Total Power Budget: 400W) Long Range up to 200m at 10Mbps.
Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch with 4 Port 10GbE SFP+ Uplinks.Supportspto30W Per PoE Port (Total Power Budget: 400W) Long Range up to 200m at 10Mbps.
- Brand: Edimax
- MPN: GS-5424PLXV2
- Part #: UNC001004538
- UPC:
- Brand: Edimax
- MPN: GS-5424PLXV2
- Part #: UNC001004538
- UPC:
Features
Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch
- 24 Gigabit Ethernet PoE+ ports and 4 10GbE SFP+ ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE-powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 128Gbps backplane bandwidth, 95.2Mpps forwarding rate, 16K MAC address table and 12KB jumbo frame
No More Uplink Bottleneck
Equipped with 4 10GbE SFP+ ports for up to 40Gbps speed and long-range fibre-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.
Strong Data Switching Capability
With 128Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 95.2Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.

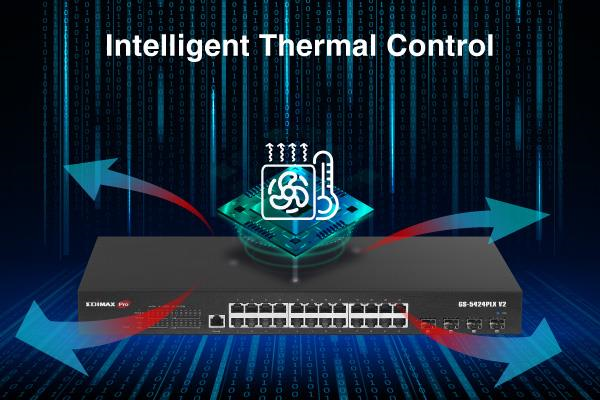

Power Saving Implementation
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environmental temperature and control fan speeds, as well as turn on/off each fan for power saving and noise reduction.
Cost-effective PoE Solution
Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs and enables reboot to fail PDs, further enhancing network reliability.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch with 4 Port 10GbE SFP+ Uplinks.Supportspto30W Per PoE Port (Total Power Budget: 400W) Long Range up to 200m at 10Mbps.
- Brand: Edimax
- MPN: GS-5424PLXV2
- Part #: UNC001004538
Product URL: https://www.pbtech.co.nz/product/UNC001004538/Edimax-24-Port-Gigabit-PoE-Web-Smart-Surveillance
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch
- 24 Gigabit Ethernet PoE+ ports and 4 10GbE SFP+ ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE-powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 128Gbps backplane bandwidth, 95.2Mpps forwarding rate, 16K MAC address table and 12KB jumbo frame
No More Uplink Bottleneck
Equipped with 4 10GbE SFP+ ports for up to 40Gbps speed and long-range fibre-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.
Strong Data Switching Capability
With 128Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 95.2Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.
Power Saving Implementation
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environmental temperature and control fan speeds, as well as turn on/off each fan for power saving and noise reduction.

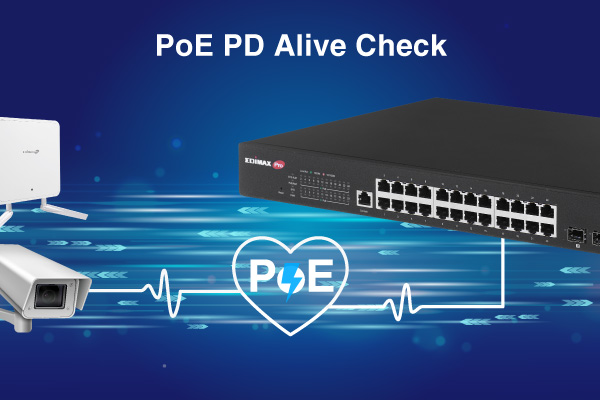

Cost-effective PoE Solution
Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs and enables reboot to fail PDs, further enhancing network reliability.
Specifications
Hardware
Ports
24 x RJ45 PoE+ 10/100/1000Base-T Gigabit ports
4 x SFP+ 10GBase-X 10 Gigabit uplink ports
1 x RJ45 Console port (Console cable included)
Buttons
Reset button
LED Indicators
Per Port: Link/Act (1-28 port), PoE (1-24 port)
Per Unit: PoE Alert, SYS ALM (System Alert), SYS (System), PWR (Power)
Power Input
100-240V AC, 50-60Hz, internal power supply
Total Power Budget
400W
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan
2 x Fan with Intelligent Thermal Controller
Dimensions
441 (W) x 270 (D) x 44 (H) mm
(17.36 (W) x 10.63 (D) x 1.73 (H) inches)
Performance
Switching Capacity / Backplane
128Gbps
Forwarding Rates
Max. 95.2Mpps (64-byte package size)
MAC Address Table
16K
Jumbo Frame
12KB
Packet Buffer
12Mb
Power Over Ethernet
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
Management
PoE status, PoE scheduling, PoE priority, PoE on/off, PoE PD alive check
PoE Long Range
Guaranteed PoE long range to 200 meters at 10Mbps
Power Backfeed Protection
Built-in
Others
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over fiber
IEEE 802.3ae 10GBase-X Gigabit Ethernet over fiber
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1x Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP), LLDP-MED (Media Endpoint Discovery)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Temperature:
Operating: 0~50°C (32~122°F)
Storage: -40~70°C (-40~158°F)
Humidity:
Operating: 10~90% (NonCondensing)
Storage: 10~90% (NonCondensing)
Certifications
FCC, CE, BSMI
