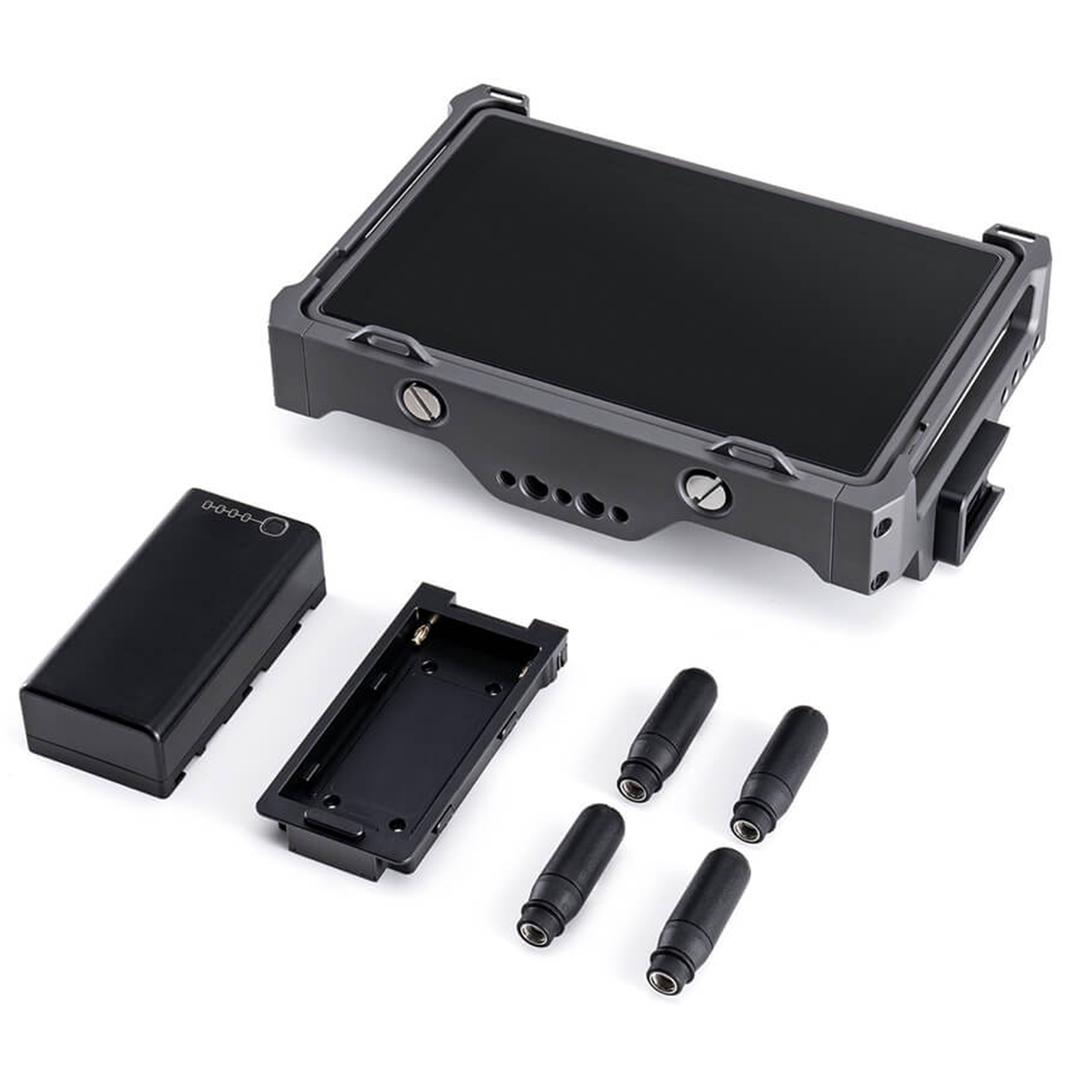

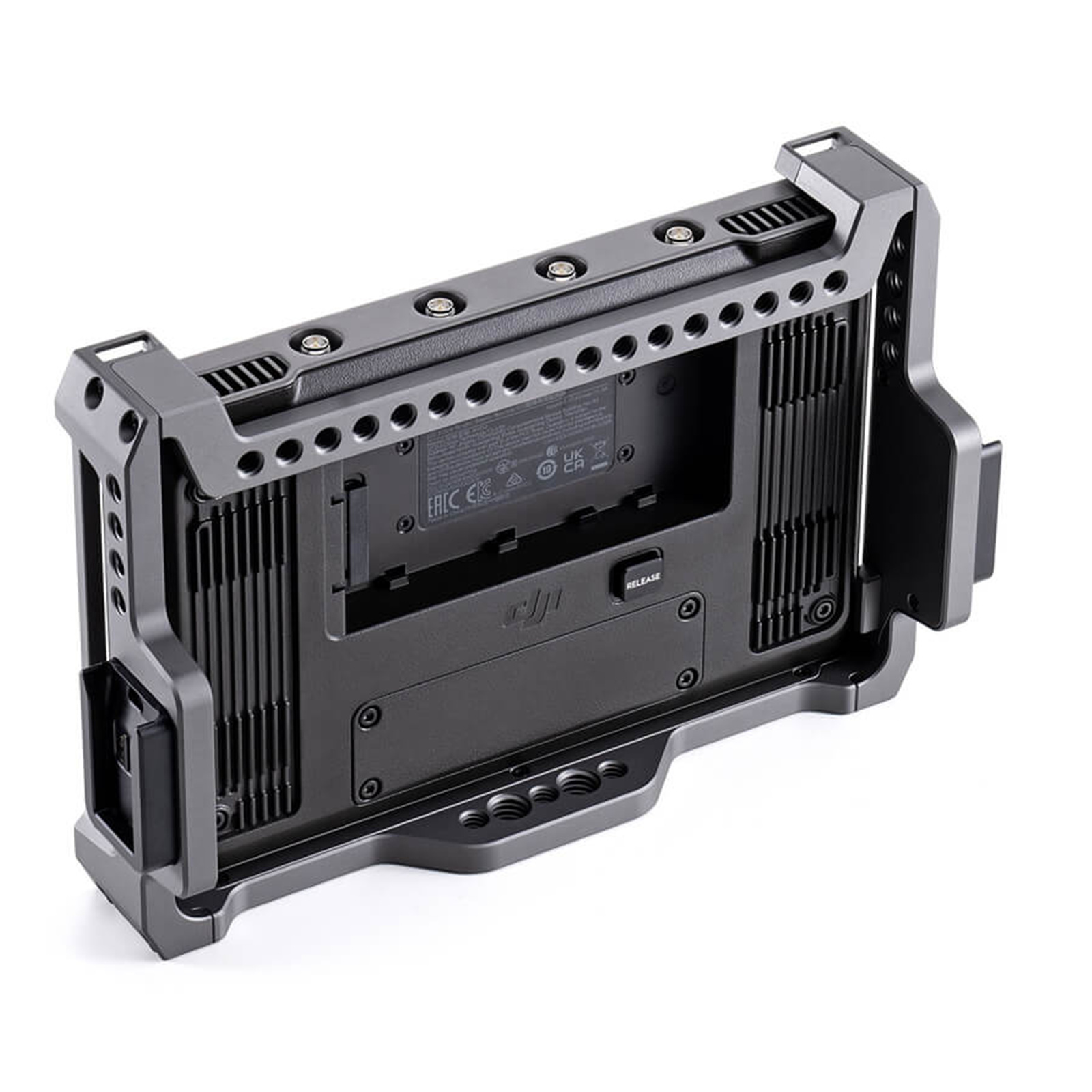

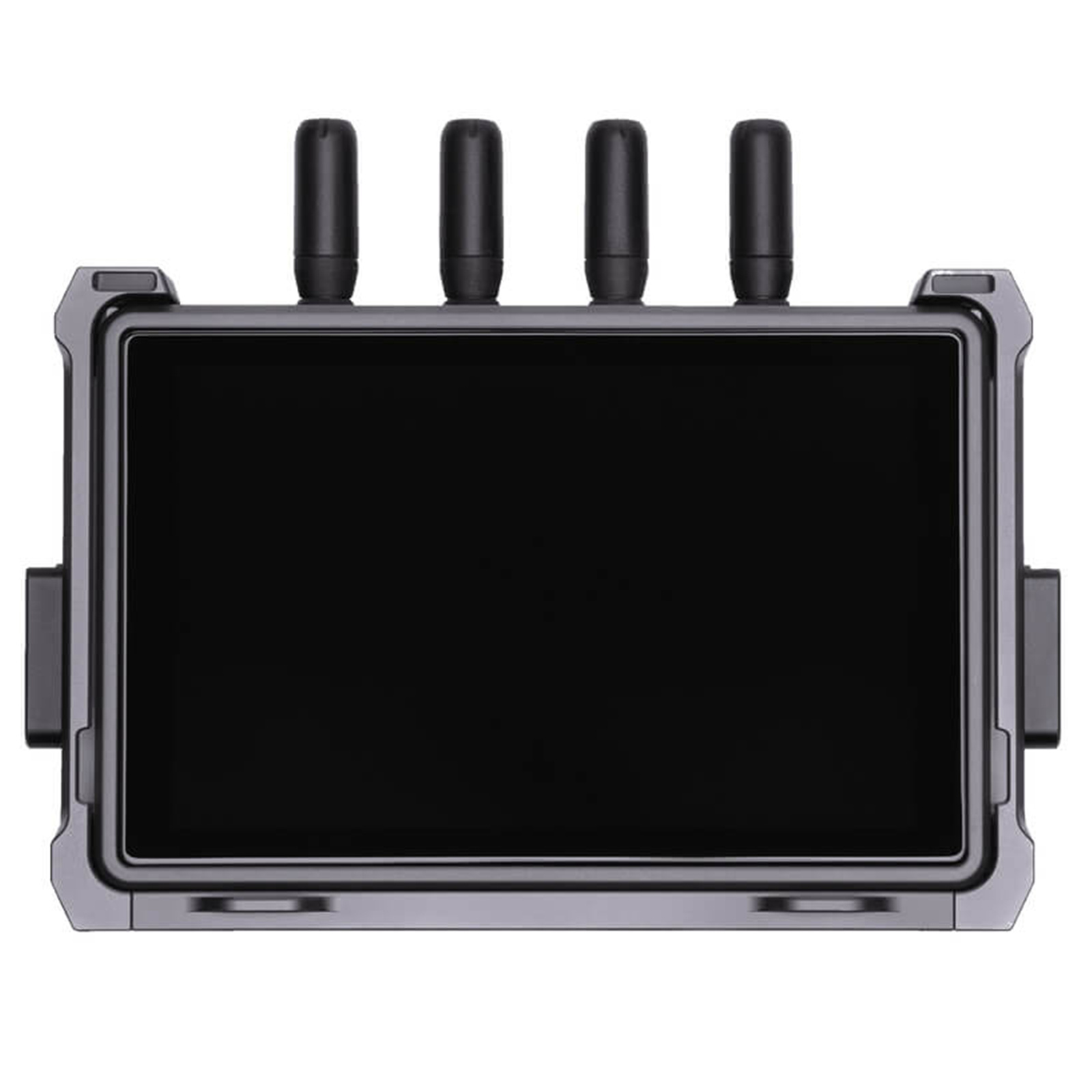

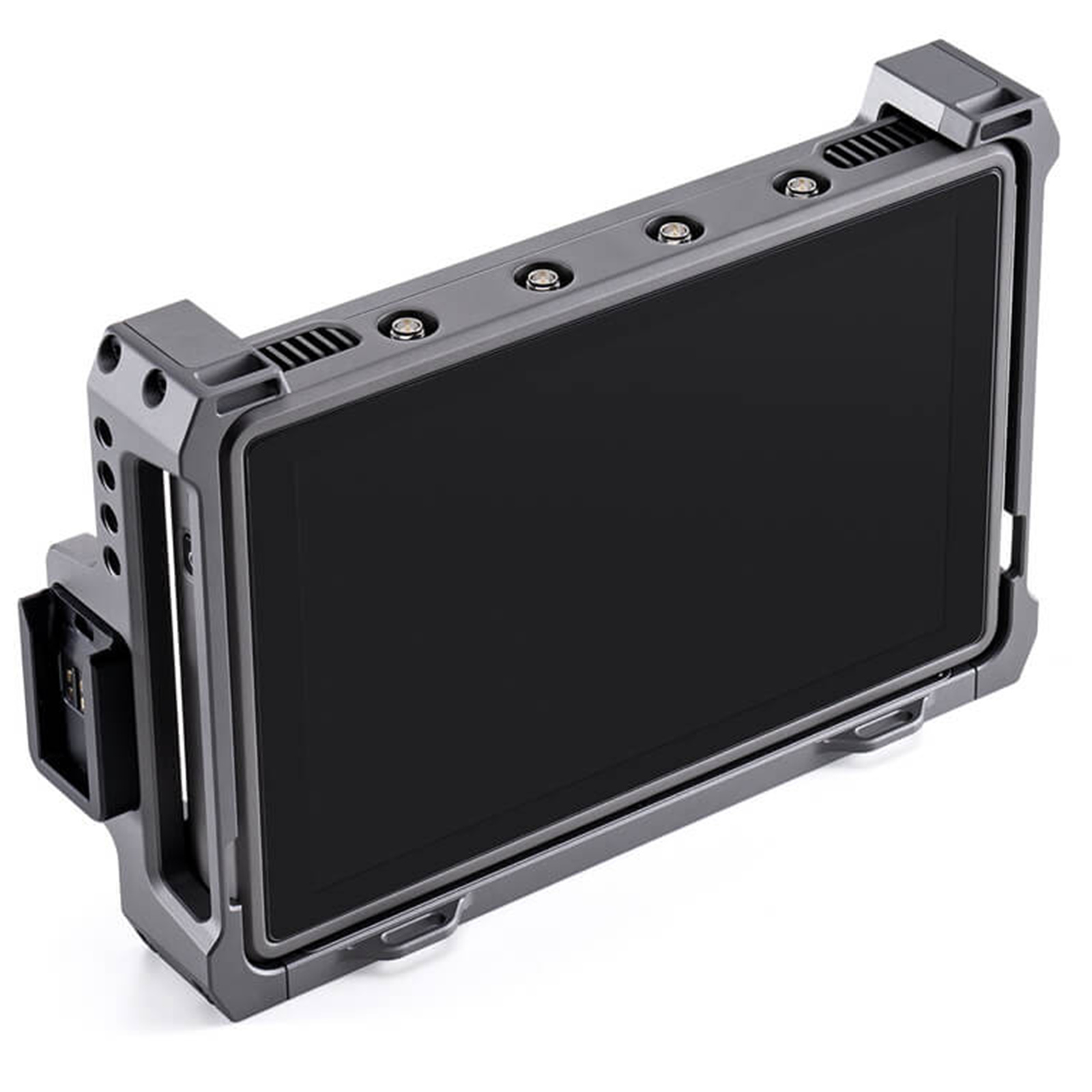

DJI High-Bright Remote Monitor
DJI High-Bright Remote Monitor
- Brand: DJI
- MPN: CP-RN-00000183
- Part #: UNC001004826
- UPC: 190021047921
- Brand: DJI
- MPN: CP-RN-00000183
- Part #: UNC001004826
- UPC: 190021047921
DJI High-Bright Remote Monitor
- Brand: DJI
- MPN: CP-RN-00000183
- Part #: UNC001004826
- UPC:190021047921

Product URL: https://www.pbtech.co.nz/product/UNC001004826/DJI-High-Bright-Remote-Monitor
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
DJI High-Bright Remote Monitor
With a 7-inch wide colour gamut, 1,500-nit high-bright touchscreen, and an integrated O3 Pro image transmission receiver, the DJI High-Bright Remote Monitor can be used for monitoring, recording, and playback. It also works seamlessly with the Hand Grips, DJI Master Wheels, DJI Force Mobile, and the new DJI Three-Channel Follow Focus to enable remote control of focus, gimbal movements, and camera functions. (Note: Must be used with the DJI Ronin 4D Video Transmitter).
The DJI High-Bright Remote Monitor is integrated with a wide colour gamut display and image transmission receiver and can be used for monitoring, recording, and playback. When used with the DJI Remote Monitor Expansion Plate, outputs of HDMI and SDI signals can be achieved.
- 1,500-nit high-bright monitor
- 7-inch wide colour gamut touchscreen display
- Output of HDMI and SDI signals
- Mirror Control Mode
- Independent recording and playback
- Remote parameter setting, remote control
- Motion control
- Customisable LUT and independent LUT for monitoring
- Focus assistance and exposure assistance
- Independent monitoring of HDMI input
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
General
Compatibility
DJI Ronin 4D
Display
Panel Type
LCD
Size
7"
Resolution
1920 x 1200
Maximum Brightness
1500 cd/m²
I/O
USB
1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output
Video
1 x HDMI Type A Input
Audio
1 x 1/8" / 3.5 mm Output
Media/Memory Card Slot
Single Slot: microSD/microSDHC
Power
Power Source
WB37 Battery
Environmental
Operating Temperature
0 to 40°C
Storage Temperature
-20 to 60°C
Physical
Mounting
Multiple x 1/4"-20
Dimensions
216 x 166 x 58 mm (Includes Cage)
