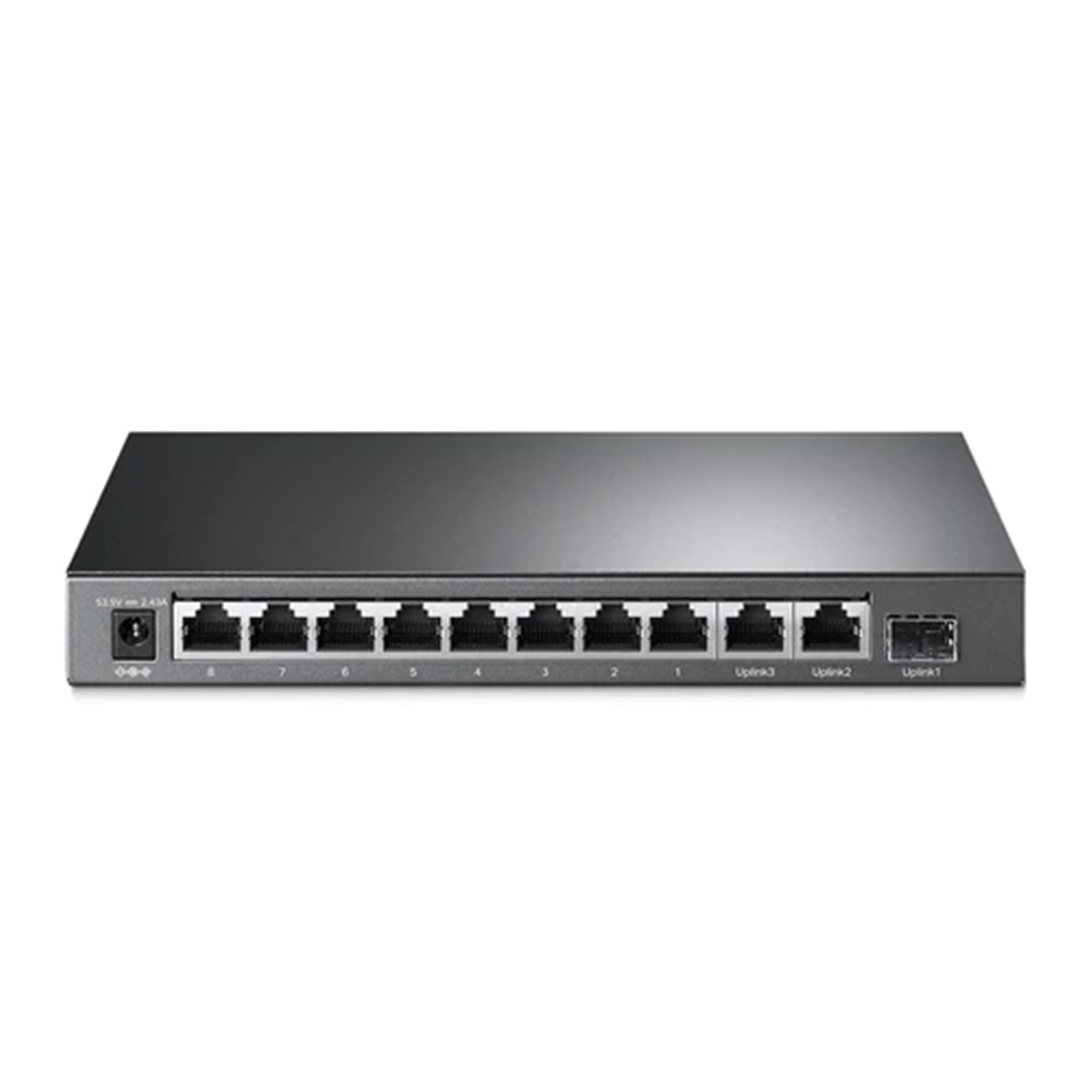

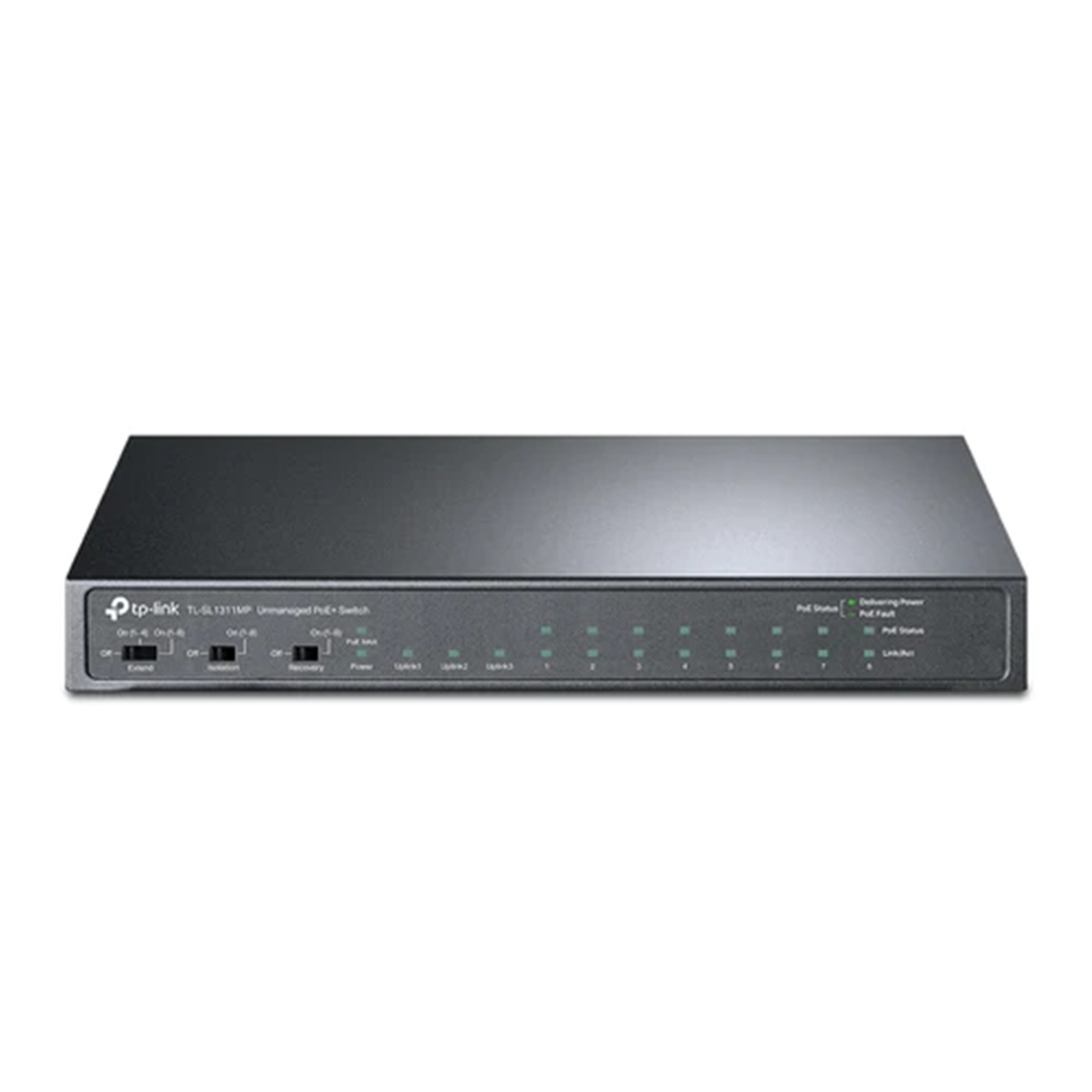

TP-Link TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

PB Tech price

$ 81 .74

+GST

$ 94 .00

inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

TP-Link TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

Brand: TP-Link
MPN: TL-SL1311P
Part #: UNC001005294
UPC: 4895252500288

PB Tech price

$ 94 .00

inc GST

+GST inc GST

Out of stock

No store stock available.

Click & Collect: Collect unavailable

Delivery: Out of stock When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: TL-SL1311P
Part #: UNC001005294
UPC: 4895252500288

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port

- 8× PoE+ ports transfer data and power on individual cables

- Works with IEEE 802.3af/at compliant PDs

- Supports PoE Power up to 30 W for each PoE port

- Supports PoE Power up to 65 W for 8 PoE ports*

- Up to 250 m data and power transmitting range under Extend Mode**

- Isolation Mode allows one-click client traffic separation for higher security and performance

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

- Fanless Design reduces power consumption and works silently in its location

- Plug and play with no configuration required

Specifications

HARDWARE FEATURES

Interface

- 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- AUTO Negotiation
- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5 VDC / 1.31 A)

Packet Forwarding Rate

5.6544 Mpps

PoE Ports (RJ45)

- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1-8
- Power Supply: 65 W

Mac Address Table

Jumbo Frame

16 KB

Switching Capacity

7.6 Gbps

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max Power Consumption

- 5.61 W (220 V/50 Hz. no PD connected)
- 77.32 W (110 V/50 Hz. with 65 W PD connected)

Max Heat Dissipation

- 19.13 BTU/h (no PD connected)
- 263.7 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
- Isolation Mode Button (Ports 1-8)
- PoE Auto Recovery Button (Ports 1-8)
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

- TL-SL1311P
- Power Adapter
- Installation Guide

Environment

- Operating Temperature: 0-40 ? (32-104 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:

TL-SL1311P

Brand:

TP-Link

Product Type:

UPC

4895252500288

Product Family:

Shipping Weight:

1 kg

PB Part No:

UNC001005294

Product Model:

TL-SL1311P

Warranty: Not applicable
