Ubiquiti UISP airFiber 60 XR 60GHz Long Distance Bridge Radio w' 5GHz Failover

PB Tech price

$ 2,482 .03

+GST

$ 2,854 .33

inc GST

Ubiquiti UISP airFiber 60 XR 60GHz Long Distance Bridge Radio w' 5GHz Failover

Brand: Ubiquiti
MPN: AF60-XR
Part #: UNC001005514
UPC:

PB Tech price

$ 2,854 .33

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 07 Nov When will I receive it?

Add To Compare

Stock Alerts

Four payments of $720.72 per fortnight*

Finance from $25.54 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: AF60-XR
Part #: UNC001005514
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

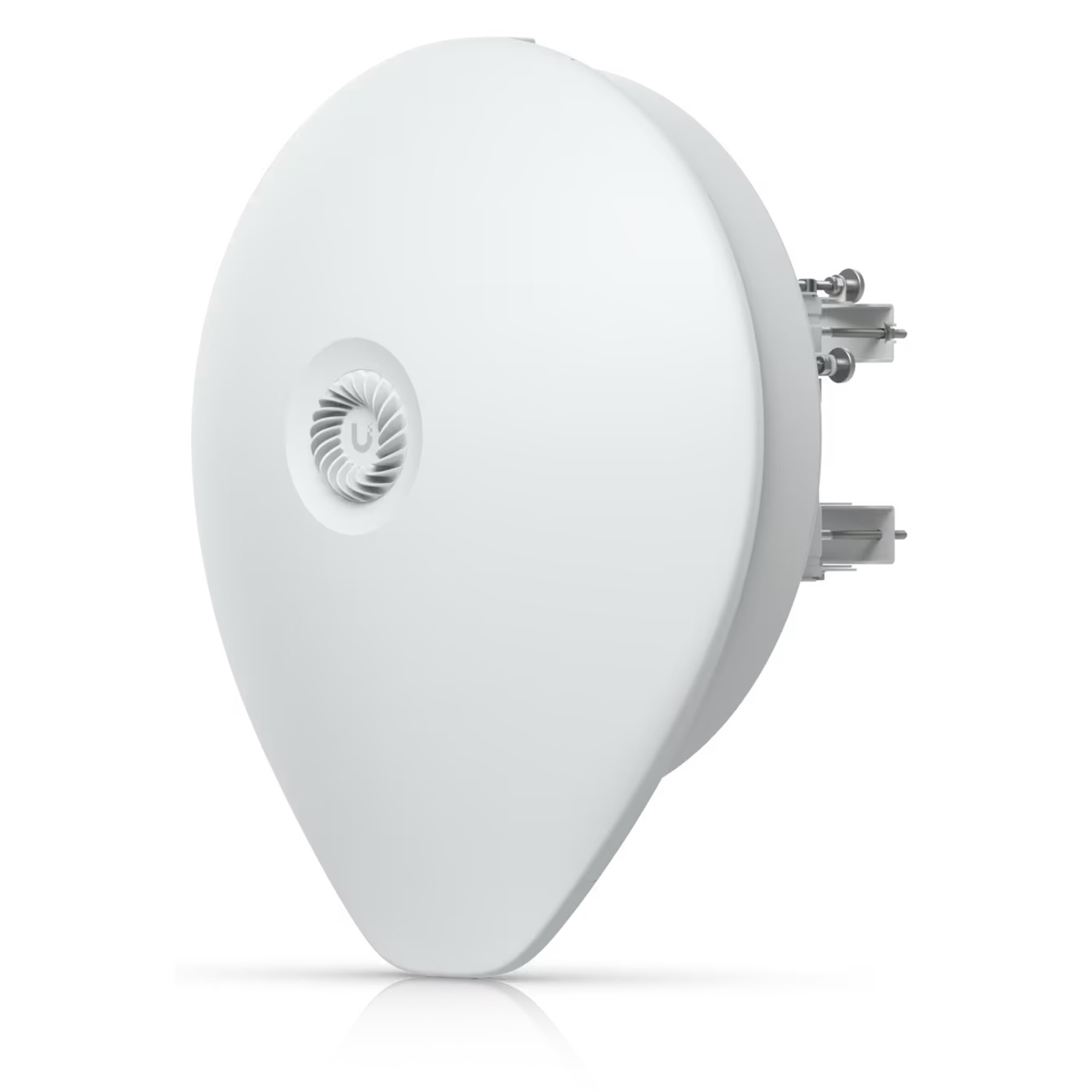

Ubiquiti UISP airFiber 60 XR 60 GHz Long Distance Bridge Radio with 5GHz Failover (Sold Each)

Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.

- 15+ km link range (with 5GHz backup)
- 5.4 Gbps max. throughput
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE and (1) 10G SFP+ port

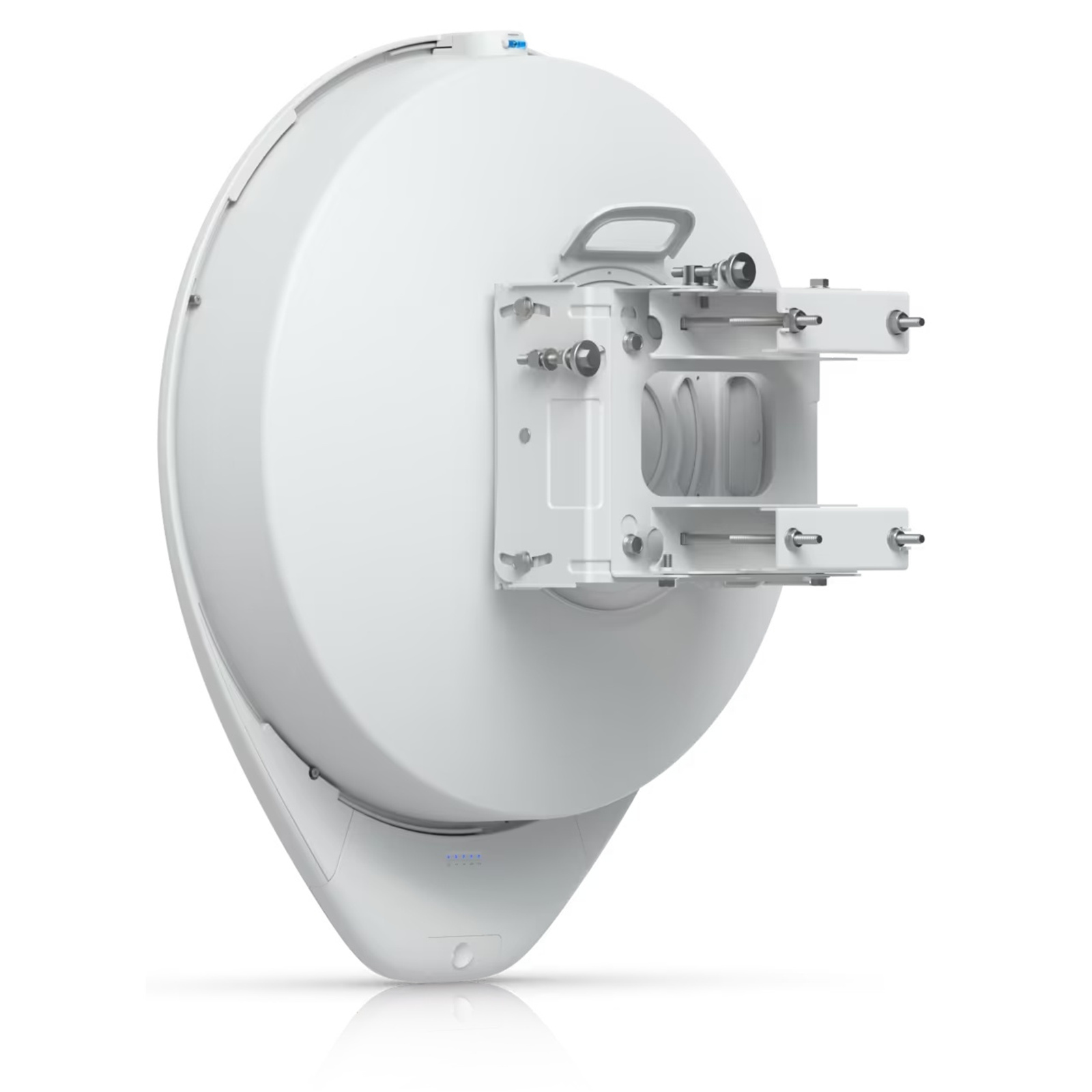

- Precision alignment mount
- Integrated GPS & Bluetooth

Specifications

Manufacturer's Code

AF60-XR (Sold Each)

Operating mode

PtP only

Max. throughput

2.5+ Gbps

Max. range

15+ km

Encryption

WPA2-PSK (AES)

Operating frequency

57-71 Ghz * Depends on regulatory region.

Channel bandwidth

2160, 1080 MHz

Operating channels

58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region.

Management radio

2400-2483.5 MHz

Modulation

16QAM, BPSK, QPSK

Polarization

Vertically linear

Beamwidth

Azimuth: 3 dB 1.4deg, Elevation: 3 dB 1.4deg

Electrical downtilt

0deg

Ubiquiti specific features

Integrated 60 GHz radio, discovery protocol, Wave technology Services UISP, ping watchdog, NTP client, device discovery

5GHz Backup frequency

5150 - 5875 MHz *Depends on regulatory region.

Channel bandwidth

20, 40, 80 MHz

Antenna gain

26 dBi

Polarization

Dual-linear

Beamwidth

Azimuth: 3 dB 5deg, Elevation: 3 dB 5deg

Cross-pol isolation

14 dB

5GHz Electrical downtilt

0deg

Tools

Antenna alignment, discovery utility, ping, trace route, speed test

Network

Bridge mode

Management application

UISP web: Version 1.4.3 and later, UISP iOS™: Version 2.20 and later, UISP Android™: Version 2.21.5 and later

Processor

Quad-core ARM® Cortex®-A53 at 1.4 GHz

Memory

DDR3L1 GB

Networking interface

(1) GbE RJ45 port, (1) 1/10G SFP+port

Max. power consumption

24W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only

Power supply

48V DC, 0.65A gigabit PoE adapter (included)

Supported voltage range

44-54V DC, 22-27V DC

GPS

Yes

RF connections

Internal

Button

Factory reset

Dimensions

779 x 664 x 383 mm (30.7 x 26.1 x 15.1")

Weight

Without mount: 8.6 kg (19 lb), With mount: 13 kg (28.7 lb)

Enclosure materials

UV stabilized polycarbonate, steel

Mount material

Galvanized steel

Mounting

Precision alignment kit (included), Pole compatibility: 40 to 80 mm (1.5 to 3.15") on pipe outer diameter

Wind loading

422 N at 200 km/h (94.86 lbf at 125 mph)

Weatherproofing

IPX6

Operating temperature

-40 to 55° C (-40 to 131° F)

Operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

Manufacturer Part No:

AF60-XR

Brand:

Ubiquiti

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

UNC001005514

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
