Ubiquiti UFiber 8 Port GPON Optical Line Terminal (OLT) Supports 1024 Registered ONUs/ONTs
Ubiquiti UFiber 8 Port GPON Optical Line Terminal (OLT) Supports 1024 Registered ONUs/ONTs
- Brand: Ubiquiti
- MPN: UF-OLT
- Part #: UNC001006535
- UPC:
- Brand: Ubiquiti
- MPN: UF-OLT
- Part #: UNC001006535
- UPC:
Ubiquiti UFiber 8 Port GPON Optical Line Terminal (OLT) Supports 1024 Registered ONUs/ONTs
- Brand: Ubiquiti
- MPN: UF-OLT
- Part #: UNC001006535

Product URL: https://www.pbtech.co.nz/product/UNC001006535/Ubiquiti-UFiber-8-Port-GPON-Optical-Line-Terminal
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

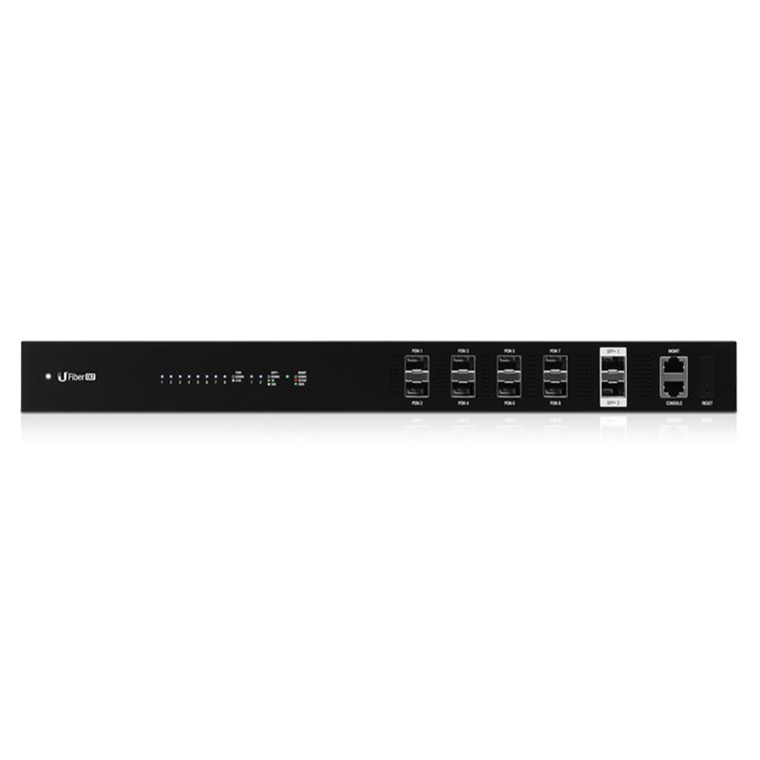

Ubiquiti UFiber 8 Port GPON Optical Line Terminal (OLT)
The Ubiquiti UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity. The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.
- Ports: (8) GPON SFP Ports, (2) SFP+ Ports
- Concurrent Clients: 1024 ONUs
- GPON Range: Up to 20 km Link
- GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
- Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
- Mounting: 1U Rack-Mountable (Optional)
- Traffic Shaping using the OLT
- Management VLAN
- DHCP Option 82
- Client Isolation
Specifications
Manufacturer's Code
UF-OLT
Interfaces
(8) GPON OLT SFP; (2) 1G/10G SFP+
Concurrent Clients
1024 Registered ONUs/ONTs (128 per GPON Port)
Management Interfaces
(1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port
GPON Speeds
2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
Operating Wavelengths
1490 nm TX, 1310 nm RX
Normal Optical Power Range
TX (Class B+): 1.5 dBm to 5 dBm; RX: -8 dBm to -28 dBm
Power Method
(2) PSU Module Bays
Max Power Consumption
40W (Excluding SFP Modules)
Operating Mode
OLT 2/3 Ethernet Switch and GPON Core
Dimensions
442.4 x 285.6 x 43.7 mm
