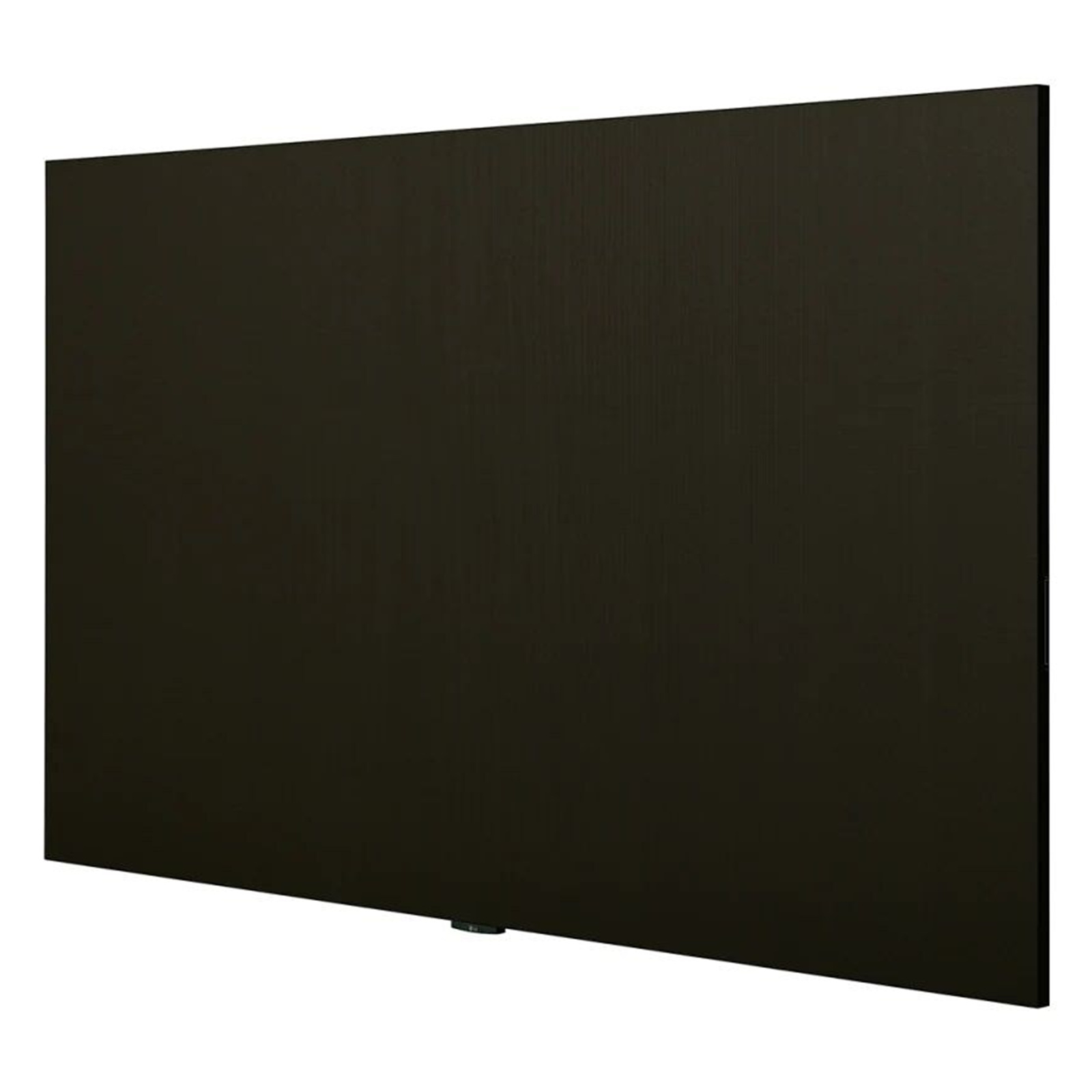

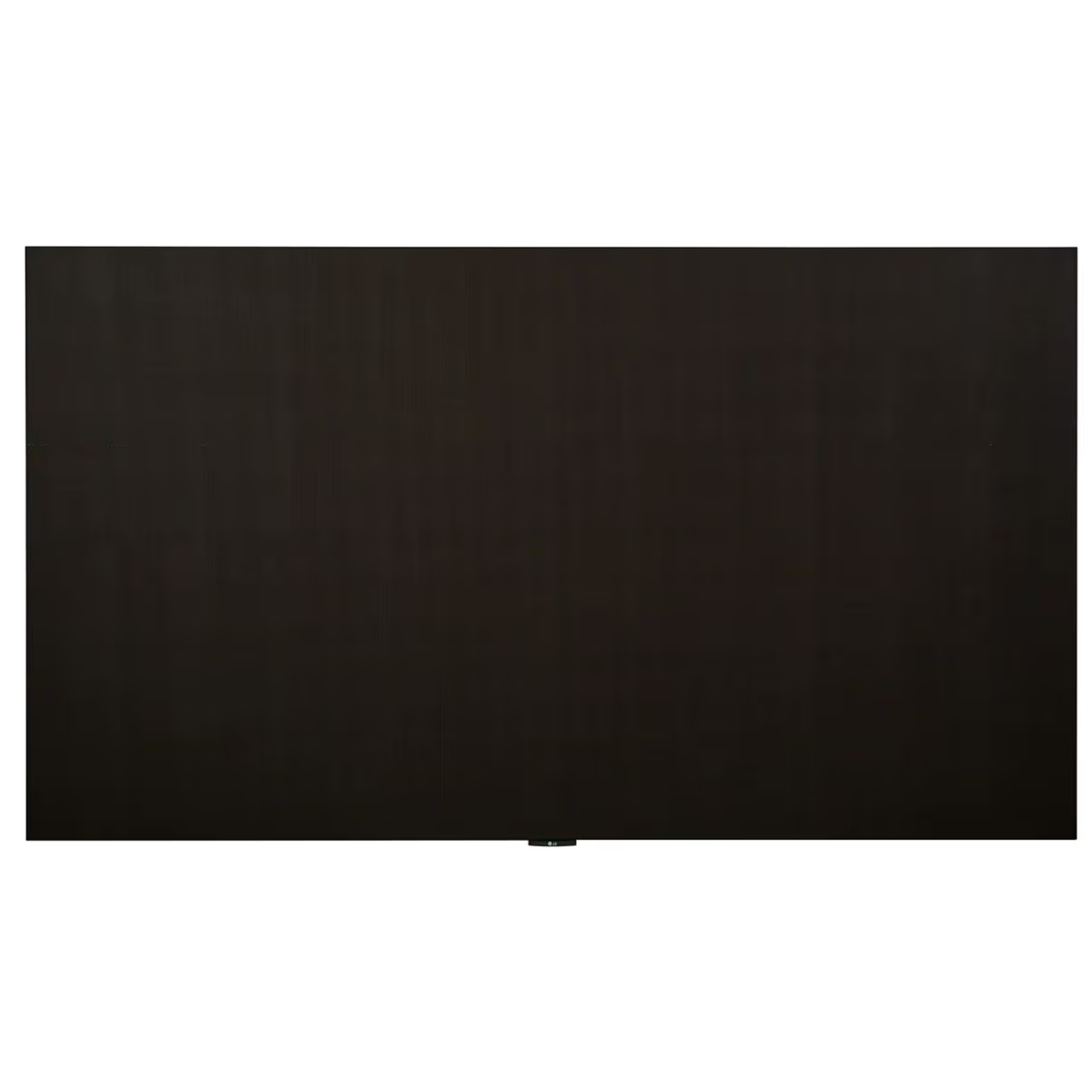

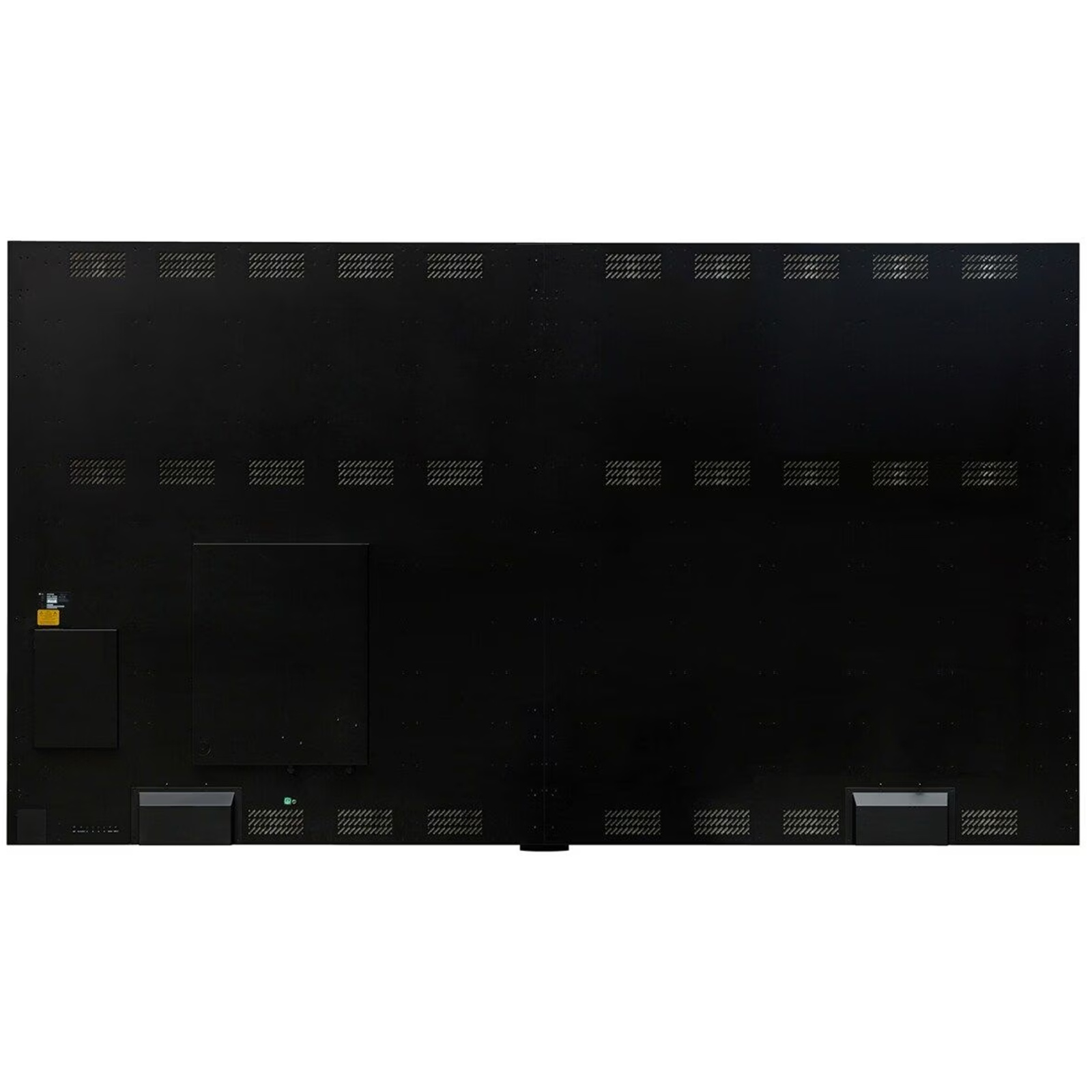

LG LED (LAEC) 136", All-in-one Smart Series, FHD, 500 Nits, Speaker, Wall Mount
LG LED (LAEC) 136", All-in-one Smart Series, FHD, 500 Nits, Speaker, Wall Mount
- Brand: LG
- MPN: LAEC015-GN
- Part #: UNC001006659
- UPC:
- Brand: LG
- MPN: LAEC015-GN
- Part #: UNC001006659
- UPC:
Features
LG LED All-in-One Smart Series
* All images in this web page are for illustrative purposes only and may differ from the actual product.

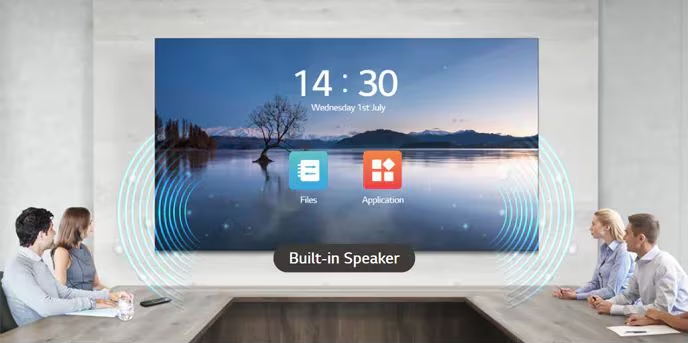

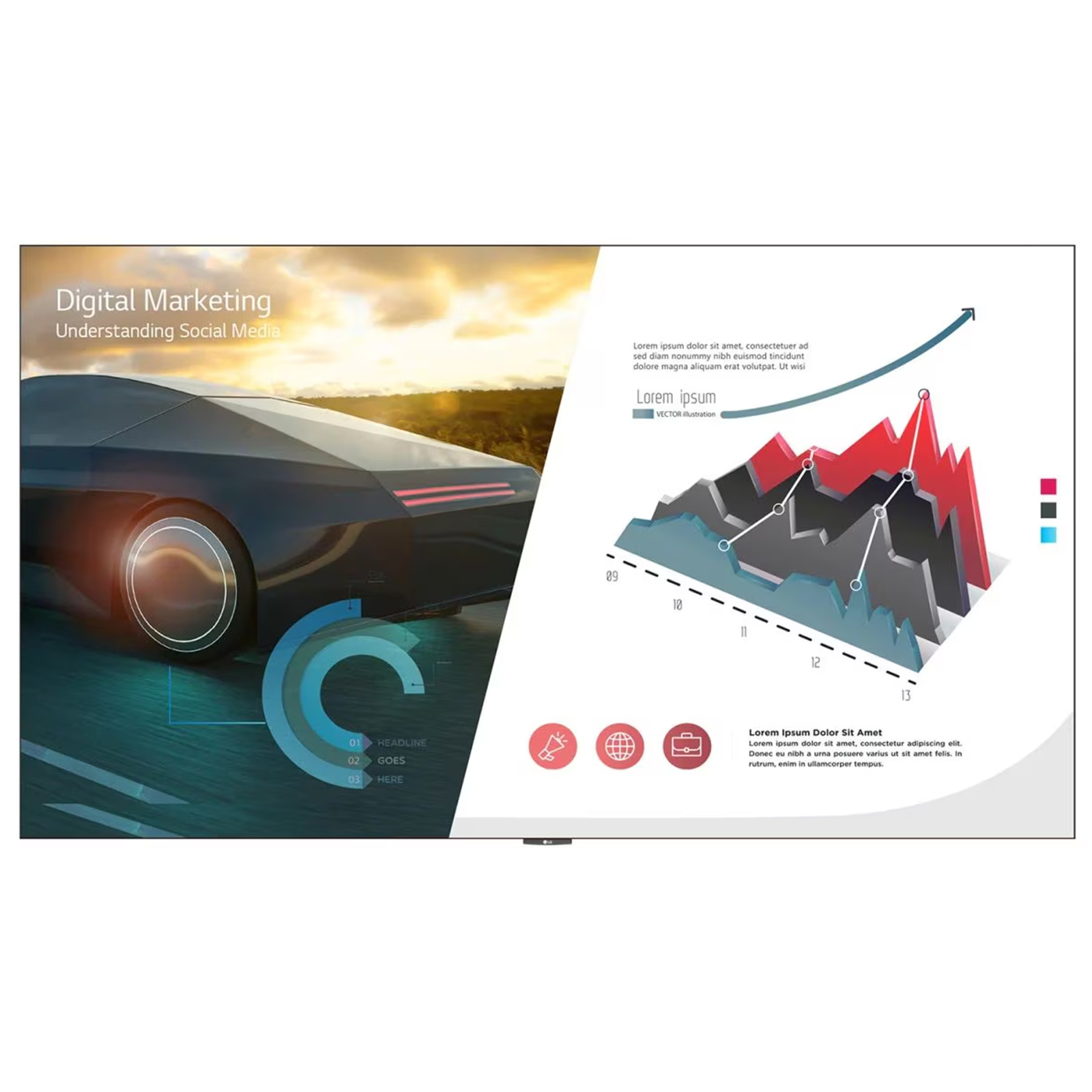

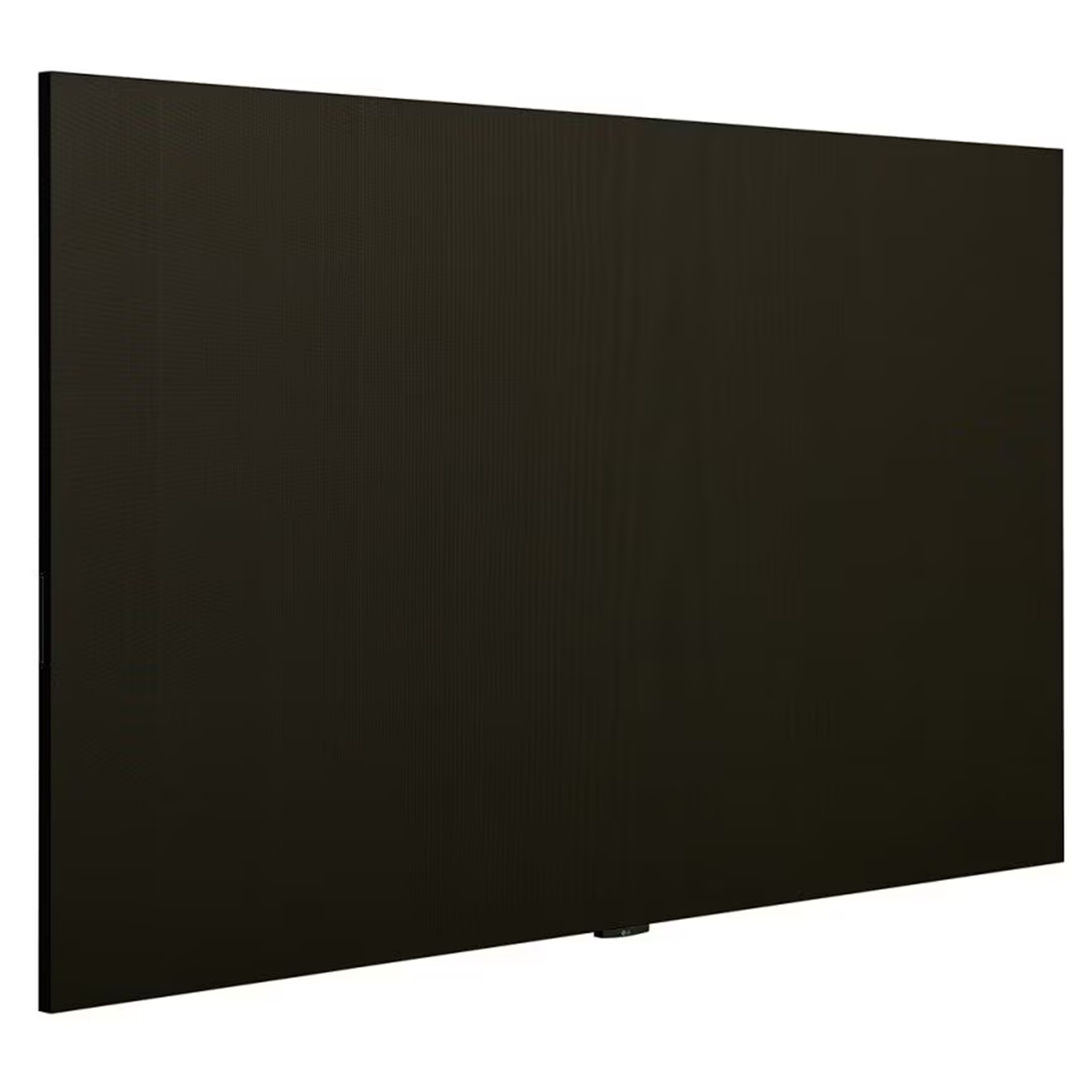

All-in-One LED Screen with Built-in Speaker
The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
Quick Maintenance

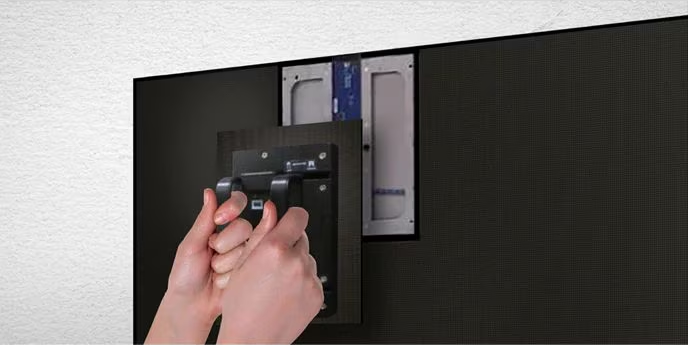

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

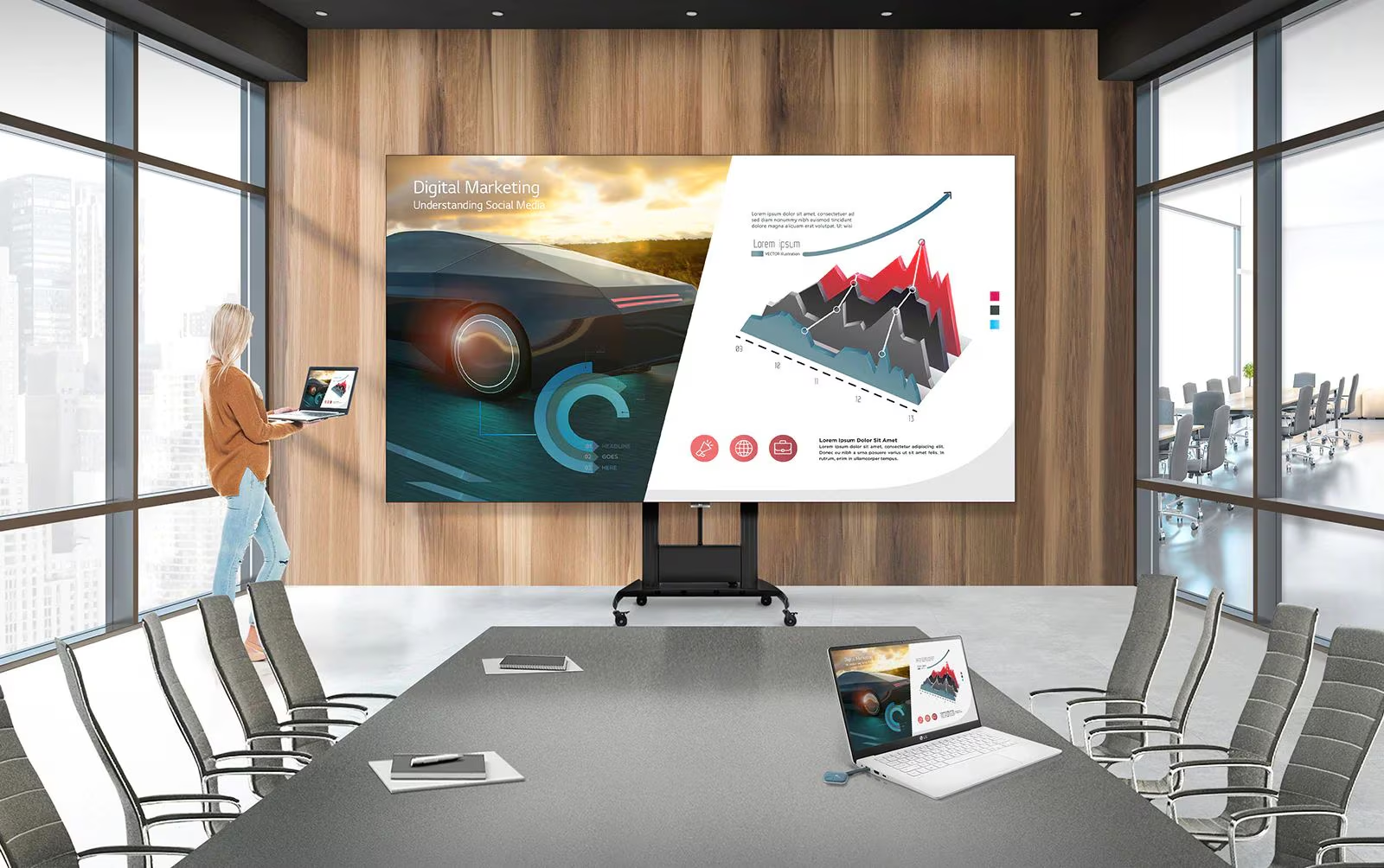

LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

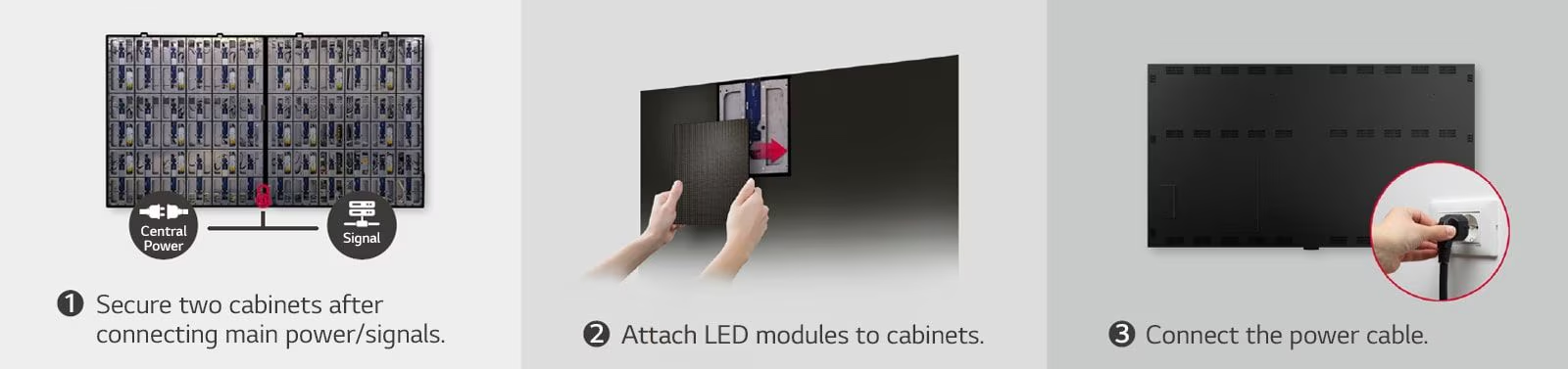

Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

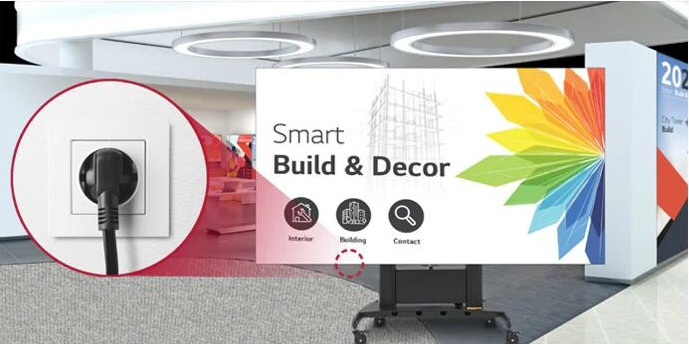

Simple Power Connection
The LAEC series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.
* Two AC cables are needed for 110V AC.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability of LG ConnectedCare differs by region.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
LG LED (LAEC) 136", All-in-one Smart Series, FHD, 500 Nits, Speaker, Wall Mount
- Brand: LG
- MPN: LAEC015-GN
- Part #: UNC001006659
Product URL: https://www.pbtech.co.nz/product/UNC001006659/LG-LED-LAEC-136-All-in-one-Smart-Series-FHD-500-Ni
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
LG LED All-in-One Smart Series
* All images in this web page are for illustrative purposes only and may differ from the actual product.
All-in-One LED Screen with Built-in Speaker
The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
Simple Power Connection
The LAEC series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.
* Two AC cables are needed for 110V AC.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability of LG ConnectedCare differs by region.
Specifications
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.5625
Screen Size
136" (Full HD)
Screen Resolution
1,920x1,080
Module Dimensions(WxH,mm)
250x281.25
No. of Modules per Screen (WxH)
12x6 (Total 72)

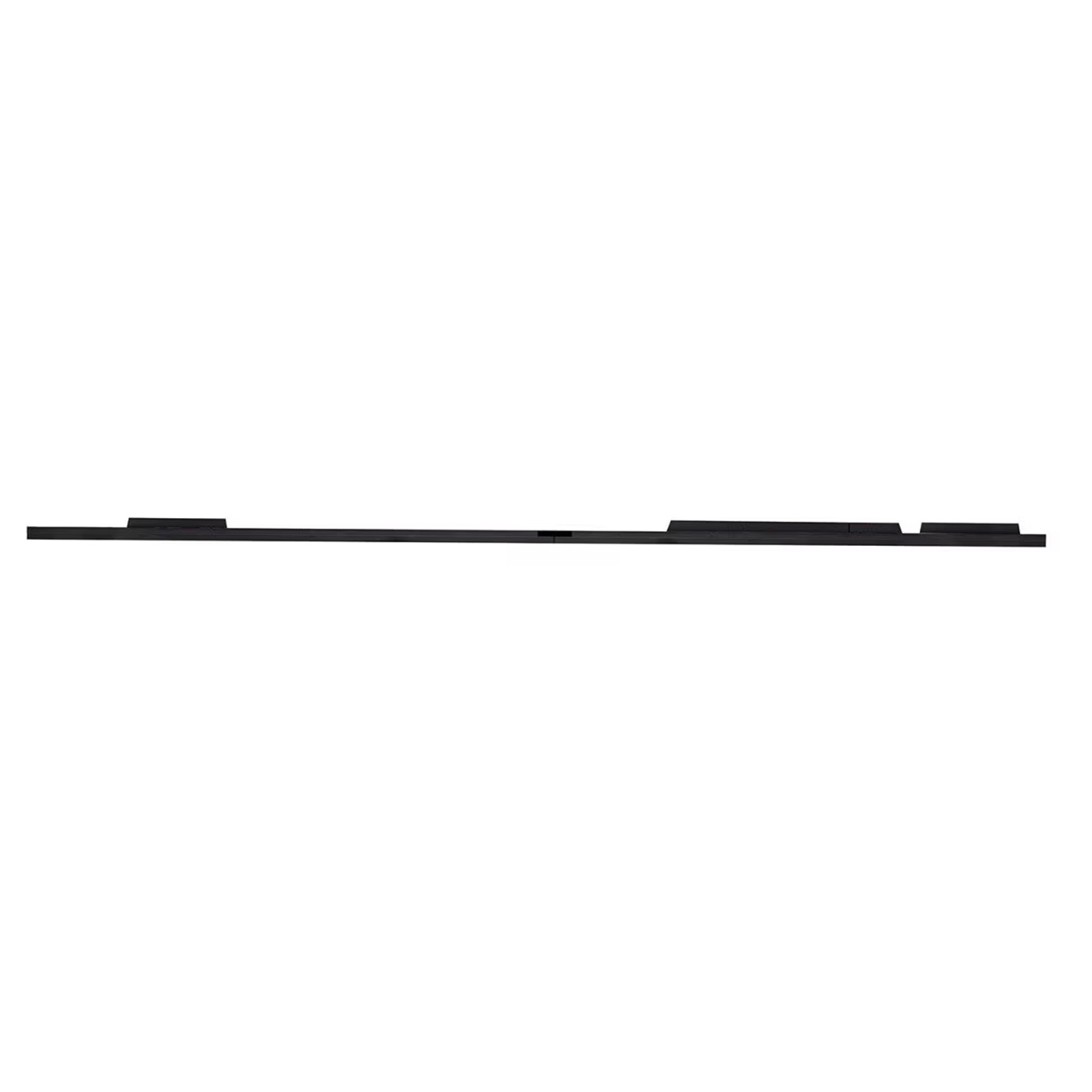

Screen Dimensions (W x H x D, mm, including bezel)
3,004.6x1692.1x36.5 (Thickest 70)
Screen Surface Area (?)
5.06
Weight of the screen
129
Physical Pixel Density (pixels/?)
409,600
Flatness of Unit Case (mm)
±0.2
Unit Case material
Aluminum
Service Access
Front
OPTICAL
Min. Brightness (After Calibration)
500
Color Temperature
7300K
Visual Viewing Angle (H x V)
160° x 160°
Brightness Uniformity
98%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
3000:1
Processing Depth (bit)
16
ELECTRICAL
Power Consumption (W/screen, Max.)
2,000
Power Consumption (W/screen, Avg.)
800
Power Consumption (W/?, Max.)
395
Power Consumption (BTU/h/Screen, Max.)
6,824
Power Consumption (BTU/h/Screen, Avg.)
2,730
Power Consumption (BTU/h/m², Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
=2880
OPERATION
LED Lifetime (Half brightness)
100,000
Operating Temperature(?)
0? to +40?
Operating Humidity
<90%RH(without condensation)
IP rating Front
IP30
IP rating Rear
IP20
SPEAKER
Speaker
Built-in(9W+9W)
CERTIFICATION
Certification
CE,FCC,ETL,CB
ENVIRONMENT
Environment
RoHS, REACH
CONTROLLER
Controller
Embedded
