APC (SRTL1500RMXLI-NC) SMART-UPS SRT LI-ION 1500VA RM 230V NETWORK CARD
- Brand: APC
- MPN: SRTL1500RMXLI-NC
- Part #: UPSAPC1506

Product URL: https://www.pbtech.co.nz/product/UPSAPC1506/APC-SRTL1500RMXLI-NC-SMART-UPS-SRT-LI-ION-1500VA-R
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

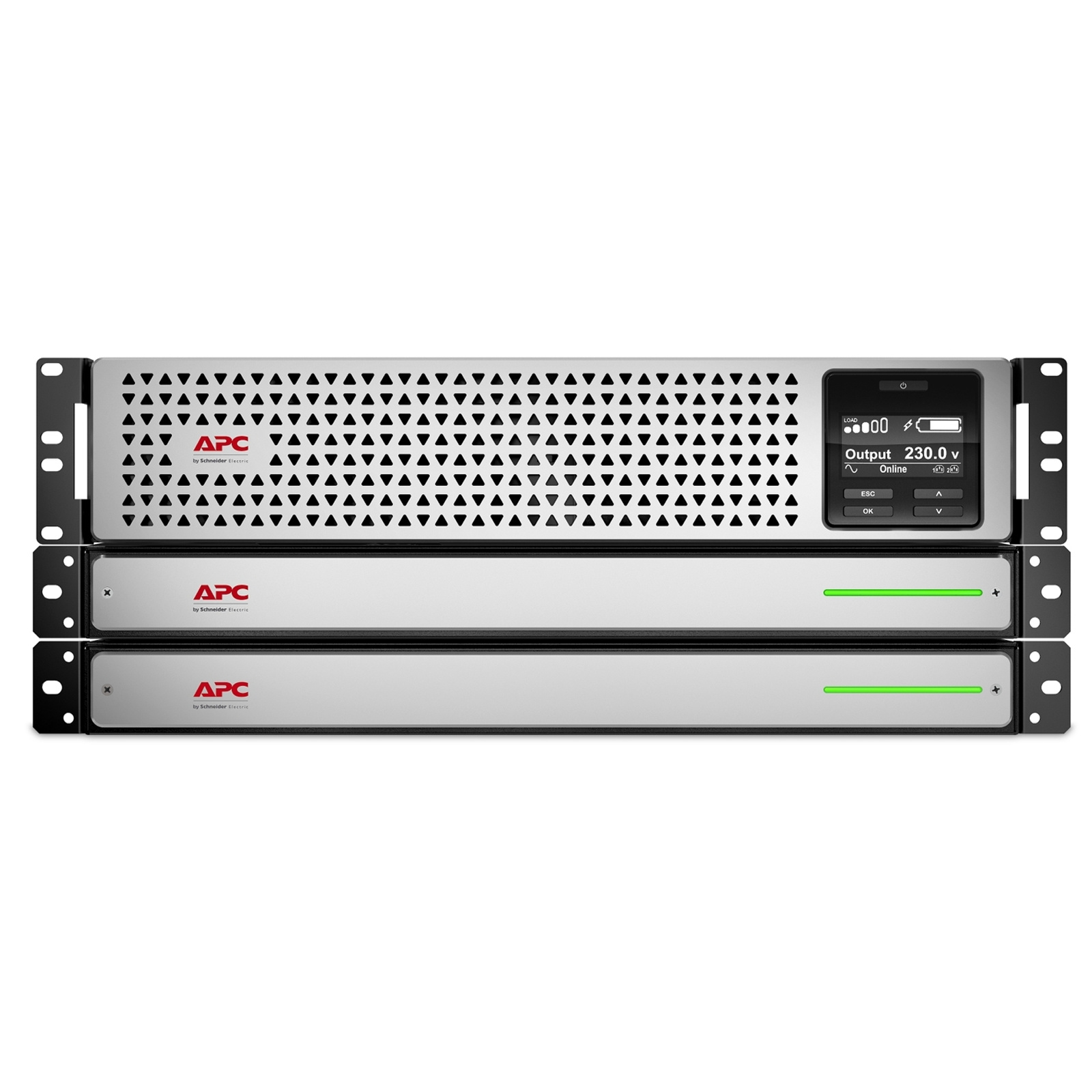

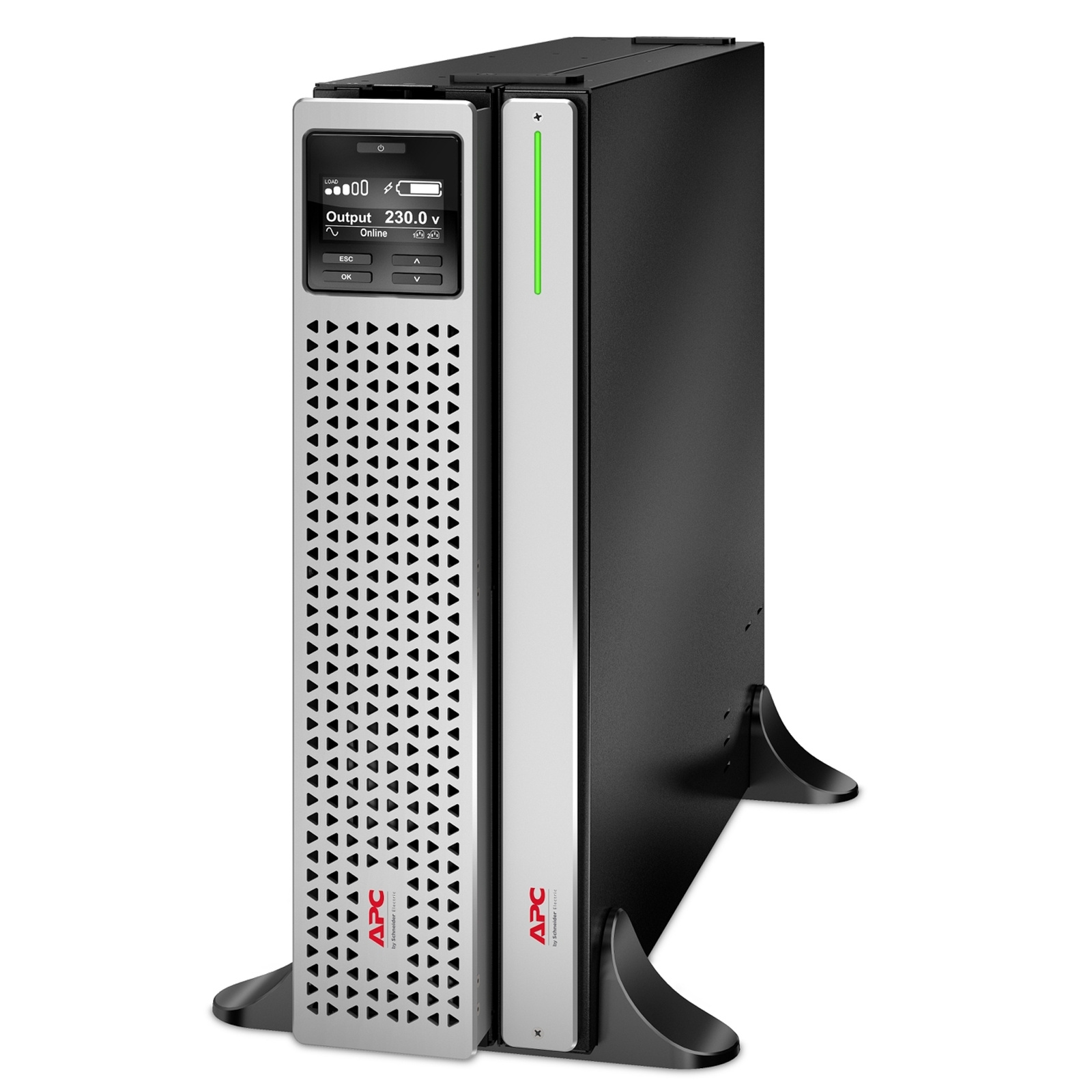

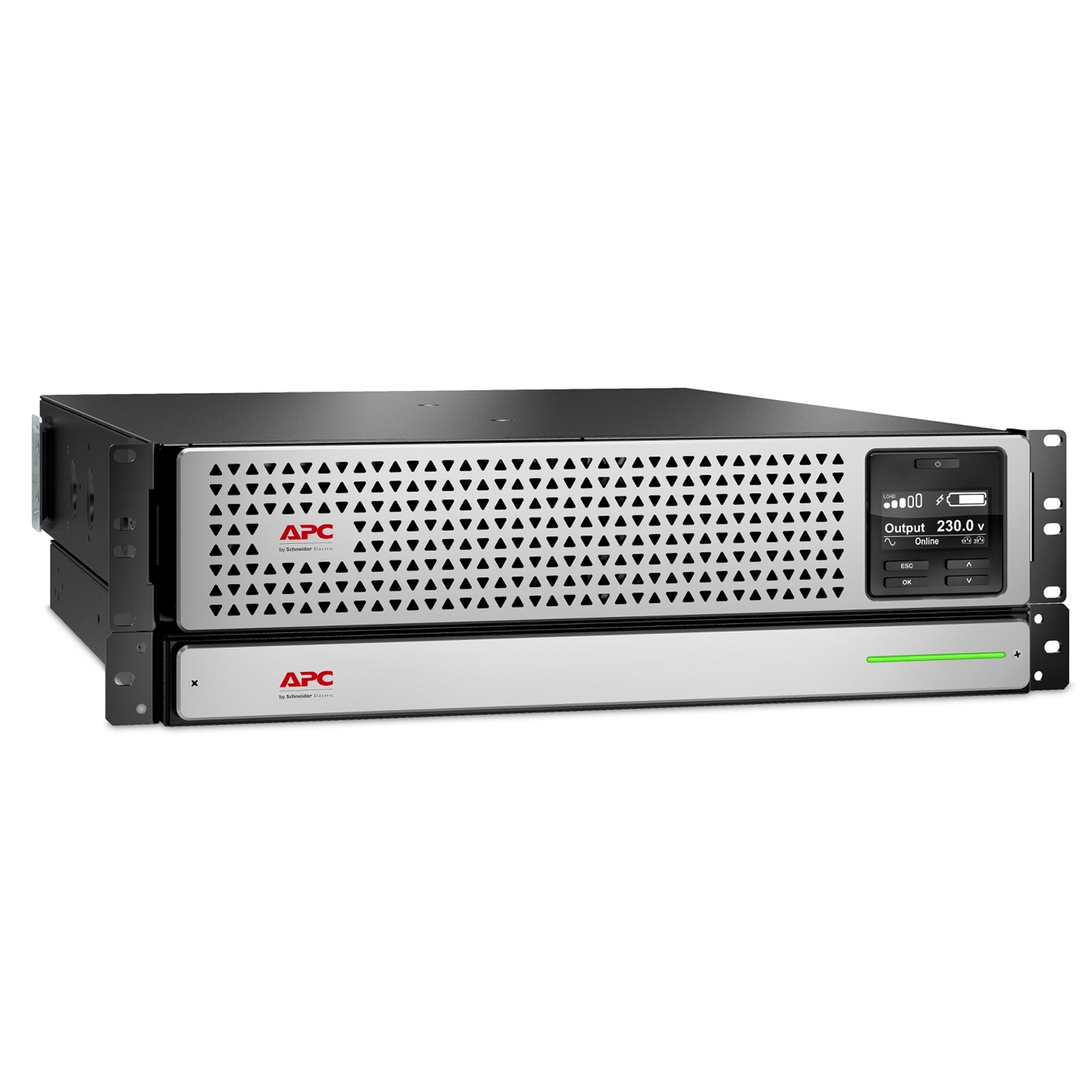

APC Smart-UPS SRT Lithium Ion 1500VA RM 230V Network Card
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
- Keep your sensitive devices powered with a backup of up to 21.30 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- 1.50 kVA load capacity provides sufficient backup during power failures
Specifications
Main
Run time for load
1350W (Max): 20min 3s
Main Input Voltage
230 V
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
1350 W
Rated power in VA
1500 VA
Input Connection Type
IEC 60320 C14
Output connection type
8 IEC 60320 C13
Number of rack unit
3U
Cable length
1.8 m
Number of cables
1
Batteries & Runtime
Battery type
Li-Ion (Lithium-Ion)
Battery voltage
48 V
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
6 h
Battery life
5…10 year(s)
Battery charger power
103 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
Product web sub-family
Lithium-Ion
Redundant
No
UPS type
Double conversion online
Physical
Colour
Black with silver front bezel
Height
8.5 cm
Width
43.2 cm
Depth
56 cm
Net weight
13.7 kg
Mounting preference
No preference
Mounting mode
Rack-mounted with kit
Two post mountable
0
USB compatible
Yes
Mounting position
Horizontal
Vertical
Input
Input voltage limits
160...275 V
Network frequency
40...70 Hz auto-sensing
Output
Bypass type
Built-in bypass
Crest factor
3 : 1
Harmonic distortion
Less than 2 %
Maximum configurable power in VA
1500 VA
Maximum configurable power in W
1350 W
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certifications
CE
EAC
RCM
VDE
UK PSTI
Marking
CE Mark
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level
50 dBA
Heat dissipation
450 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0…15240 m
IP degree of protection
IP20
Relative humidity
0…95 % non-condensing
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
Emergency power off
Yes
Free slots
0
Preinstalled device
Network management card 3 with environmental monitoring
Alarm
Audible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate
340 J
