APC Smart-UPS X SMX2200HV 2200VA Rack/Tower LCD.

PB Tech price

$ 3,286 .96

+GST

$ 3,780 .00

inc GST

APC Smart-UPS X SMX2200HV 2200VA Rack/Tower LCD.

Brand: APC
MPN: SMX2200HV
Part #: UPSAPC2454581
UPC: 731304292609

PB Tech price

$ 3,780 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Click & Collect unavailable

Delivery: Order now and it ships on 06 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $33.47 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

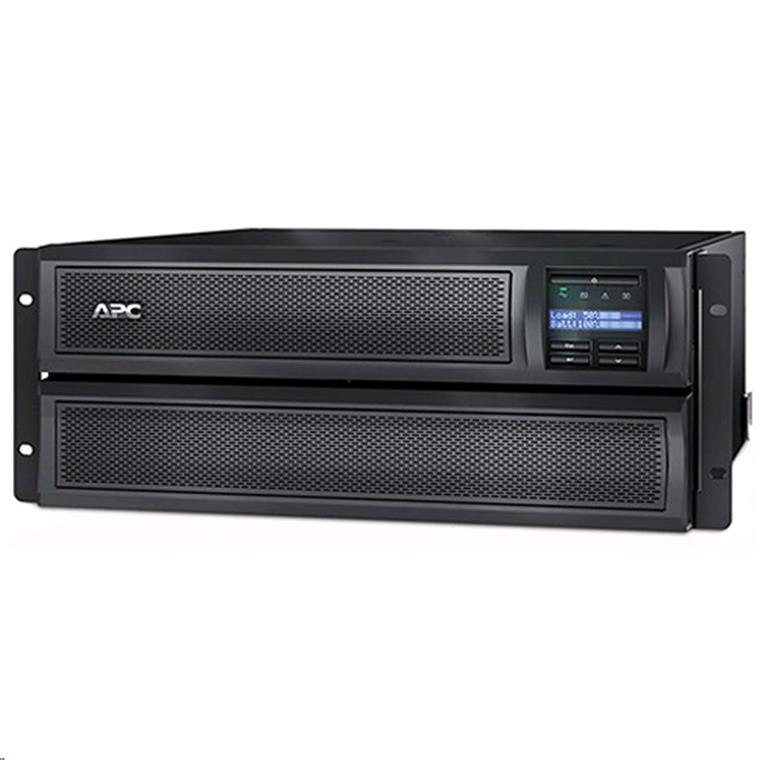

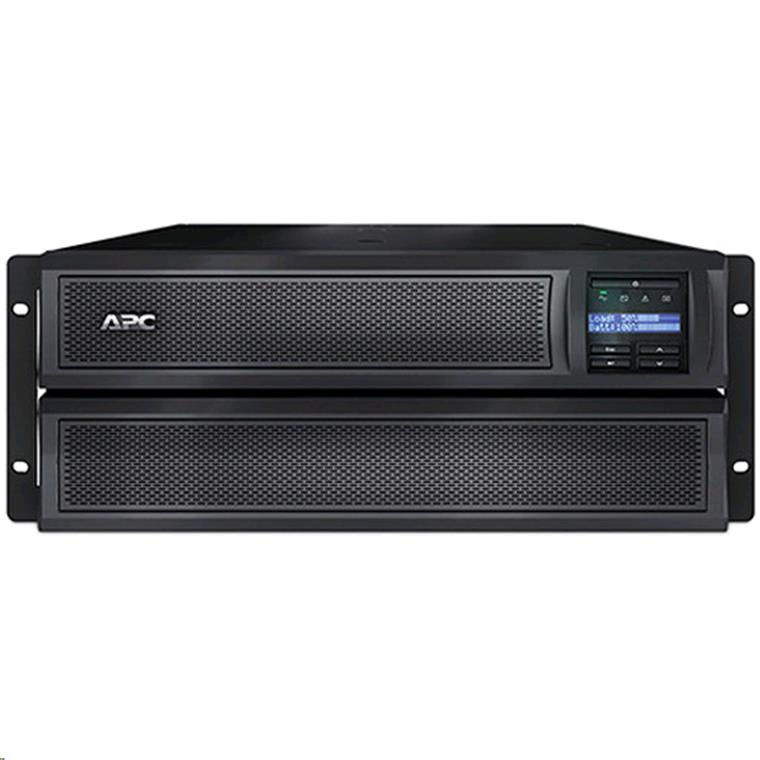

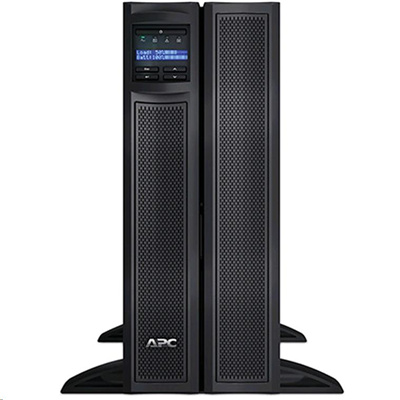

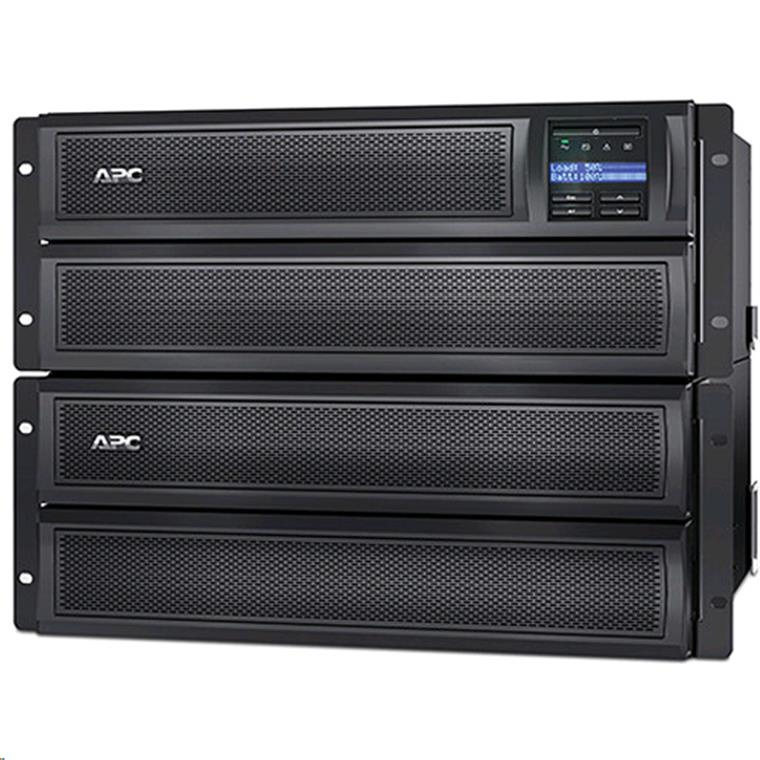

Click or hover over image to enlarge

Brand: APC
MPN: SMX2200HV
Part #: UPSAPC2454581
UPC: 731304292609

Be the first to review this product

Run Time (Half Load)

25.3 Minutes

Run Time (Full Load)

9.8 Minutes

Capacity (VA)

2200VA

Capacity (Watts)

1980W

Form Factor

Rack/Tower

Outlets

Recharge Time

3 Hours

Transfer Time

View full specs

Returns & Warranty Bulk Quote Print Page

Features

APC Smart-UPS X SMX2200HV 2200VA Rack/Tower LCD.

The black Smart-UPS X 2200VA Rack/Tower LCD 200-240V from APC is an extended runtime model Uninterruptible Power Supply (UPS) designed to protect connected loads from surges, spikes, lightning, and other power disturbances. The battery is hot-swappable and easy to replace. An audible alarm lets you know if the battery is low or if there is an overload condition. The UPS can be used in a tower or rackmount configuration. It features a LED status display with On Line, On Battery, Replace Battery and Overload indicators, multi-function LCD status and control console.

- 1980W / 2200VA Output
- 208V Input
- SmartSlot, USB Port
- LCD Interface
- 3 Hours Typical Recharge Time
- Hot-Swappable Battery
- Easy Battery Replacement
- Audible Alarms
- Emergency Power Off (EPO)
- 4U Rackmount

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions, without using the battery (not available on all models)

Intelligent Battery Management

Maximizes battery performance, life, and reliability through intelligent, precision charging

Power Conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances

Temperature-Compensated Battery Charging

Prolongs battery life by regulating the charge voltage according to battery temperature

Automatic Restart of Loads after UPS Shutdown

Automatically starts up the connected equipment upon the return of utility power

Automatic Self-Test

Periodic battery self-test ensures early detection of a battery that needs to be replaced

Disconnected Battery Notification

Warns when a battery is not available to provide backup power

Network Manageable

Provides remote power management of the UPS over the network

Audible Alarms

Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition

LED Status Indicators

Quickly understands unit and power status with visual indicators

Serial Connectivity

Provides management of the UPS via a serial port

USB Connectivity

Provides management of the UPS via a USB port (not available on all models)

Disconnected Battery Notification

Warns when a battery is not available to provide backup power

User-Replaceable Batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)

Hot-Swappable Batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive Failure Notification

Provides early-warning fault analysis ensuring proactive component replacement

Resettable Circuit Breakers

Enables a quick recovery from overload events

Battery Failure Notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adjustable Voltage-Transfer Points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation

Adjustable Voltage Sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications

Safety-Agency Approved

Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

Specifications

Output

Output Power Capacity

1980 W / 2200 VA

Maximum Configurable Power

1980 W / 2200 VA

Nominal Output Voltage

230 V

Output Voltage Distortion

Less than 5%

Output Frequency (Sync to Mains)

50/60 Hz +/- 3 Hz

Other Output Voltages

208 V, 220 V, 240 V

Topology

Line Interactive

Waveform Type

Sine wave

Output Connections

8 x IEC 320 C13
2 x IEC 320 C19
2 x IEC jumpers

Input

Nominal Input Voltage

208 V, 230 V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C20
Schuko CEE 7/EU1-16P
British BS1363A

Cord Length

6.00' (1.83 m)

Input Voltage Range

For Main Operations: 140 - 280 V

Other Input Voltages

220 V, 240 V

Transfer Time

2 - 4 ms

Batteries and Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof

Typical Recharge Time

3 hours

Replacement Battery

APCRBC143

RBC Quantity

Energy Use

Load v/s Efficiency

25%: 93.2%
50%: 96.4%
75%: 97.5%
100%: 98.1%

Communications & Management

Interface Ports

SmartSlot, USB

Available SmartSlot Interface

Control Panel

LED status display with On Line, On Battery, Replace Battery, and Overload indicators, multi-function LCD status and control console

Audible Alarm

Alarm when on battery, distinctive low battery alarm, configurable delays

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge Energy Rating

645 Joules

Filtering

Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449

Environmental

Operating Temperature

32 - 104°F (0 - 40°C)

Storage Temperature

5 - 113°F (-15 - 45°C)

Operating Relative Humidity

0 - 95%

Storage Relative Humidity

0 - 95%

Operating Elevation

0 - 9842.5' (0 - 3000.0 m)

Storage Elevation

0 - 49212.6' (0 - 15000.0 m)

Audible Noise

At 1 m from Surface of Unit: 55 dBA

Online Thermal Dissipation

150 BTU/hour

Conformance

Regulatory Approvals

C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE

Compliance

RoHS
REACH: Contains no SVHCs

Physical

Rack Height

Dimensions (W x H x D)

7.0 x 17.0 x 19.0" (178.0 x 432.0 x 483.0 mm)

Weight

85.19 lb (38.64 kg)

Manufacturer Part No:

SMX2200HV

Brand:

APC

Product Type:

UPC

731304292609

Product Family:

Shipping Weight:

63 kg

PB Part No:

UPSAPC2454581

Product Model:

Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
