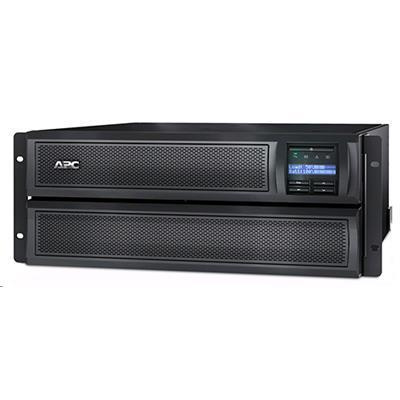

APC - SCHNEIDER SMX3000HV APC Smart-UPS X 3000VA Rack/Tower LCD

PB Tech price

$ 3,892 .97

+GST

$ 4,476 .92

inc GST

APC - SCHNEIDER SMX3000HV APC Smart-UPS X 3000VA Rack/Tower LCD

Brand: APC
MPN: SMX3000HV
Part #: UPSAPC2454582
UPC: 731304292616

PB Tech price

$ 4,476 .92

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Click & Collect unavailable

Delivery: Order now and it ships on 30 Sep When will I receive it?

Add To Compare

Stock Alerts

Finance from $39.44 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: APC
MPN: SMX3000HV
Part #: UPSAPC2454582
UPC: 731304292616

Be the first to review this product

Capacity (VA)

3000VA

Capacity (Watts)

2700W

Form Factor

Rack/Tower

Outlets

Recharge Time

3 Hours

Run Time (Full Load)

6.3 Minutes

Run Time (Half Load)

18.1 Minutes

Transfer Time

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world's most trusted network UPS with over 25 million units sold.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.

Specifications

Output

Output power capacity

2.7 KWatts / 3.0 kVA

Max Configurable Power (Watts)

2.7 KWatts / 3.0 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output

Voltages 208, 220, 240

Load Crest Factor

3 : 1

Topology

Line Interactive

Waveform type

Sine wave

Output Connections

(2) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)

Transfer Time

2-4 ms

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

208V, 230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

Cord Length

1,83 meters

Input voltage range for main operations

140 - 280V

Number of Power Cords

Other Input Voltages

220, 240

Transfer Time

2-4 ms

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Expected Battery Life (years)

3 - 5

RBC Quantity

Extendable Run Time

Communications & Management

Interface Port(s)

SmartSlot

Control panel console

LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

Surge Protection and Filtering

Surge energy rating

645 Joules

Data Line Protection

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

432mm, 43.2CM

Maximum Width

178mm, 17.8CM

Maximum Depth

483mm, 48.3CM

Rack Height

Net Weight

38.64 KG

Shipping weight

47.73 KG

Shipping Height

330mm, 33.0CM

Shipping Width

586mm, 58.6CM

Shipping Depth

633mm, 63.3CM

Color

Black

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

2.0

Pallet Weight

855.12 lbs.

Units per Pallet

6.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

55.0 dBA

Online thermal dissipation

184.0 BTU/hr

Manufacturer Part No:

SMX3000HV

Brand:

APC

Product Type:

UPC

731304292616

Product Family:

Shipping Weight:

70 kg

PB Part No:

UPSAPC2454582

Product Model:

Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
