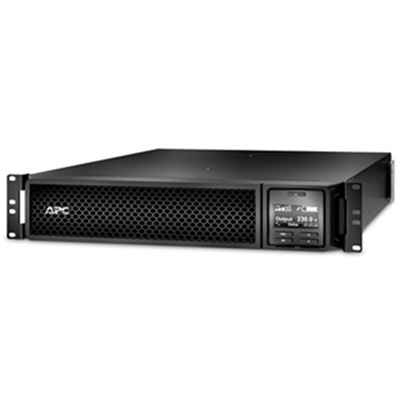

APC SMART-UPS SRT 3000VA RM 230V With Network Card

APC SMART-UPS SRT 3000VA RM 230V With Network Card
PB Tech price: PB Tech price:
$6,055 65  +GST $6,964 00  inc GST

Generating Print Page

APC SMART-UPS SRT 3000VA RM 230V With Network Card

Part #: UPSAPC3336032
PB Tech price: PB Tech price:
$6,055 65 $6,964 00
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 22/10/2021 When will I receive it?

Pay only $1,454.58 and then 25 easy payments of $232.04 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $49.02 per week, 18 months interest free - 36 months to pay available*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 18 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: APC
  • MPN: SRT3000RMXLI-NC
  • Part #: UPSAPC3336032
  • UPC: 731304327592
  • Capacity (VA): 3000VA
  • Capacity (Watts): 2700W
  • Form Factor: Rack/Tower
  • Outlets: 12
  • Recharge Time: 3 Hours
  • Run Time (Full Load): 4 Minutes
  • Run Time (Half Load): 11.8 Minutes
  • Transfer Time: Not Specified
  • View more

Features

Save time with easy and convenient remote accessibility.

Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.


Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.


Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.


Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.


Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance


ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection


Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

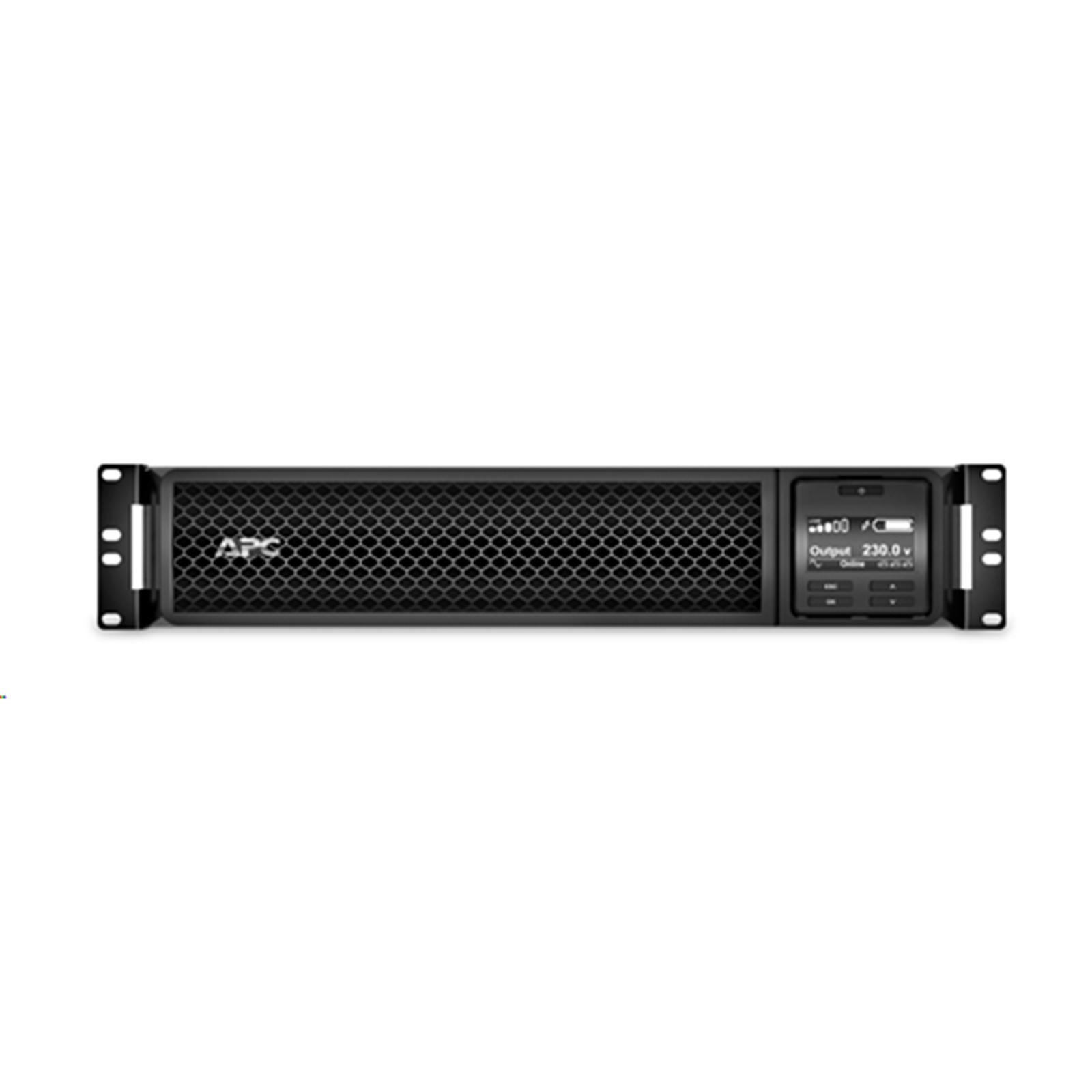

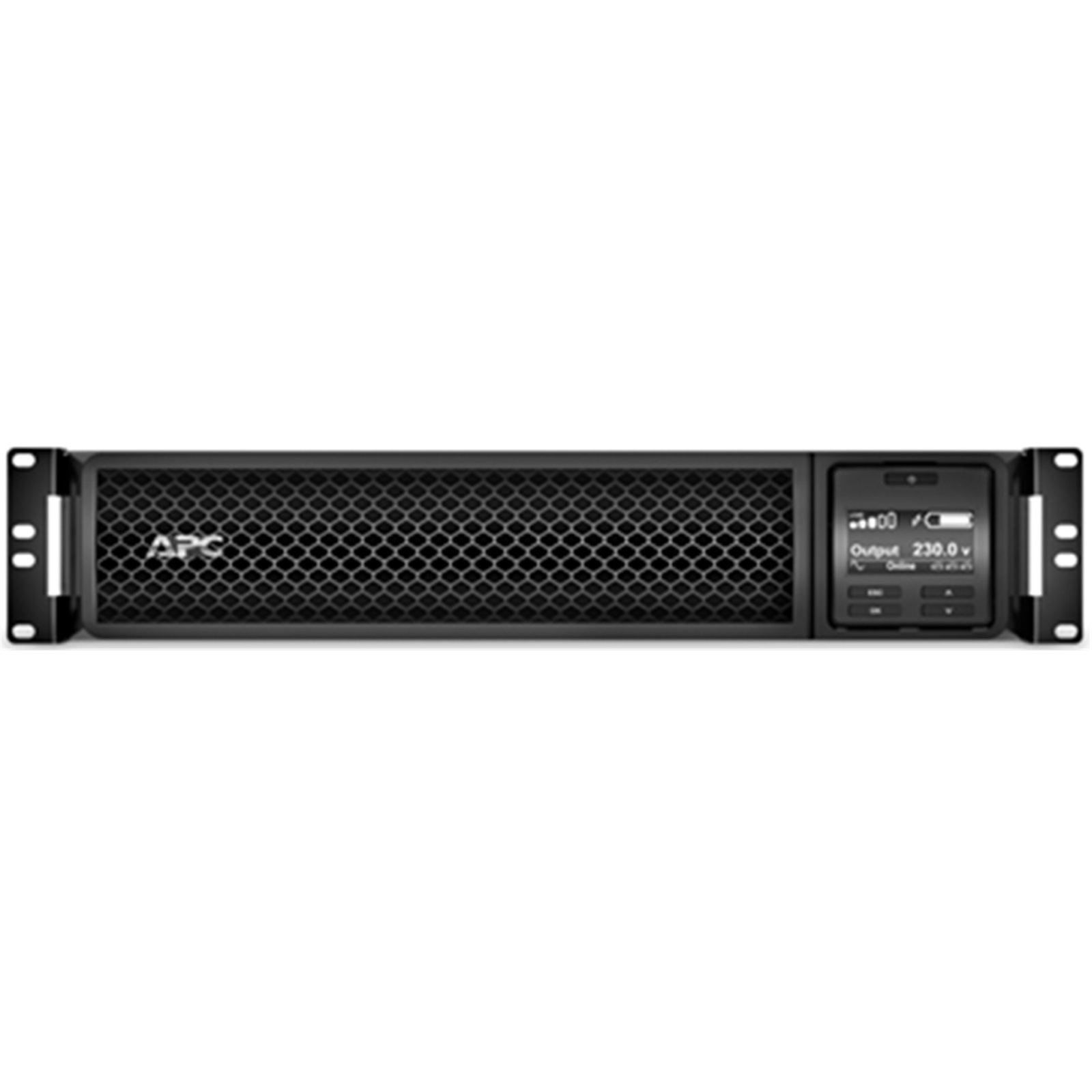

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

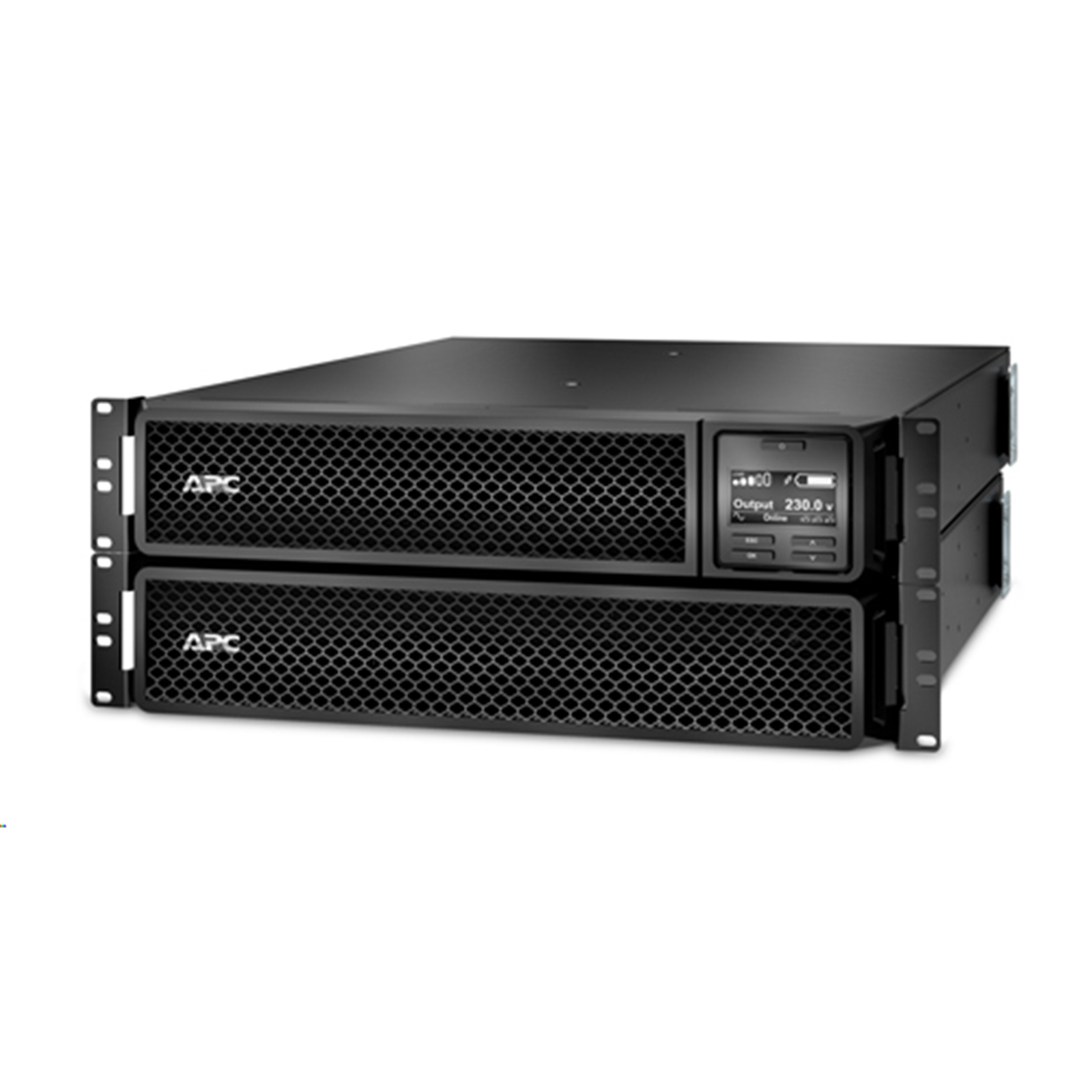

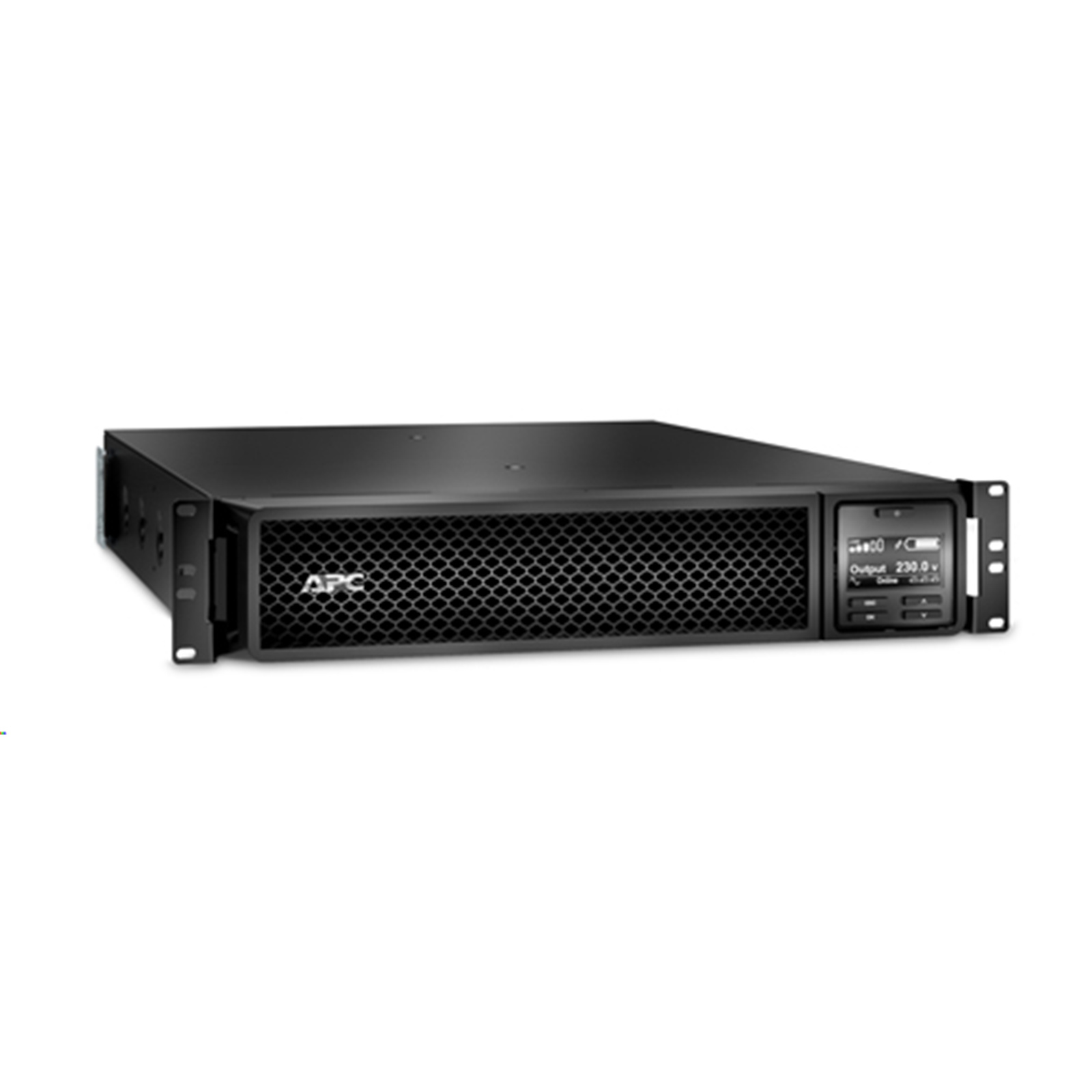

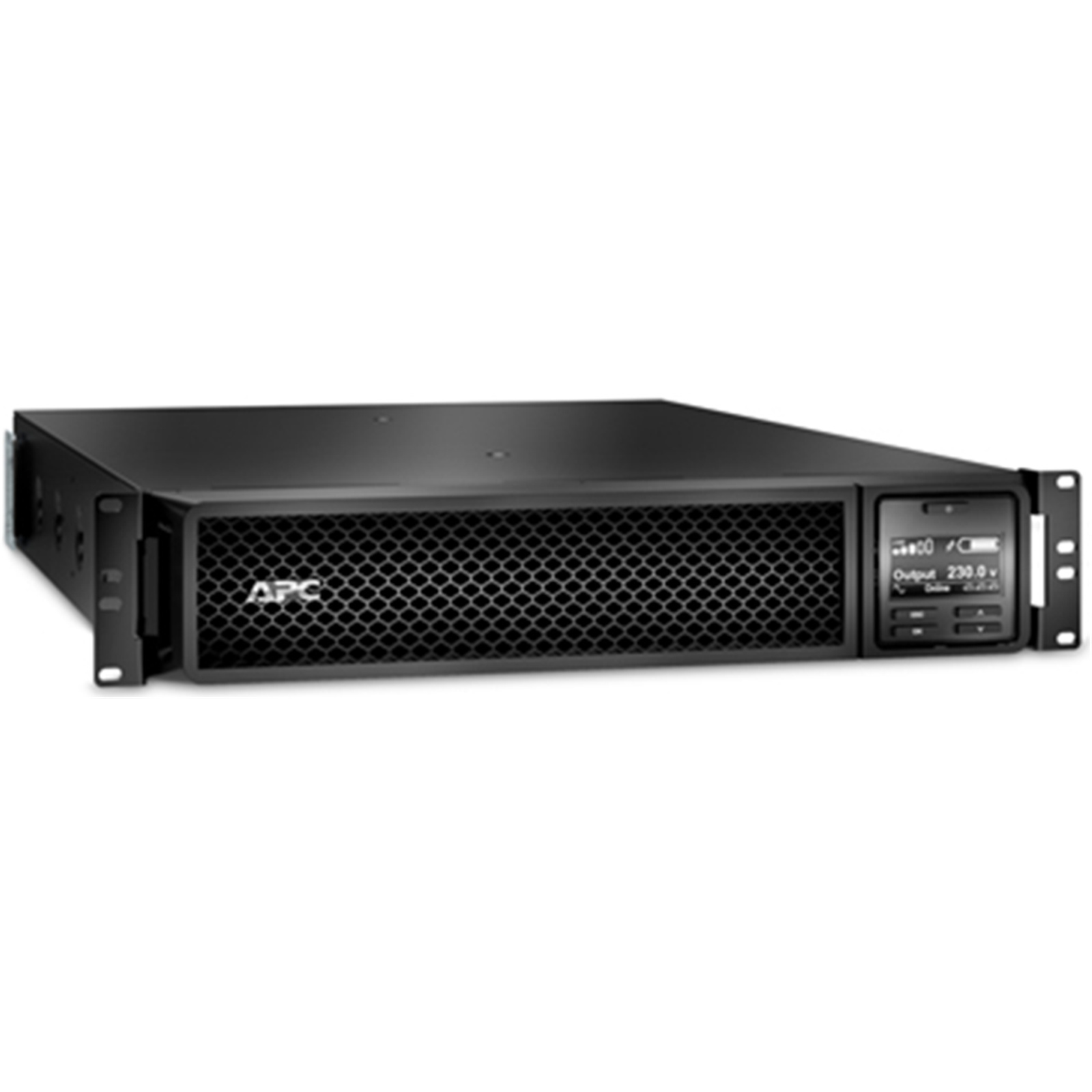

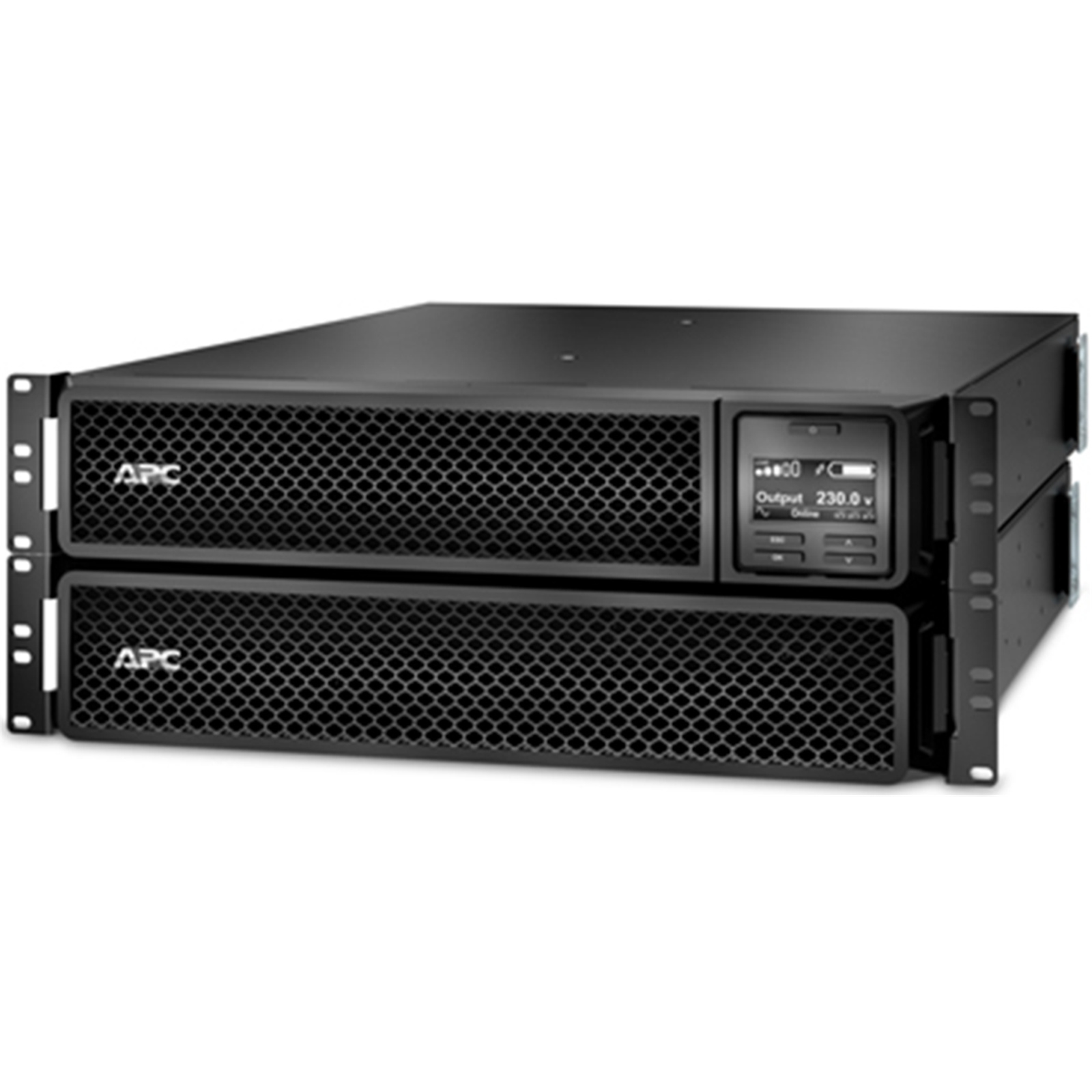

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

APC Warranty Info

All APC UPS’s have a 3 year warranty however the batteries on these UPS’s are only supported for 2 years. You can check the factory warranty of an APC UPS by following this link: http://www.apc.com/site/support/nz/en/warranty-services

Specifications

Includes:
CD with software , Documentation CD , Installation guide , Network Management Card , Rack Mounting brackets , Rack Mounting support rails , USB cable , Warranty card

Output

Output power capacity
2.7 KWatts / 3.0 kVA
Max Configurable Power (Watts)
2.7 KWatts / 3.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 2%Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave

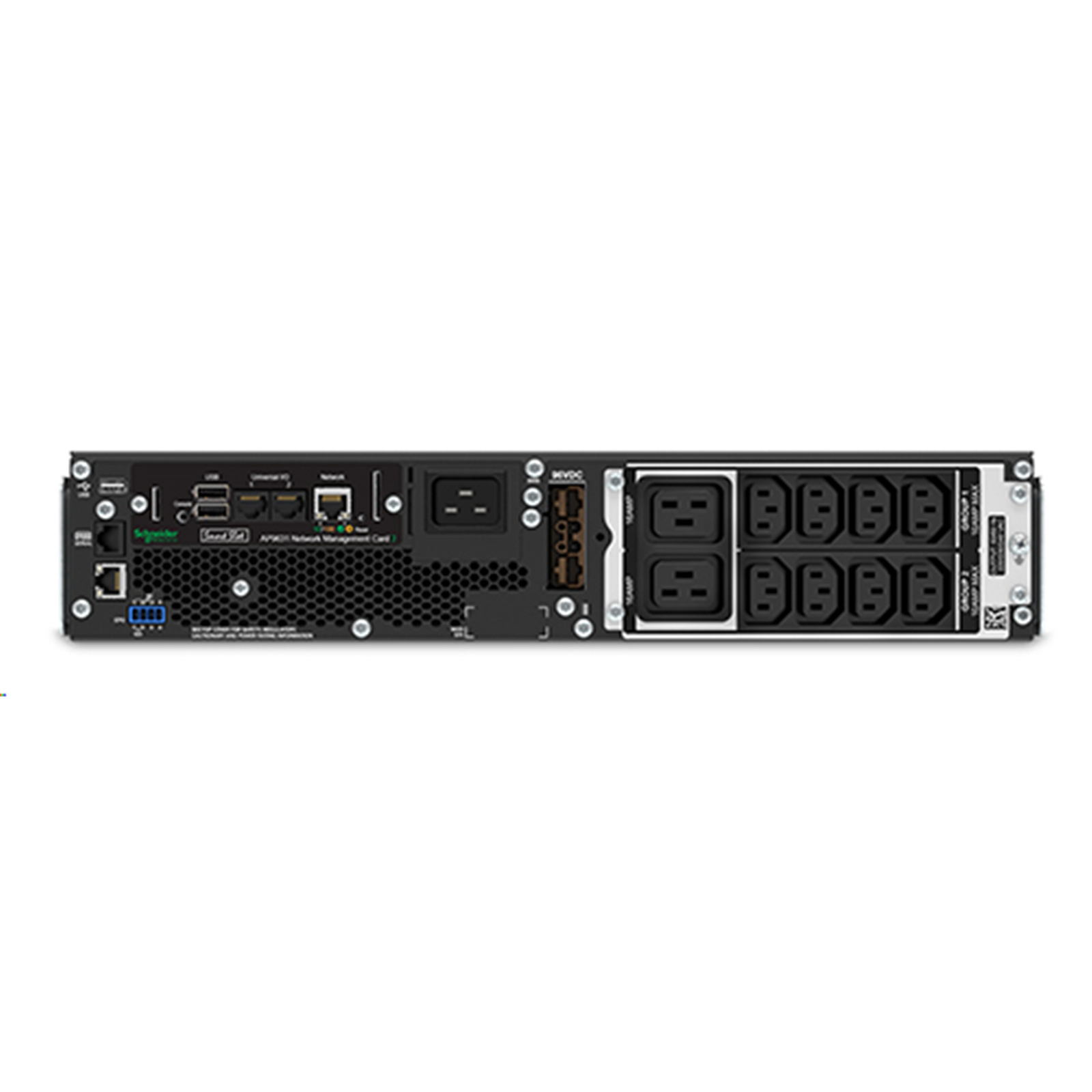

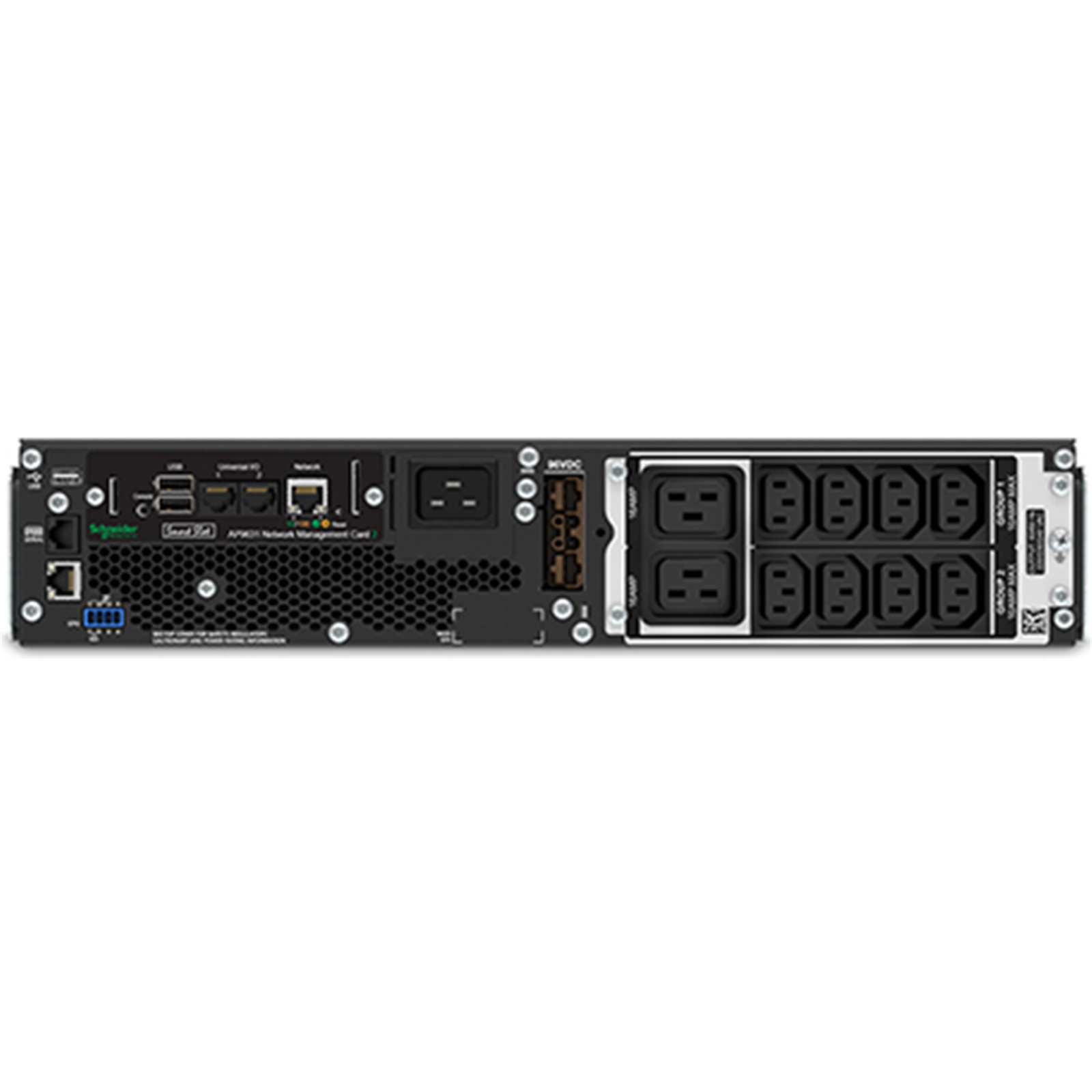

Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length
2.44meters
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
3hour(s)
Replacement Battery
APCRBC152
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
505

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
340Joules
Filtering
--

Physical

Maximum Height
85mm , 8.5cm
Maximum Width
432mm , 43.2cm
Maximum Depth
635mm , 63.5cm
Rack Height
2U
Net Weight
31.3kg
 Colour
Black

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95% non-condensing %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% non-condensing %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
703.0BTU/hr
Protection Class
IP 20

Manufacturer Part No:
SRT3000RMXLI-NC
Brand:
APC
Product Type:
-
UPC
731304327592
Product Family:
-
Shipping Weight:
48 kg
PB Part No:
UPSAPC3336032
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
