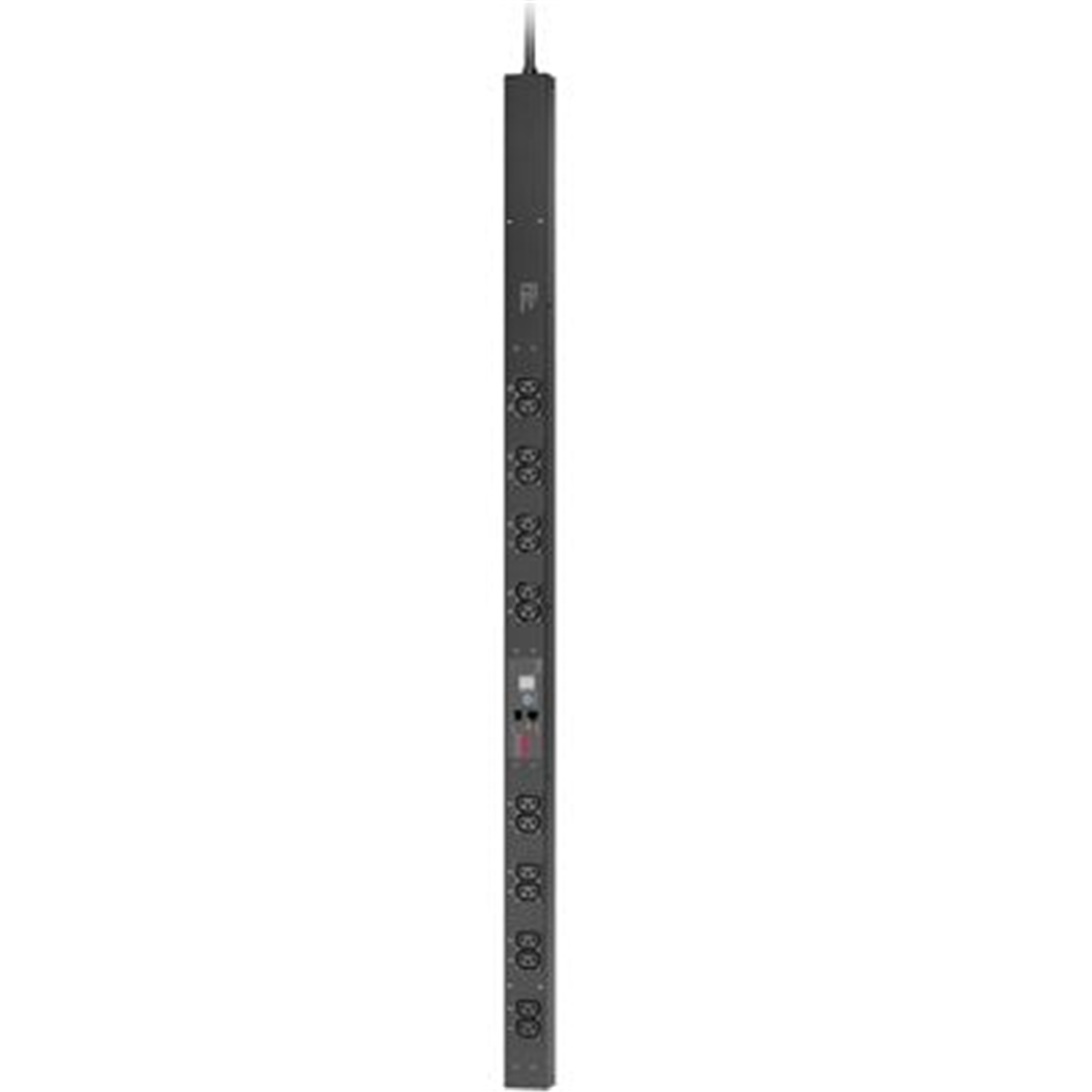

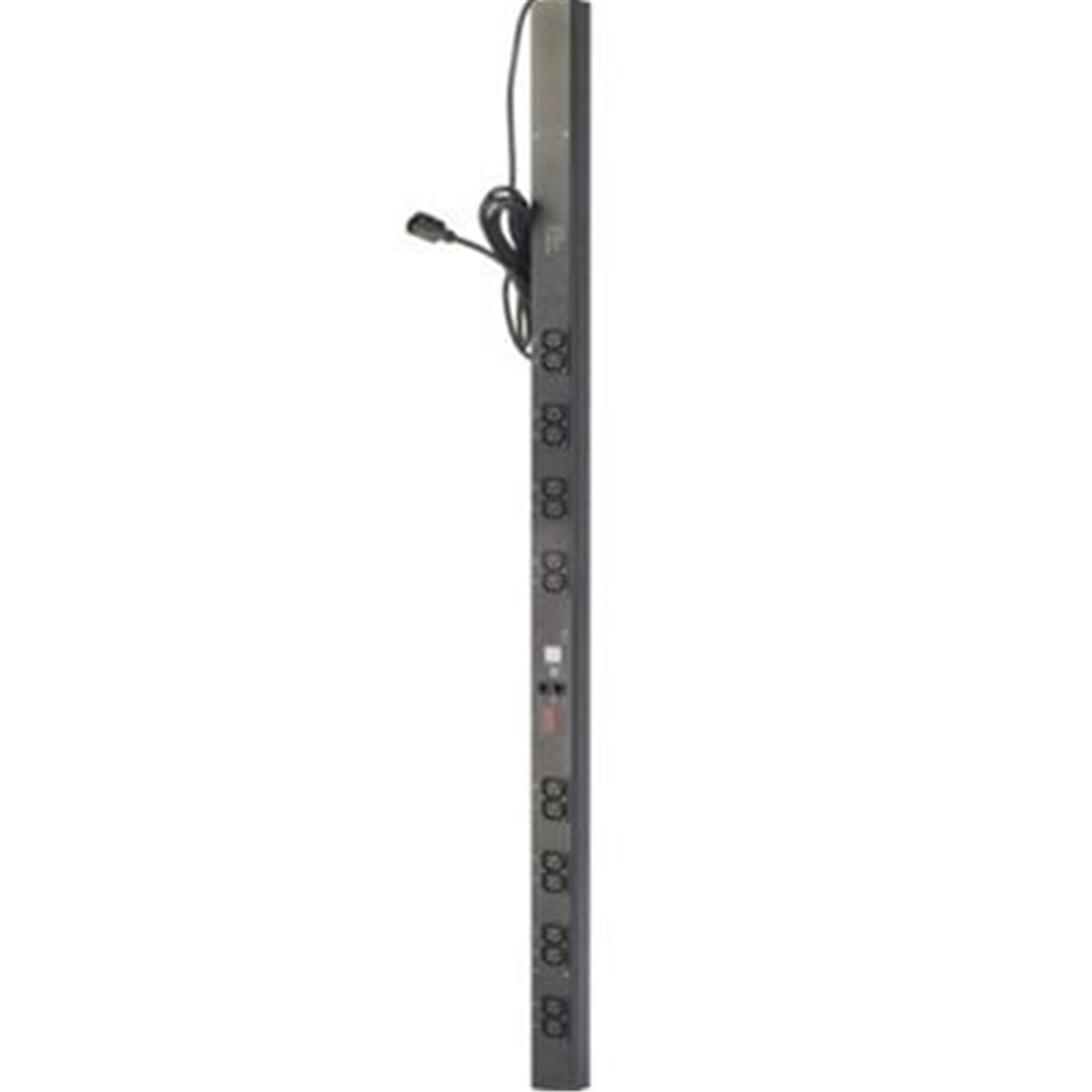

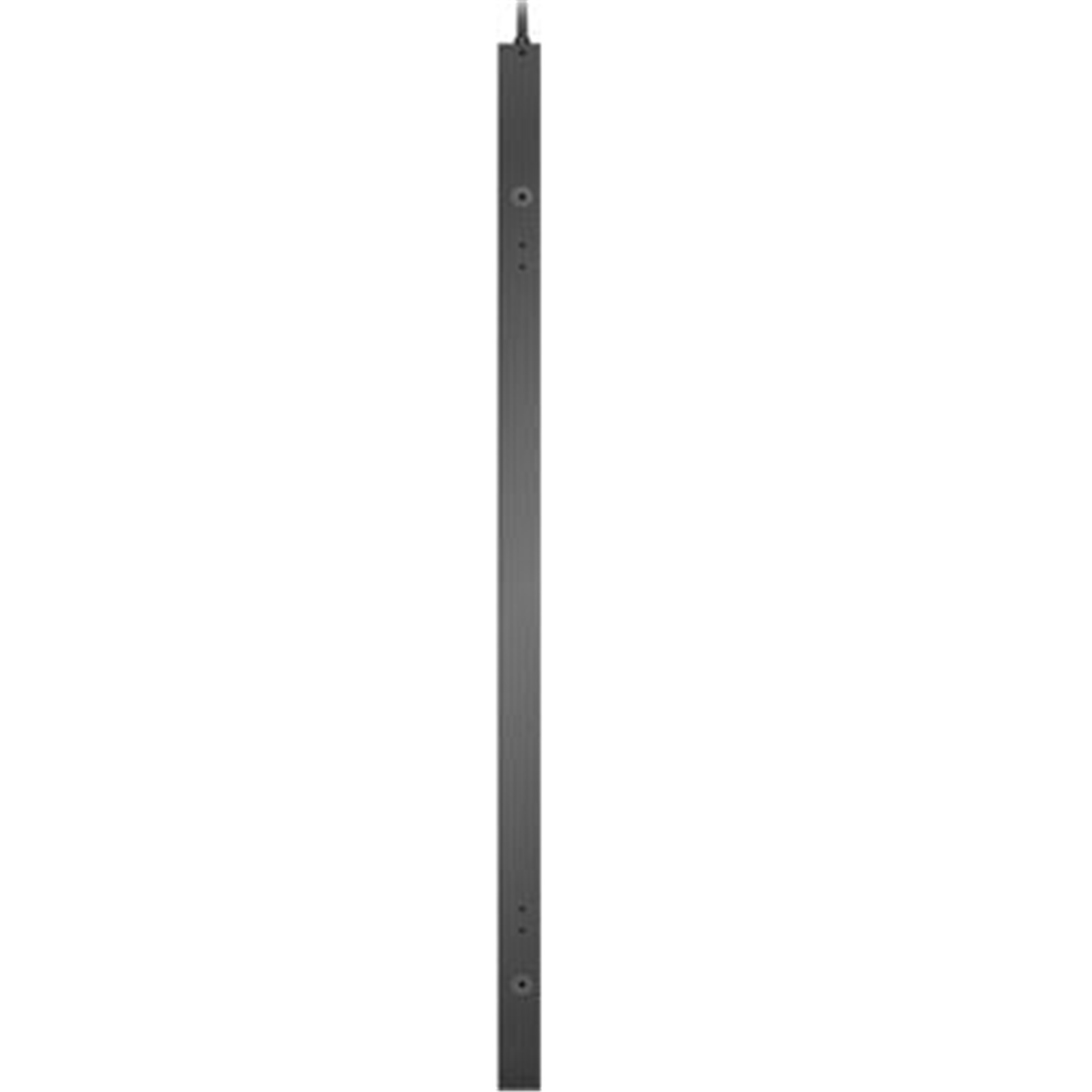

APC AP7850B by Schneider Electric Rack PDU Metered, Zero U, 10A, 230V, (16) C13 - Metered-by-Outlet - IEC 60320 C14 - 16 x IEC 60320 C13 - Rack-mountable
APC AP7850B by Schneider Electric Rack PDU Metered, Zero U, 10A, 230V, (16) C13 - Metered-by-Outlet - IEC 60320 C14 - 16 x IEC 60320 C13 - Rack-mountable
- Brand: APC
- MPN: AP7850B
- Part #: UPSAPC9525890
- UPC:
- Brand: APC
- MPN: AP7850B
- Part #: UPSAPC9525890
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PDUs





APC AP7850B by Schneider Electric Rack PDU Metered, Zero U, 10A, 230V, (16) C13 - Metered-by-Outlet - IEC 60320 C14 - 16 x IEC 60320 C13 - Rack-mountable
- Brand: APC
- MPN: AP7850B
- Part #: UPSAPC9525890

Product URL: https://www.pbtech.co.nz/product/UPSAPC9525890/APC-AP7850B-by-Schneider-Electric-Rack-PDU-Metered?type=ex-demo
Branch | Ex-Demo Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 2 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
APC Rack PDU Metered Zero U 10A 230V (16) C13
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection.
User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership.
Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency.
New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
SustainabilityGreen Premium™
Green Premium™ label is Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Specifications
Main
Colour
Black
Product Or Component Type
PDU
Pdu Type
Metered
Cord Length
3.05 m
Number Of Cables
1
Complementary
Input Voltage
200 V
208 V
230 V
Height
124.5 cm
Width
5.6 cm
Output Voltage
230 V
Depth
4.4 cm
Net Weight
3.07 kg
Mounting Location
Side
Mounting Preference
No preference
Input Plug Type
IEC 60320 C14
Mounting Mode
Rack-mounted
Rack Units
0U
Mounting Position
Vertical
Permissible Voltage
200…250 V
Max Line Current
10 A
Load Capacity
2300 VA
Network Frequency
47...63 Hz
Outlet Type And Quantity
16 IEC 60320 C13
Environment
Product Certifications
CE
GOST
VDE
Ambient Air Temperature For Operation
-5…45 °C
Relative Humidity
5…95 %
Operating Altitude
0...10000 ft
Ambient Air Temperature For Storage
-25…65 °C
Storage Relative Humidity
5…95 %
Storage Altitude
0.00…15240.00 m
Packing Units
Unit Type Of Package 1
PCE
Number Of Units In Package 1
1
Package 1 Height
213.4 cm
Package 1 Width
32.3 cm
Package 1 Length
38.7 cm
Package 1 Weight
3.98 kg
