CyberPower OL3000ERTXL2U 3000VA/2700W 2U Online ( Double Conversion) UPS with Pure Sinewave Output , 2 years replacement warranty
CyberPower OL3000ERTXL2U 3000VA/2700W 2U Online ( Double Conversion) UPS with Pure Sinewave Output , 2 years replacement warranty
- Brand: CyberPower
- MPN: OL3000ERTXL2U
- Part #: UPSCPR53000
- UPC:
- Brand: CyberPower
- MPN: OL3000ERTXL2U
- Part #: UPSCPR53000
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - On-Line





CyberPower OL3000ERTXL2U 3000VA/2700W 2U Online ( Double Conversion) UPS with Pure Sinewave Output , 2 years replacement warranty
- Brand: CyberPower
- MPN: OL3000ERTXL2U
- Part #: UPSCPR53000

Product URL: https://www.pbtech.co.nz/product/UPSCPR53000/CyberPower-OL3000ERTXL2U-3000VA2700W-2U-Online--Do
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

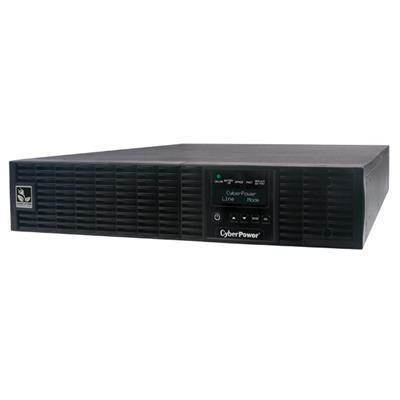

CyberPower OL3000ERTXL2U UPS
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
- 2U Rack Space
- Pure Sinewave Output
- Online (Double Conversion) UPS Topology

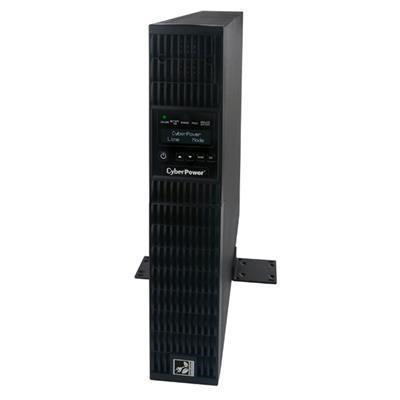

- Rack/Tower Convertible Configurations
- EMI, RFI, Surge and Lightning Spike Protection
- Critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- Rotatable LCD Indicator
- USB & Serial Connectivity Port
- Extended Runtime (XL) Models
- Hot-Swappable Battery Packs
- Dual Input
- Smart Fan Speed Control By Load Level
- Economy Mode setting
- Smart Battery Management(SBM)
- Remote Control/Wall-Mountable LCD panel
- Generator Mode setting
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition Software
- Equipment Protection Policy up to 100,000 Euros
Specifications
3000VA / 2700W
Typology
Online (Double Conversion)
Form Factor
Rackmount / Tower (Convertible)
Energy-Saving Technology
Yes, ECO Mode Efficiency > 93%
Voltage Range
120~139Vac for 0~25% Load
140~159Vac for 0~50% Load
160~179Vac for 0~75% Load
180~280Vac for 0~100% Load
Frequency Range
40~70Hz
Input Plug Type
IEC C20
Voltage Range
Pure Sinewave at 200, 208, 220, 230, 240Vac (Configurable) ±2%
Frequency Range
50 / 60Hz (Auto-Sensing or Configurable) ±0.25Hz
Transfer Time (Typical)
0ms
Overload Protection
Line Mode: 105~125% Load for 1 min, 126~150% Load for 10 sec
Battery Mode: 105~130% Load for 10 sec, 131~150% Load for 2 sec
Short Circuit Protection
UPS Output Cut Off Immediately
Lightning / Surge Protection
Yes
DSL/Phone/Fax/Modem protection
RJ11/RJ45(One In/One Out)
Receptacles
(8) IEC C13, (1) IEC C19
Dimensions(H x W x D)(mm)
88x433x600
Weight(kg)
31
Sealed Maintenance Free Lead Acid Battery
12V / 9AH x 6
Hot-Swappable
Yes
Typical Recharge Time
5 Hours
Half load / Full load (mins)
10/3
Indicators
Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery
Audible Alarms
Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery
Multi-Function LCD Readout
Yes
Power Management Software
PowerPanel® Business Edition
Self-Test
Yes
Auto-Charge/Auto-Restart
Yes
Auto-Overload Recovery
Yes
Cold Start(DC Start)
Yes
COM Interface
(1) Serial Port (RS232), (1) USB Port, (1) Relay Out, (1) EPO
SNMP/HTTP
Capable Optional
