Dynamix UPSD650 Defender 650VA (390W) Line Interactive UPS, 936 Joules Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring Software, USB Cable Included. 2 Year Warranty.
BEST VALUE

PB Tech price: PB Tech price:
$109 00  +GST $125 35  inc GST
Add To List
  • Overview
  • Features
  • Specifications
  • Q&A
  • Reviews
  • Accessories

Generating Print Page
Home PC Peripherals & Accessories UPS & PDU Devices UPS - Line Interactive Dynamix UPSD650 Defender 650VA (390W) Line Interactive...

Dynamix UPSD650 Defender 650VA (390W) Line Interactive UPS, 936 Joules Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring Software, USB Cable Included. 2 Year Warranty.

BEST VALUE
CLICK IMAGE TO ENLARGE

Dynamix UPSD650 Defender 650VA (390W) Line Interactive UPS, 936 Joules Surge Protection, 2x NZ Power...

  • Brand: Dynamix
  • MPN: UPSD650
  • Part #: UPSDNX1650
  • UPC:
  • Transfer Time:6ms
  • Run Time (Half Load):13 Minutes
  • Recharge Time:6 Hours
  • Outlets:2
  • Form Factor:Tower
  • Capacity (Watts):390W
  • Capacity (VA):650VA
Returns & Warranty Bulk Quote Print Page
PB Tech price:PB Tech price:
$10900$12535
 +GST  inc GST
Store Pickup: Select your store to check availability
Delivery: Order now and it ships tomorrow
When will I receive it?
Add To List

What PB Tech customers are saying about this product...See More Reviews

"Works as advertised. Despite what is stated in another review, this UPS works flawlessly in linux, just not with the companies official software (at least not on my system). You must use NUT...."
 Conor ~ 01-08-18
"great product good price"
 Guest ~ 11-07-18
"Works exactly as you would expect and good value for money compared with other brands"
 Aaron ~ 11-05-18

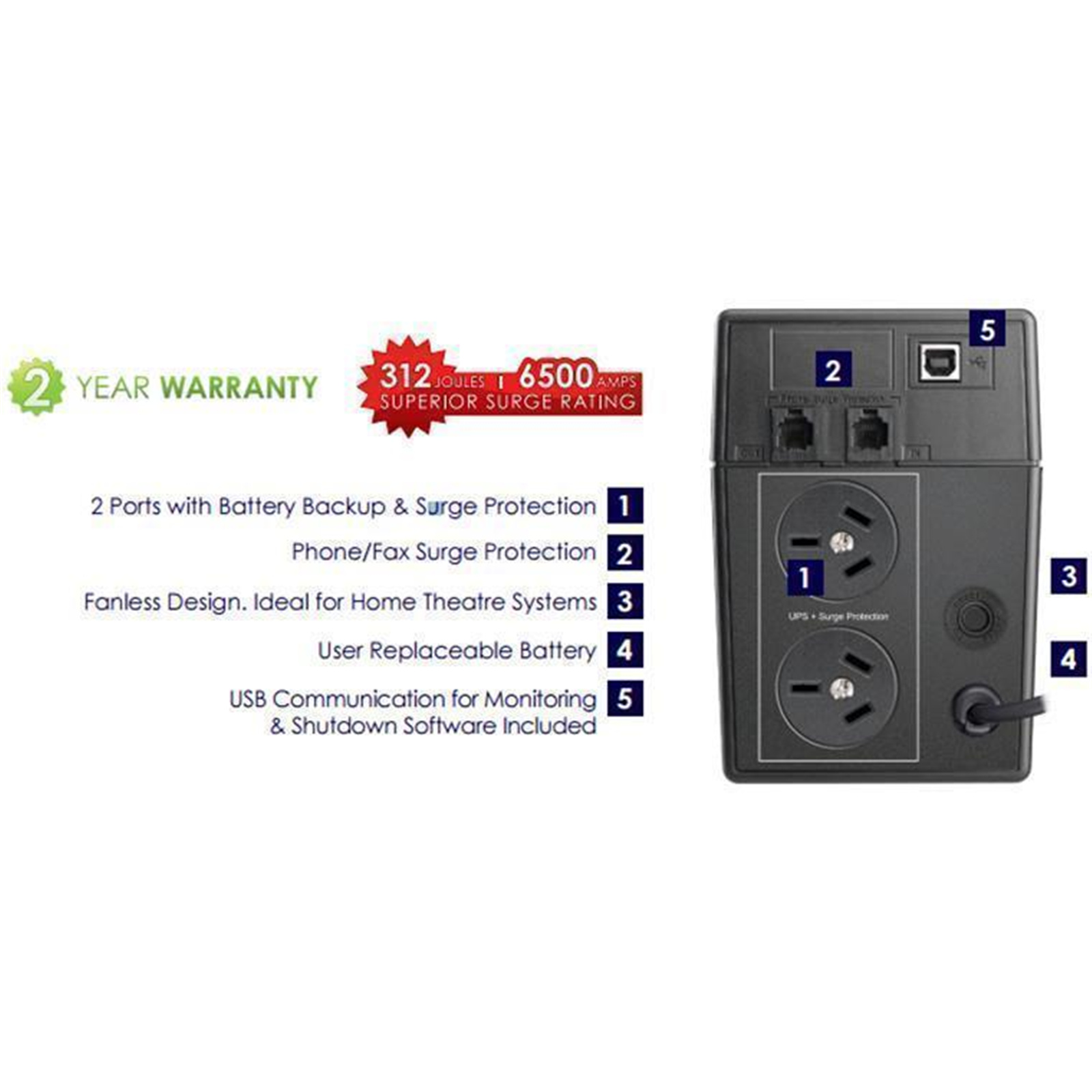

Features

DYNAMIX Defender 650VA (390W) Line Interactive UPS, 936 Joules Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring

The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replaceable battery and two Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard™ UPS management software included.


Key features

- Surge Protection, Best in its Class
- Australian/NZ outlets for UPS and Surge protection (x2)
- Buck and boost AVR for voltage stabilisation
- User replaceable battery
- Silent Operation (No fans included)
- Auto restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard® software



(please note: as the software is always being updated, the CD had been removed form the package in case it is causing problem, please download the latest NetGuard software from www.powershield.com.au/index.php/download refer to user manual for password)



Specifications

Capacity
650VA / 390 W

Topology
 Line Interactive

INPUT

Voltage
240Vac (Nominal)
Voltage Range
177-290Vac
Frequency Range
50/60Hz±5Hz (Auto Sensing)

OUTPUT

Output Voltage
240Vac±10%
Frequency
AC mode tracks utility.
Battery mode
50Hz±1%
Frequency Range
50Hz or 60Hz±1Hz
Transfer Time
6ms (Typical)
Waveform (Battery Mode)
Simulated Sine Wave
Outlets
2x Surge Protection + UPS

BATTERY

Battery Type & Number
12Vx9AH (x1)
Typical Recharge Time
6 hours recovery to 90% capacity
Backup Time (50% Load)
13min

PROTECTION

Full Protection
Overload, discharge, thermal, short circuit and overcharge protection
Surge Protection
312Joules / 6500Amps

COMMUNICATIONS & MANAGEMENT

Interface
USB Interface
Software
NetGuard® supports Windows®,
Linux, Unix & MAC

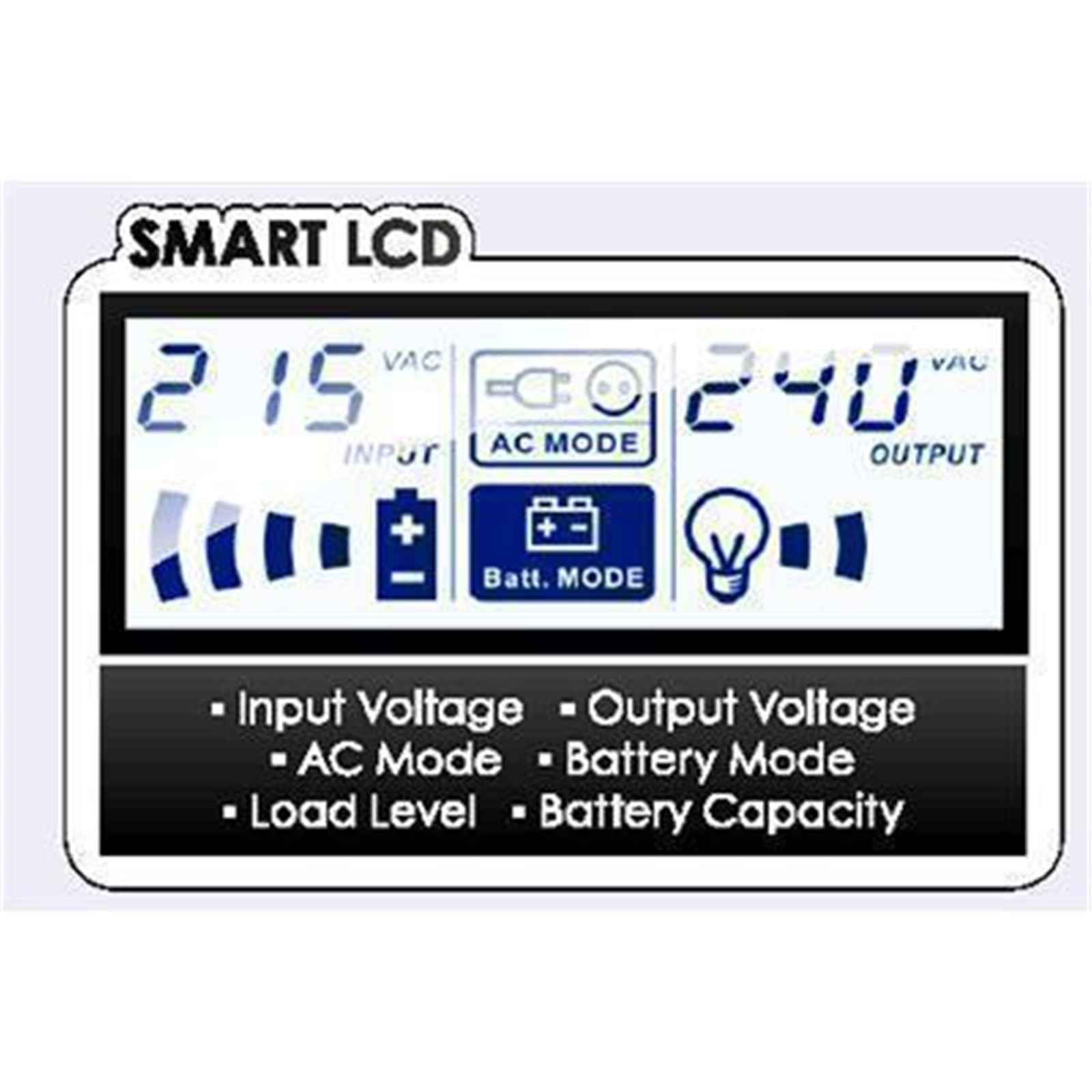

LCD Alarm
AC Mode, Battery Mode, Low Battery
(Batt. Mode), Fault, Overload
Audible Alarm
Battery Mode, Low Battery (Batt. Mode),
Fault, Overload

PHYSICAL

Dimensions (D x W x H)
328 x 100 x 145mm
Net Weight
5.2kg
Temperature
0 - 40°C
Humidity
0 - 90% (RH Non-Condensing)
Noise Level
<5dB (no fan)

COMPLIANCE

Safety
EN62040-1-1 2003. IEC60950-1 : 2001
EMC
EN62040-2 2006
RoHS
Directive 2011 / 65 / EU
Manufacturer Part No: UPSD650 Brand: Dynamix Product Type: -
UPC - Product Family: - Shipping Weight: 6.255 kg
PB Part No: UPSDNX1650 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
