Features

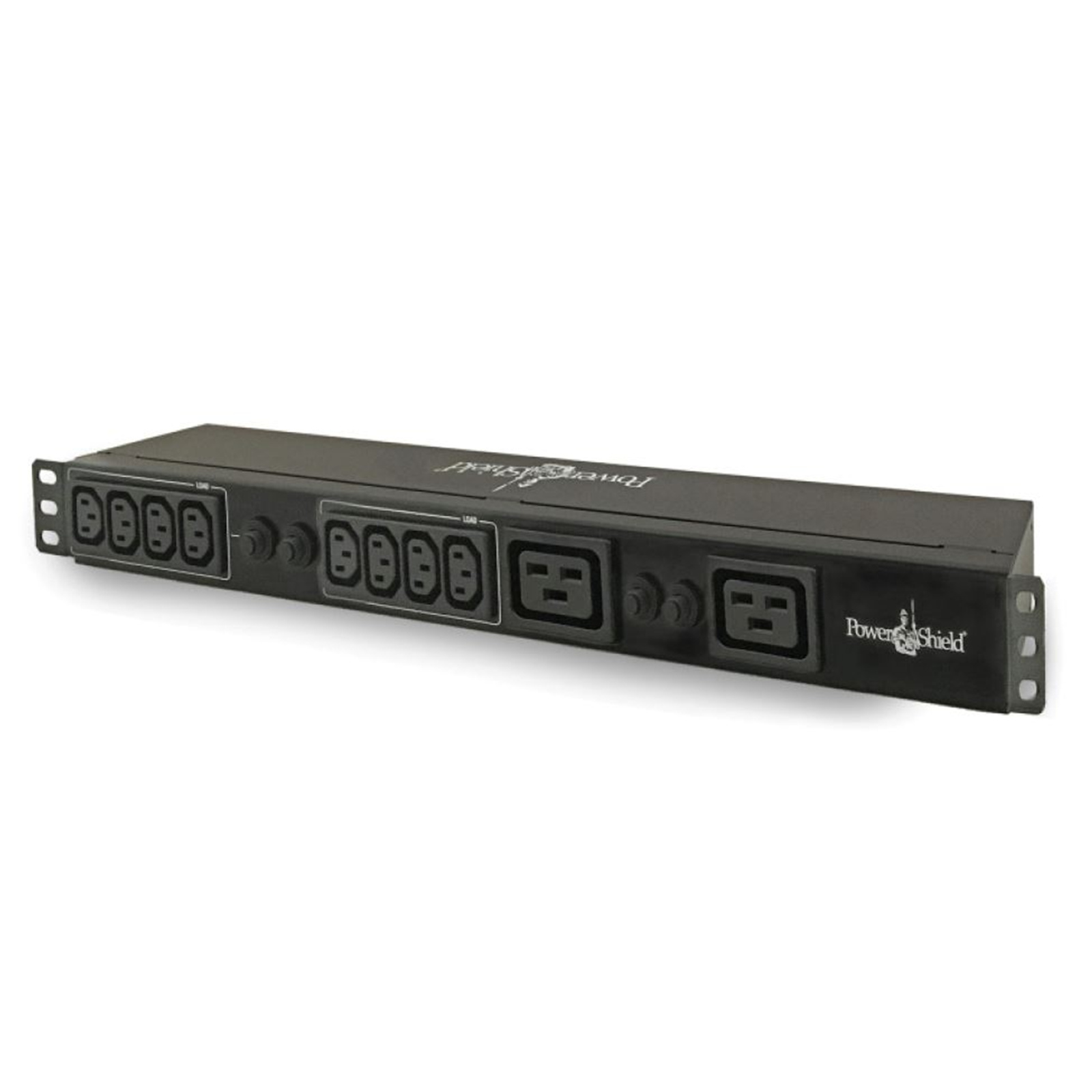

POWERSHIELD 10-Port 1RU Horizontal Power Rail with Hardwired Input 8x 10A IEC 320 C13 Output Sockets & 2x 16A IEC 320 C19 Output Sockets. Rackmount Ears. Safety Microswitch with Static Bypass.
Three modes of operation: UPS, Bypass and Bypass & Isolate
PowerShield Unmanaged full metal rackmount PDU's are highly reliable, multiple outlet power strips designed to deliver conditioned power to mission-critical networking, server or telecom equipment often used in conjunction with an uninterruptible power supply (UPS).
FEATURES
- Built-in 6kA C-Curve MCB Circuit Breakers with on/off switch
- Includes 10 or 16 Amp, 3-Pin Australian/New Zealand plug, ideal for connecting to UPSs
- Vertical PDUs incorporate three-way mounting brackets for ease of installation
- Horizontal PDUs incorporate recessed brackets for cable management
- Mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel
- Optional PDU available to connect 10A/15A devices through IEC distribution outlet sockets
Specifications
MBS for Power Shield UPS 6-10KVA (optional PDU)
Model Number
PSPDU6K
UPS Rating
6KVA
Input (Nominal)
240Vac
Input plug
Hard Wire
Output (Nominal)
240Vac
Output sockets
10A IEC 320 C13 (x 8), 16A IEC 320 C19 (x 2)
Style
Rackmount
Dimensions (D x W x H) mm
70 x 433 x 44mm
