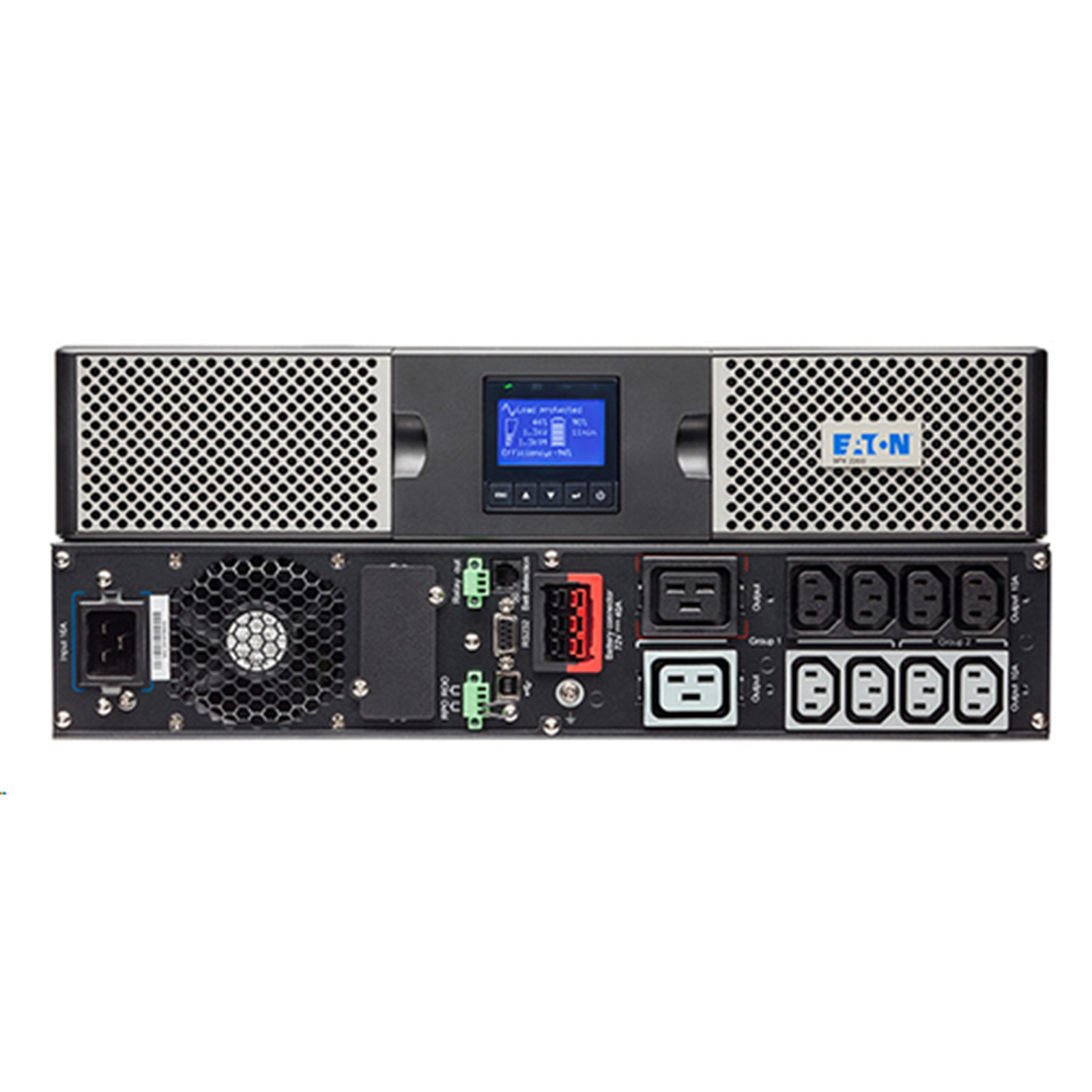

Eaton 9PX 2200VA 2U Rack/Tower UPS , 16Amp Input
Eaton 9PX 2200VA 2U Rack/Tower UPS , 16Amp Input
- Brand: Eaton
- MPN: 9PX2200IRT2U
- Part #: UPSPWR3253012
- UPC:
- Brand: Eaton
- MPN: 9PX2200IRT2U
- Part #: UPSPWR3253012
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - On-Line





Eaton 9PX 2200VA 2U Rack/Tower UPS , 16Amp Input
- Brand: Eaton
- MPN: 9PX2200IRT2U
- Part #: UPSPWR3253012

Product URL: https://www.pbtech.co.nz/product/UPSPWR3253012/Eaton-9PX-2200VA-2U-RackTower-UPS--16Amp-Input
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Specifications
On-line double conversion with Power Factor Correction (PFC) system
Configuration
Rack/Tower
Part Number
9PX2200IRT2U
Rating (VA/Watts)
2200/2200
Dimensions (H x W x D, mm)
86.5 x 440 x 605
Weight (kg)
25
Warranty
3 years electronics, 2 years battery
Rail Kit Included
Yes
Electrical Input
Connection
(1) IEC-320-C20
Input Voltage Range
176-276V without derating (up to 100-276V with derating)
Nominal Voltage
200/208/220/230/240V
Frequency
50/60 Hz autoselection
Frequency Range
40-70 Hz
Electrical Output
Nominal Voltage
200/208/220/230/240V
Outlets
(8) IEC-320-C13
(2) IEC-320-C19
Efficiency (Normal Mode)
Up to 93,5% in online mode (Up to 98% in Hi-efficiency mode)
Output Frequency
50/60 Hz autoselect, frequency converter mode
Communications
User Interface
Multilingual graphical LCD display
Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot
1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Environmental & Standards
Audible Noise
40dB
Operating Temperature
0 to 40°C
Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals
CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
