Eaton 5P 5P1550IRG2 1U Rackmount UPS, 1550VA / 1350W, LCD, Line-Interactive 230 V AC Input;Pure Sine Wave - Serial Port - USB - LCD Display - 6 x IEC 60320 C13 (10A)
Eaton 5P 5P1550IRG2 1U Rackmount UPS, 1550VA / 1350W, LCD, Line-Interactive 230 V AC Input;Pure Sine Wave - Serial Port - USB - LCD Display - 6 x IEC 60320 C13 (10A)
- Brand: Eaton
- MPN: 5P1550IRG2
- Part #: UPSPWR6269337
- UPC:
- Brand: Eaton
- MPN: 5P1550IRG2
- Part #: UPSPWR6269337
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





Eaton 5P 5P1550IRG2 1U Rackmount UPS, 1550VA / 1350W, LCD, Line-Interactive 230 V AC Input;Pure Sine Wave - Serial Port - USB - LCD Display - 6 x IEC 60320 C13 (10A)
- Brand: Eaton
- MPN: 5P1550IRG2
- Part #: UPSPWR6269337

Product URL: https://www.pbtech.co.nz/product/UPSPWR6269337/Eaton-5P-5P1550IRG2-1U-Rackmount-UPS-1550VA--1350W
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Secure, smart, and integrated
The Eaton 5P Gen 2 UPS together with the cybersecured gigabit network card (included in the Netpack versions), meet stringent cybersecurity standards.
Remote management features offer secure UPS configuration and firmware updates, while the Brightlayer Software Suite provides seamless integration with virtualization environments and cloud services, ensuring continuous service and integrity.
Power and efficiency in a compact design
Enhance your operations with the Eaton 5P Gen 2 UPS, delivering up to 1350 Watts-22% more power than its predecessor and 35% above competitors-in a compact 1U form factor.
It ensures stable, high-quality output for sensitive equipment and increased efficiency, reducing energy consumption and costs
Intelligent load segment control prioritises critical devices and optimises battery runtime.
Optimized battery management, easy maintenance, total flexibility
Benefit from a prolonged battery life (up to 50%) and machine learning predictive maintenance with Eaton's ABM+ technology.
User hot-swappable batteries and intuitive battery replacement wizard through graphical LCD display.
Whether with the 1U rack format or a compact tower option, the Eaton 5P Gen 2 UPS fits to your space requirements, ensuring compatibility for various setups.
- Works adequately in situations where the supply is prone to sags and surges
- 1.35 kW load capacity - backup power for your valuable electronics
- 1.55 kVA load capacity provides sufficient backup during power failures
Specifications
General
Product Name
Eaton 5P Gen2 UPS
Catalog Number
5P1550IRG2
Product Length/Depth
555 mm
Product Height
43.2 mm
Product Width
438 mm
Product Weight
18.7 kg
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
WEEE Directive
Packaging Directive
Batteries Directive
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Technical
Topology
Line-interactive
Form factor
Rack
Rack size
1U
Construction type
482.6 mm (19 inch) device
Color
Black/silver
Enclosure
Black/silver
VA rating
1550 VA
Wattage
1350 W
Rack mounting kit
Yes
Auto shutdown function
Yes
Primary frequency - max
70 Hz
Primary frequency - min
47 Hz
Input connection
C14
Input nominal voltage
230V default (200/208/220/230/240V)
Nominal frequency
50-60 Hz
Input frequency range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

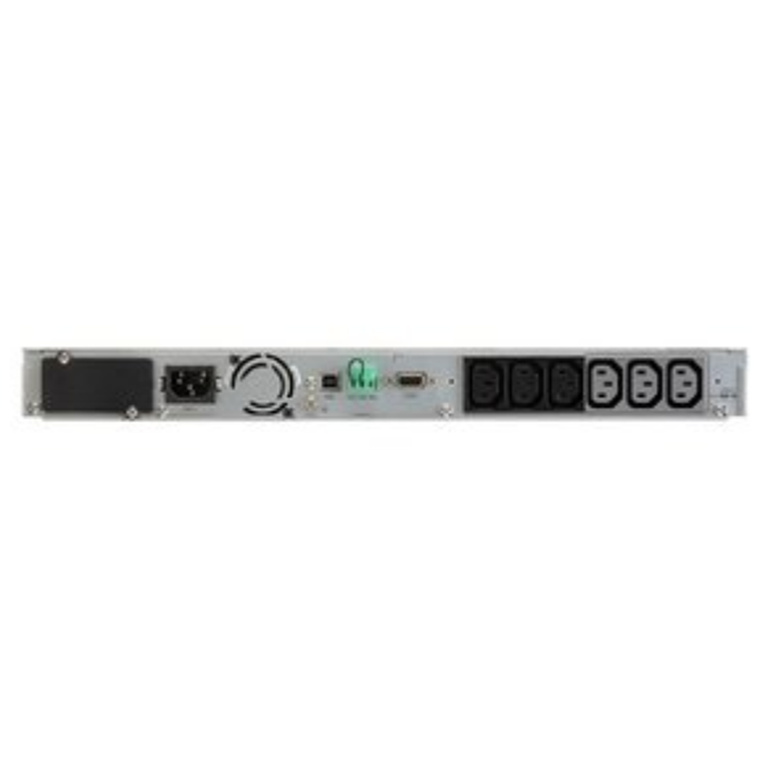

Receptacle
(6) C13
Number of Outputs C13
6
Output waveform
Sine wave
Voltage
230V
Output nominal voltage
230V default (200/208/220/230/240V)
Feed type
1
Voltage type
AC
Battery management
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery replacement
User replaceable
Battery rating
6 V / 9 Ah
Battery type
Lead-acid maintenance-free (replaceable)
Extended battery capability
No
Runtime at half load
13.5 min
Communication
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
Expansion slots

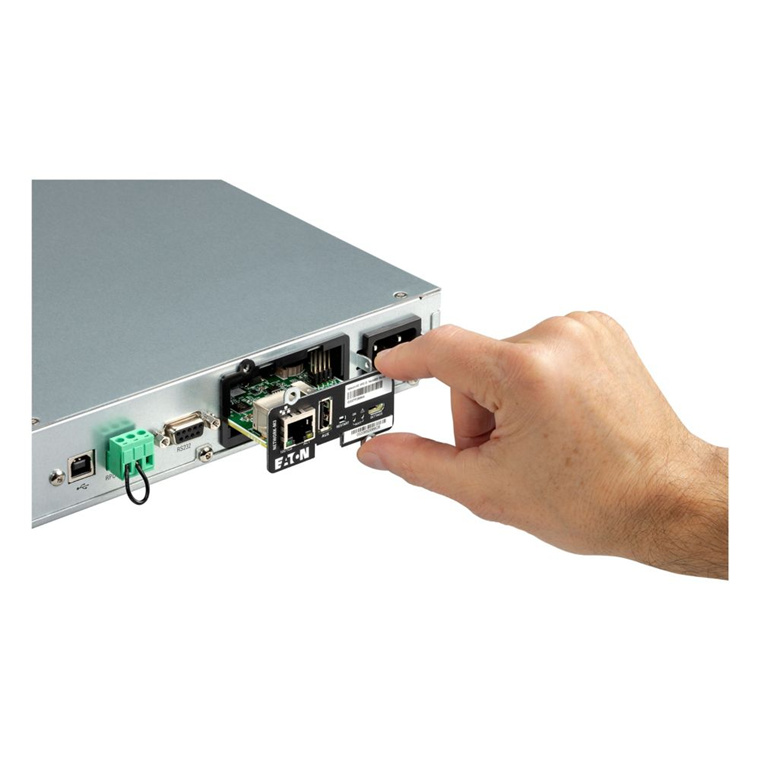

One slot for optional communication card
Ethernet interface
No
Includes network card
No
Software compatibility
Eaton Brightlayer Software suite

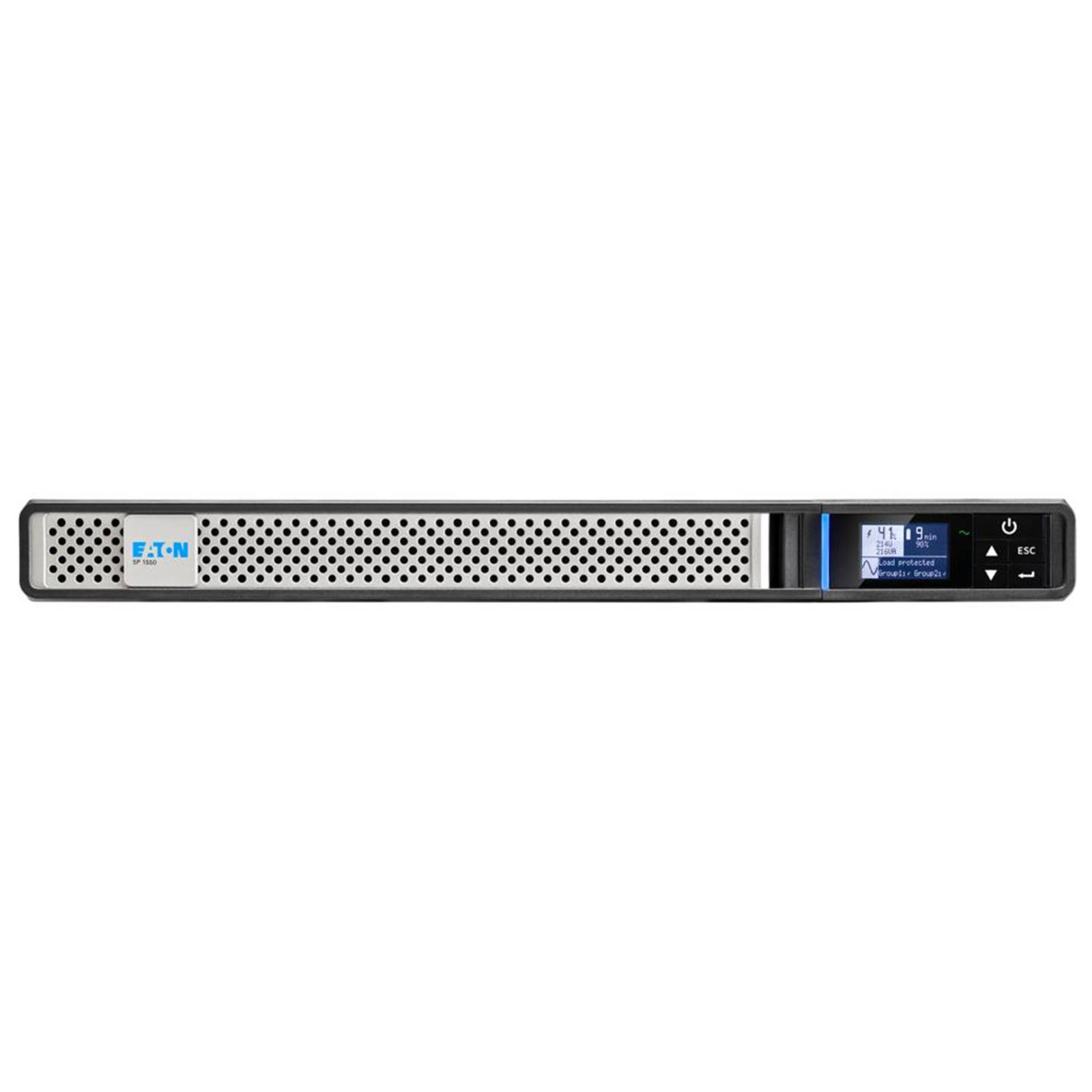

User interface
Multilingual graphical LCD display
Type of interface
Other
Potential free switch contact
Yes
Altitude
3000 m
BTU Rating
Online: 92, Battery: 654 BTU/hr
Noise level
<35 dB at 1 meter
Relative humidity
0-90% non-condensing
Temperature range
0° to 40°C (32° to 104°F)
Input voltage - max
294 V
Input voltage - min
150 V
Output voltage - max
240 V
Output voltage - min
200 V
Secondary frequency - max
60 Hz
Secondary frequency - min
50 Hz
Battery quantity
6
Efficiency at max. load
98,2
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Output frequency
50/60 Hz
Output power factor
0,9
Output voltage range
230 V (+6%/-10%)
Phase (input)
1
Phase (output)
1
Runtime at full load
2
Communication interface
USB
RS232
Power consumption
24 W
USB interface
Yes
With communication interface RS-232
Yes
