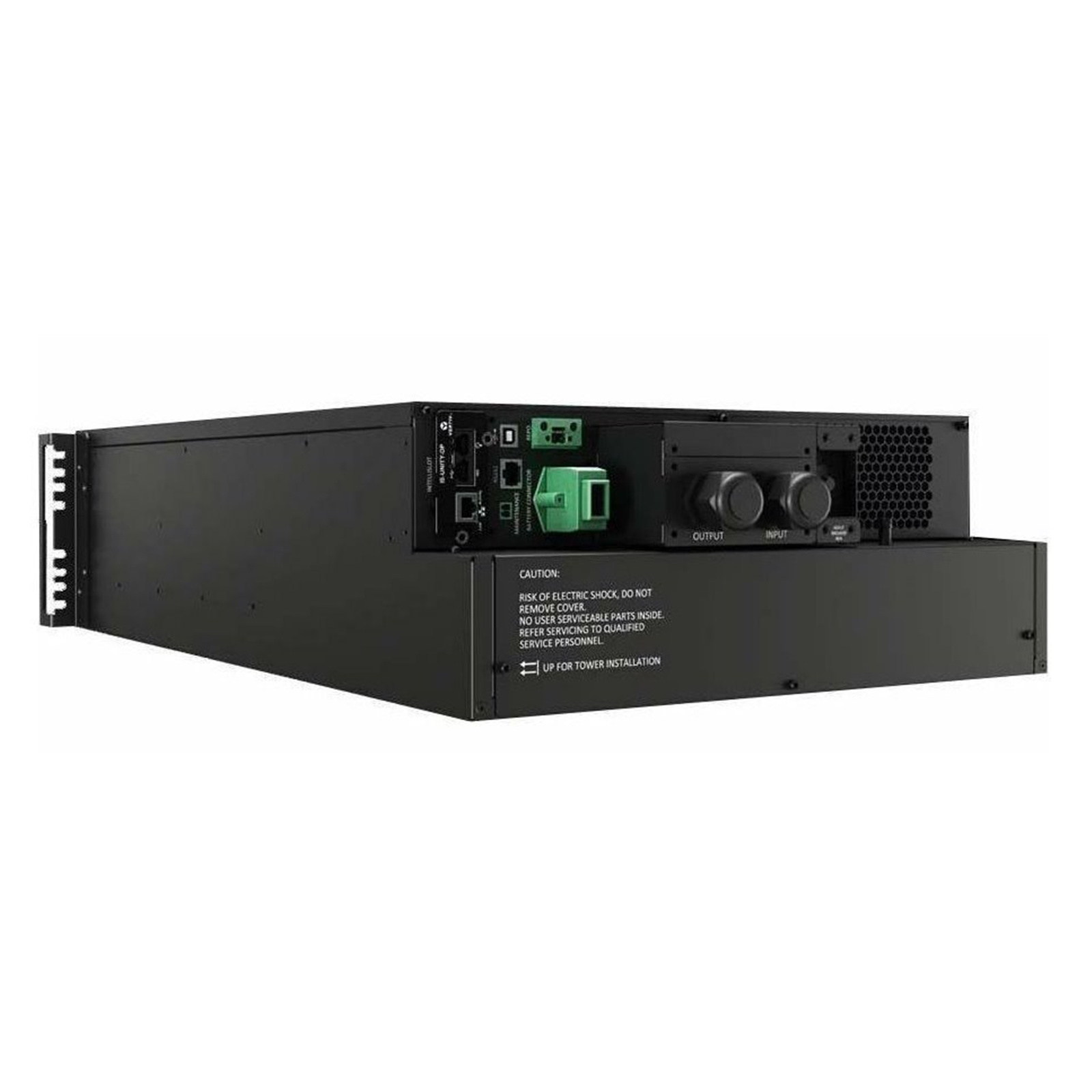

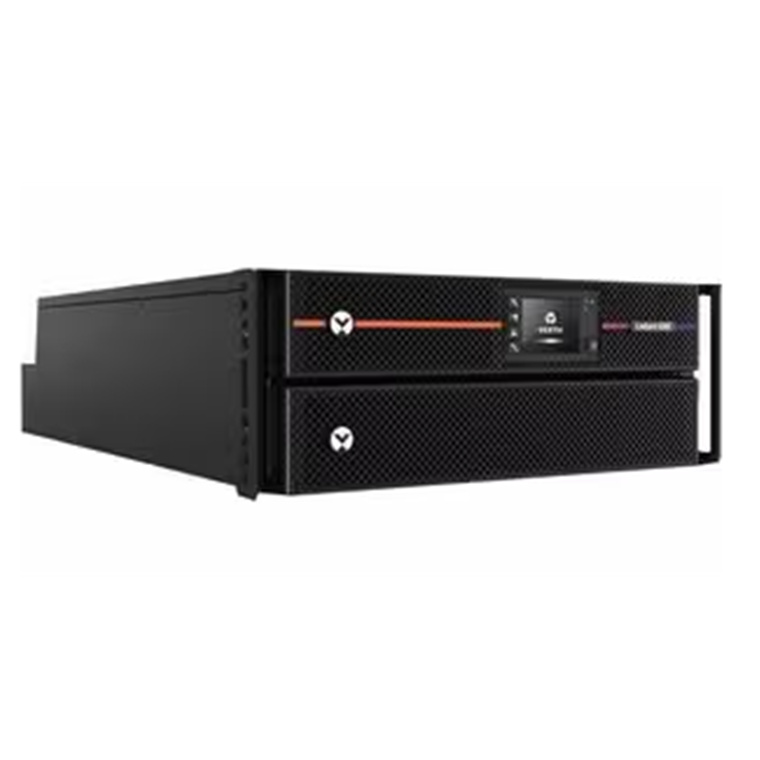

Vertiv Liebert GXE GXE3-6000IRT4UXL 6000VA Rack/tower UPS 4U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V AC, 230 V AC Input - 220 V AC Output
Vertiv Liebert GXE GXE3-6000IRT4UXL 6000VA Rack/tower UPS 4U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V AC, 230 V AC Input - 220 V AC Output
- Brand: Vertiv
- MPN: 01203155
- Part #: UPSVTV01203155
- UPC:
- Brand: Vertiv
- MPN: 01203155
- Part #: UPSVTV01203155
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular UPS - On-Line
Vertiv Liebert GXE GXE3-6000IRT4UXL 6000VA Rack/tower UPS 4U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V AC, 230 V AC Input - 220 V AC Output
- Brand: Vertiv
- MPN: 01203155
- Part #: UPSVTV01203155
Product URL: https://www.pbtech.co.nz/product/UPSVTV01203155/Vertiv-Liebert-GXE-GXE3-6000IRT4UXL-6000VA-Racktow
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 6 kW load capacity - backup power for your valuable electronics
- 6 kVA load capacity provides sufficient backup during power failures
Essential and affordable Uninterruptible Power Supply (UPS) for high performance power protection
The Vertiv™ Liebert® GXE UPS in an online double conversion solution which offers power protection in an affordable, efficient system with deployment and operation flexibility.
The unity output power factor (1.0) of the Liebert GXE single-phase UPS enables continuous and reliable power to more connected devices, protecting them against many disturbances in the AC mains with the online double conversion technology and input surge protection.
The high efficiency in both line and ECO modes of operation for this already affordable UPS also drives energy and operational costs savings.
Available in 6 or 10kVA power ratings, it provides flexibility for mounting in either tower position or inside a rack cabinet, together with the IT equipment critical for any application. Moreover, the capability to add external battery cabinets provides scalable runtime for those applications requiring even a longer period of backup in case of AC mains failures.
In addition to the extended runtime, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
- High output power factor (1.0)
- Full-color graphic LCD with gravity sensing orientation
- High efficiency in online mode (up to 94%)
- Even higher efficiency (up to 98%) in ECO mode

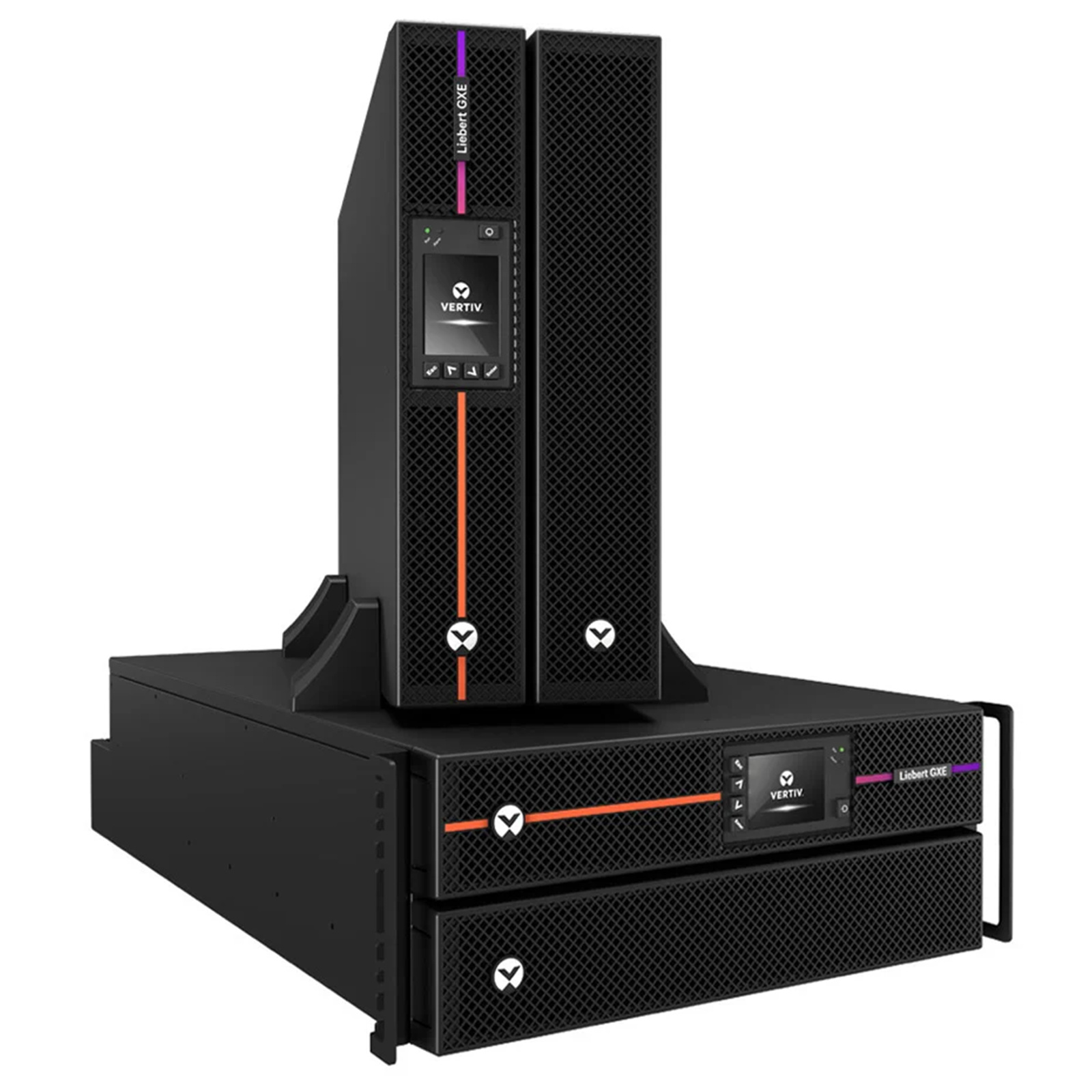

- Flexible rack/tower design, with rack mount kit included
- Extended runtime with up to 4 External Battery Cabinets (EBC)
- Hot-swappable user replaceable internal UPS batteries
- Easy to install, configure and operate
- Remote management capability with optional Vertiv™ Liebert® Intellislot™
- IS-UNITY network management cards
- Wide input frequency operation (40-70Hz) without any power derating
- Automatic internal bypass
- Free UPS management software
- Fast recharge time (3 hours @90%)
- Compatible with Vertiv™ LIFE™ Service to maximize UPS availability
High output power factor (1.0)
More usable power enables more connected loads saving space and costs.

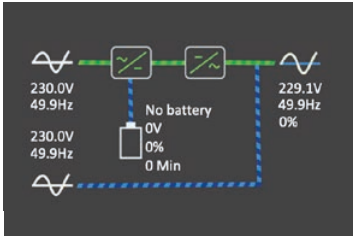

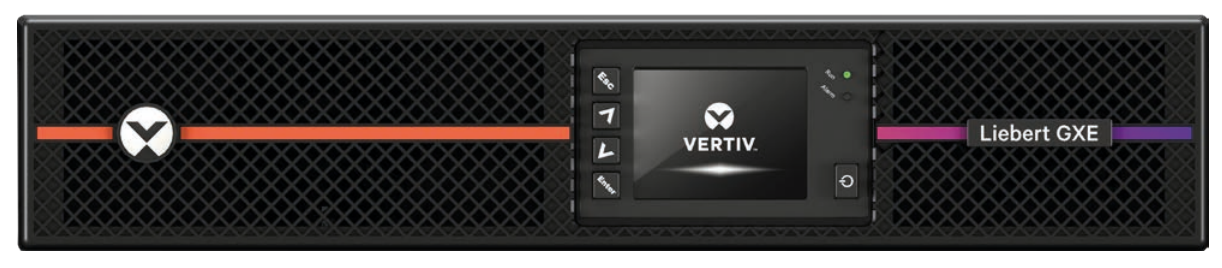

Colored graphic LCD display with gravity orientation
User friendly interface provides insight to UPS status for easy installation, configuration and operation.

Internal charger
Powerful integrated charger, for 3 hours @90% internal batteries. Up to 4Amps maximum with EBCs connected.

Specifications
General
Model
GXE3-6000IRT4UXL
Power Rating (VA/W)
6000VA / 6000W
Form Factor
Rack / Tower (4U)
Dimensions, mm
Unit (W x D x H) 430 x 750 x 173
Weight, kg
70
Input AC Parameters
Voltage Range Without Battery Operation (230V default, derating applies)
100 - 288
Voltage Range Without Battery Operation (230V default, 100% load)
176 - 288
Frequency Range (Hz, autosensing)
40 - 70
Input Wiring
Hardwired (terminals L-N-G)
Surge Protetion (J)
600
Output AC Parameters
Output Voltage
220/230 (default) /240
Waveform
Pure Sine Wave
Output Overload (AC Mode)
105% - 125% @ 5 min - 126% - 150% @ 1 min > 150% @ 200 ms
Output wiring
Hardwired (terminals L-N-G)
Efficiency (online mode, max.)
94%
Efficiency (ECO mode, max.)
98%
Battery
Type
Valve-regulated, non-spillable, lead-acid
Recharge Time (internal batteries, typical)
3 hr @ 90%
Backup Time (100% load, minutes)
5
Backup Time (50% load, minutes)
14
Comaptible External Battery Cabinet
GXE3-EBC192VRT2U
Environmental
Operating Temperature (ºC)
0 to 40ºC
Storage Temperature (ºC, without battery inside)
-20ºC to +70ºC
Relative Humidity (operation, non-condensing)
5% to 95%
Operating Altitude (m), without derating
2000
Audible Noise (line mode)
<55dBA
Agency
Compliance
CE, CB Report, EAC, UKCA, Morocco, RCM
Safety
IEC/EN 62040-1
Transportation
ISTA 3E
Environmental
RoHS, REACH, WEEE
Communications and Management
Slot for optional cards
Yes
Communication port
USB
Emergency Power Off (EPO)
Yes
