Features

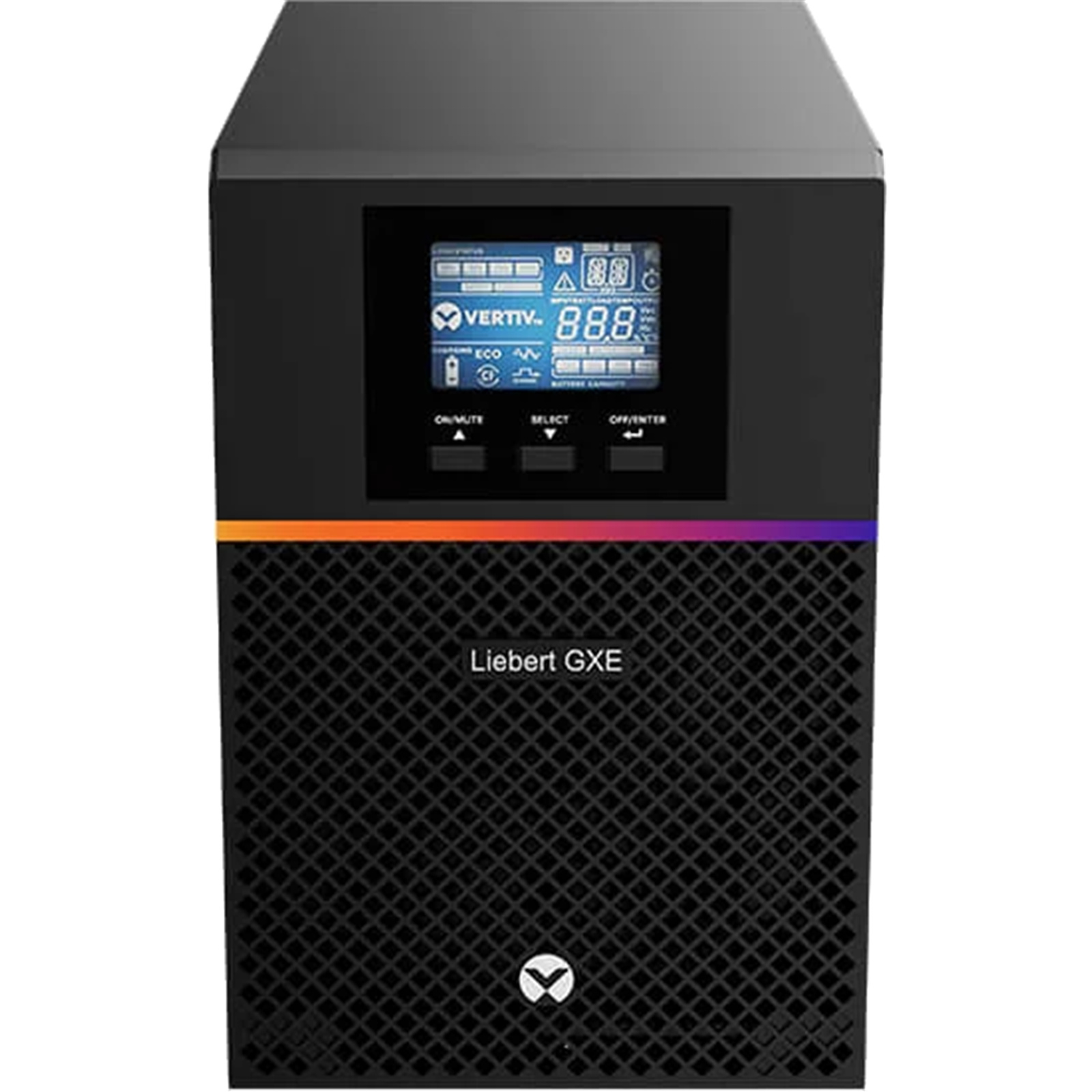

Vertiv™ Liebert® GXE UPS
Essential and affordable Uninterruptible Power Supply (UPS) for high performance protection
The Vertiv™ Liebert® GXE UPS is an online double conversion solution which offers power protection in an affordable, efficient system with deployment and operation flexibility.
The high output power factor (0.9) of the Liebert GXE single-phase UPS enables continuous and reliable power to more connected devices, protecting them against many disturbances in the AC mains with the online double conversion technology and the input surge protection.
The high efficiency in both line and ECO modes of operation for this already affordable UPS also drives energy and operational costs savings.
Available in 1, 1.5, 2 and 3kVA power ratings in either a compact tower form factor, or in a rack/tower form factor with flexibility for mounting in either tower position or inside a rack cabinet together with the IT equipment critical for any application. Moreover, the capability to add external battery cabinets in the rack/tower models provides scalable runtime for those applications requiring even a longer period of backup in case of AC mains failures. It is combined with a powerful internal charger with a maximum of 6 Amps for a fast recharge.
In addition to the extended runtime, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
- High output power factor (0.9)
- High efficiency in online mode (up to 91%)
- Even higher efficiency (up to 96%) in ECO mode
- Compact tower only form factor or flexible rack/tower convertible design
- User-friendly LCD interface
- Fast recharge time (<4 hours to 90% for internal batteries)
- Extended runtime with up to 4 optional External Battery Cabinets (EBC)
- Hot-swappable user replaceable internal UPS batteries
- Remote management capability with optional Vertiv™ Liebert® Intellislot™ IS-UNITY network management cards
- (8) IEC60320 C13 outlets (all models), plus (1) C19 (3kVA model)
- Automatic internal bypass
- Free UPS management software
Specifications
Model Number
GXE3-1500IMT
Power Rating (VA/W)
1500VA / 1350W
Form Factor
Tower
Dimensions, mm
Unit (W x D x H)
160 x 420 x 245
Shipping (W x D x H)
235 x 560 x 325
Weight, kg
Unit
16.4
Shipping
17.3
Input AC Parameters
Voltage Range Without Battery Operation (230V default, derating applies)
110 - 290
Voltage Range Without Battery Operation (230V default, 100% load)
180 - 290
Frequency Range (Hz, autosensing)
40 - 70
Input Power Connector
IEC60320 C14
Surge Protection (J)
600
Output AC Parameters
Output Voltage
220/230 (default) /240
Waveform
Pure Sine Wave
Output Overload (AC Mode)
105% - 110% @ 10 min
111% - 130% @ 30 sec
131 - 150% @ 2 sec
> 150% @ inmediate
Output Receptacles
8 x IEC60320 C13
Efficiency (online mode, max.)
89%
Efficiency (ECO mode, max.)
95%
Battery
Type
Valve-regulated, non-spillable, lead-acid
Recharge Time (internal batteries, typical)
<4 hr @ 90%
Backup Time (100% load, minutes)
3.2
Backup Time (50% load, minutes)
9
Compatible with External Battery Cabinets
No
Environmental
Operating Temperature (ºC)
0 to 40ºC
Storage Temperature (ºC, without battery inside)
-20ºC to +50ºC
Relative Humidity (operation, non-condensing)
5% to 95%
Operating Altitude (m), without derating (**)
2000
Audible Noise (line mode)
<53dBA
Agency
Compliance
CE, CB Report, UKCA, Morocco, RCM
Safety
IEC/EN 62040-1
Surge Immunity
EN 61000-4-5
Transportation
ISTA 2A
Environmental
RoHS, REACH, WEEE
Communications and Management
Slot for optional cards
Yes
Communication port
USB
Emergency Power Off (EPO)
Yes
