Unitek Y-2516 USB2.0 Extender over Cat.5e + 4-PortHub (up to 60M)

PB Tech price
PB Tech price
$ 80 .86
 +GST
$ 92 .99
 inc GST
$80.86  +GST
$92.99

Unitek Y-2516 USB2.0 Extender over Cat.5e + 4-PortHub (up to 60M)

  • Brand: Unitek
  • MPN: Y-2516
  • Part #: USBUNI2516
  • UPC:
FREE SHIPPING
5
PB Tech price
$ 80 .86 $ 92 .99
 +GST  inc GST
Tax free price $85.71*
*Price includes surcharge
Hurry, only 3 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$80.86  +GST
$92.99

Four payments of $23.48 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

What PB Tech customers are saying about this product...

See More Reviews

"Works as it supposed to. Note it will NOT work with Ethernet (TCP/IP). The network cable (not supplied) can only be plug into the two boxes supplied, and nothing else. If you only ...view more"

KY
By: KenY7 10/03/21

"Needed multiple USB points at a desk for keyboard, mouse and USB Stick, a short distance from the PC. This sorted the problem with out having to run multiple cables."

G
By: Guest 23/08/20

"Used it to move a Mouse/keyboard Logitec receiver to a better position. Works perfectly. Would have been nice to power it via POE from the computer end. This one requires you to ...view more"

BD
By: BruceD2 26/08/19
Verified Owner

Features

https://www.unitek-products.com/product/usb-extension?view=product&id=82

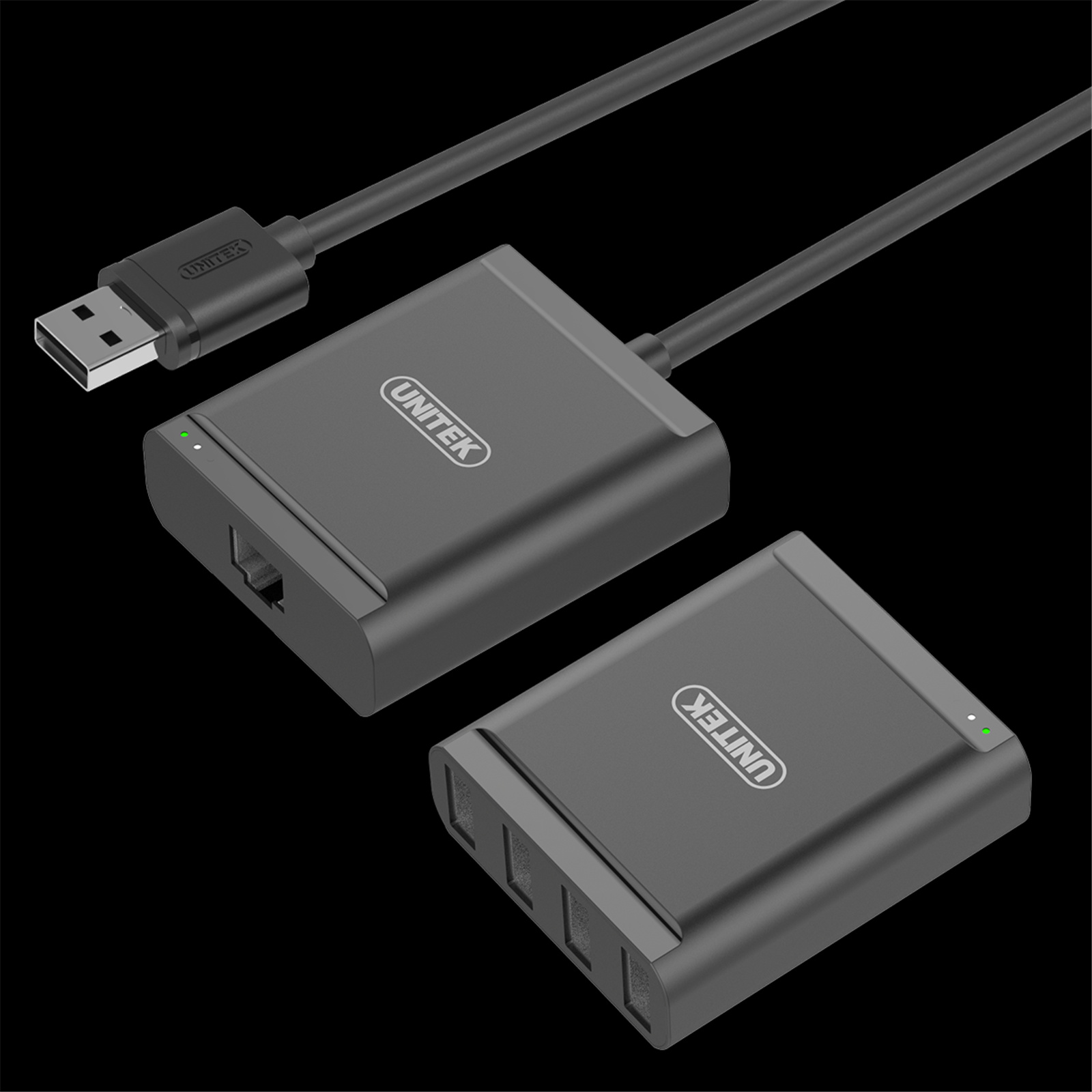

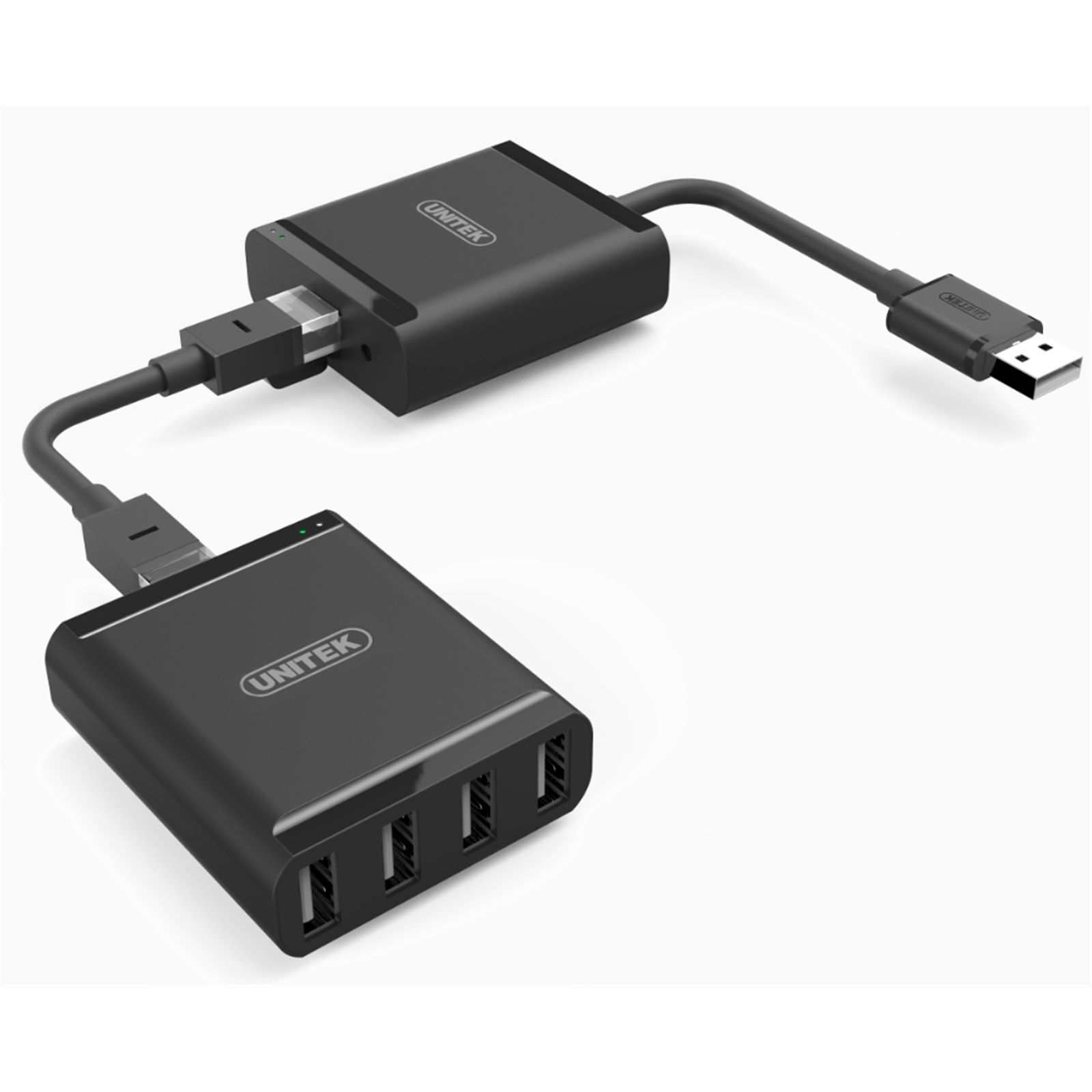

UNITEK USB2.0 Extender over Cat5e + 4 Port Hub (up to 60m)

FEATURES:

  • An extender for USB over RJ45.
  • Applicable for all usage platforms, no compatibility issue.
  • Use Cat5e or Cat6 RJ45 LAN cable for extension up to 60M.
  • With USB2.0 specification, data transfer speeds up to 480Mbps.
  • With a power port. By connecting to an external power supply, it can supply more power to USB peripheral devices and enhance the performance.
  • Plug and play, no driver needed.

Specifications

Product Dimension
60mm x 52mm x 20mm

Upstream
1 x USB2.0 Type-A (Male)

Downstream
4 x USB2.0 Type-A (Female)

Power / Cable Length
5V2A / 1.5m

DC Dimension
3.5mm x 1.35mm

Cable Length / OD
15cm / 4.5mm

Package Contents
1 x USB2.0 Extender Over RJ45 + 4-Port Hub (up to 60M)
1 x Power Adaptor
1 x User Manual
Manufacturer Part No:
Y-2516
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.32 kg
PB Part No:
USBUNI2516
Product Model:
Y-2516
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

3.4 out of 5 Stars Based on 5 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
1
1 Stars
1

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Works well. POE would have been nice

Used it to move a Mouse/keyboard Logitec receiver to a better position. Works perfectly. Would have been nice to power it via POE from the computer end. This one requires you to power it at the other end by plugging it into a wall if your USB device needs power. It does give you 4 USB ports which is good.

BD
By: BruceD2 26/08/19
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

If you want something reliable, this isn't it!

Absolutely terrible build quality, and I imagine it's a lottery whether any given new-in-box unit will work at all from what I saw disassembling the one I got! The only advantage of this compared to similar solutions is that this one is cheaper.

Worked properly for about two hours after I got it, and then started only working intermittently. Noticed the rubber strain relief on the PC side USB cable was cracked, so I disassembled the unit to inspect. The internal soldering of the USB cable to the PCB was so shoddy that a slight movement of the adapter would bend the internal cables just enough to short one of the data lines to ground! I fixed...view more

DI
By: DarcyI 22/06/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Note it uses a network cable, but doesn't work with TCP/IP

Works as it supposed to. Note it will NOT work with Ethernet (TCP/IP). The network cable (not supplied) can only be plug into the two boxes supplied, and nothing else. If you only need 5M, then use an active USB connector. Use this if you need more than 10 meters, but less than 60 meters.

KY
By: KenY7 10/03/21
0 out of 0 users found this review helpful
Did you find it helpful?

Did the job perfectly.

Needed multiple USB points at a desk for keyboard, mouse and USB Stick, a short distance from the PC. This sorted the problem with out having to run multiple cables.

G
By: Guest 23/08/20
0 out of 0 users found this review helpful
Did you find it helpful?

Product not as expected

Firstly the product was shipped with the incorrect power supply which the manufacturer requested we return and swap in store which did not happen and PB requested we speak to the manufacturer who was requesting we speak to PB.
After getting the correct power supply myself at my own cost we found that the product did not support USB Web-cams like we had hoped, the video was run for 10 seconds then pause then you needed to re-plug the device for it to function again.
The only good thing about this product is it did function over the distance specified and worked fine with USB storage and mouse and keyboards when we tested it.

Over all I wo...view more

BG
By: BradenG24 21/08/20
0 out of 0 users found this review helpful
Did you find it helpful?
