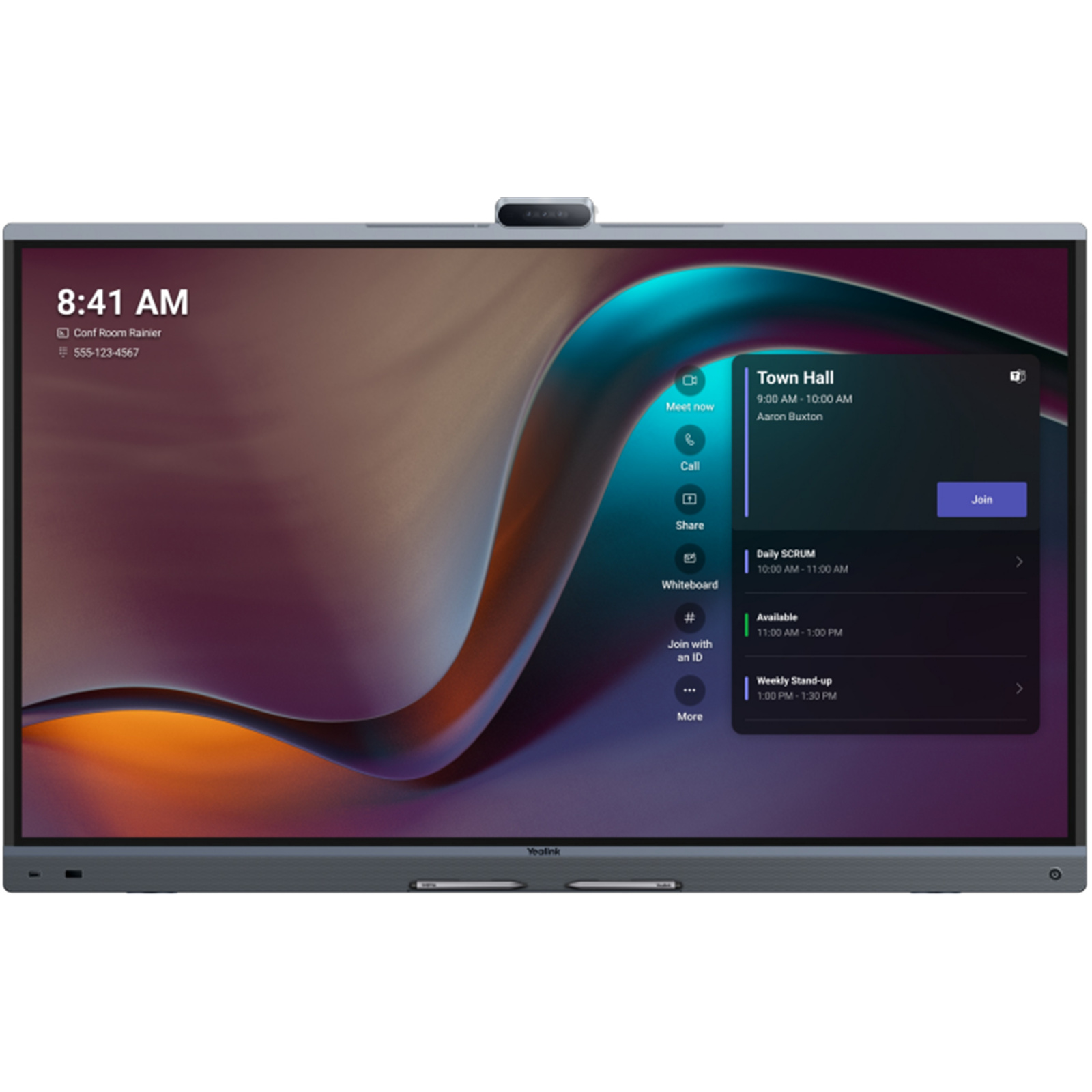

Yealink MeetingBoard 86" Pro Smart All-In-One Collaboration Whiteboard - Microsoft Teams Certified

System Overview

- Operating System: Android 13.0
- Storage
- Memory: 8GB
- Flash: 64GB
- CPU: 4 cores at 2.2GHz + 4 cores at 2.0GHz
- AI Computing Power: 8.8T FLOPS

Display

- Size:
- MeetingBoard 65 Pro: 65 inch
- MeetingBoard 75 Pro: 75 inch
- MeetingBoard 86 Pro: 86 inch
- Anti-glare panel
- Resolution: 3840 x 2160
- Color Gamut: 72% NTSC/99% sRGB
- Color Depth: 1.07 billion colours (10 bit)
- Contrast Ratio: 1200:1
- Max Brightness: 400 cd/?
- Refresh Rate: 60 Hz
- Viewing Angle: 178° horizontal; 178° vertical
- System wake-up: Motion sensor

Touch

- Touch Technology: Infrared
- Touch Height: 1.5 mm
- Touch Accuracy: ±1 mm
- Touch Points: 20 points
- Touch latency: 21 ms(Measured under yealink whiteboard)
- Four-level stylus

Camera

- Max Resolution: Built-in triple 50MP camera
- Image Sensor: 1/2 Sony Sensor X2; 1/1.56 Sony Sensor X1
- Viewing angle: Wide-angle HFOV 98.2°
- PTZ type: Electronic pan-tilt
- Zoom/Digital zoom: 4x digital zoom
- Max resolution: 3840 x 2160
- Max frame rate: 60Hz
- Video output resolution: 3840 x 2160
- Autofocus: Supported
- Wide dynamic range: Supported
- High dynamic range imaging: Supported
- Exposure: Auto
- White balance: Auto/Manual/ATW
- Number of presets: 9
- Privacy shutter: Electric privacy shutter
- Swappable optical zoom camera module:
- MB-12X Pro:
- 8MP, Sony image sensor
- 12x optical zoom
- Lens angle: 90°
- Horizontal rotation: ±100°
- Vertical rotation: 0°/-90°
- AI Smart Framing:
- Auto framing
- Speaker tracking
- Picture-in-picture (PIP) - IntelliFocus
- Video fence

Speakers

- Speakers:
- Stereo Speakers
- Frequency response: 90~20KHz
- Sensitivity: 81±3 dB SPL@1m, 1W
- Sampling rate: 48KHz
- Expansion output: Supports RCA output
- THD (Total Harmonic Distortion): at 20W, 1KHz, <5%
- Rated impedance: tweeter-4ohm,full-range speaker-8ohm
- Rated power: 30W
- Max power: 36W

Microphones

- Built-in 16 MEMS microphone array
- Pickup distance: 12 meters full-duplex
- Signal-to-noise ratio: 70dB@1KHz
- Max sound pressure level: 130dB SPL
- Equivalent noise level: 24dB SPL
- Dynamic range: 24-130dB SPL
- Sensitivity: -38±1dBV/Pa
- Frequency response: 20Hz~20KHz
- Sampling rate: 48KHz
- Bit depth: 24-bit
- Expansion input: supports RCA input

Video Resolution

- Lens resolution: supports up to 4K30fps
- Content sharing: supports up to 4K60FPS (HDMI IN) locally, and up to 4K15fps in
meetings
- Bandwidth requirements:
- 4K30Fps, minimum bandwidth 2Mbps (H.265)
- 1080P30Fps, minimum bandwidth 512Kbps (H.265)
- 720P30Fps, minimum bandwidth 384Kbps (H.265)

Content Sharing

- Wired screen sharing:
- HDMI IN
- VCH51
- Wireless screen sharing
- AirPlay
- Miracast
- Wireless Presentation Pod (unavailable in the United States)

Audio Codec and Technology

- Multi-channel echo cancellation processing
- Noise suppression technology
- Multi-channel reverberation cancellation technology
- Multi-channel acoustic echo cancellation
- Lip sync detection
- Automatic gain control
- Far-field full-duplex pickup technology
- Beamforming directional pickup technology
- CNG/PLC/AJB/De-Reverb

Video Codec and Technology

Video codecs: H.264 SVC, H.264 High Profile, H.264

Network Protocols

- Wi-Fi 6
- 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
- 2x2 MIMO
- Bluetooth 5.1
- TCP/IP (IPv4/IPv6), DHCP/Static IP
- HTTPS secure web access

Security

- Encryption protocols: supports H.235/TLS/signaling encryption
- Encryption algorithms: supports SRTP media stream encryption and AES-256
encryption
- Security mechanisms: supports VLAN, 802.1P/Q, Diffserv, and other QoS
services
- Security protocols: supports 802.1X, LLDP-MED, and other network security
protocols
- Web security: supports HTTPS web security management
- Secure connection: supports OpenVPN
- Other security mechanisms:
- Built-in security encryption certificate
- Supports protection against network and protocol attacks
- Supports meeting password to ensure meeting security
- Supports meeting whitelist and blacklist

Configuration Management

- Configuration methods: Web/Device/Touch screen
- Debugging interface: RJ45/USB 2.0
- Upgrade methods: Web/Device/Platform/USB
- Device management: Yealink Management Cloud Service (YMCS)
- Batch deployment tool: supported
- SNMP protocol: supported

Hardware Description

- Power switch (with power status indicator light)
- Reset button
- 1 LED MUTE light
- Human motion sensor (for automatic device wake-up)

Installation Methods

- Wall-mounted installation
- Wall-stand installation
- Floor-stand installation

Hardware Interfaces

- Display output interface: 1 x HDMI output interface (supports CEC)
- Content input interface: 1 x HDMI input interface
- Line input interface: 1 pair of RCA line inputs
- Line output interface: 1 pair of RCA line outputs
- 3 x USB-A 2.0 interfaces
- 2 x 10/100/1000Mbps adaptive network ports
- 2 x RJ45 VCH custom interfaces, for wired expansion microphones/wired
sharing box, etc.
- 1 x Windows OPS slot
- 1 x AC power interface
- 1 x USB-B touch output interface
- 1 x Pluggable camera module interface (on the top

Packaging

- 1 x MeetingBoard Pro
- 1 x Cable pack
- 1 x 3m AC power cable
- 1 x 3m CAT5E unshielded network cable
- 4 x Stylus pens
- 3 x Cable ties
- 1 x Quick Start Guide
MB-WallMount is sold separately and not standard.

Environmental Factors

- Operating humidity: 5~95%
- Operating temperature: 0~40° C
- Storage temperature: -30~70° C

Power Supply

- Power Consumption
- MeetingBoard 65 Pro
- MAX: 243W
- Typical: 141W
MeetingBoard 75 Pro
- MAX:277W
- Typical:164W
-MeetingBoard 86 Pro
- MAX:357W
- Typical:199W
- Power adapter: 100-240V~50/60Hz
- USB output: 5V~0.5A
