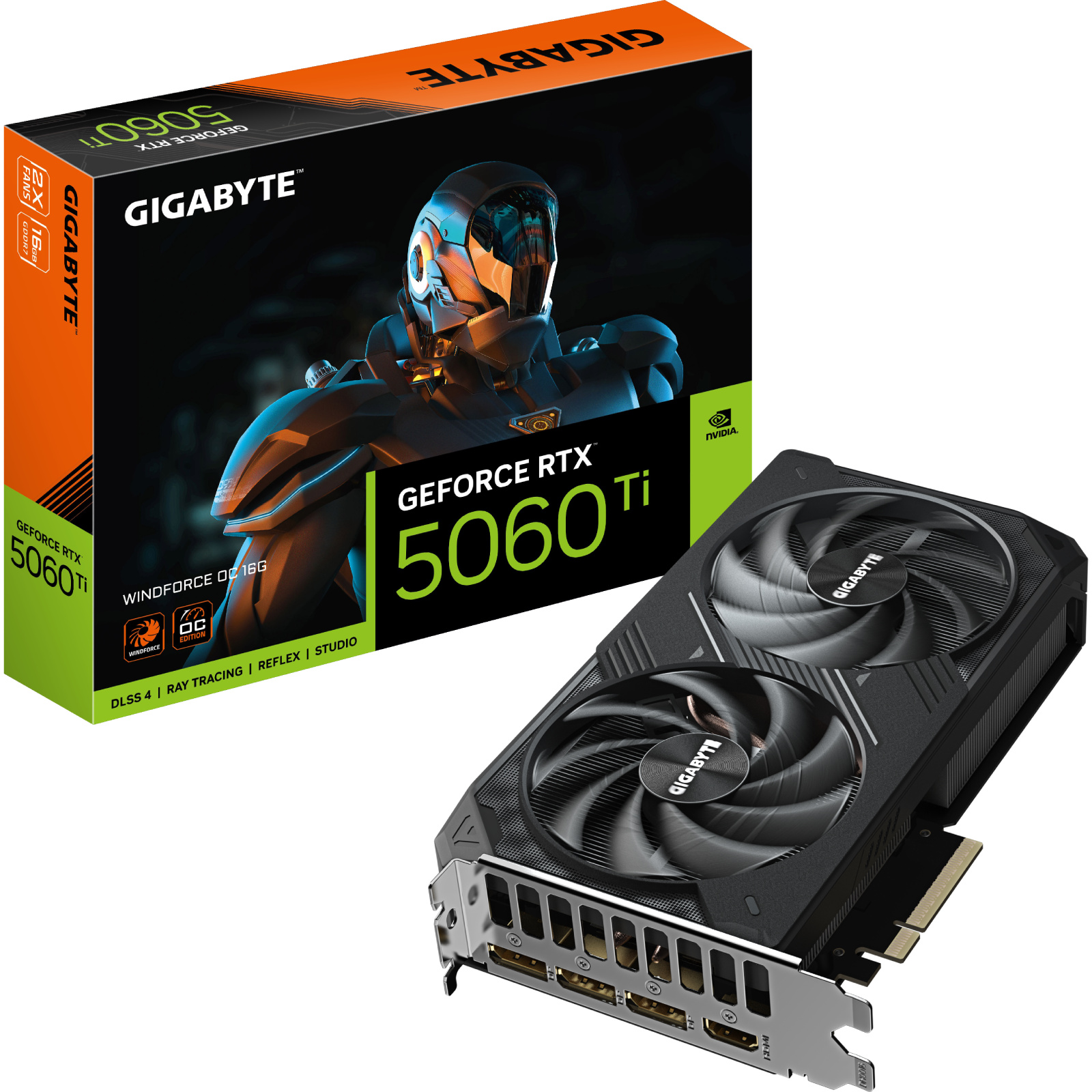

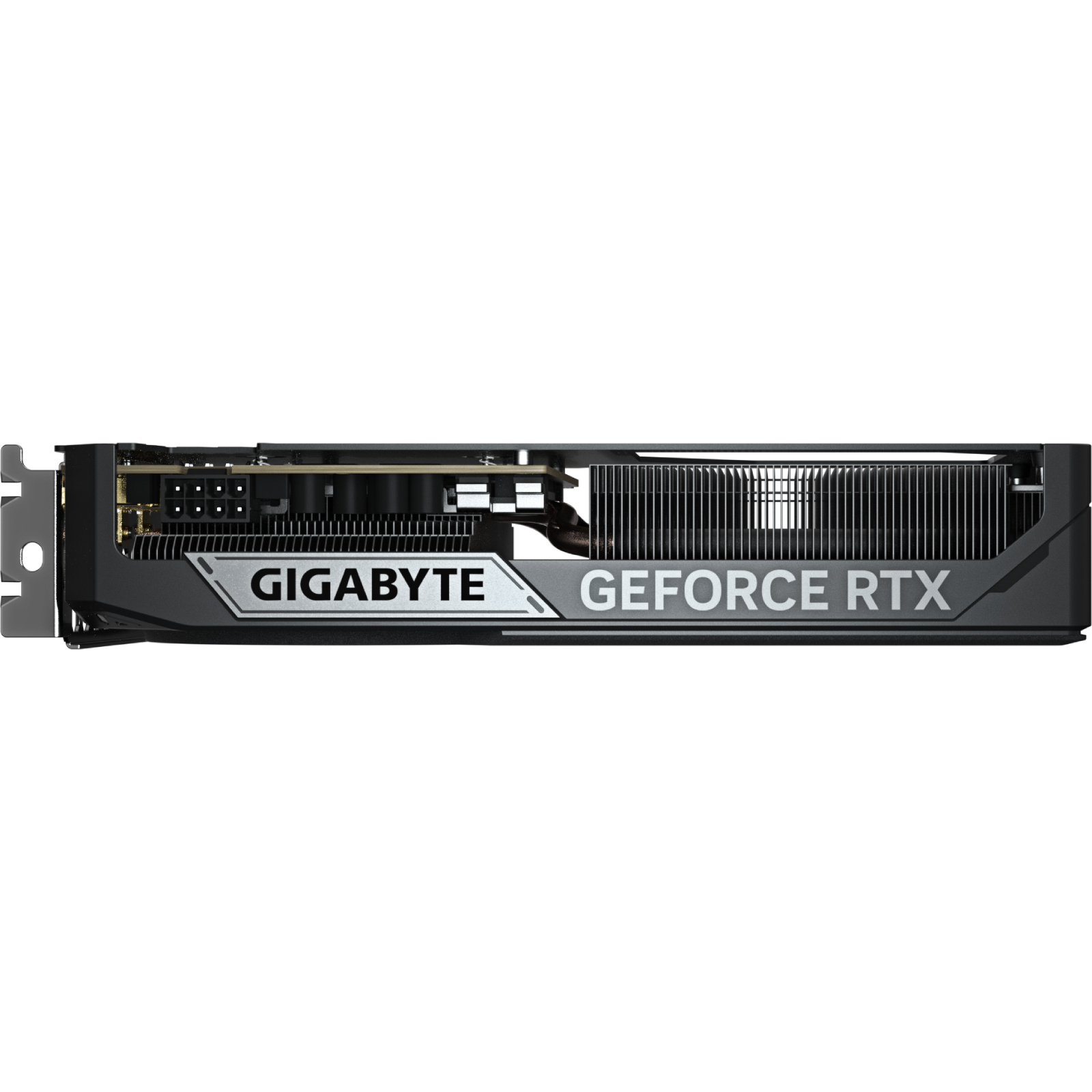

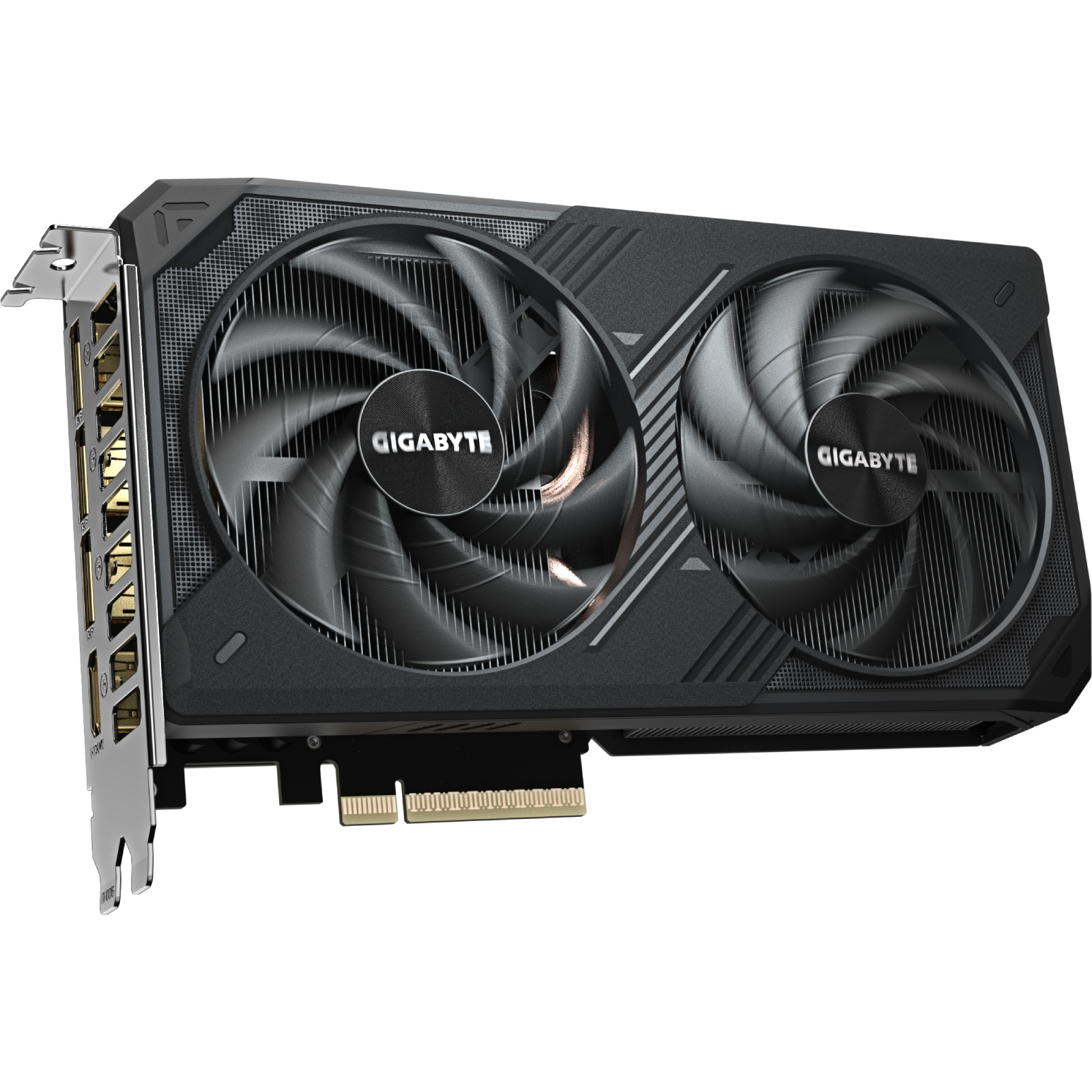

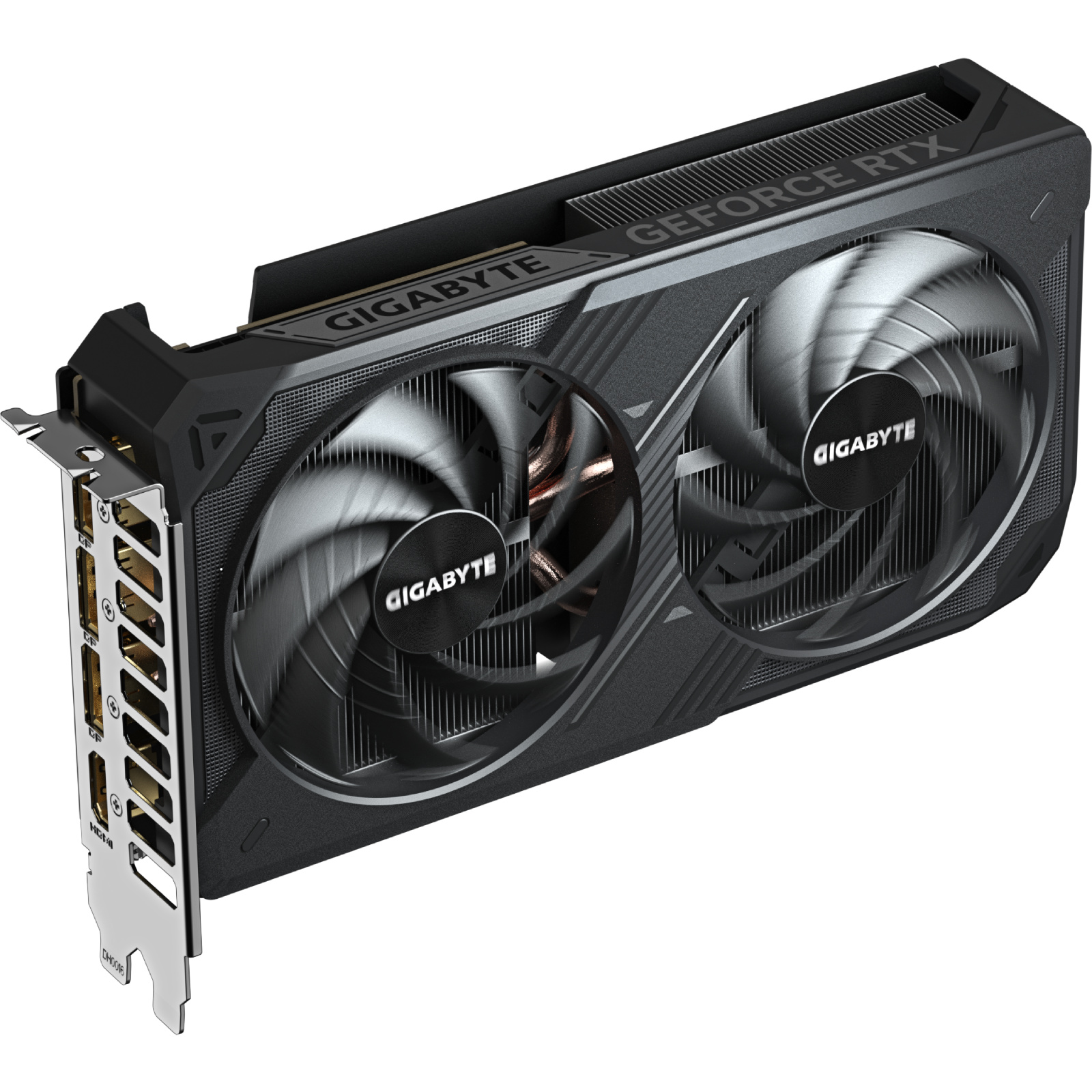

Gigabyte NVIDIA GeForce RTX 5060 Ti WINDFORCE OC 16GB GDDR7 Graphics Card
PCIE 5.0 - 2 Slot - 1x 8 Pin Power - Minimum 650W PSU
Gigabyte NVIDIA GeForce RTX 5060 Ti WINDFORCE OC 16GB GDDR7 Graphics Card
PCIE 5.0 - 2 Slot - 1x 8 Pin Power - Minimum 650W PSU
- Brand: Gigabyte
- MPN: GV-N506TWF2OC-16GD
- Part #: VGAGBV550610
- UPC: 889523049372
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Sometimes Im so glad im a procastinator lmao. I missed out on the 30 series and have been regretting it since. both the 30 and 40 series were too pricey for my financial situation ...view more"
COMBO DEALS: Frequently Bought Together







Cruxtec DisplayPort Cable - 2m V1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
$15.75 +GST
$18.11


Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB...
$56.40 +GST
$64.86


Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write -...
$180.90 +GST
$208.04


Cooler Master MWE Bronze V3 650W Power Supply 230V -ATX 3.1 80 Plus Bronze - MEPS Approved - 5 Years...
$93.48 +GST
$107.50
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Nvidia GeForce Desktop Graphics Cards





Gigabyte NVIDIA GeForce RTX 5060 Ti WINDFORCE OC 16GB GDDR7 Graphics Card PCIE 5.0 - 2 Slot - 1x 8 Pin Power - Minimum 650W PSU
- Brand: Gigabyte
- MPN: GV-N506TWF2OC-16GD
- Part #: VGAGBV550610
- UPC:889523049372

Product URL: https://www.pbtech.co.nz/product/VGAGBV550610/Gigabyte-NVIDIA-GeForce-RTX-5060-Ti-WINDFORCE-OC-1
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 1 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 1 | |
Penrose | 3 | |
Henderson (Express) | 0 | |
St Lukes | 2 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 1 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 9 | |
Hornby | 2 | |
Christchurch Central | 0 |
Features
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
The extended heatsink allows air to pass through, effectively dissipating heat.
METAL BACKPLATE
The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AI TOP UTILITY
GIGABYTE Graphics Cards are tested and validated under the actual AI training workloads, making them also perfectly fit into the AI TOP Solution paired with other AI TOP series hardware, AI TOP Utility, and AI TOP Tutor software.
GIGABYTE AI TOP is an all-around solution and has advantages ahead of traditional AI training methods.
Supports the most common open-source LLMs, it features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, and even more, doing training in any place even on your desk.
The GIGABYTE GeForce RTX 50 Series fully support AI TOP Utility.
Specifications
Graphics Processing
GeForce RTX™ 5060 Ti
Core Clock
2587 MHz
CUDA® Cores
TBD
Memory Clock
28Gb/s
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=208 W=120 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1
Output
DP2.1 x3, HDMI2.1 x1
RGB Lighting
N/A
Accessories
Quick guide
