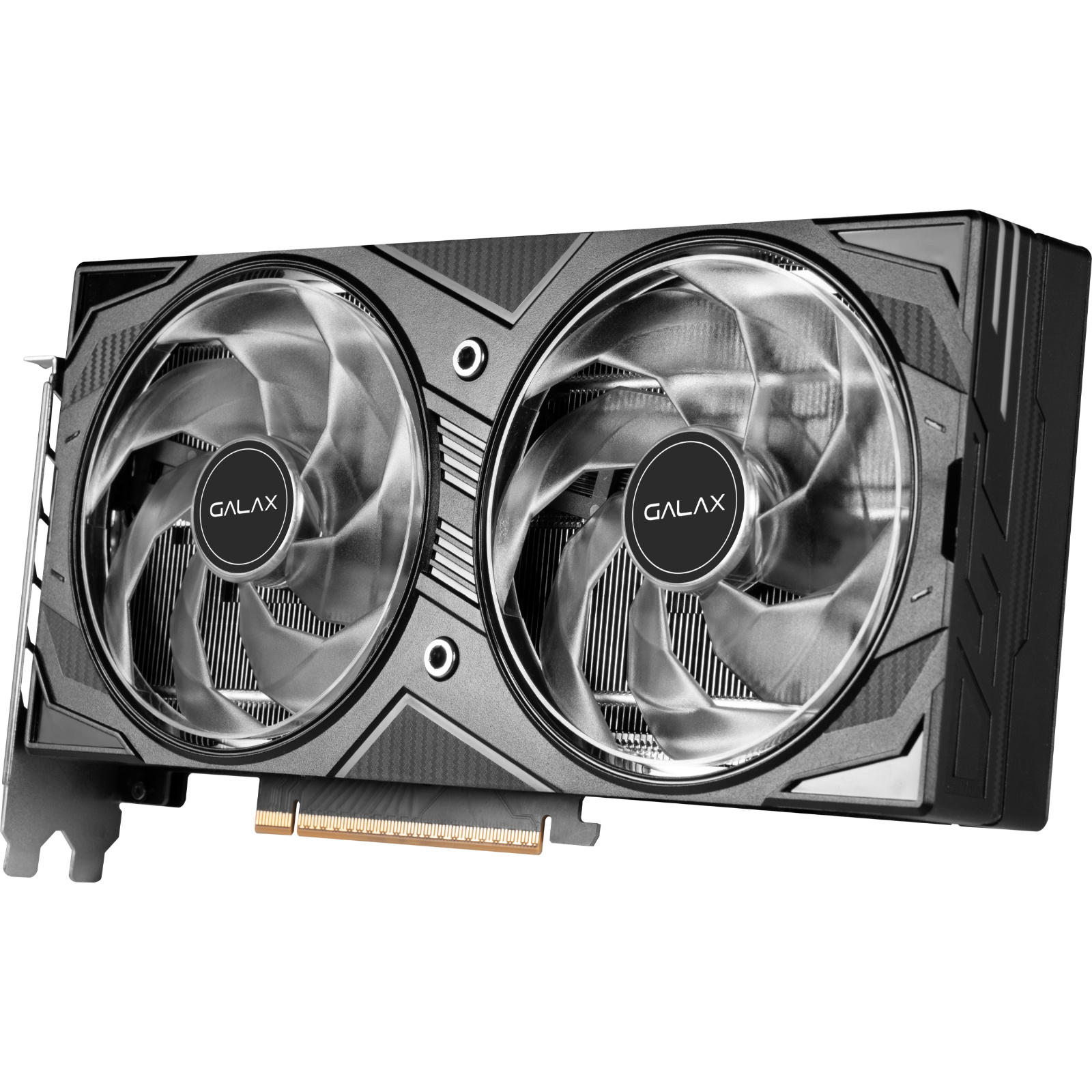

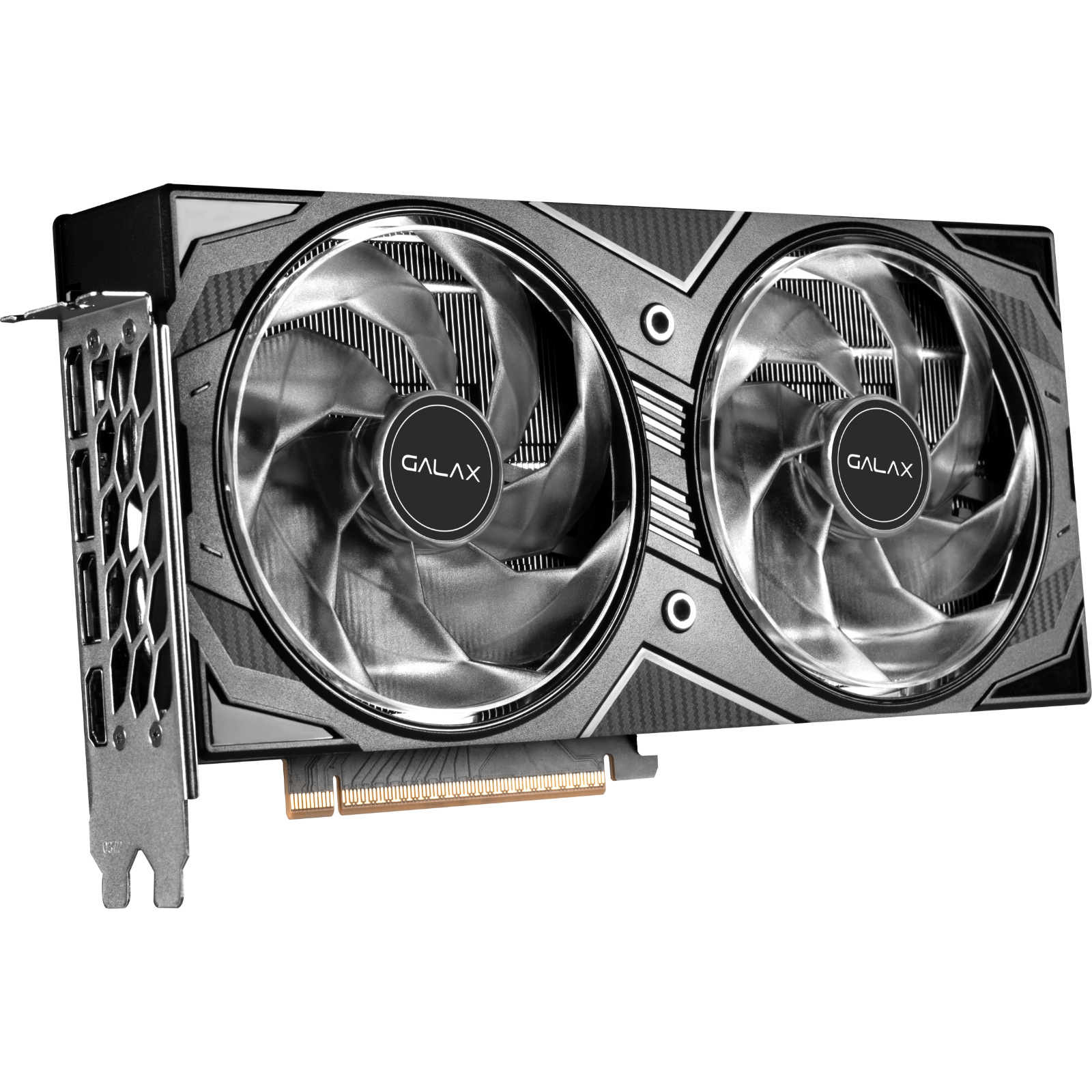

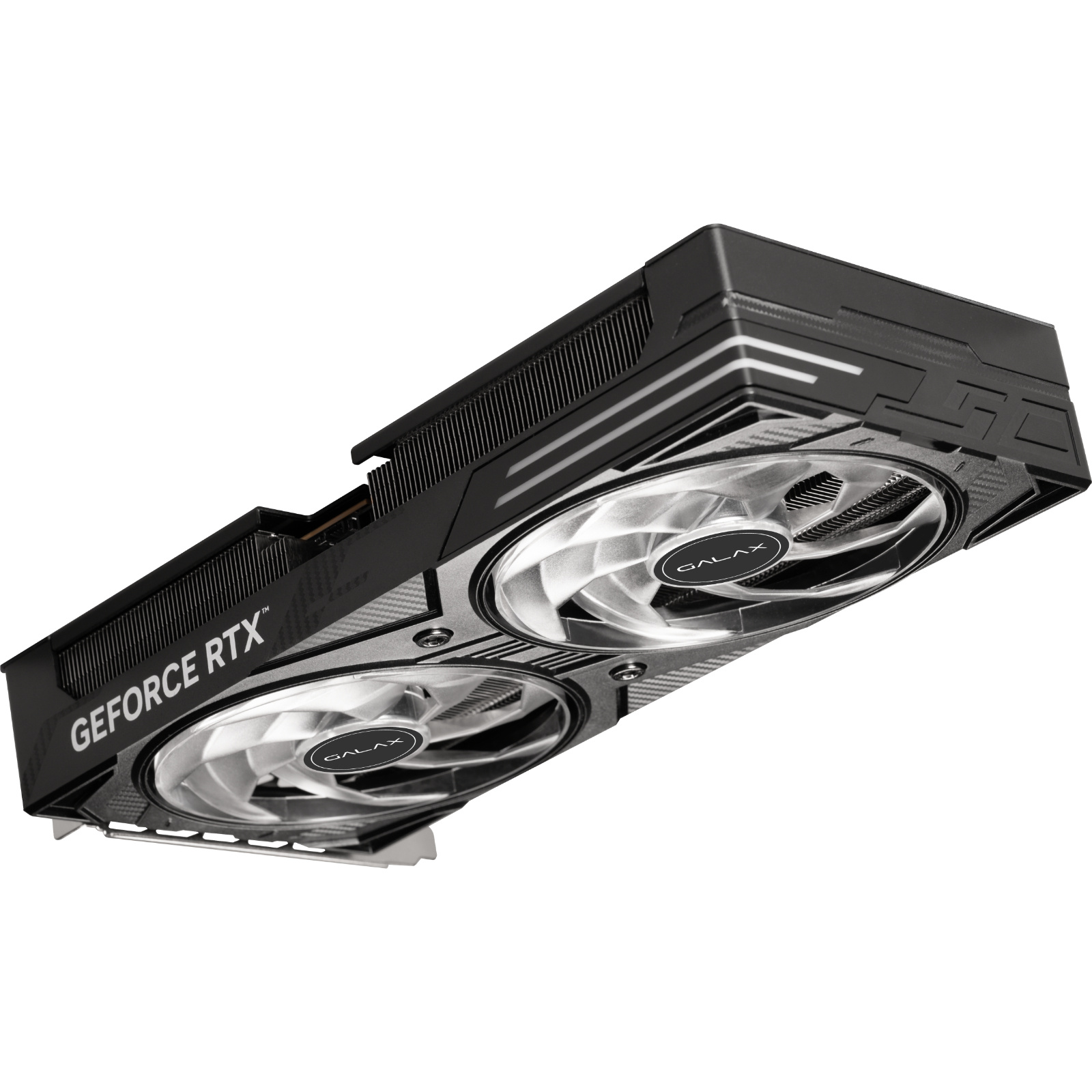

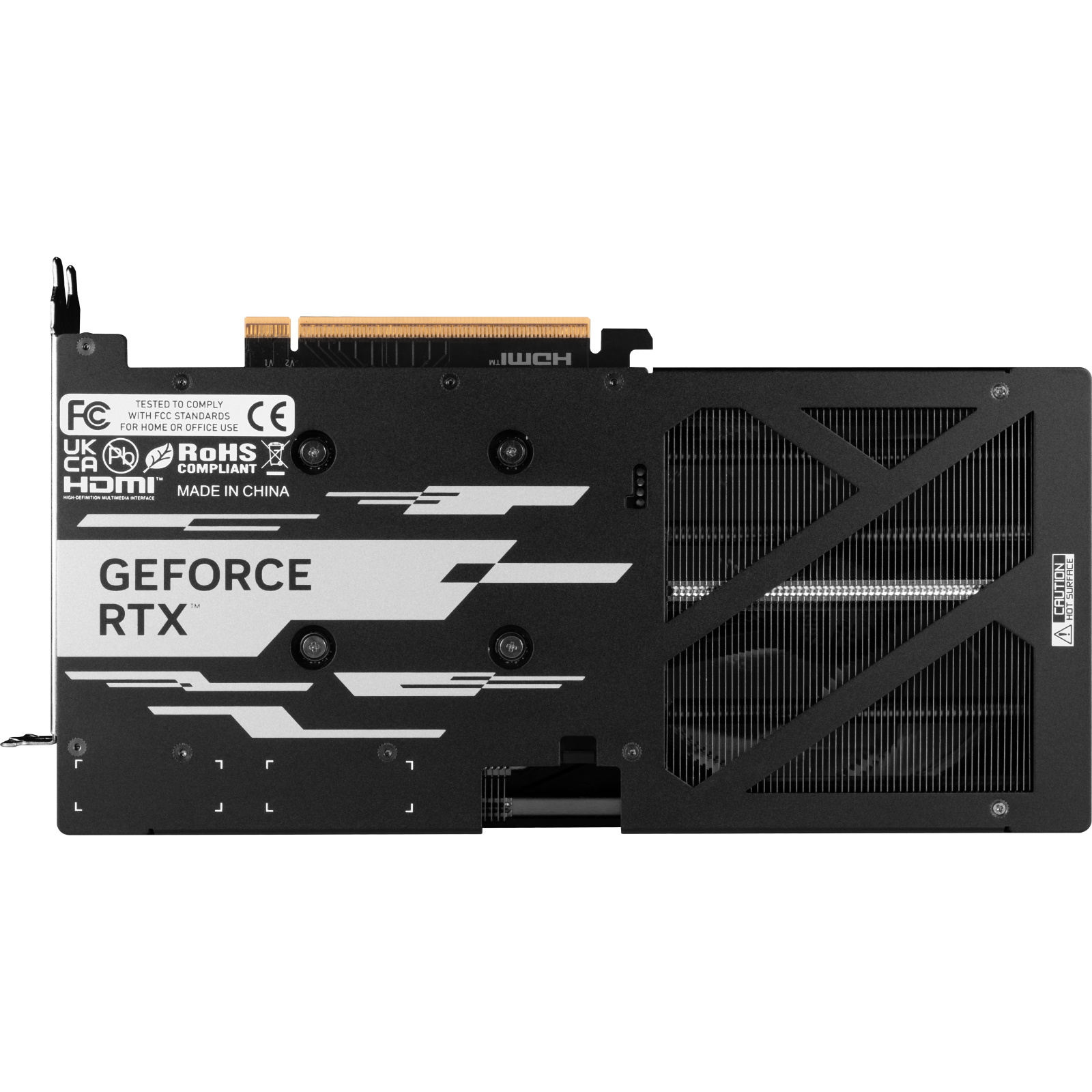

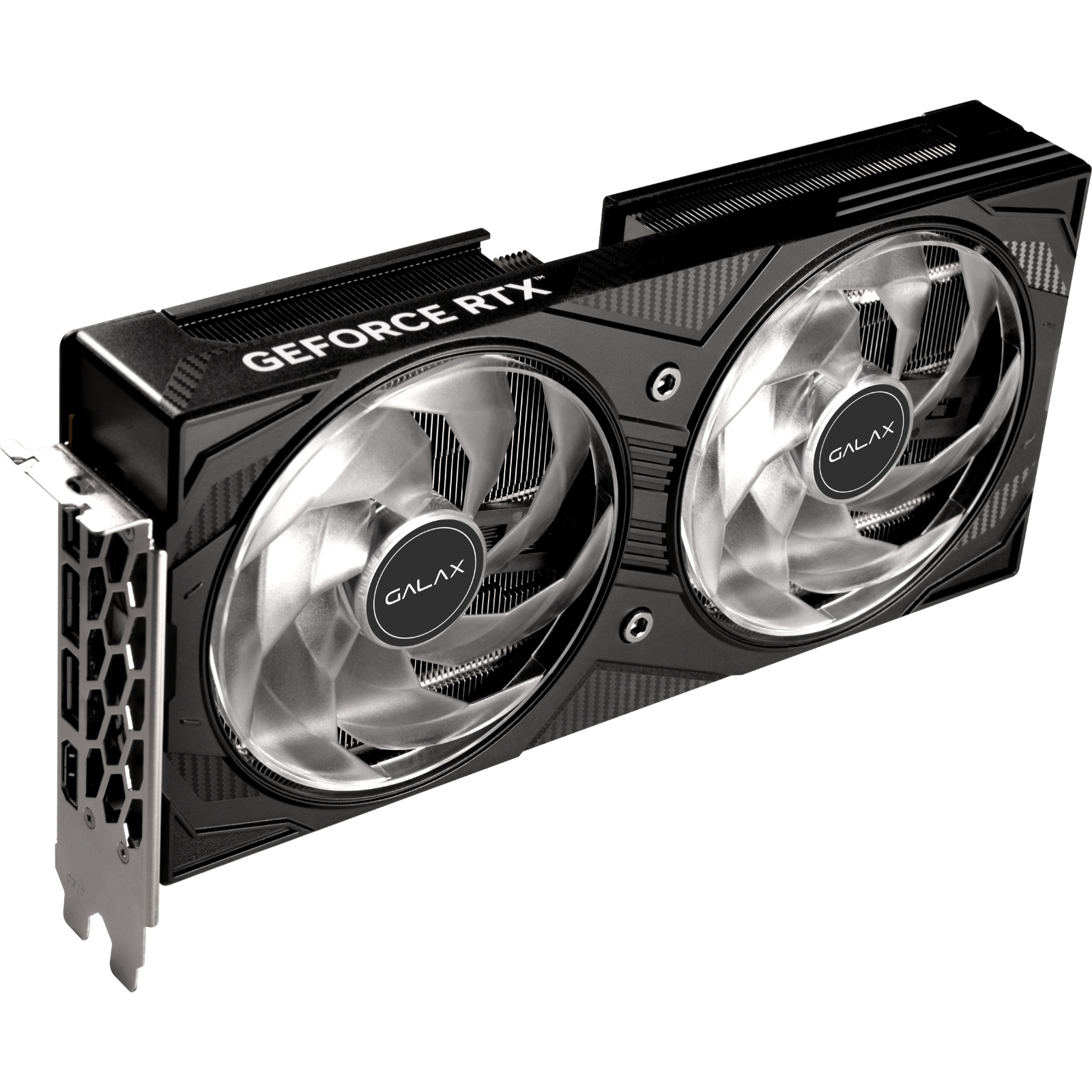

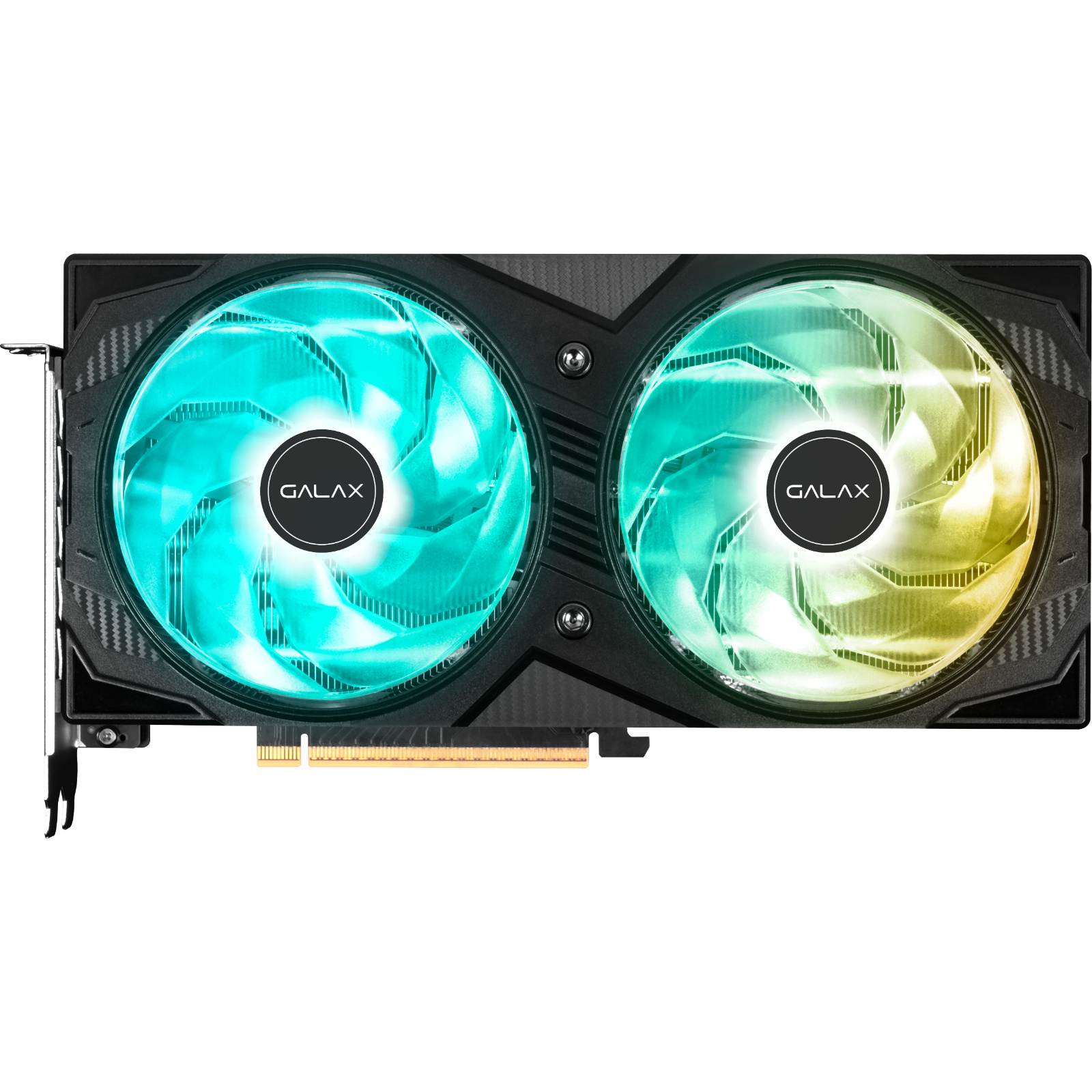

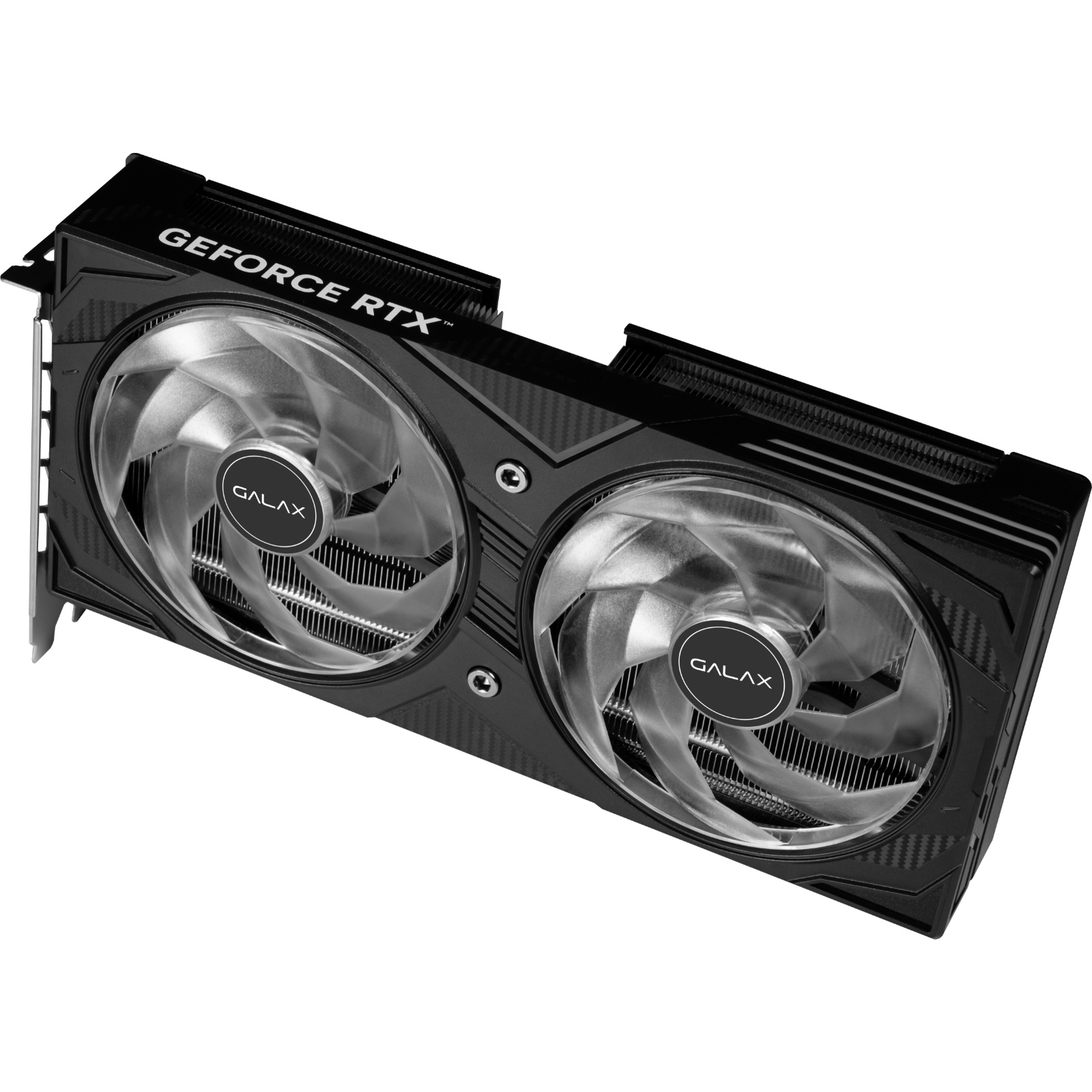

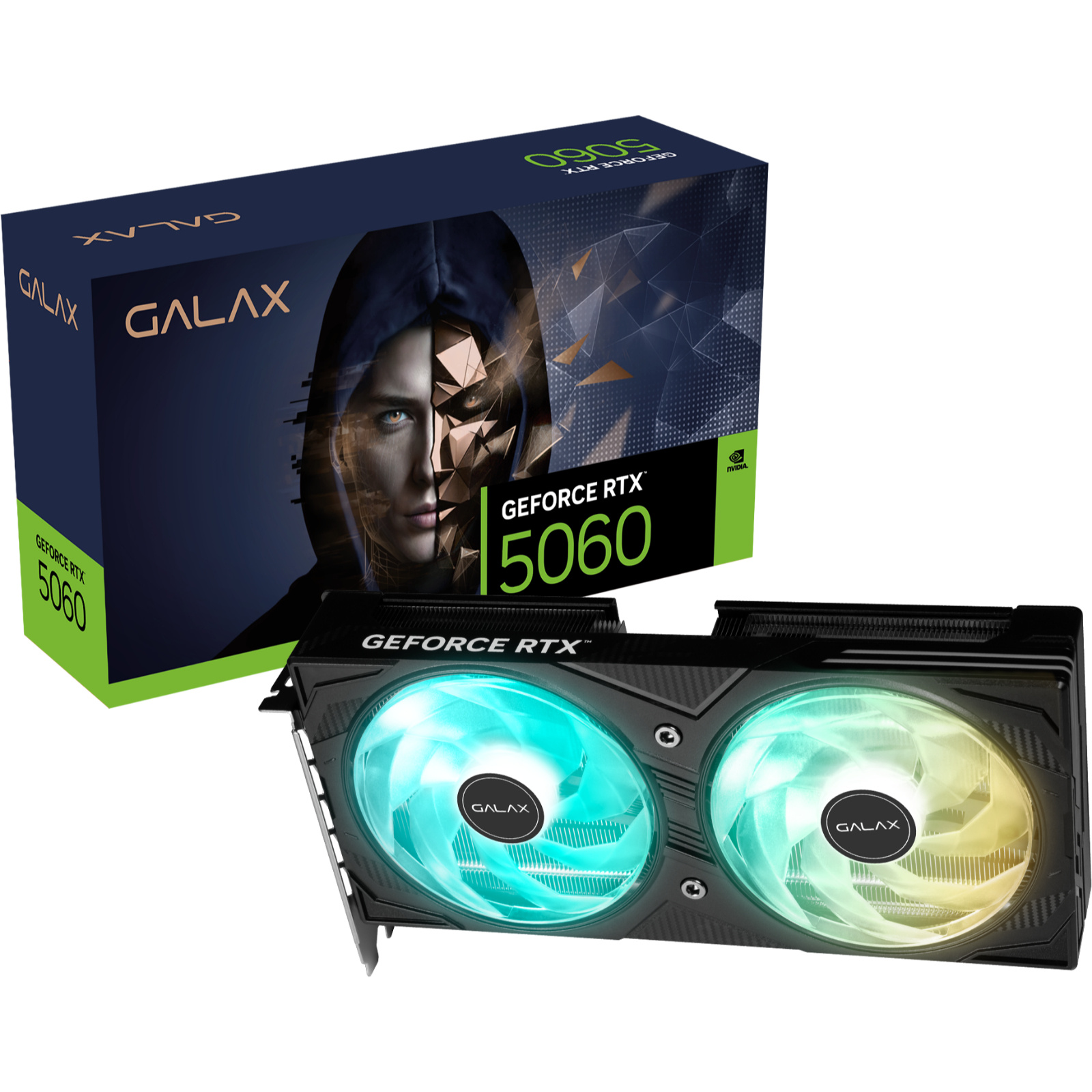

GALAX NVIDIA GeForce RTX 5060 EX 8GB GDDR7 Black Graphics Card
2 Slot - 1x 8 Pin Power - Minimum 550W PSU
GALAX NVIDIA GeForce RTX 5060 EX 8GB GDDR7 Black Graphics Card
2 Slot - 1x 8 Pin Power - Minimum 550W PSU
- Brand: GALAX
- MPN: 56NSN8MDDAEX
- Part #: VGAGLX050602
- UPC:
- Brand: GALAX
- MPN: 56NSN8MDDAEX
- Part #: VGAGLX050602
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Nvidia GeForce Desktop Graphics Cards





GALAX NVIDIA GeForce RTX 5060 EX 8GB GDDR7 Black Graphics Card 2 Slot - 1x 8 Pin Power - Minimum 550W PSU
- Brand: GALAX
- MPN: 56NSN8MDDAEX
- Part #: VGAGLX050602

Product URL: https://www.pbtech.co.nz/product/VGAGLX050602/GALAX-NVIDIA-GeForce-RTX-5060-EX-8GB-GDDR7-Black-G
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 30+ | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
GALAX GeForce RTX™ 5060 EX 8GB GDDR7 128-bit/DP2.1b*3/HDMI 2.1b/DLSS 4
Joining the GeForce RTX 50 Series family, the NVIDIA GALAX GeForce RTX 5060 EX takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 102mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA's newest Blackwell architecture.
It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.
- Powered by the NVIDIA Blackwell Architecture and DLSS 4
- Dedicated Tensor Cores
- Dedicated RT Cores
- Microsoft DirectX® 12 Ultimate
- GDDR7 Graphics Memory
- NVIDIA DLSS 4
- NVIDIA® App
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready and NVIDIA Studio Drivers
- DisplayPort 2.1b, HDMI 2.1b
- VR Ready
Specifications
GPU Engine Specs
CUDA Cores: 3840
Boost Clock: 2535MHz
1-Click OC Clock: 2550MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs
Memory Speed: 28 Gbps
Standard Memory Config: 8GB
Memory Interface Width 128-bit GDDR7
Memory Bandwidth: 272 GB/sec
Feature Support
PCI-E 4.0
Windows 10/11 64-bit
Fan Feature
2 * 102mm
WINGS 3.0 with Fan stop @ Idle (All Fans)
Display Support

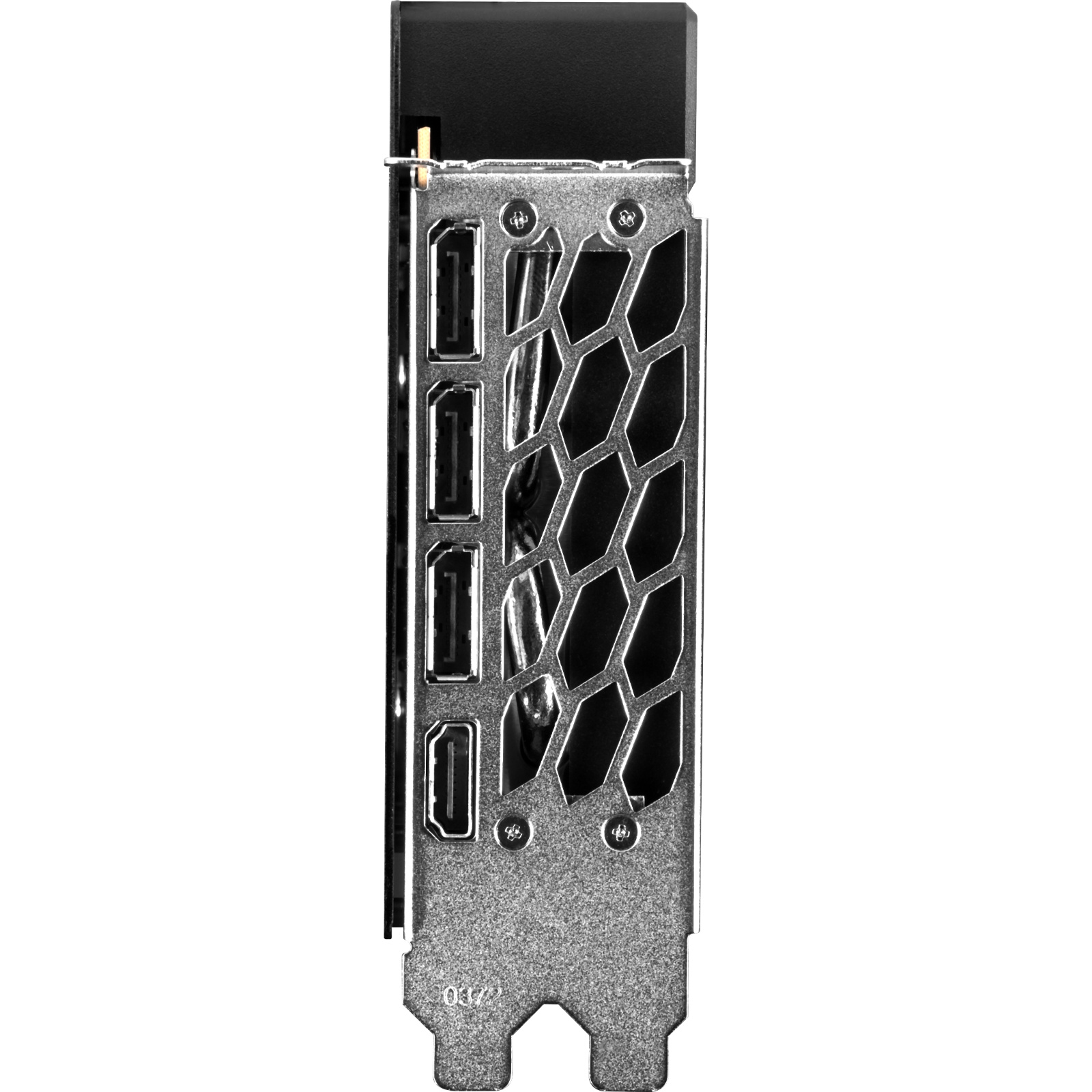

DisplayPort 2.1b x 3, HDMI 2.1b x 1
Dimensions
Dimensions(with Bracket): 264 * 145 * 41mm
Dimensions(without Bracket): 251 * 130 * 40mm
In Box Accessories
1-Click Sync Pro cable
Requirement
PCI Express-compliant motherboard with one x16 graphics slot
System Space for 2-slot card required

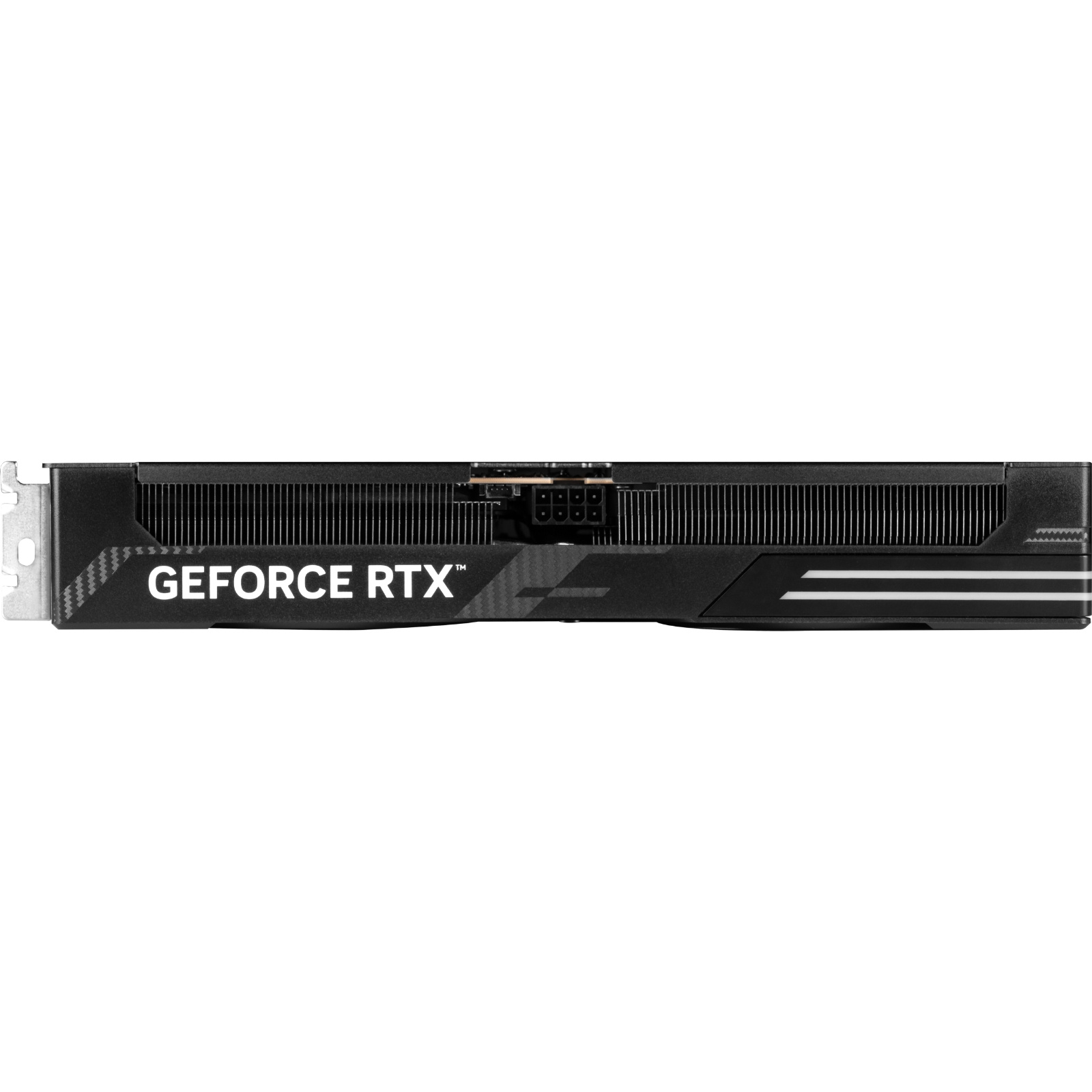

PSU with 1 x PCIe 8-pin power connector
Minimum 550W or greater system power supply (Minimum is based on a PC configured with a Ryzen 9 9950X processor. Power requirements can be different depending on system configuration.)
32GB system memory recommended)
Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
