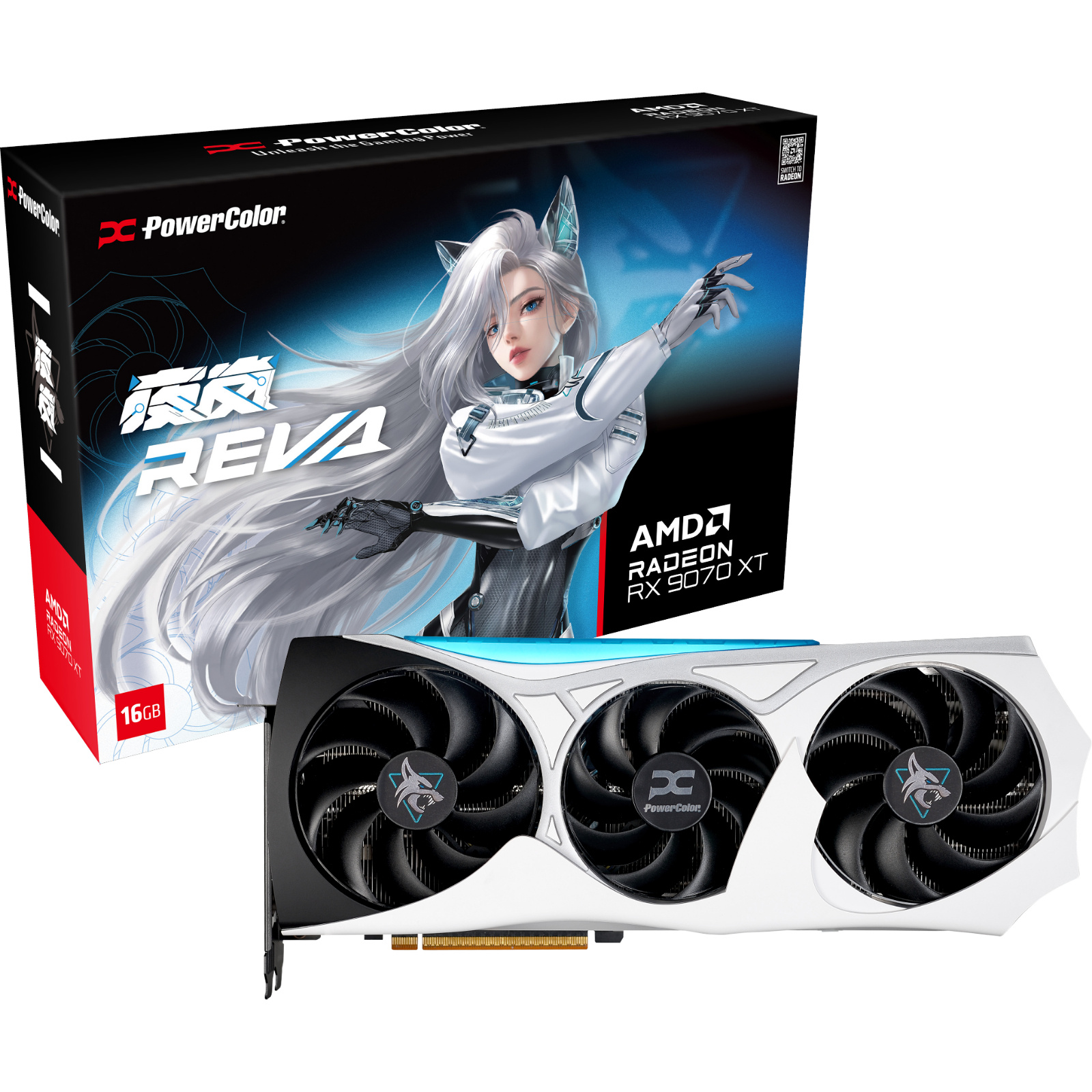

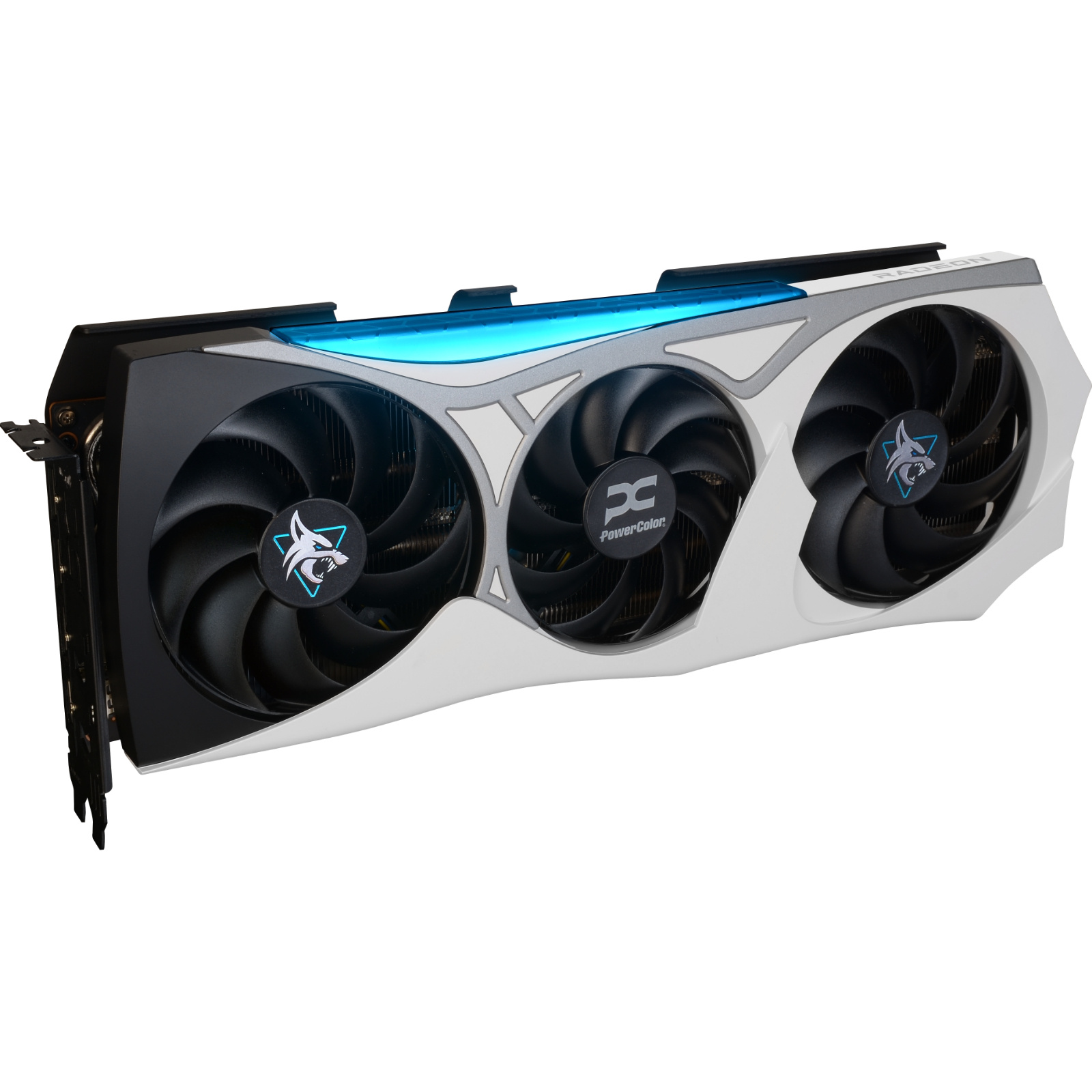

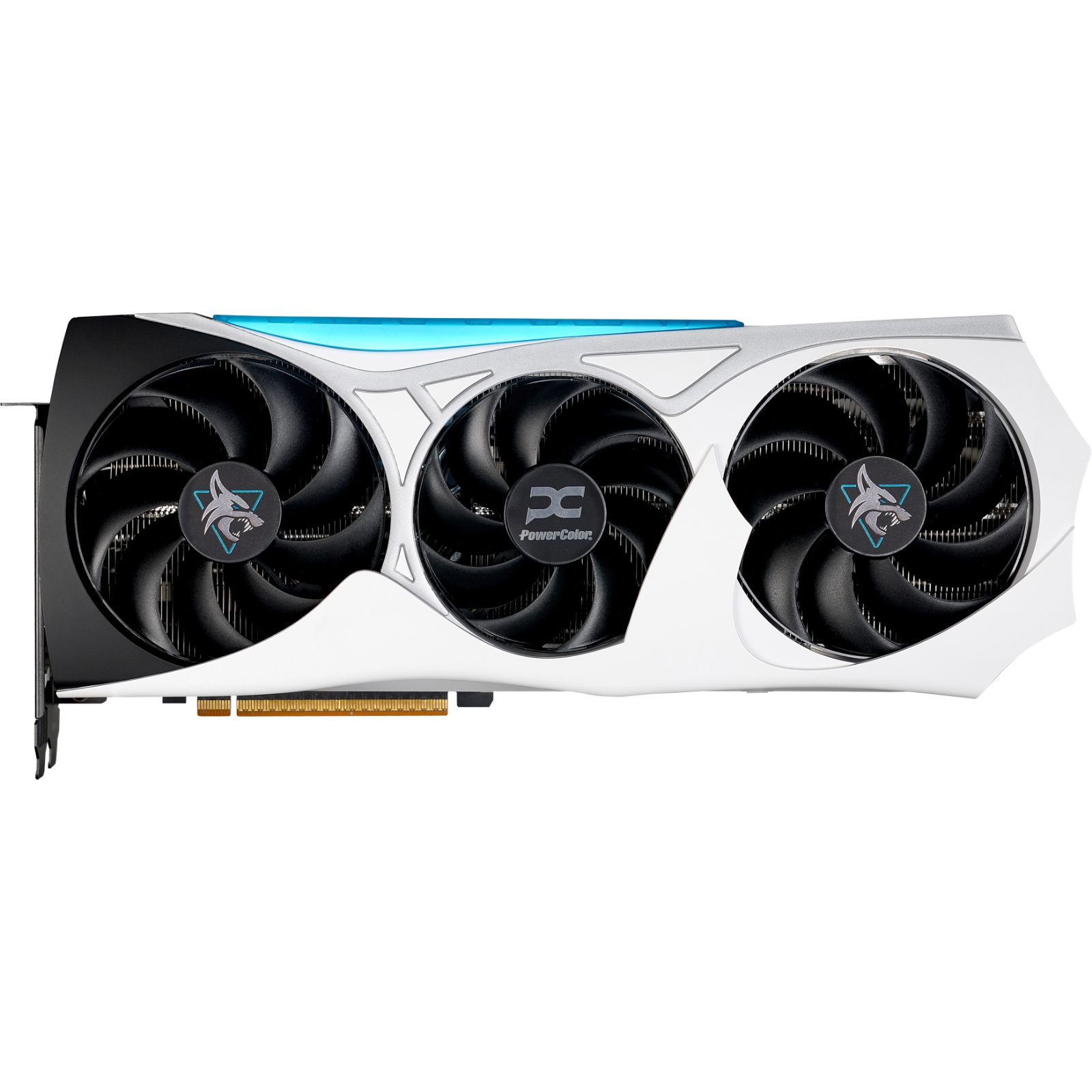

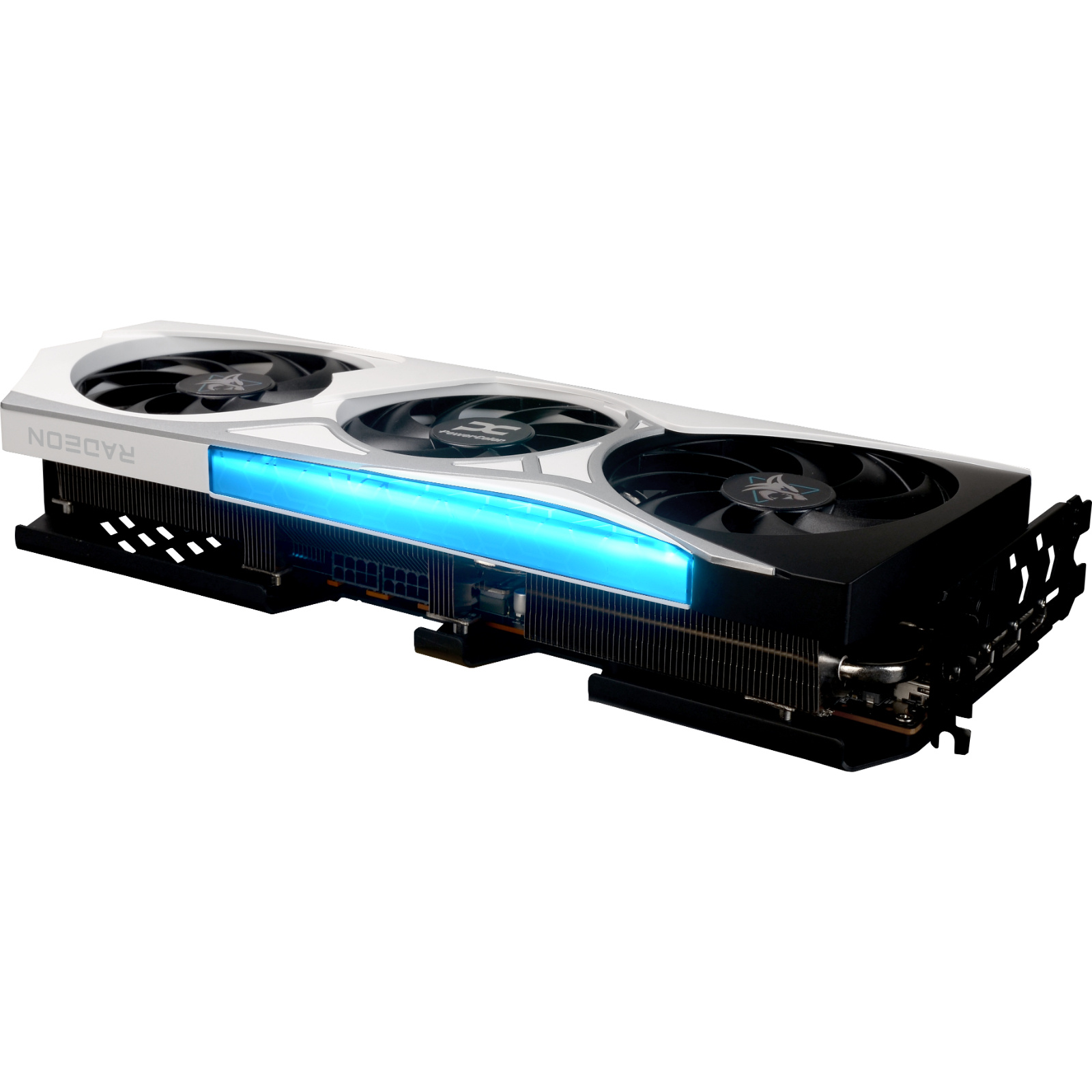

Powercolor Hellhound AMD Radeon RX 9070 XT Reva Edition 16GB GDDR6 Graphics Card
PCIE 5.0 - 2.5 Slot - 2x 8 Pin Power - Minimum 800W PSU
Powercolor Hellhound AMD Radeon RX 9070 XT Reva Edition 16GB GDDR6 Graphics Card
PCIE 5.0 - 2.5 Slot - 2x 8 Pin Power - Minimum 800W PSU
- Brand: Powercolor
- MPN: RX9070XT 16G-L/OC/REVA
- Part #: VGAPOW290725
- UPC:
- Brand: Powercolor
- MPN: RX9070XT 16G-L/OC/REVA
- Part #: VGAPOW290725
- UPC:
COMBO DEALS: Buy Together and SAVE!
Cruxtec 2m DisplayPort Cable v1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
$17.02 +GST
$19.57
Phanteks M25 G2 120mm PWM ARGB Fan Black, 3 Pack
$41.00 +GST
$47.15
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$266.66 +GST
$306.66
Cooler Master MWE Gold 850W V2 Black ATX 3.1 Power Supply 80 Plus Gold - Fully Modular - 5 Years...
$145.60 +GST
$167.44
Features
Elevating your Setup

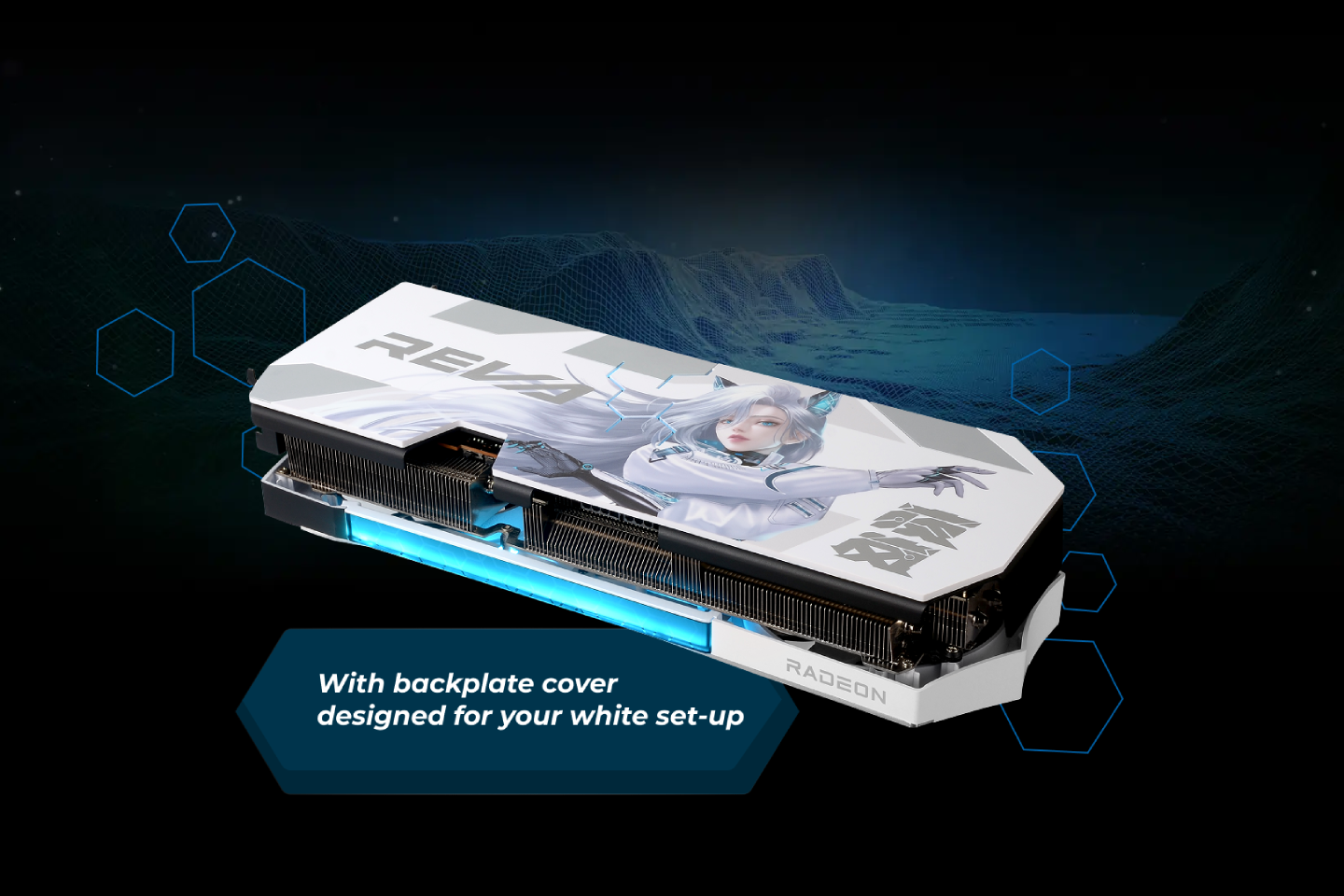

Free wallpaper to complete your Reva Set up

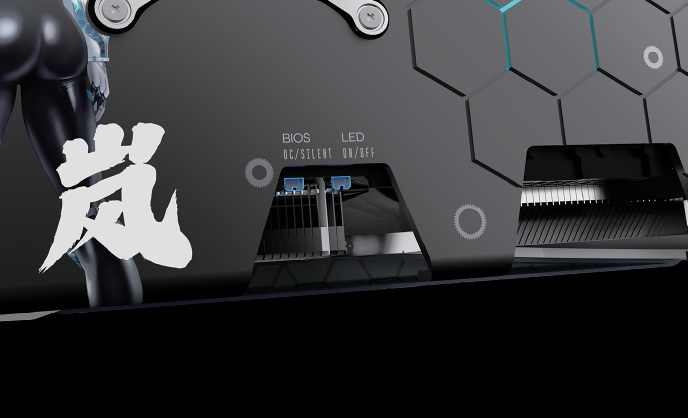

Dual BIOS - Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control - Precise Temperature Sensor Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

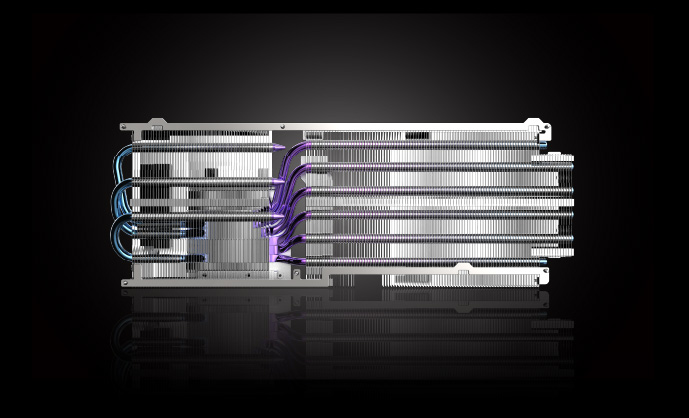

Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.

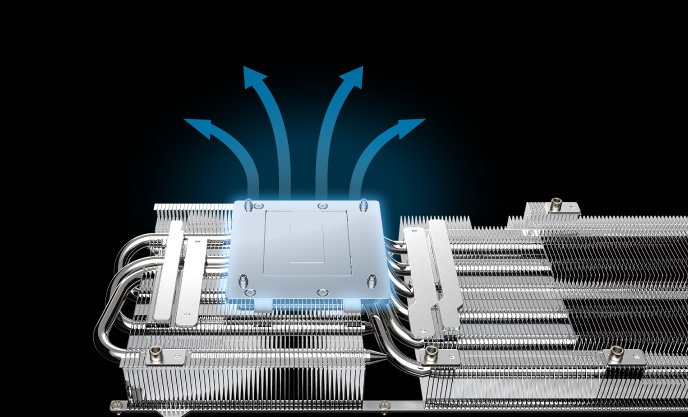

Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Experience Cutting-Edge Graphics Card for Gamers

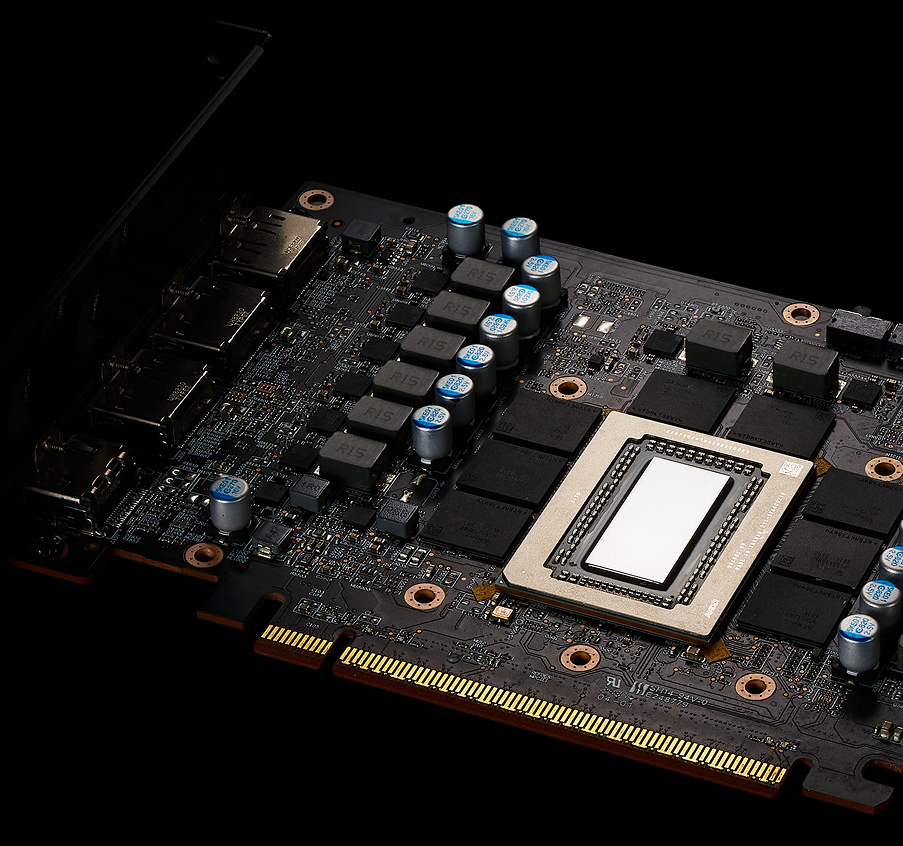

High-Efficiency DrMOS Power Module - Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB - Enhanced Signal Stability for Uninterrupted Performance
Crafted with 12-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.

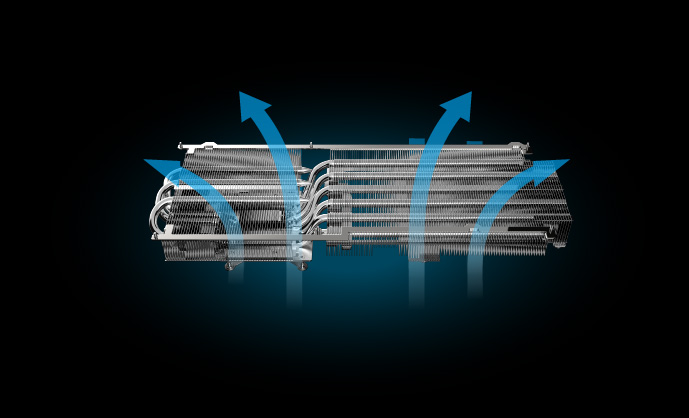

Engineered for Rapid Cooling - Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.

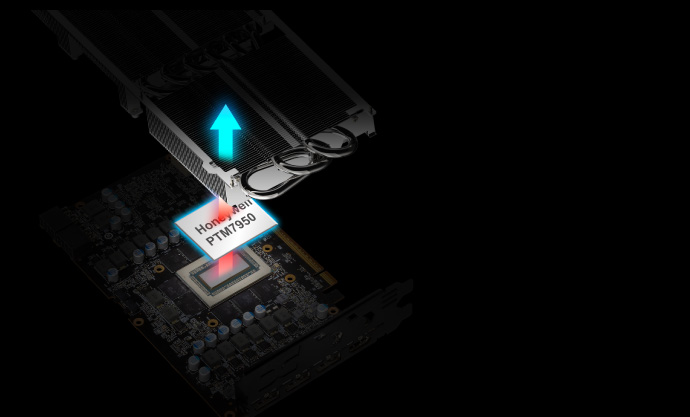

Honeywell PTM7950 - Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.

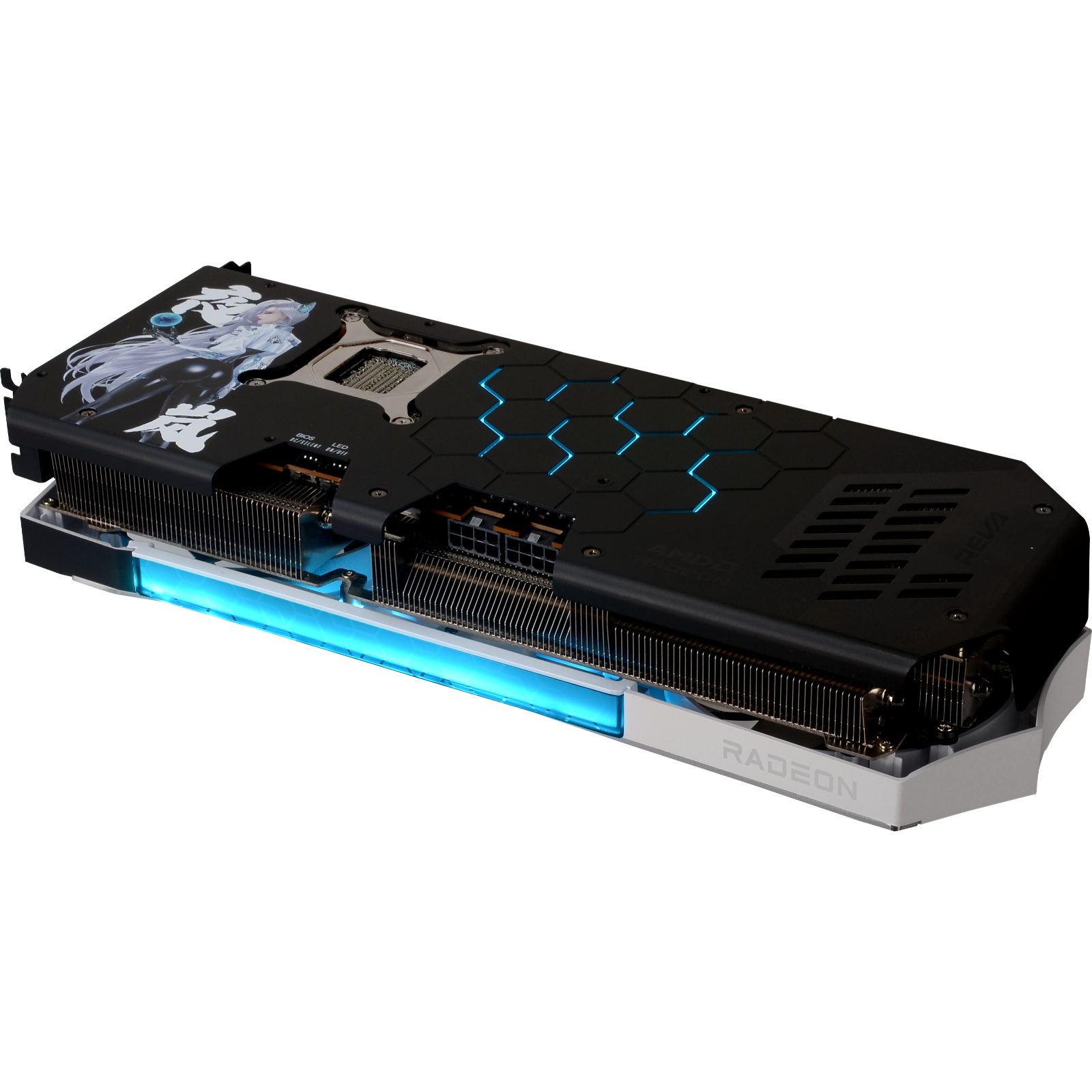

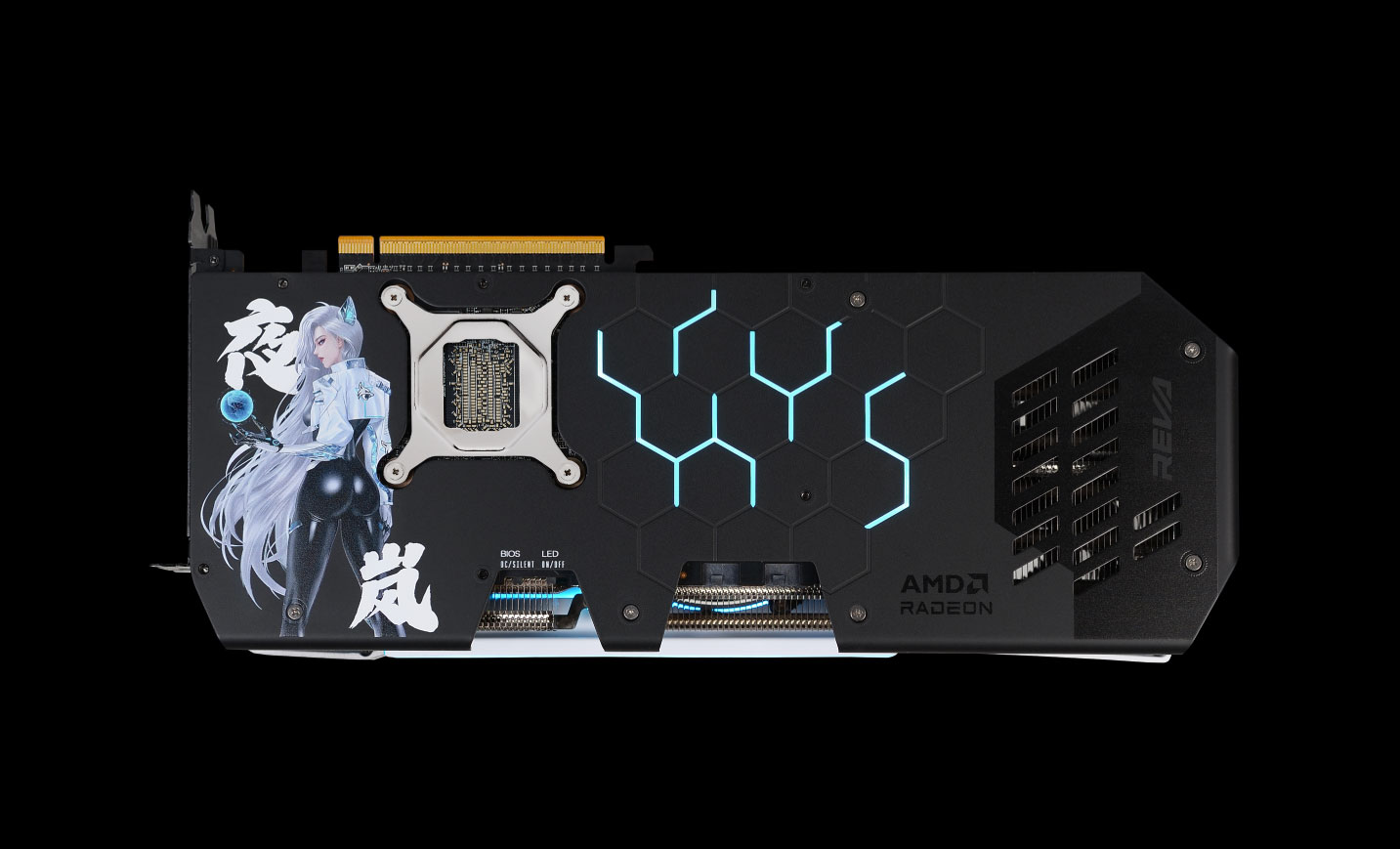

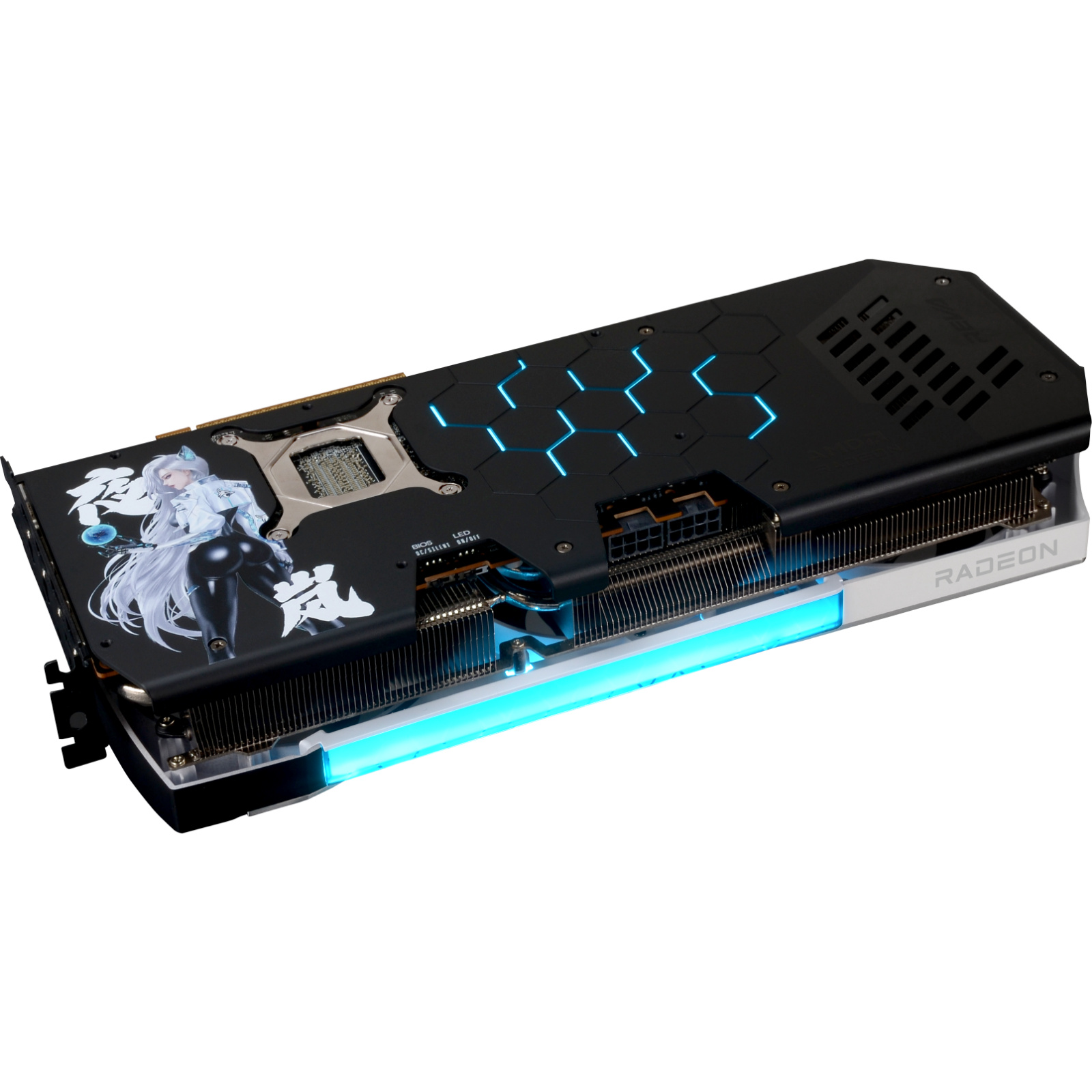

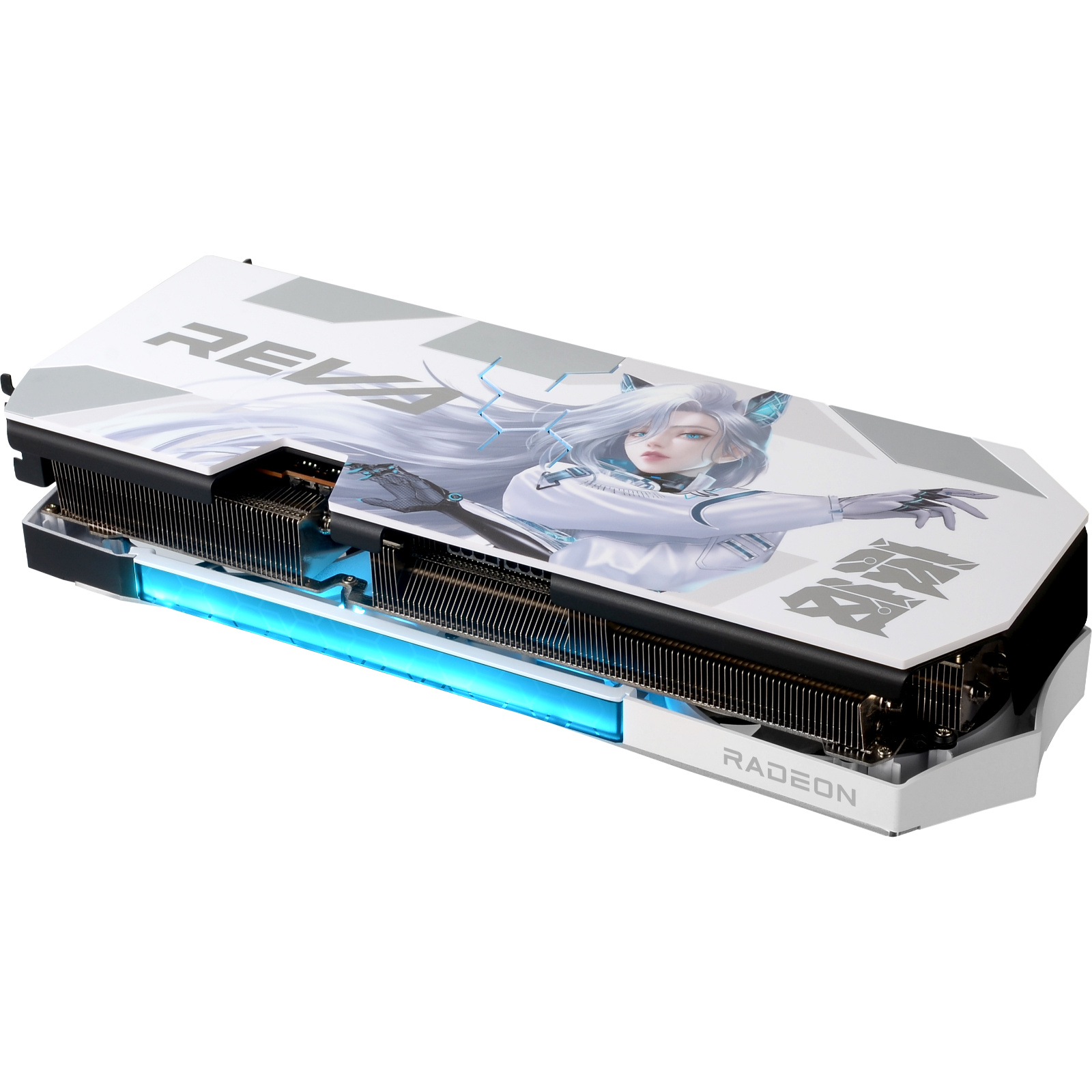

Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.

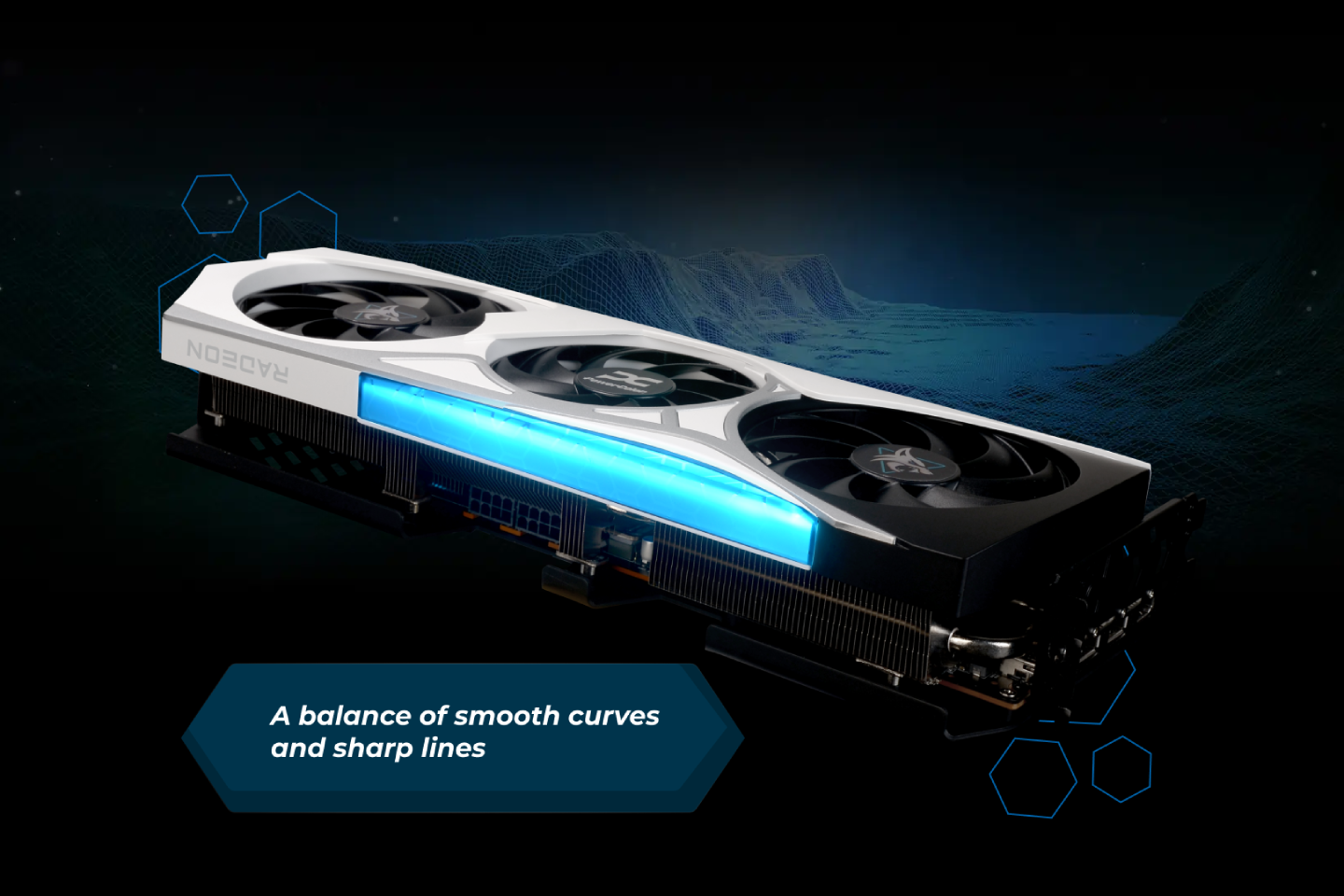

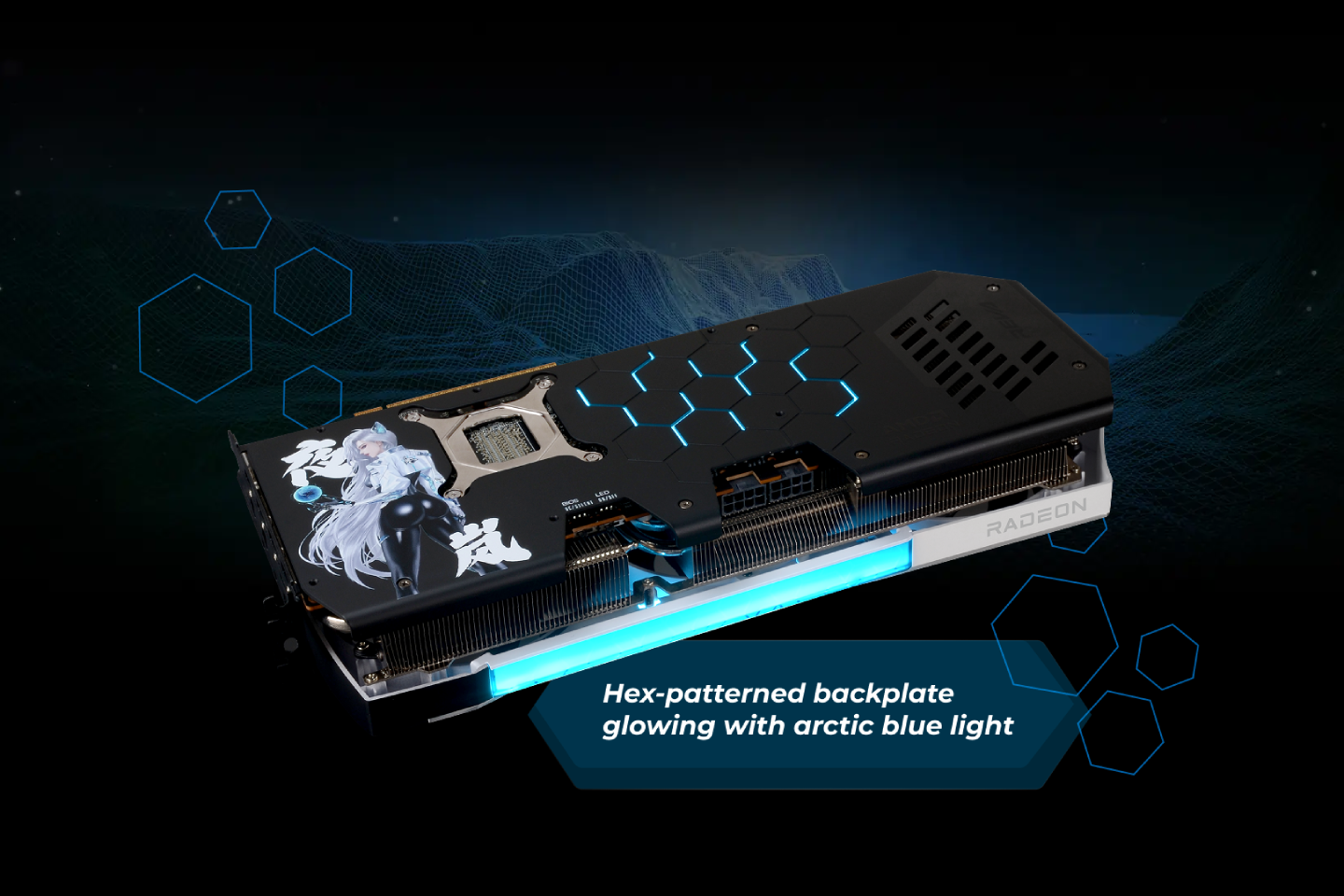

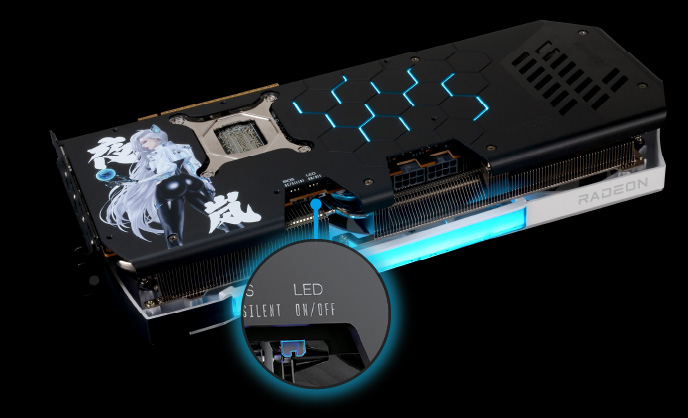

Arctic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.
AMD RDNA™ 4 Architecture
New AMD RDNA™ 4 architecture features 3rd Gen raytracing and 2nd Gen AI accelerators to deliver the performance you need to max out your gaming.
AMD FreeSync™ Technology*
Pair with AMD certified AMD FreeSync™ technology-enabled monitors for an exceptional stutter and tear-free gaming experience.
AMD HYPR-RX*
With a single click, automatically enable all the performance boosting, latency reducing features from AMD Software in thousands of games.
AMD Radeon™ Anti-Lag 2*
Ultra-low-latency gaming, and when combined with AMD FSR advanced frame generation, it delivers ultra-smooth, ultra-responsive high FPS experiences.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular AMD Radeon Desktop Graphics Cards
XFX SPEEDSTER MERC 310 AMD Radeon RX 7900 XTX 24GB GDDR6 Black...
Powercolor Reaper AMD Radeon RX 9060 XT 16GB GDDR6 Graphics Card...
XFX Speedster SWFT210 AMD Radeon RX 7700 XT 12GB GDDR6 Graphics...
ASUS PRIME AMD Radeon RX 9060 XT OC 16GB GDDR6 Graphics Card PCIE...
ASRock AMD Radeon RX 9070 XT Challenger 16GB GDDR6 Graphics Card...
Powercolor Hellhound AMD Radeon RX 9070 XT Reva Edition 16GB GDDR6 Graphics Card PCIE 5.0 - 2.5 Slot - 2x 8 Pin Power - Minimum 800W PSU
- Brand: Powercolor
- MPN: RX9070XT 16G-L/OC/REVA
- Part #: VGAPOW290725
Product URL: https://www.pbtech.co.nz/product/VGAPOW290725/Powercolor-Hellhound-AMD-Radeon-RX-9070-XT-Reva-Ed
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 30+ | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Elevating your Setup
Free wallpaper to complete your Reva Set up
Dual BIOS - Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control - Precise Temperature Sensor Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Experience Cutting-Edge Graphics Card for Gamers
High-Efficiency DrMOS Power Module - Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB - Enhanced Signal Stability for Uninterrupted Performance
Crafted with 12-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
Engineered for Rapid Cooling - Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.
Honeywell PTM7950 - Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.
Arctic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.
AMD RDNA™ 4 Architecture
New AMD RDNA™ 4 architecture features 3rd Gen raytracing and 2nd Gen AI accelerators to deliver the performance you need to max out your gaming.
AMD FreeSync™ Technology*
Pair with AMD certified AMD FreeSync™ technology-enabled monitors for an exceptional stutter and tear-free gaming experience.
AMD HYPR-RX*
With a single click, automatically enable all the performance boosting, latency reducing features from AMD Software in thousands of games.
AMD Radeon™ Anti-Lag 2*
Ultra-low-latency gaming, and when combined with AMD FSR advanced frame generation, it delivers ultra-smooth, ultra-responsive high FPS experiences.
Specifications
Graphics Engine
AMD Radeon™ RX 9070 XT
Model Name
RX9070XT 16G-L/OC/REVA
Series
Hellhound Reva
Stream Processor
4096 Units
Video Memory
16GB GDDR6
Memory Speed
20.0 Gbps
Memory Interface
256-bit
Engine Clock(OC)
up to 2460MHz(Game)[1]
up to 3010MHz(Boost)[2]
Engine Clock(STD/Silent)
up to 2400MHz(Game)[1]
up to 2970MHz(Boost)[2]
Bus Standard
PCIE 5.0 x16

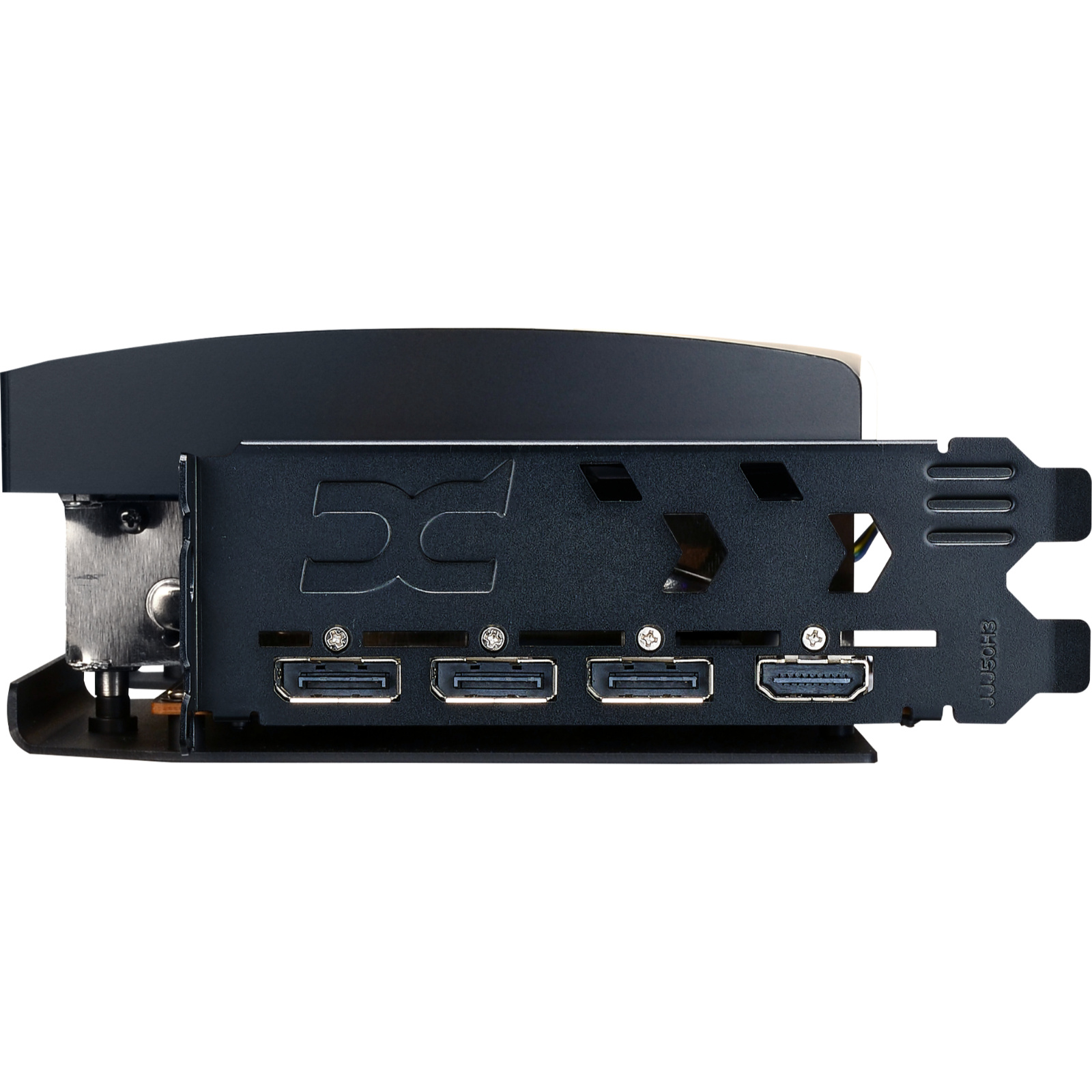

Standard Display Connectors
1 x HDMI 2.1b，3 x DisplayPort 2.1a
DirectX® Support
12
OpenGL
4.6
AMD Eyefinity Technology
Support
AMD Stream Technology
Support
AMD Smart Access Memory
Support
Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320

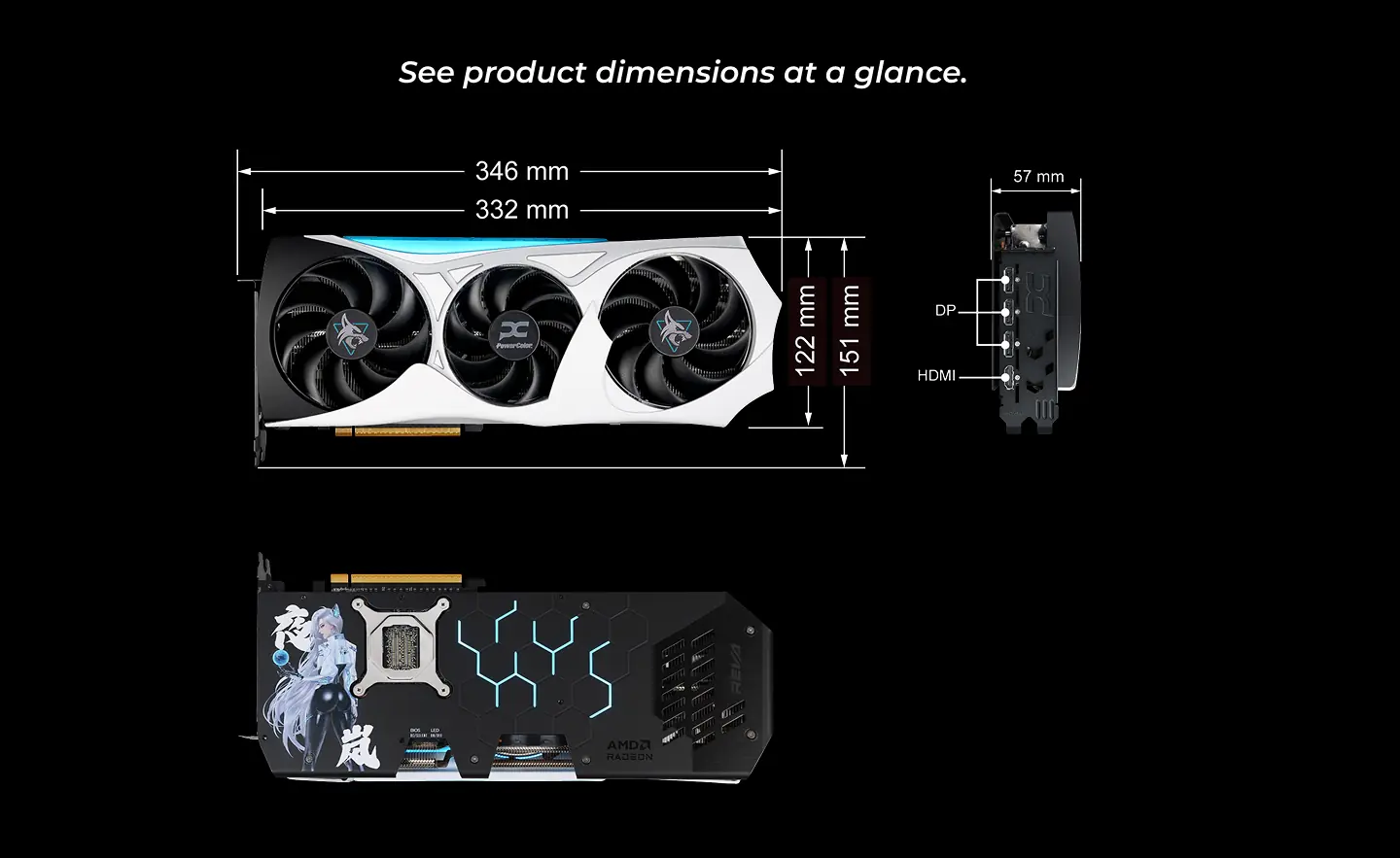

Board Dimensions
332mm*122mm*57mm
346mm*151mm*57mm(with bracket)
Slot
2.5
Minimum System Power requirement (W)
800W
Extension Power Connector
Two 8-pin PCI Express Power connectors
Remark
[1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
[2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
