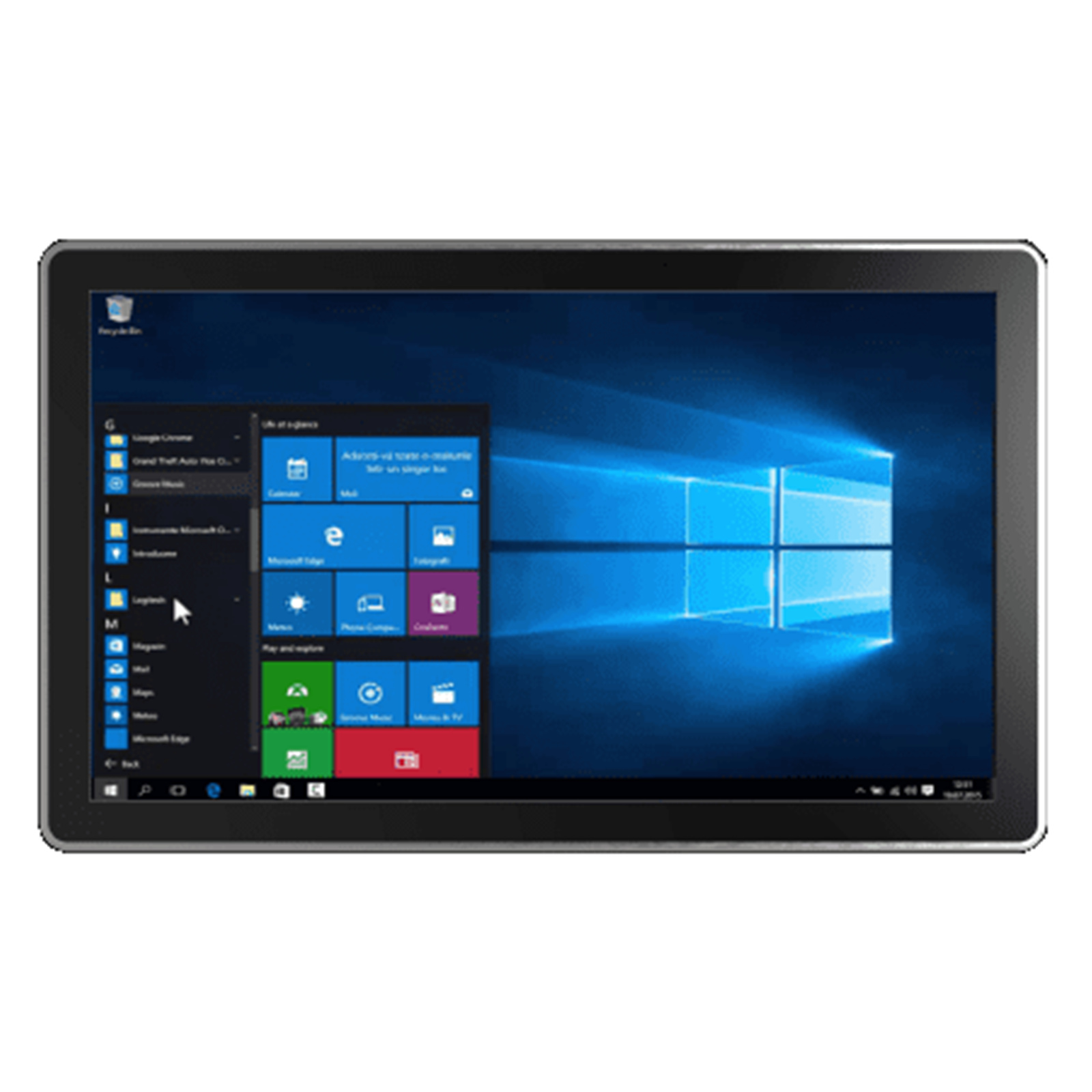

Winmate Panel PC W22IB7T-PPA3 21.5" Intel N2930, 4G/128G, Front IP65 PCAP 1920 x 1080, 250 nits, , 1xRJ45, 4xUSB, 3xRS232, Panel +VESA mount, Fanless Design

PB Tech price
PB Tech price
$ 2,388 .16
 +GST
$ 2,746 .38
 inc GST

Out of stock

Winmate Panel PC W22IB7T-PPA3 21.5" Intel N2930, 4G/128G, Front IP65 PCAP 1920 x 1080, 250 nits, , 1xRJ45, 4xUSB, 3xRS232, Panel +VESA mount, Fanless Design

  • Brand: Winmate
  • MPN: W22IB7T-PPA3
  • Part #: WKAWMAW22003
  • UPC:
PB Tech price
$ 2,388 .16 $ 2,746 .38
 +GST  inc GST

No store stock available.

Click & Collect: Click & Collect unavailable

Features

Real Flat Surface and Slim Design

The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.

Convenient Onscreen Operations with PCAP Multi-Touch

The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!

Front IP65 Water and Dust Proof

The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.

Rich I/O Interface for IoT Connectivity

The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.

Suitable for Industrial Automation

Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.

Specifications

Display

Size

21.5 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

250 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

Active Area

476.64x268.11 mm

System Specification

Processor

Intel Celeron N2930 1.83GHz (up to 2.16GHz)

Memory

2 x SO-DIMM, DDR3L 1600 MHz, 4GB
8GB (Optional)

Storage

1 x mSATA SSD 128GB
mSATA SSD up to 512GB (Optional)
1 x SATA II for 2.5" HDD (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Operating System

Windows 7 Embedded Systems (Optional)
Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

533 x 324 x 87 mm

Cut out

504 x 304 mm

Mounting

Panel mount
VESA Mount

Enclosure

Metal Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB3.2 Gen1x1 (Type-A)
3 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)
2 x RS232
1 x RS232 (Optional)

LAN

2 x Giga LAN RJ45 Connector

Video

1 x VGA

Audio

Mic in
Line in
Line out

Expansion Port

2 x mPCIe slot

Indicator

1 x LED Indicator for power
1 x LED Indicator for storage

Brightness Knob

1 x Brightness Adjustment Knob

PS/2

2 x PS/2

mini PCIe

3 x Mini PCIE

Power Input

1 x 12V DC, Din4 pin connector

Control

Button

1 x Power Button
1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter
Power Cord
VESA screws
Mounting clips

Power

Power Rating

12V DC

Adapter

12V 84W

Manufacturer Part No:
W22IB7T-PPA3
Brand:
Product Type:
-
UPC
-
Product Family:
Panel PC
Shipping Weight:
1 kg
PB Part No:
WKAWMAW22003
Product Model:
W22IB7T-PPA3
Warranty: 12 months *
