GigaIPC QBiX-Pro-ADLA1235H-A2 Industrial system with Intel Core i5-1235U Processor / Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI, DC Jack
GigaIPC QBiX-Pro-ADLA1235H-A2 Industrial system with Intel Core i5-1235U Processor / Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI, DC Jack
- Brand: GigaIPC
- MPN: 6BQP1235AMR-SI-3O45 (US)
- Part #: WKSGICQ20021
- UPC:
- Brand: GigaIPC
- MPN: 6BQP1235AMR-SI-3O45 (US)
- Part #: WKSGICQ20021
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-Pro-ADLA1235H-A2 Industrial system with Intel Core i5-1235U Processor / Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI, DC Jack
- Brand: GigaIPC
- MPN: 6BQP1235AMR-SI-3O45 (US)
- Part #: WKSGICQ20021

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20021/GigaIPC-QBiX-Pro-ADLA1235H-A2-Industrial-system-wi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Intel® Core™ i5-1235U Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 2 x 2.5GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ i5-1235U Processor
10nm Enhanced Superfin (Intel 7), 10 cores, 12 threads, up to 4.4 GHz
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V)
Graphics Support
Integrated Graphics Processor - Intel® Iris® Xe Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot

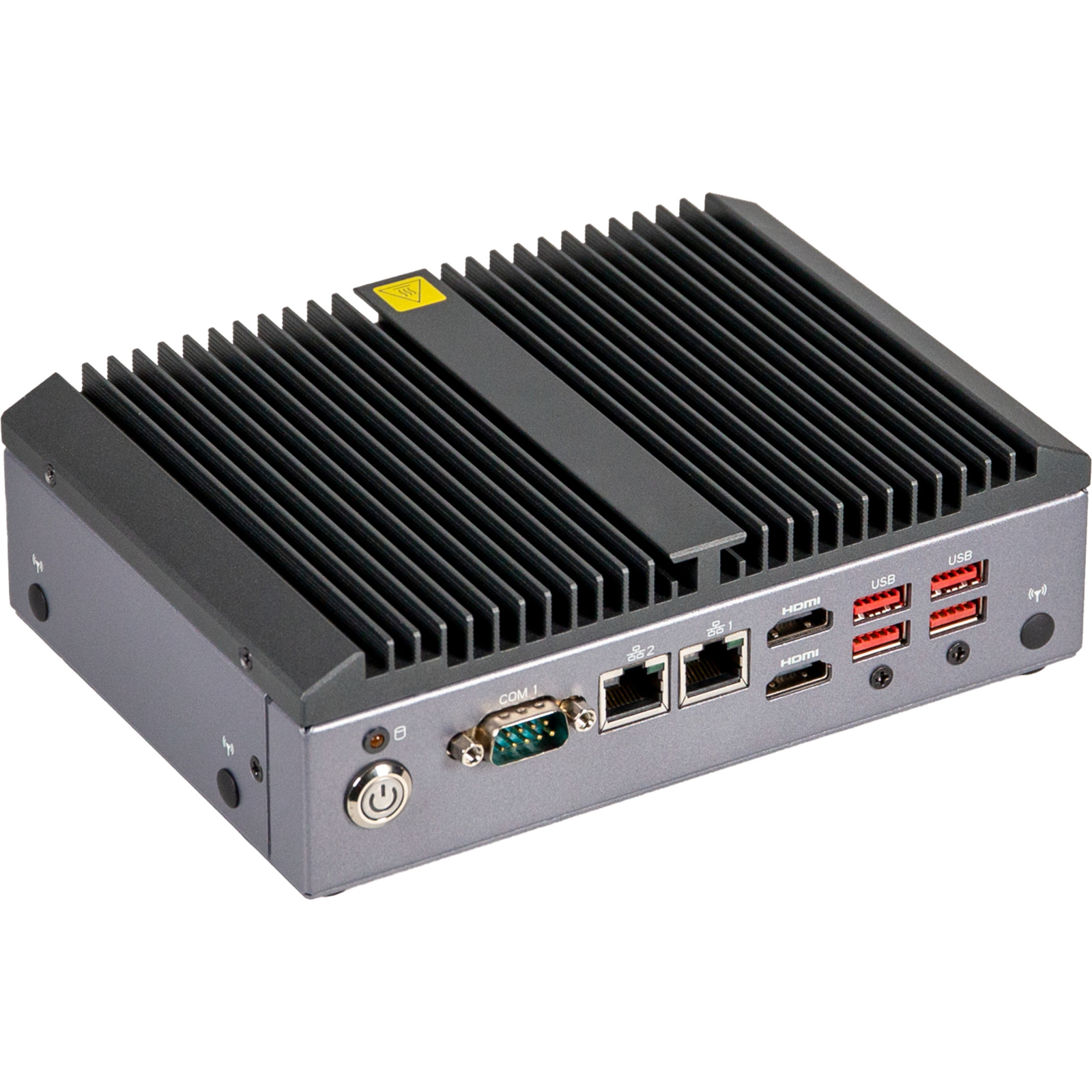

Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional)

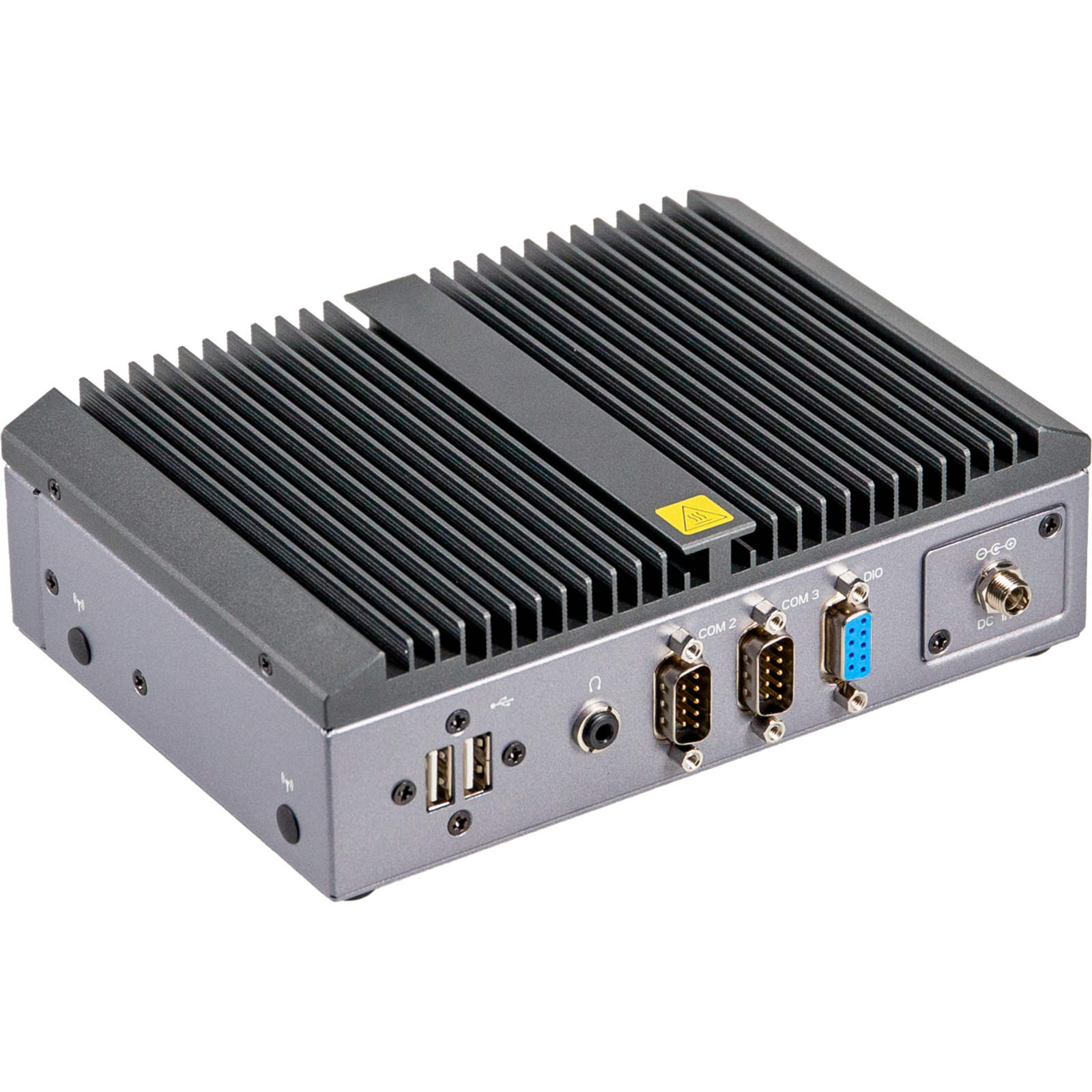

Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Adapter 19.5V/135W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 313 x 191 x 95 (mm)
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-070000-S9R)
Power Cord : Optional (by region)
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)
Mounting
Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)
Order Information
6BQP1235AMR-SI (Box Packing)
Optional Kit
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
