GigaIPC QBiX-Exp-TGLA1165G7H-A1 Fan-less industrial system with Intel Core i7-1165G7 processor 4x802.3af PoE, swappable 2.5" drive bay
GigaIPC QBiX-Exp-TGLA1165G7H-A1 Fan-less industrial system with Intel Core i7-1165G7 processor 4x802.3af PoE, swappable 2.5" drive bay
- Brand: GigaIPC
- MPN: 6BQE1165AMR-SI
- Part #: WKSGICQ20049
- UPC:
- Brand: GigaIPC
- MPN: 6BQE1165AMR-SI
- Part #: WKSGICQ20049
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC QBiX-Exp-TGLA1165G7H-A1 Fan-less industrial system with Intel Core i7-1165G7 processor 4x802.3af PoE, swappable 2.5" drive bay
- Brand: GigaIPC
- MPN: 6BQE1165AMR-SI
- Part #: WKSGICQ20049

Product URL: https://www.pbtech.co.nz/product/WKSGICQ20049/GigaIPC-QBiX-Exp-TGLA1165G7H-A1-Fan-less-industria
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Industrial system with Intel® Core™ i7-1165G7 Processor/ Fanless Design / Dual Channel DDR4 up to 64 GB/ 2 x HDMI
- System Size : 210.36W x 165D x 67H (mm)
- Intel® Core™ i7-1165G7 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 4 x GbE LAN Ports with PoE 15W/Port
- 2 x GbE LAN Ports
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
210.36W x 165D x 67H(mm)
CPU
Intel® Core™ i7-1165G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.7 GHz
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
4 x PoE GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® Iris Xe Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot

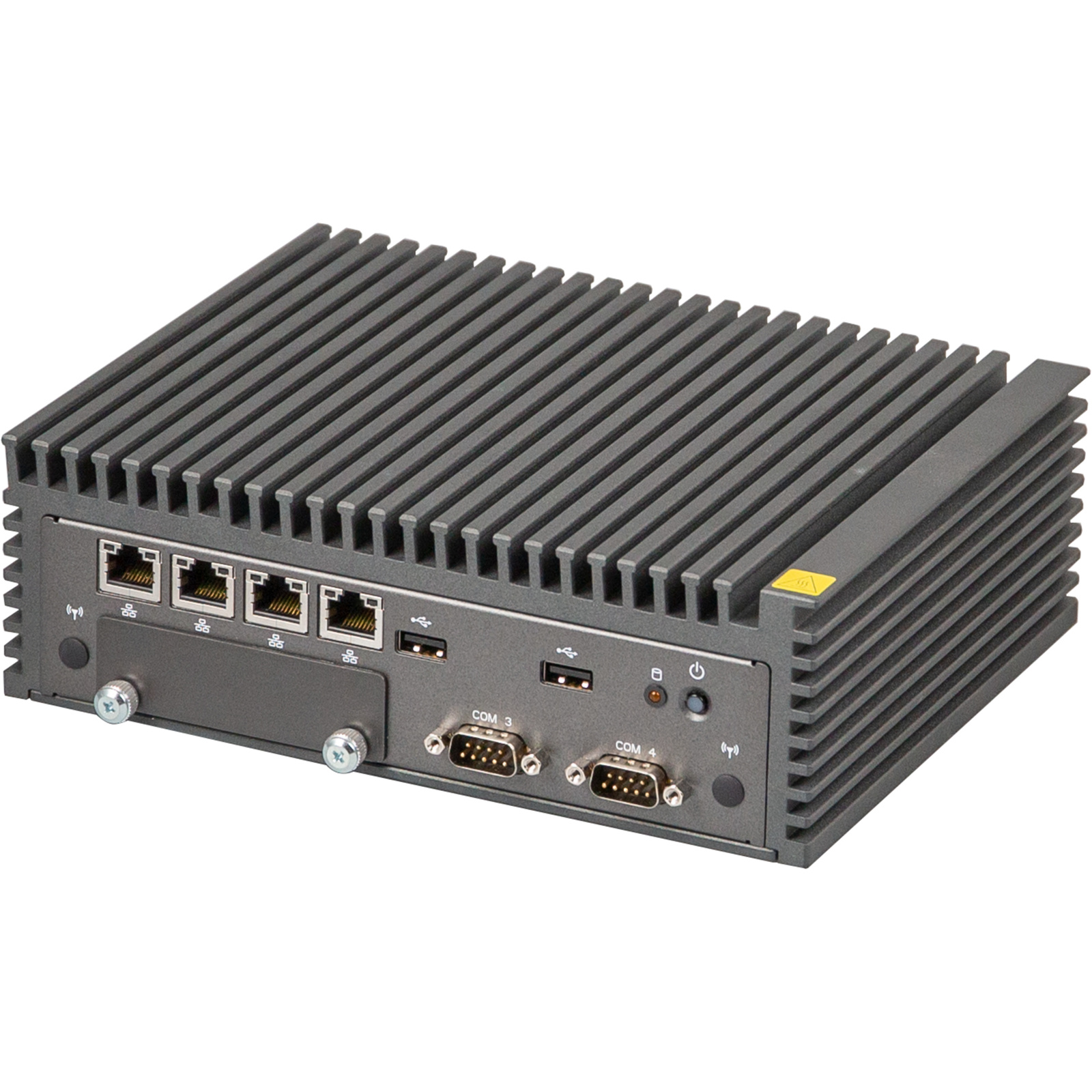

Front I/O
4 x RJ45 LAN Ports with PoE
2 x USB 2.0
1 x Power button with LED
1 x HDD LED
2 x COM Ports (RS-232/422/485)
2 x External Antenna Holes (Optional)

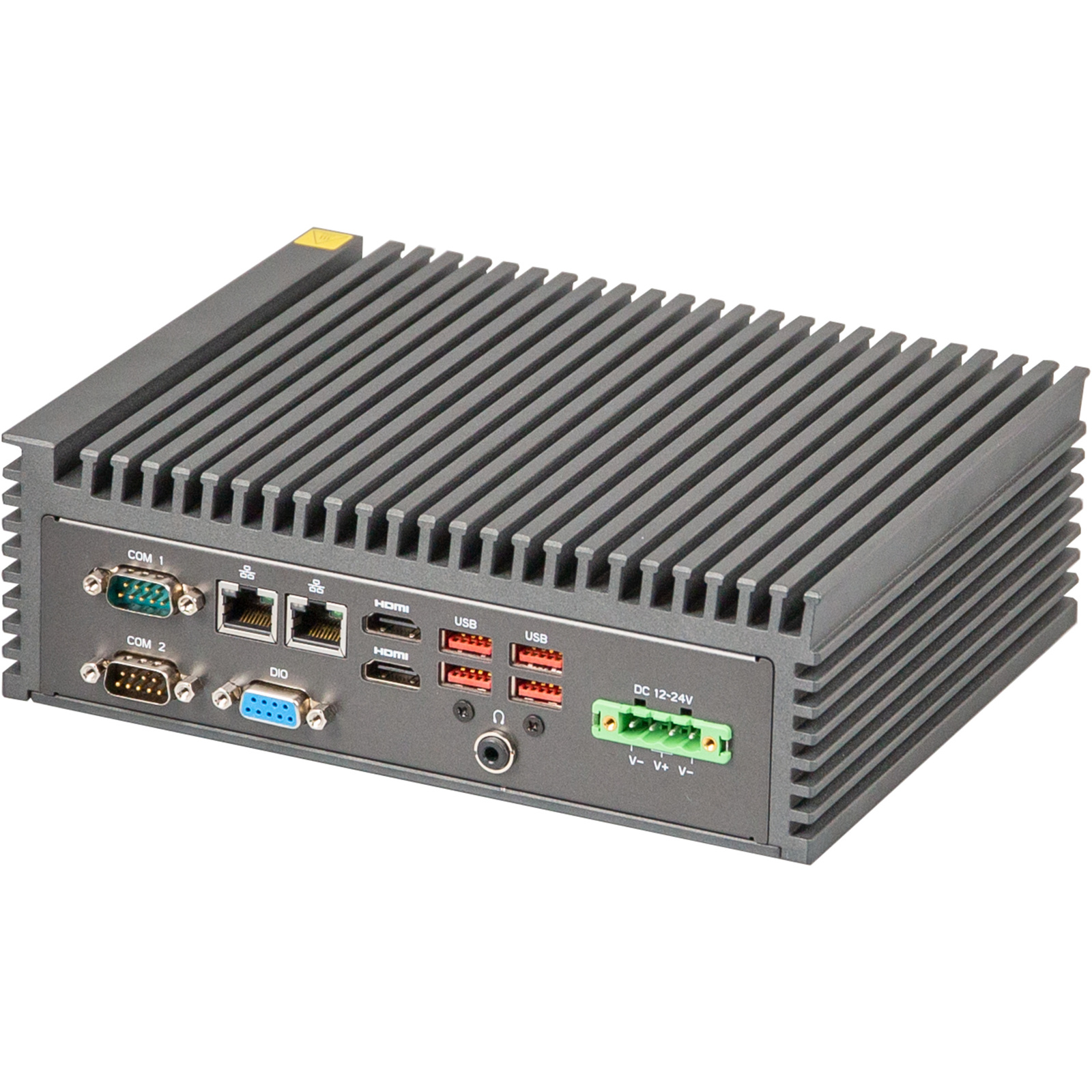

Rear l/O
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 4-pin Terminal Block
Power
+12~24VDC / 13A (PoE support)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 300 x 276 x 170 (mm)
Single Box weight: Approx. 4.0kg
Including:
Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Screw For 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
Mounting
Wall mount (Optional)
Order Information
6BQE1165AMR-SI (Box Packing)
