GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel J6412/8G/256GB
GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel J6412/8G/256GB
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1/8G/256GB
- Part #: WKSGICQBIX12002
- UPC:
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1/8G/256GB
- Part #: WKSGICQBIX12002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





GigaIPC Industrial system QBiX-Plus-EHLA6412-A1 Intel J6412/8G/256GB
- Brand: GigaIPC
- MPN: QBiX-Plus-EHLA6412-A1/8G/256GB
- Part #: WKSGICQBIX12002

Product URL: https://www.pbtech.co.nz/product/WKSGICQBIX12002/GigaIPC-Industrial-system-QBiX-Plus-EHLA6412-A1-In
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Key Features
- System Size : 165W x 105D x 27H (mm)
- Intel® Celeron® J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 3 x HDMI for Multiple display
- 2 x GbE LAN Ports
- Support Micro SD Card
- Support COM (RS-232 mode, pass through RJ45 Port)
Application
- Healthcare
- KIOSK
- Menu Board
- Digital Signage
- IoT System
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Dimension
165W x 105D x 27H (mm)
CPU
Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W
Memory
1 x 8GB DDR4 SO-DIMM
Storage
256GB
Ethernet
2 x GbE LAN Ports
Graphic
Support Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(3 independent display outputs)
Audio
Realtek® audio codec
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3042 M.2 B-key with SIM Slot (USB 3.2 Gen 1)

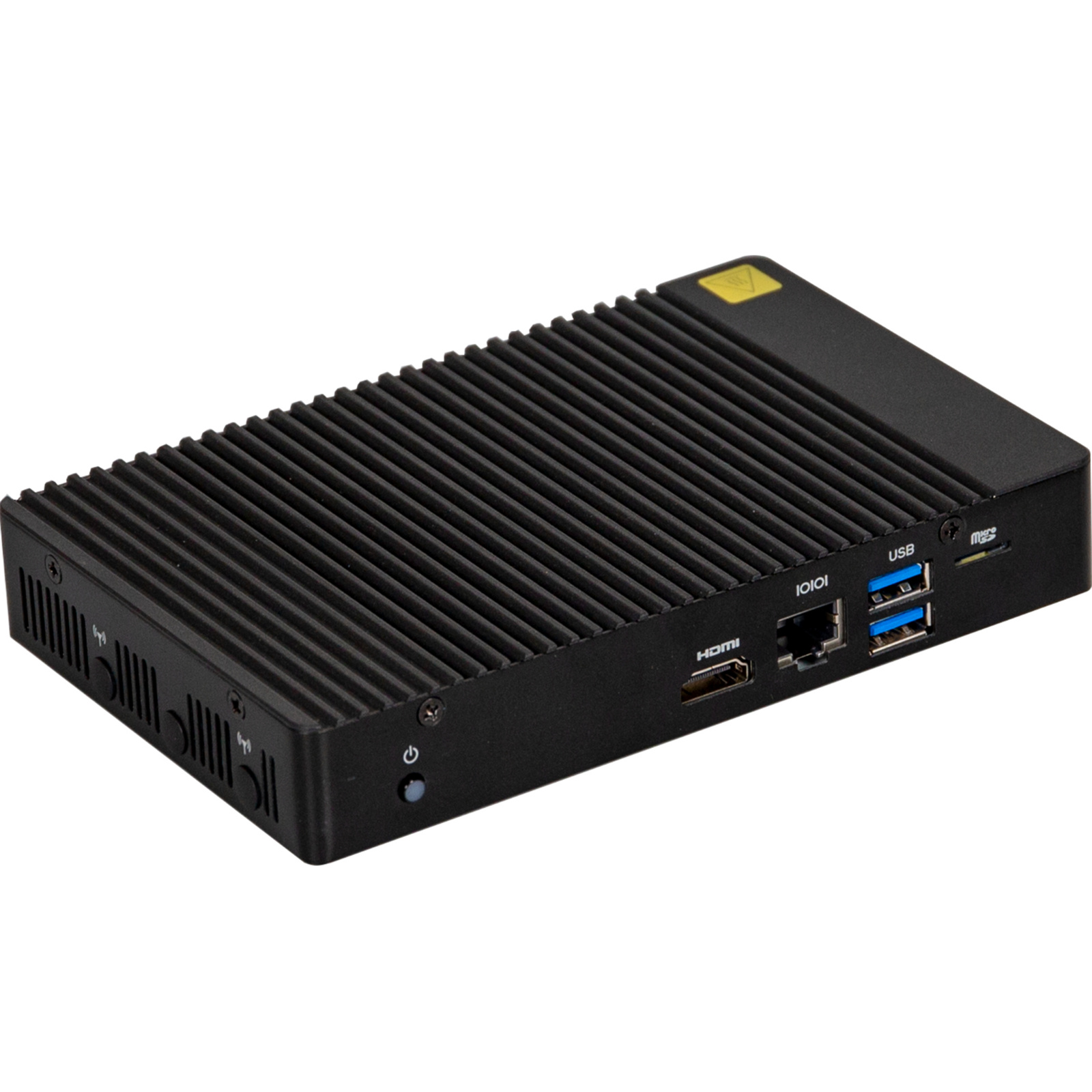

Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)(RJ45 Type)
1 x Micro SD card slot
1 x Power button
1 x HDMI

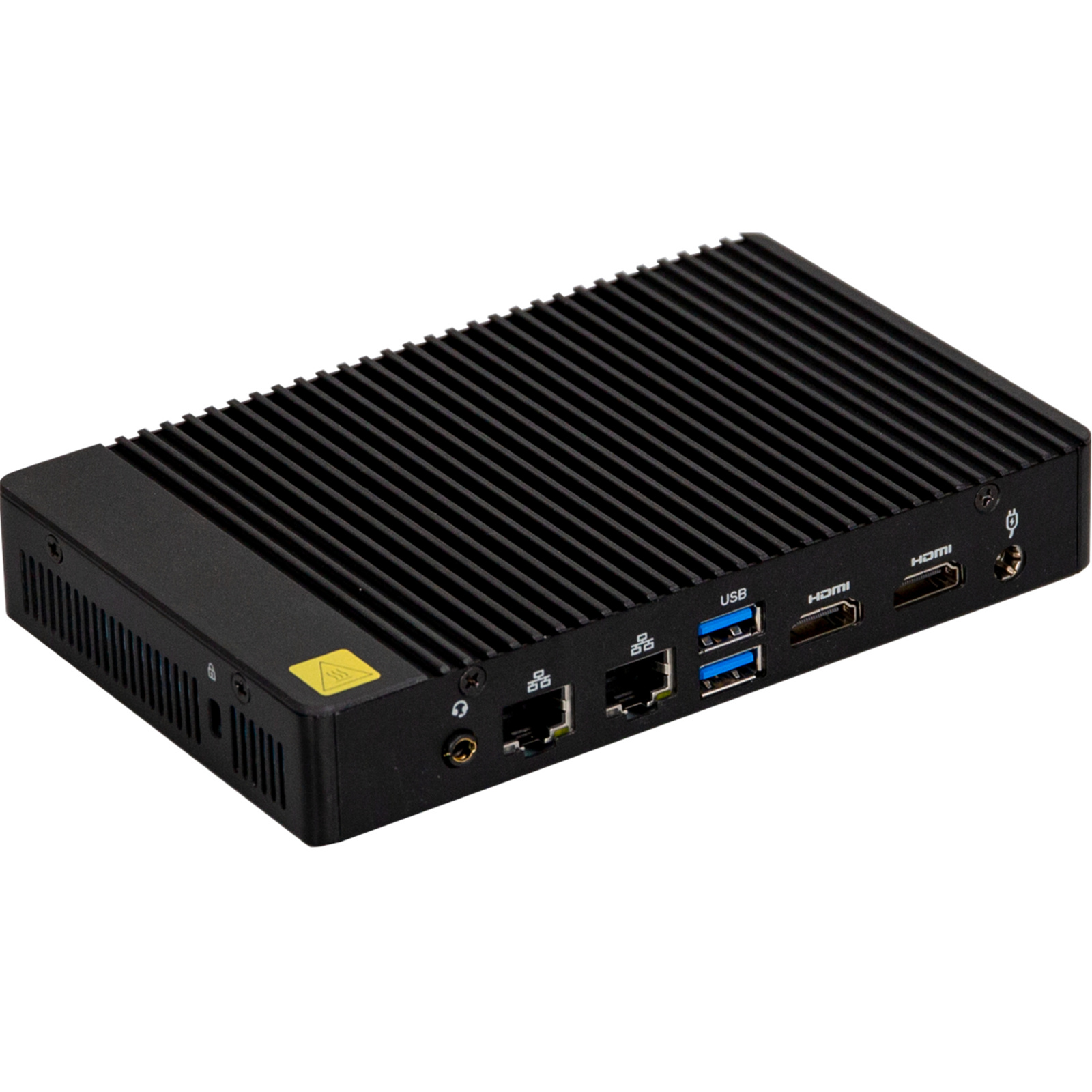

Rear I/O
1 x Headphone Jack
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x HDMI
1 x DC Jack
Side I/O
3 x External Antenna Holes (Optional)
Power
+12~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Vibration
During Operation Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Packaging Content
Carton size: 416 x 359 x 257 (mm)
Packing Capacity: 10pcs
Single Box size: 209 x 169 x 75 (mm)
Single Box weight: Approx. 1.5kg
Including:
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065U-A3S)
RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R)
VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R)
VESA Mount screws x 1 (P/N: 25KSD-000002-C0R)
