Features
Intelligent System AGS103T Compact IoT Gateway Edge Computing System with Intel® Atom® x6414RE/x6212RE Processors
- Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
- GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
- Over/Under/Reverse voltage protection
- Extended operating temperature from -20°C to 70°C
- 9V~36V DC wide-range power input
- 1x M.2 B-Key 3052 support 5G module
- Optional 1x 2.5" SSD (AGS103TS)
- 3x 2.5G Ethernet ports
- 2x full-size Mini PCI-E
- 4x COM (RS232/422/485), 2x USB 3.1 & 2x USB 2.0
- Supports DIN-rail mount, wall mount & TPM 2.0

Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System Mainboard
IB803T
CPU Type
Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)
Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
System Speed
Up to 1.5GHz
Memory
1x DDR4 SO-DIMM , Max. 16GB

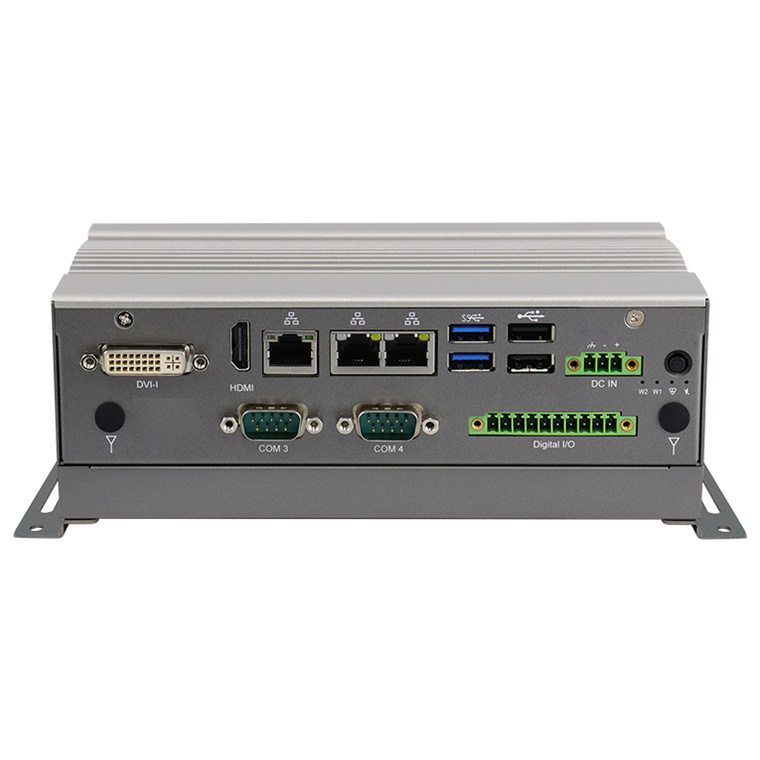

Rear Panel External I/O
1x DVI-I + 1x HDMI
2x USB 3.1 ports, 2x USB 2.0 port
3x RJ45 2.5G Ethernet port
4x LED indicators (GPIO, WLAN, WWAN)
1x power button with Green LED
1x 3-pin DC-in terminal block for 9V-36V
2x Antenna hole for WLAN module
2x RS232/422/485 ports for COM#3/COM#4
1x 4-in & 4-out GPIO

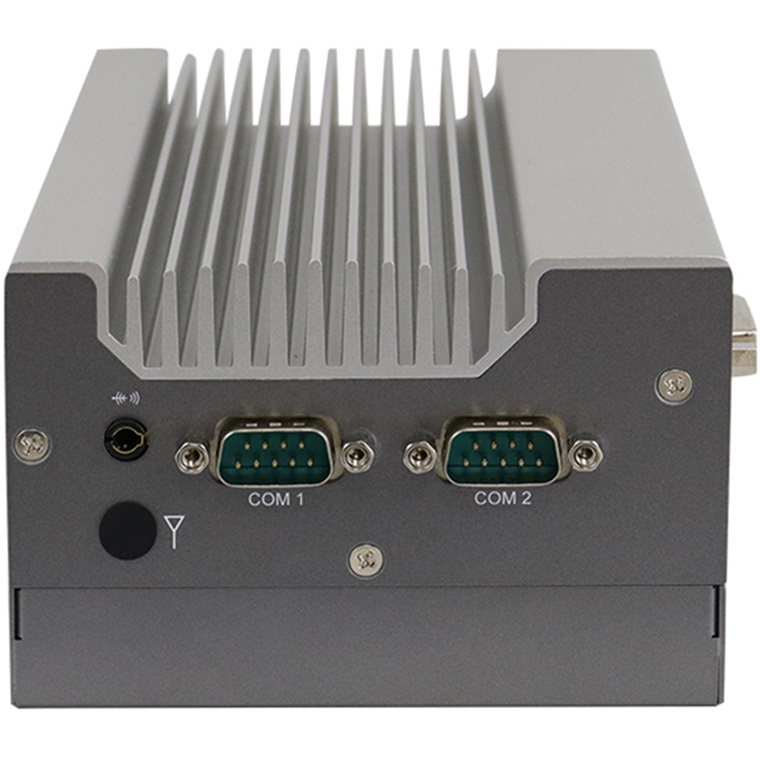

Left Panel External I/O
2x RS232/422/485 ports for COM#1/COM#2
1x Antenna hole for WLAN module
1x Line-out/ Mic-in

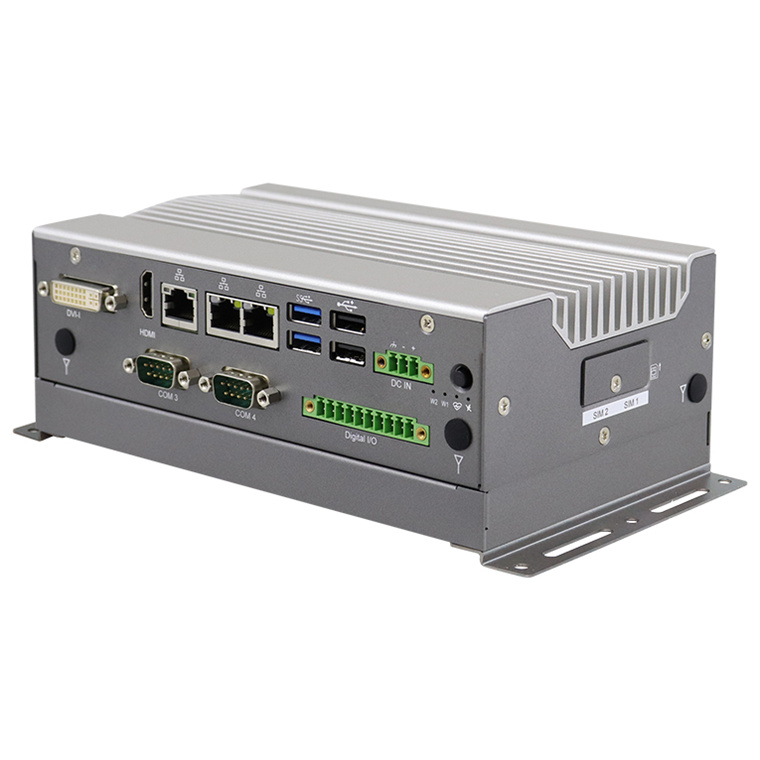

Right Panel External I/O
2x SIM card slot
1x Antenna hole for WLAN module
Expansion Slots
1x Full-size Mini PCI-E socket (USB 2.0)
1x Full-size Mini PCI-E socket (USB 2.0 + SATA)
1x M.2 B-Key socket (USB 3.0 + PCI-E)
Storage
1x Mini PCI-E slot (mSATA SSD),1x 2.5'' SSD (AGS103TS)
Construction
Aluminum & steel
Chassis Color
Silver & Gray
Mounting
DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Dimensions
AGS103T :
218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit
8.58"(W) x 4.33mm(D) x 2.05mm (H)
AGS103TS :
218mm(W) x 110mm(D) x 73mm (H) w/ Wall-mount kit
8.58"(W) x 4.33mm(D) x 2.87mm (H)
Weight
1.2kg
Operating Temperature
-20°C~70°C (-4°F~158°F)
Storage Temperature
-40°C ~ 85°C (-40°F~185°F)
Relative Humidity
5~90% @ 60°C, (non-condensing)
Vibration
Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock
Operating: 30G/11 ms Duration
Non-operating: 40G/11 ms Duration
Certification
CE/ FCC/ LVD
Operating Systems
Win10 and Linux Ubuntu
