iBASE ASB200-915-i5-DC Embedded Computing (ASB), Chassis with IB915AF-6300 embedded board , w/ Intel Core i5-6300U (2.4GHz/3.0GHz) onboard, 4 x COM, desktop stand & mounting brackets , DDR3L 2GB x 2, 84W power adapter x 1 DC-jack type, w/o
- Brand: iBASE
- MPN: WKSIBA2001
- Part #: WKSIBA2001
- UPC:
- Brand: iBASE
- MPN: WKSIBA2001
- Part #: WKSIBA2001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Accessories





iBASE ASB200-915-i5-DC Embedded Computing (ASB), Chassis with IB915AF-6300 embedded board , w/ Intel Core i5-6300U (2.4GHz/3.0GHz) onboard, 4 x COM, desktop stand & mounting brackets , DDR3L 2GB x 2, 84W power adapter x 1 DC-jack type, w/o
- Brand: iBASE
- MPN: WKSIBA2001
- Part #: WKSIBA2001

Product URL: https://www.pbtech.co.nz/product/WKSIBA2001/iBASE-ASB200-915-i5-DC-Embedded-Computing-ASB-Chas
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Fanless system with IBASE IB915 3.5" Disk-Size SBC
- Onboard 6th Gen Intel® Core™ U-series processor
- iSMART- for auto-scheduler and power resume
- Supports 1x Mini PCI-E (full-size)
- Supports 1x 2.5" SATA HDD
- 1x USB 3.1 port type-c, 4x USB 3.0 ports
- 12V~24V DC wide-range power input
- Wall mount kit included

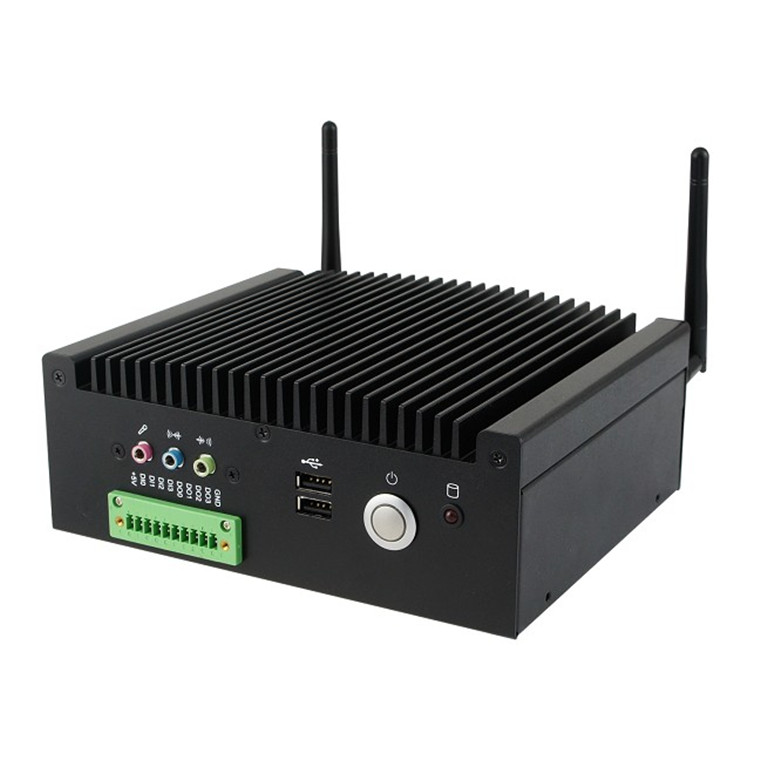

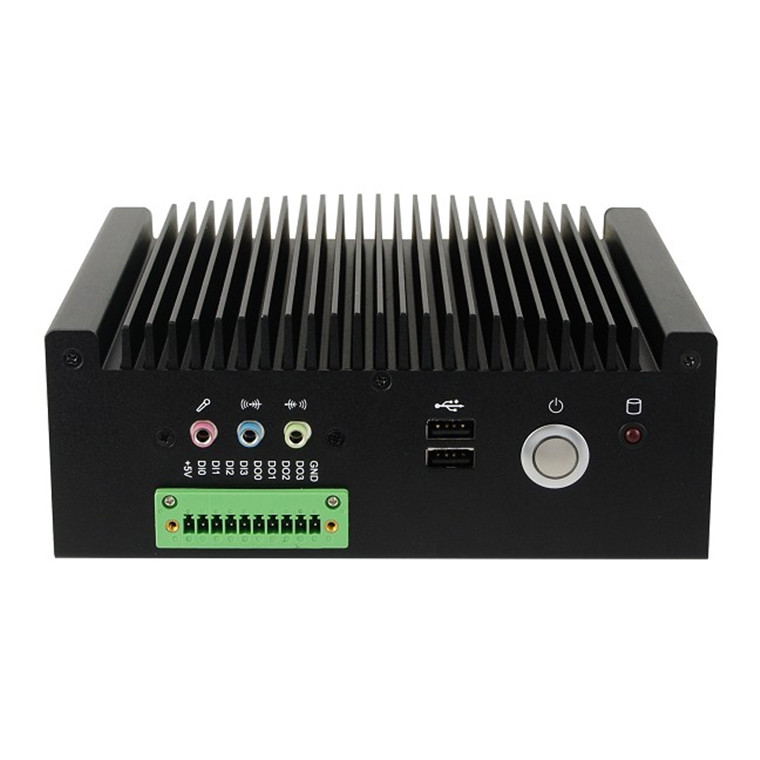

The ASB200-915 is a compact fanless system that uses the IBASE IB915-series 3.5-inch SBC and has 4GB DDR3L-1600 memory on board. It comes with a robust design and useful features that make it an ideal solution for control systems in factory automation, power plants, transportation and other applications in harsh environment conditions. The unit is provided with wall mount brackets and an optional VESA mount bracket, allowing it to be attached to a flat panel monitor. The ASB200-915 supports a 12V~24V DC wide-range power input terminal block on the rear of the system, as well as a -10°C~50°C wide-range operating temperature with the standard 64GB MLC SSD storage. Also located on the rear are four serial ports, one USB 3.1 port, four USB 3.0 ports, a DisplayPort and two Gigabit Ethernet connectors. Front I/Os consist of the power button, two USB 2.0, audio jacks, HDD and digital I/O.
There are three processors to choose from, including 6th Gen Intel® Core™ i7 6600U, i5 6300U and i3 6100U. All ASB200-915 systems are configured with iSMART power on/off scheduler and power resume functionality. There is also an optional 84W power adaptor is optional.
