iBASE AMI220AF Embedded Computing Aluminum Chassis with MB220AF(Q170 PCH), Fanless Design with Intel Core i5-6500TE (2.3GHz) CPU, 4GB x 2 DDR4 SO-DIMM, 2.5" 64GB MLC industrial-grade SSD, without Power adaptor, Supporting vPro & iAMT 11.0,
Out of stock
iBASE AMI220AF Embedded Computing Aluminum Chassis with MB220AF(Q170 PCH), Fanless Design with Intel Core i5-6500TE (2.3GHz) CPU, 4GB x 2 DDR4 SO-DIMM, 2.5" 64GB MLC industrial-grade SSD, without Power adaptor, Supporting vPro & iAMT 11.0,
- Brand: iBASE
- MPN: AMI220AF
- Part #: WKSIBA220A
- UPC:
- Brand: iBASE
- MPN: AMI220AF
- Part #: WKSIBA220A
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Accessories





iBASE AMI220AF Embedded Computing Aluminum Chassis with MB220AF(Q170 PCH), Fanless Design with Intel Core i5-6500TE (2.3GHz) CPU, 4GB x 2 DDR4 SO-DIMM, 2.5" 64GB MLC industrial-grade SSD, without Power adaptor, Supporting vPro & iAMT 11.0,
- Brand: iBASE
- MPN: AMI220AF
- Part #: WKSIBA220A

Product URL: https://www.pbtech.co.nz/product/WKSIBA220A/iBASE-AMI220AF-Embedded-Computing-Aluminum-Chassis
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The AMI220 is an expandable modular fanless system supporting the 7th/6th generation Intel® Core™ i7/i5/i3 desktop processors designed for industrial-grade solutions in smart factory automation and retail applications.
- Fanless system supports IBASE MB220 customized board
- Supports 7th/6th Generation Intel ® Core™ i7/i5/i3 processors (35W TDP)
- Supports three independent display outputs
- Flexible expansion slot system
- Dual SIM sockets support WWAN redundancy
- 12V to 24V DC wide-range voltage input
- Over/Under/Reverse voltage protection
- iSMART, iAMT 11.6, TPM 2.0
It is an innovative fanless and cable-free system built with an efficient passive finned heat sink and an industrial-grade motherboard that has a rich I/O interface and a power supply with over-voltage, low voltage and anti-plug protection. The AMI220 comes with modular expansion slots to accommodate diverse PCI-E, PCI or Fieldbus cards, which can be arbitrarily changed to increase system assembly flexibility and create the ideal solution according to customer specification needs. The systems are based on the Intel® Q170 and the H110 chipsets and powered by Intel® Core processors with speeds up to 3.4GHz. These platforms feature 8GB of DDR4-2133 system memory expandable to 32GB, triple independent displays via its DVI/VGA/DP interface and 2x Gigabit LAN with option to add a third GbE.
The rugged AMI220 series is suitable for demanding applications in harsh environments. It has an operating temperature range of -10°C to 50°C with enhanced passive cooling for maximum thermal performance. It also supports 12V to 24V wide-range voltage input and a cable-less design for added durability and reliability. The redundant dual SIM sockets provide a more reliable WWAN connection for critical applications. Standard features include 8x USB, 4x COM, a wall-mount kit, a 64GB industrial-grade SSD storage and a 2nd storage option for RAID (0/1) function.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System Mainboard
MB220AF with Intel® Q170 PCH
CPU Type
Intel i5-6500TE
System Speed
2.3GHz
Memory
2x 4GB DDR4. Max. 32GB, 2400MHz
Construction
Aluminum & steel
Chassis Color
Sliver & Gray (Aluminum)

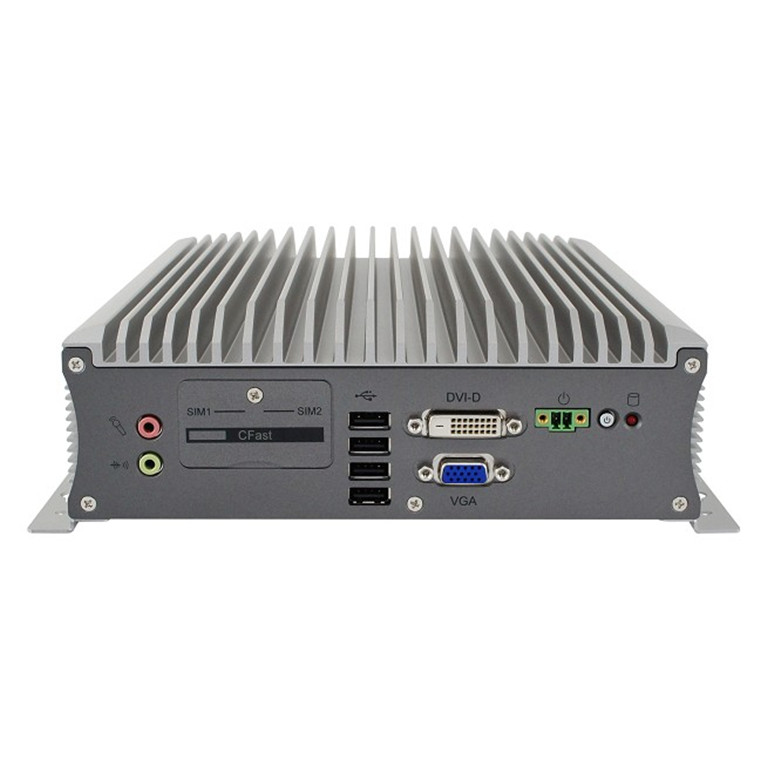

Front Panel External I/O
1x DVI-D + 1x VGA
1x Audio jack for MIC-in / Line-out
4x USB 2.0 ports
1x red HDD LED
1x power button with green LED indicator
1x CFast socket, 2x Sim card slot
1x 2-pins terminal block for external power button

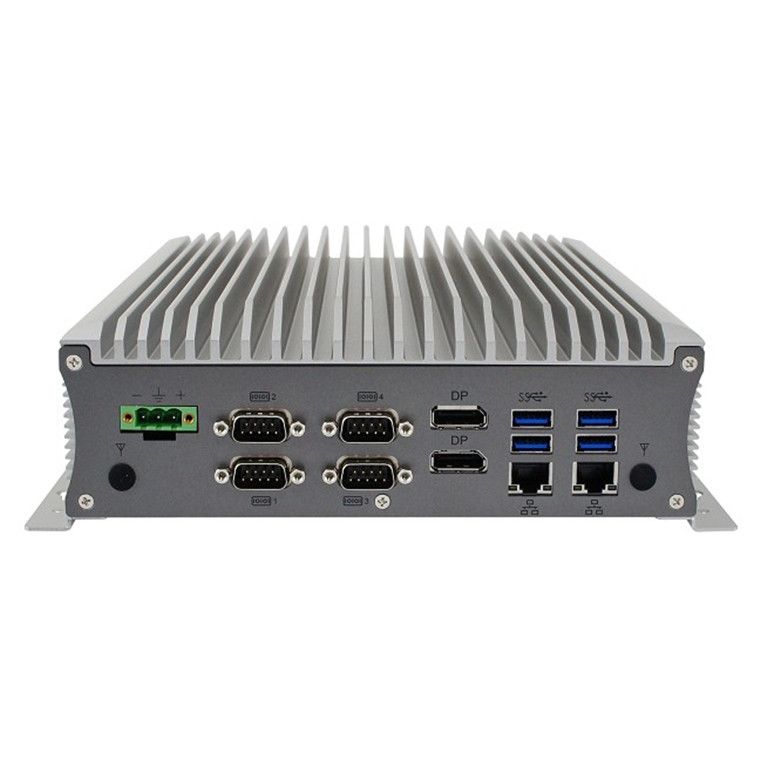

Rear Panel External I/O
1x RS232/RS422/485 port for COM#1
3x RS232 port for COM#2/COM#3/COM#4
2x DisplayPort connector
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports
1x 3 pins DC-in terminal block type for 12V~24V
2x Antenna hole
Expansion Slots
2x Mini PCI-E sockets + 1x CFast slot
Storage
2.5" 64GB MLC industrial-grade SSD
2x mSATA (AMI220AF only)
RAID 0,1,5,10 supported (AF version only)
Mounting
Desktop or wall mount (wall mount kit included)
Weight
3.6kg
Dimensions
210mm (W) x 265mm (D) x 77mm (H)
Operating Temperature
-10°C to 50°C (14°F~122°F)
Storage Temperature
-20°C ~ 80°C (-4°F~176°F)
Relative Humidity
5~90% @ 45°C, (non-condensing)
Vibration
Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing: 0.25 grms / 5~500Hz / random operation
Shock
Operating: 20G/ 11ms;
Non-Operating: 40G/ 11ms (MIL-STD-810G)
Certification
CE / LVD / FCC Class B
